Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#16375) — 310 parça

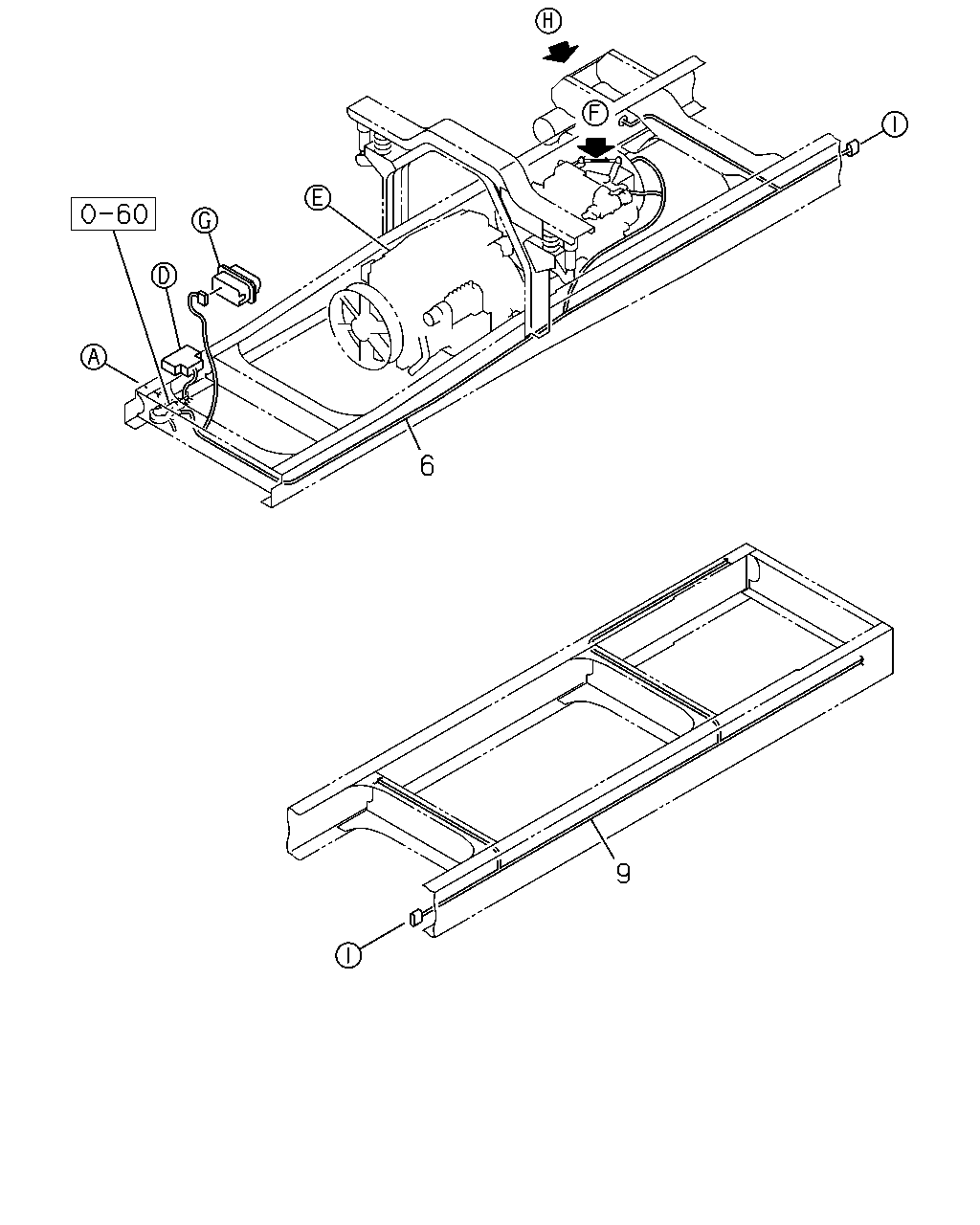

6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-132-3	01	1	9601-9803	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82670-544-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82673-128-2	01	1	0005-0308		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-114-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82639-114-3	01	1	9804-0004	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82673-111-1	01	1	0005-0308	●	●
6	HARNESS; FRAME	1-82673-111-1	01	1	0309-0401		●
6	HARNESS; FRAME	1-82677-481-0	01	1	0402-0409		●
6	HARNESS; FRAME	1-82678-018-0	01	1	0410-		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-115-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-128-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82639-128-3	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-131-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82670-555-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82673-119-2	01	1	0005-0308	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82673-119-2	01	1	0005-0308		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-129-3	01	1	9601-9803		●
9	HARNESS; FRAME,RR 6HH1 STD ENG(65L)	1-82639-167-2	01	1	9601-0308	●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L)	1-82639-139-2	01	1	9601-0308	●
9	HARNESS; FRAME,RR 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W)	1-82639-145-2	01	1	9601-		●
9	HARNESS; FRAME,RR 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W)	1-82639-147-2	01	1	9601-0308		●
9	HARNESS; FRAME,RR 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W)	1-82639-148-3	01	1	9601-0308		●
9	HARNESS; FRAME,RR 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W)	1-82639-149-3	01	1	9601-		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-82639-140-3	01	1	9601-0004		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-82673-149-0	01	1	0005-0308		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W)	1-82639-141-3	01	1	9601-0004		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W)	1-82673-150-0	01	1	0005-0308		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-82639-142-3	01	1	9601-0004		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-82671-470-0	01	1	0005-0308		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W)	1-82639-143-4	01	1	9601-0004		●
9	HARNESS; FRAME,RR 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W)	1-82670-187-0	01	1	0005-0308		●

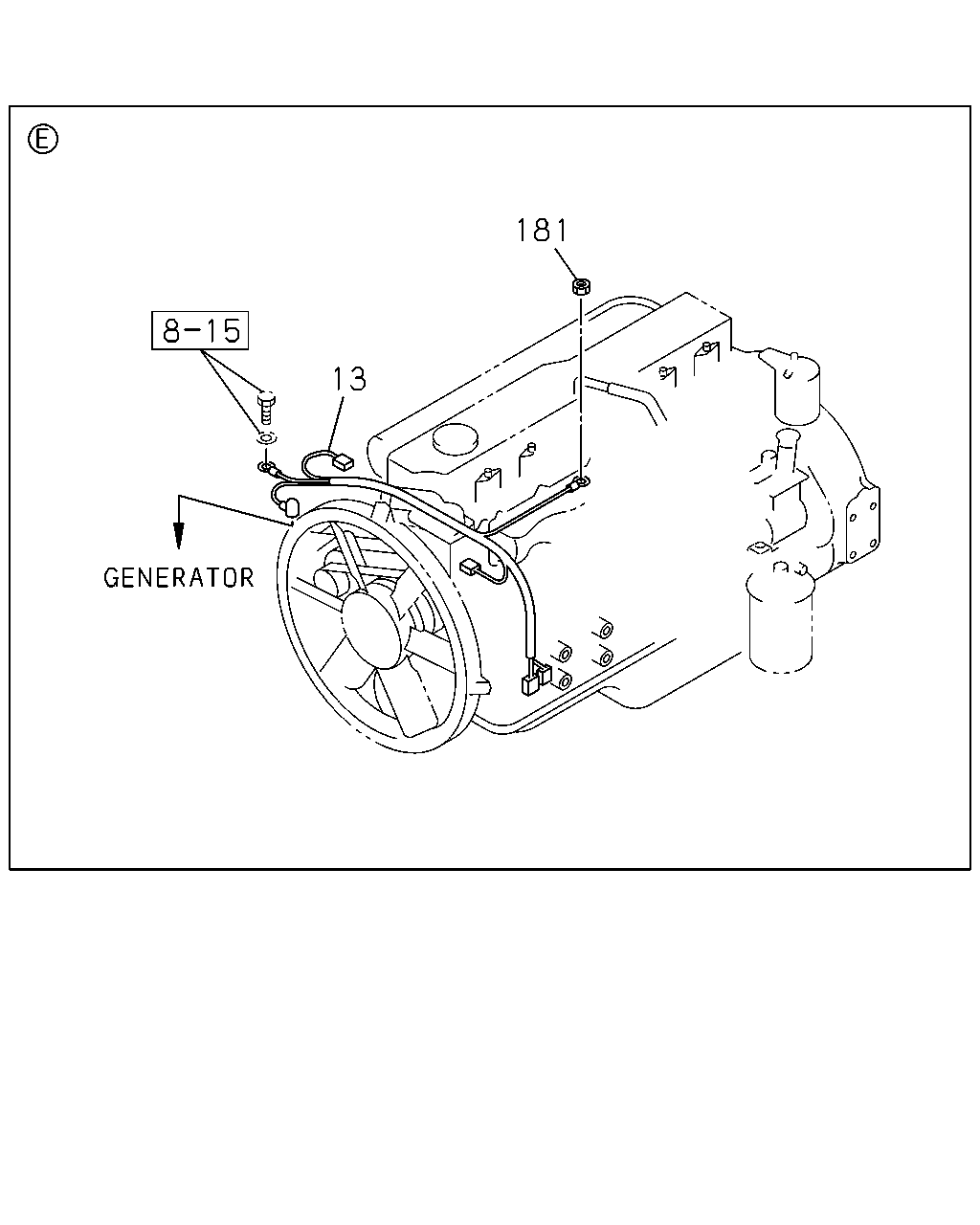

181 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG 6HH1 STD ENG(65L)	1-82640-714-0	01	1	9601-0308	●	●
13	HARNESS; ENG	1-82640-714-0	01	1	0309-		●
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	9601-0308	●	●
181	NUT; GLOW PLUG HARNESS 6HH1 STD ENG(65L) M4 FLANGE	5-09440-007-0	01	1	0309-		●

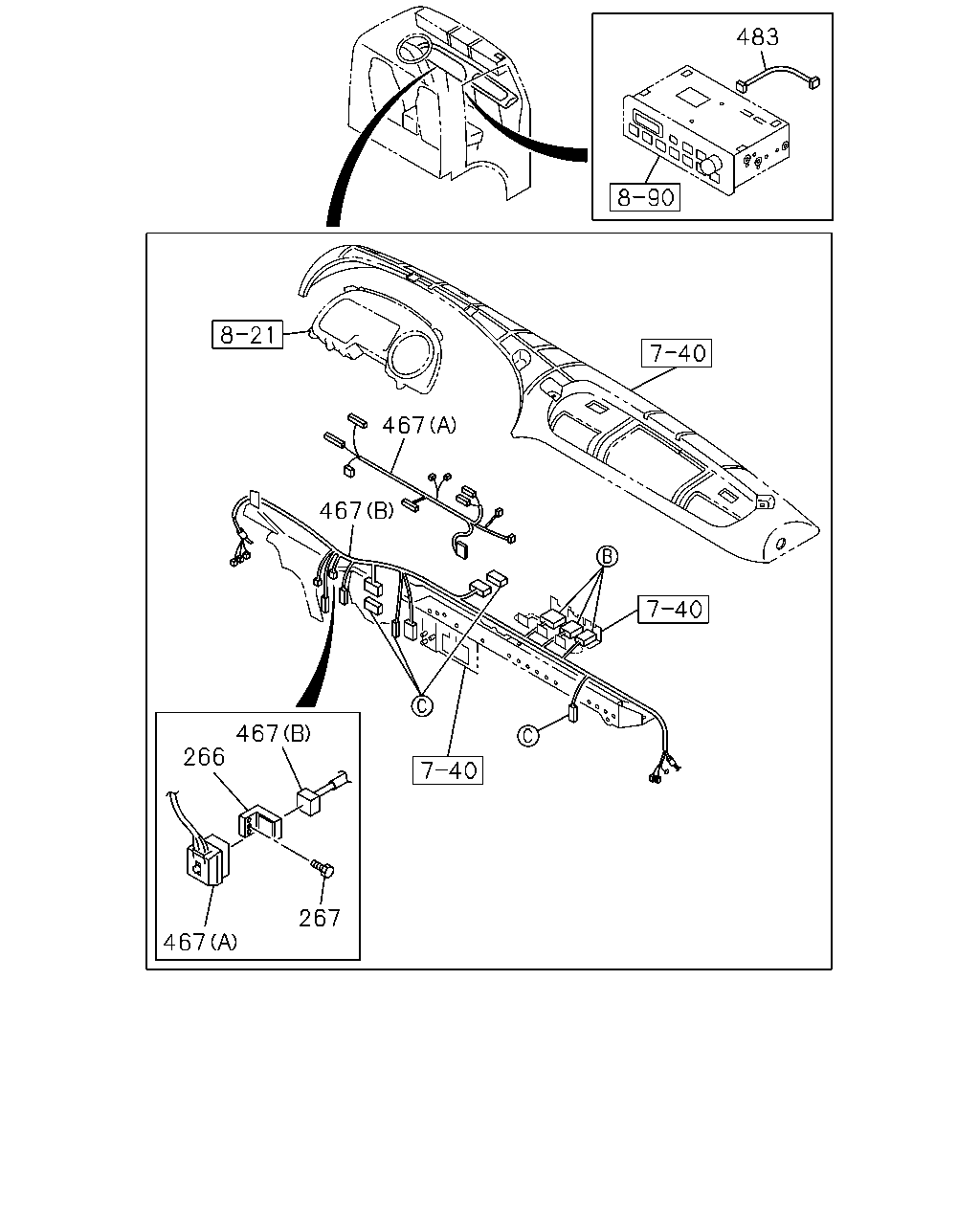

483 467 467 467 266 267 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
266	BRACKET; CONN BOX	1-82699-580-0	01	1	9601-0308	●	●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0309-		●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	9601-0308	●	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0309-		●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-2	01	1	0201-0308	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9601-9803	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82627-151-1	01	1	9804-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0201-0308	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9601-9803	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82627-149-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0112	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0201-0308	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0309-0607		●
467	HARNESS; FACIA 6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0608-		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9601-9803	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9804-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0201-0308	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0309-		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82627-152-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82627-150-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0005-0308	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-6	01	1	9601-9803	●	●
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-6	01	1	9601-9803	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-2	01	1	0309-0409		●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82662-592-1	01	1	0410-		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0309-0409		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82662-590-1	01	1	0410-		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0309-0409		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82662-591-1	01	1	0410-		●
483	HARNESS; EXT,RADIO RADIO CLARION(SK2)	8-98075-645-0	01	1	0703-		●

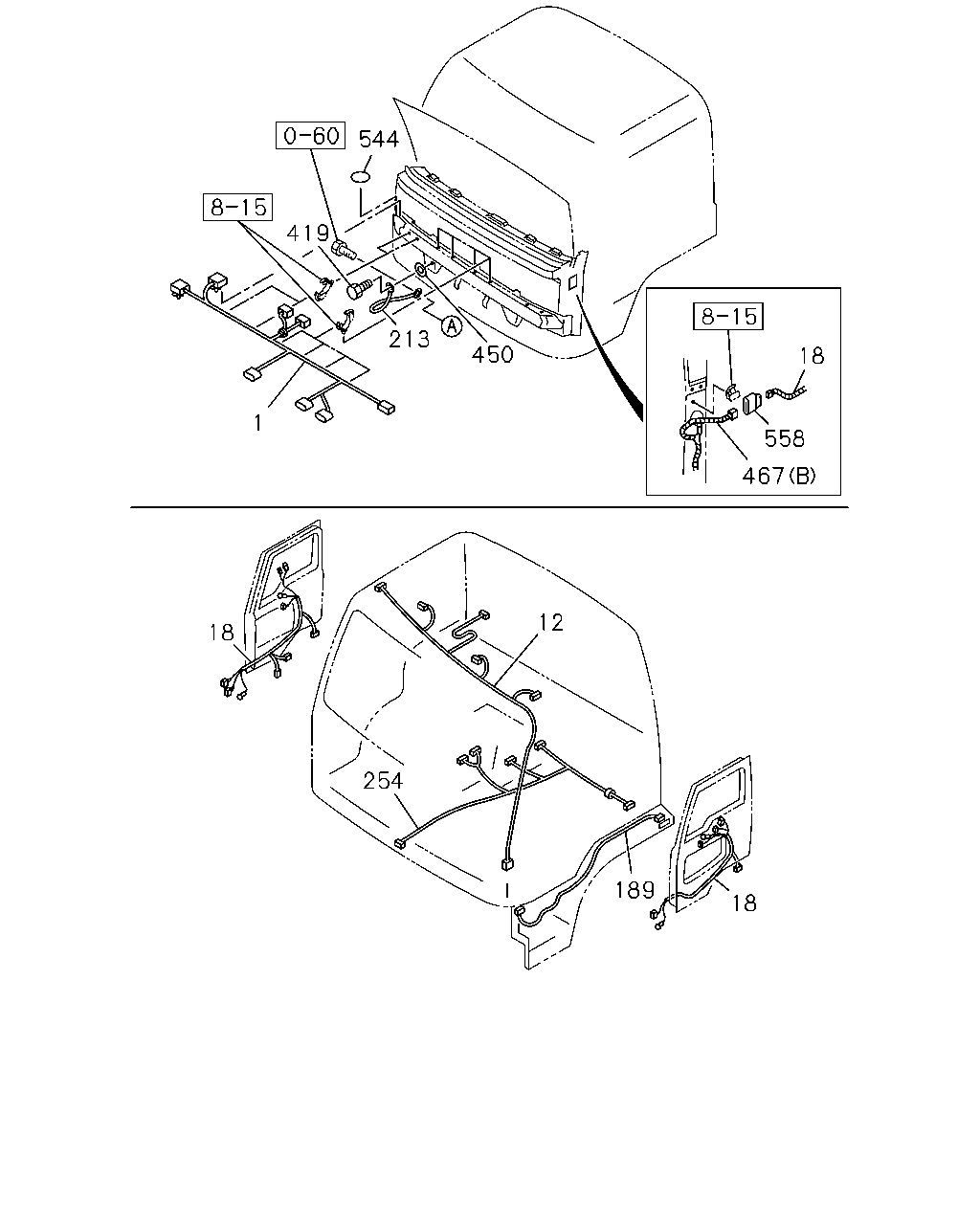

544 419 213 450 18 1 558 467 12 18 254 189 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-718-3	01	1	9601-9803	●	●
1	HARNESS; CAB	1-82627-131-0	01	1	9804-0004	●	●
1	HARNESS; CAB	1-82625-725-3	01	1	0005-0112	●	●
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	0201-0308	●	●
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	0309-0607		●
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	0608-		●
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-718-3	01	1	0201-0308	●	●
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-718-3	01	1	0309-		●
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	9601-9803	●	●
12	HARNESS; ROOF HIGH ROOF<S2F>	1-82625-714-4	01	1	9601-9803	●	●
12	HARNESS; ROOF LOW ROOF<6XQ>	1-82625-713-2	01	1	9601-9803	●	●
12	HARNESS; ROOF	1-82625-713-4	01	1	9804-0308	●	●
12	HARNESS; ROOF	1-82625-713-4	01	1	0309-		●
18	HARNESS; DOOR POWER WINDOW<A30>	1-82625-721-1	01	1	9601-9610	●	●
18	HARNESS; DOOR POWER WINDOW<A30>	1-82626-787-0	01	1	9611-9803	●	●
18	HARNESS; DOOR POWER WINDOW<A30>	1-82625-723-1	01	1	9601-9610	●	●
18	HARNESS; DOOR POWER WINDOW<A30>	1-82626-789-0	01	1	9611-9803	●	●
189	HARNESS; EXT	1-82625-673-2	02	1	9601-0308	●	●
189	HARNESS; EXT	1-82625-673-2	02	1	0309-		●
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	9601-0004	●	●
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	0005-0308	●	●
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	0309-		●
254	HARNESS; CAB FLOOR	1-82625-711-4	01	1	9601-0004	●	●
254	HARNESS; CAB FLOOR	1-82629-307-3	01	1	0005-0308	●	●
254	HARNESS; CAB FLOOR	1-82629-307-3	01	1	0309-		●
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9601-9604	●	●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9605-0004	●	●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0005-0308	●	●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0309-1201		●
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-		●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	9-09164-608-0	01	1	0205-0308	●	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	9-09164-608-0	01	1	0309-0605		●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	0-91614-608-0	01	1	0606-		●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-2	01	1	0201-0308	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9601-9803	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82627-151-1	01	1	9804-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0201-0308	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9601-9803	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82627-149-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0112	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0201-0308	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0309-0607		●
467	HARNESS; FACIA 6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0608-		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9601-9803	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9804-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0201-0308	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0309-		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82627-152-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82627-150-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0005-0308	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-6	01	1	9601-9803	●	●
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-6	01	1	9601-9803	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-2	01	1	0309-0409		●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82662-592-1	01	1	0410-		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0309-0409		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82662-590-1	01	1	0410-		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0309-0409		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82662-591-1	01	1	0410-		●
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9601-9803	●	●
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	01	1	9804-0112	●	●
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0201-0308	●	●
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0309-		●
558	CONNECTOR; HARNESS EXC. POWER WINDOW<A30>	1-82690-666-0	02	1	9601-9803	●	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	9804-0308	●	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	0309-		●

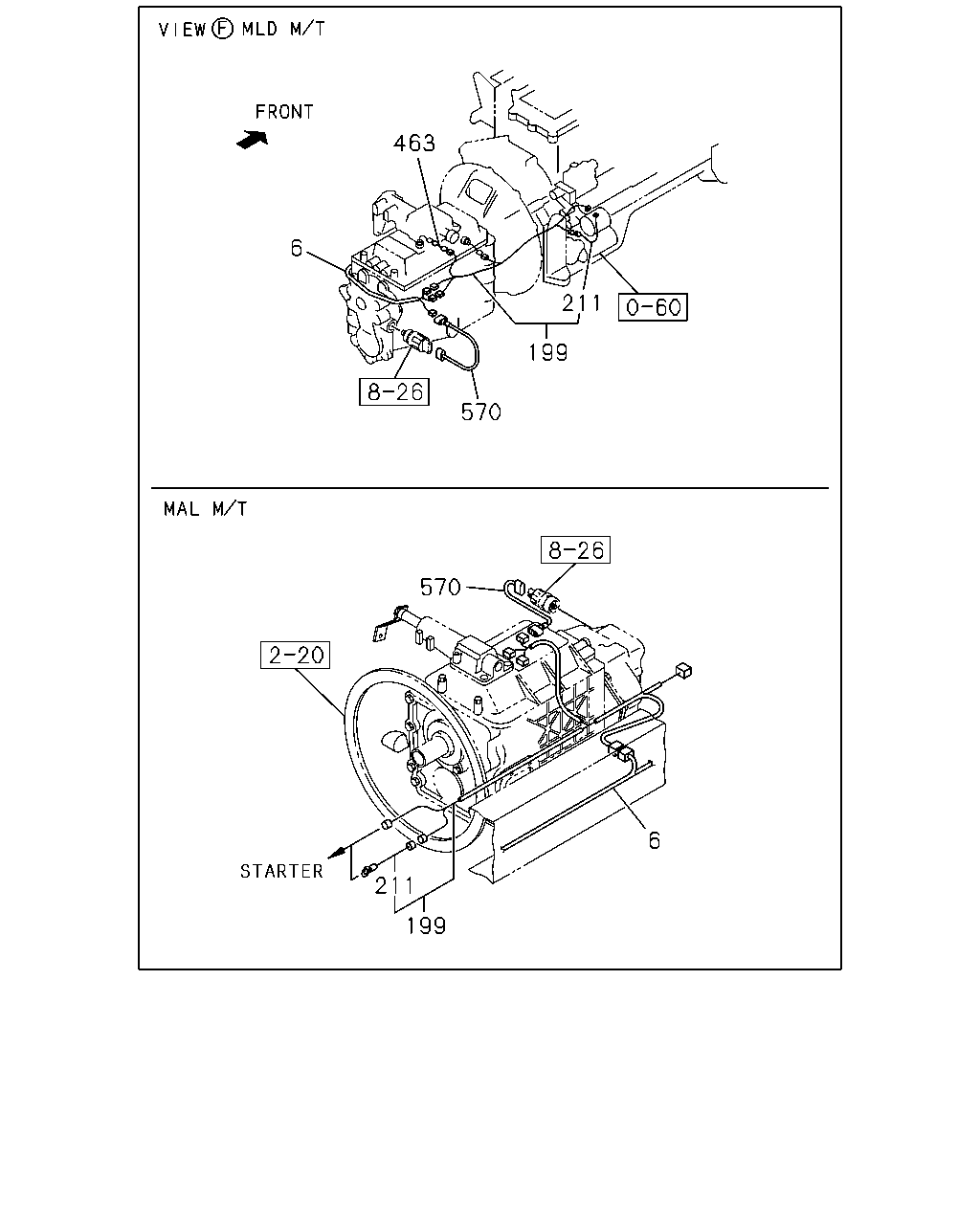

463 6 211 199 570 570 6 211 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-132-3	01	1	9601-9803	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82670-544-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82673-128-2	01	1	0005-0308		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-114-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82639-114-3	01	1	9804-0004	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82673-111-1	01	1	0005-0308	●	●
6	HARNESS; FRAME	1-82673-111-1	01	1	0309-0401		●
6	HARNESS; FRAME	1-82677-481-0	01	1	0402-0409		●
6	HARNESS; FRAME	1-82678-018-0	01	1	0410-		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-115-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-128-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82639-128-3	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-131-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82670-555-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82673-119-2	01	1	0005-0308	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82673-119-2	01	1	0005-0308		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-129-3	01	1	9601-9803		●
199	HARNESS; STARTER 6HH1 STD ENG(65L)	1-82640-668-5	01	1	9601-0308	●	●
199	HARNESS; STARTER	1-82640-668-5	01	1	0309-		●
199	HARNESS; STARTER 6SD1 STD ENG(37L)	1-82640-723-5	01	1	9601-0308	●	●
211	WIRE; FUSIBLE LINK,STARTER 6HH1 STD ENG(65L) WHITE	1-82659-124-0	01	1	9601-9602	●	●
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-0	01	1	9603-0308	●	●
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-1	01	1	0309-		●
463	HARNESS; SW,BACK UP MLD7 M/T<X9Z>	1-82639-608-1	01	1	9601-0308	●	●
463	HARNESS; SW,BACK UP MLD7 M/T<X9Z>	1-82639-608-1	01	1	0309-		●
570	HARNESS; SPEED SENSOR MAL6S M/T(Y1V)	1-82670-566-0	01	1	9804-0308	●	●
570	HARNESS; SPEED SENSOR MLD6 M/T<X9Y>,MLD7 M/T<X9Z>	1-82670-012-0	01	1	9804-0308	●	●
570	HARNESS; SPEED SENSOR	1-82670-012-0	01	1	0309-0401		●

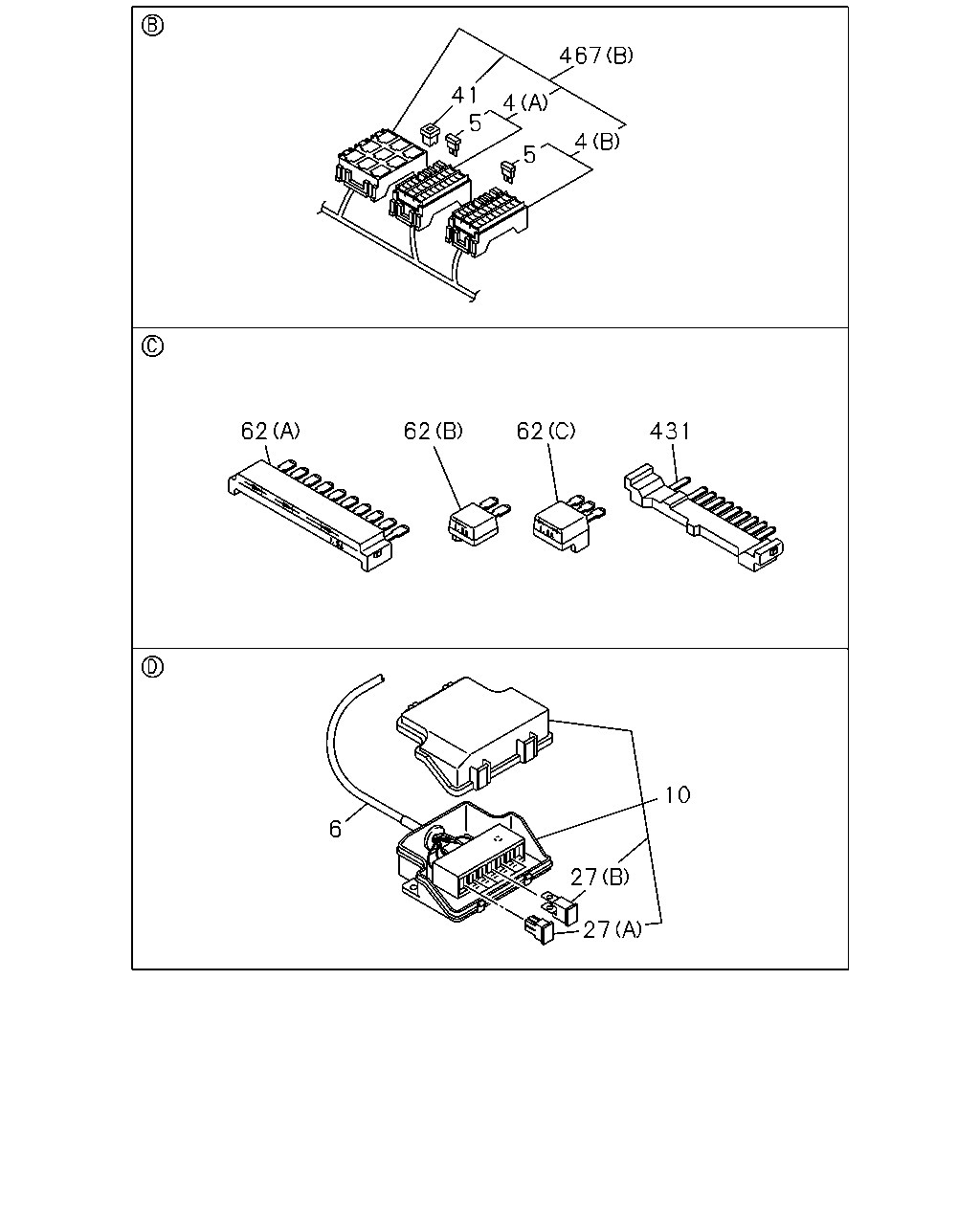

467 41 5 4 4 5 62 62 62 431 10 6 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS (A) 7.5AX13	1-82510-421-0	01	1	9601-9805	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX13	1-82510-475-0	01	1	9806-0207	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX14	1-82510-472-0	01	1	0208-0308	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX12	1-82510-432-0	01	1	9601-9805	●	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX14	1-82510-486-0	01	1	9806-0308	●	●
4	BOX ASM; FUSE,HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 15AX14	1-82510-472-0	01	1	0309-0409		●
4	BOX ASM; FUSE,HARNESS (B) 15AX14	1-82510-472-0	01	1	0410-		●
4	BOX ASM; FUSE,HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 7.5AX14	1-82510-486-0	01	1	0309-0409		●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX14	1-82510-486-0	01	1	0410-		●
4	BOX ASM; FUSE,HARNESS EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 15AX14	1-82510-472-0	01	1	0309-0409		●
4	BOX ASM; FUSE,HARNESS EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 7.5AX14	1-82510-486-0	01	1	0309-0409		●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	12	1	9601-9805	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	13	1	9806-0207	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	14	1	0208-0308	●	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	13	1	9601-9805	●	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	14	1	9806-0308	●	●
5	FUSE; FACIA HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 15A BLUE	5-82516-003-0	14	1	0309-0409		●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	14	1	0410-		●
5	FUSE; FACIA HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 7.5A BROWN	8-94159-007-0	14	1	0309-0409		●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	14	1	0410-		●
5	FUSE; FACIA HARNESS EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 15A BLUE	5-82516-003-0	14	1	0309-0409		●
5	FUSE; FACIA HARNESS EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 7.5A BROWN	8-94159-007-0	14	1	0309-0409		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-132-3	01	1	9601-9803	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82670-544-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82673-128-2	01	1	0005-0308		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-114-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82639-114-3	01	1	9804-0004	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82673-111-1	01	1	0005-0308	●	●
6	HARNESS; FRAME	1-82673-111-1	01	1	0309-0401		●
6	HARNESS; FRAME	1-82677-481-0	01	1	0402-0409		●
6	HARNESS; FRAME	1-82678-018-0	01	1	0410-		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-115-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-128-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82639-128-3	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-131-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82670-555-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82673-119-2	01	1	0005-0308	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82673-119-2	01	1	0005-0308		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-129-3	01	1	9601-9803		●
10	BOX; FUSE,HARNESS	1-82510-409-0	01	1	9601-0308	●	●
10	BOX; FUSE,HARNESS	1-82510-409-0	01	1	0309-		●
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	03	1	9601-0308	●	●
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	03	1	0309-		●
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	9601-0308	●	●
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	0309-		●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	9601-0308	●	●
41	PULLER; FUSE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=25.3 B=11.5	8-94121-482-0	01	1	0309-0409		●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0410-		●
41	PULLER; FUSE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=25.3 B=11.5	8-94121-482-0	01	1	0309-0409		●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	9601-0308	●	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0005-0308	●	●
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0208-0308	●	●
62	DIODE; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 10P	1-82699-703-0	02	1	0309-0409		●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	0410-		●
62	DIODE; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) BLACK 3P-1.5A	8-94416-438-1	02	1	0309-0409		●
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0410-		●
62	DIODE; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0309-0409		●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0410-		●
62	DIODE; HARNESS EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 10P	1-82699-703-0	02	1	0309-0409		●
62	DIODE; HARNESS EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0309-0409		●
62	DIODE; HARNESS EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0309-0409		●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9601-9805	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	01	1	9601-9805	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9806-0004	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9806-0004	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0005-0308	●	●
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 10P BROWN	1-82699-601-0	02	1	0309-0409		●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0410-		●
431	CONNECTOR; JOINT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 10P BROWN	1-82699-601-0	02	1	0309-0409		●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-2	01	1	0201-0308	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9601-9803	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82627-151-1	01	1	9804-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0201-0308	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9601-9803	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82627-149-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0112	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0201-0308	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0309-0607		●
467	HARNESS; FACIA 6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0608-		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9601-9803	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9804-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0201-0308	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0309-		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82627-152-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9601-9803	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82627-150-1	01	1	9804-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0005-0308	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-6	01	1	9601-9803	●	●
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-6	01	1	9601-9803	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-2	01	1	0309-0409		●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82662-592-1	01	1	0410-		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0309-0409		●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82662-590-1	01	1	0410-		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0309-0409		●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82662-591-1	01	1	0410-		●

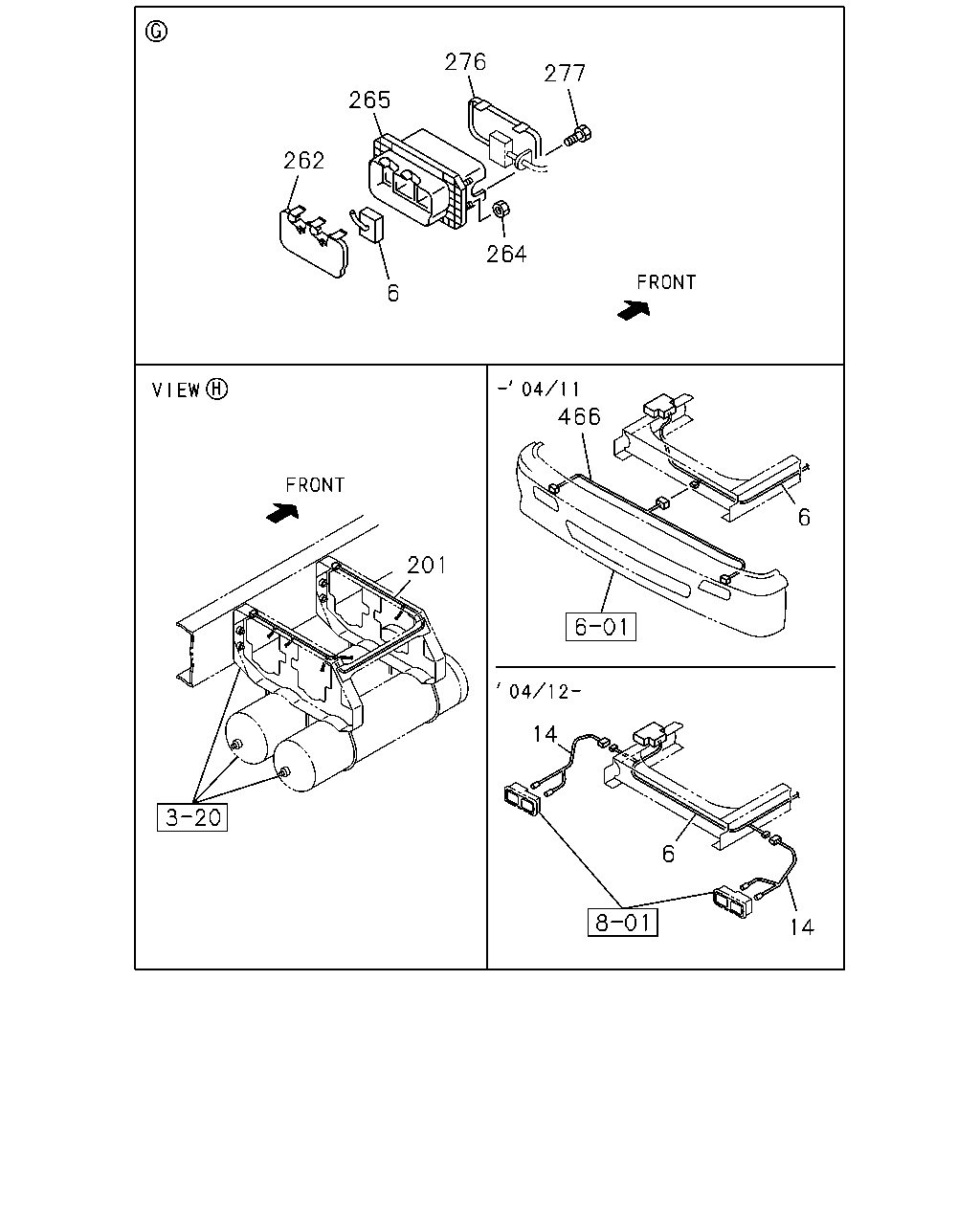

276 277 265 262 264 6 466 6 201 14 6 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-132-3	01	1	9601-9803	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82670-544-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82673-128-2	01	1	0005-0308		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-114-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82639-114-3	01	1	9804-0004	●	●
6	HARNESS; FRAME 6HH1 STD ENG(65L)	1-82673-111-1	01	1	0005-0308	●	●
6	HARNESS; FRAME	1-82673-111-1	01	1	0309-0401		●
6	HARNESS; FRAME	1-82677-481-0	01	1	0402-0409		●
6	HARNESS; FRAME	1-82678-018-0	01	1	0410-		●
6	HARNESS; FRAME 6HH1 STD ENG(65L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-115-3	01	1	9601-9803	●	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-128-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-82639-128-3	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-131-3	01	1	9601-9803		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82670-555-0	01	1	9804-0004		●
6	HARNESS; FRAME 6SD1 STD ENG(37L)	1-82673-119-2	01	1	0005-0308	●
6	HARNESS; FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-82673-119-2	01	1	0005-0308		●
6	HARNESS; FRAME 6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-129-3	01	1	9601-9803		●
14	HARNESS; HEADLAMP	1-82639-285-0	02	1	0412-		●
201	HARNESS; AIR TANK	1-82639-106-1	01	1	9601-9803	●	●
201	HARNESS; AIR TANK	1-82639-105-1	01	1	9804-0006	●	●
201	HARNESS; AIR TANK	1-82673-721-0	01	1	0007-0308	●	●
201	HARNESS; AIR TANK	1-82673-721-0	01	1	0309-		●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	9601-0308	●	●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0309-		●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9601-0308	●	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0309-		●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	9601-0308	●	●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0309-		●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	9601-0004	●	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	0005-0308	●	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	0309-		●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9601-0308	●	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0309-0512		●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-		●
466	HARNESS; BUMPER HEADLAMPS RECTANGULAR<TR4>	1-82638-996-0	01	1	9601-9705	●	●
466	HARNESS; BUMPER	1-82638-996-1	01	1	9706-0004	●	●
466	HARNESS; BUMPER	1-82638-758-1	01	1	0005-0308	●	●
466	HARNESS; BUMPER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82638-758-1	01	1	9601-9803	●	●
466	HARNESS; BUMPER	1-82638-758-1	01	1	0309-0409		●
466	HARNESS; BUMPER	1-82639-285-0	02	1	0410-0411		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
