◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#16372) — 688 parça

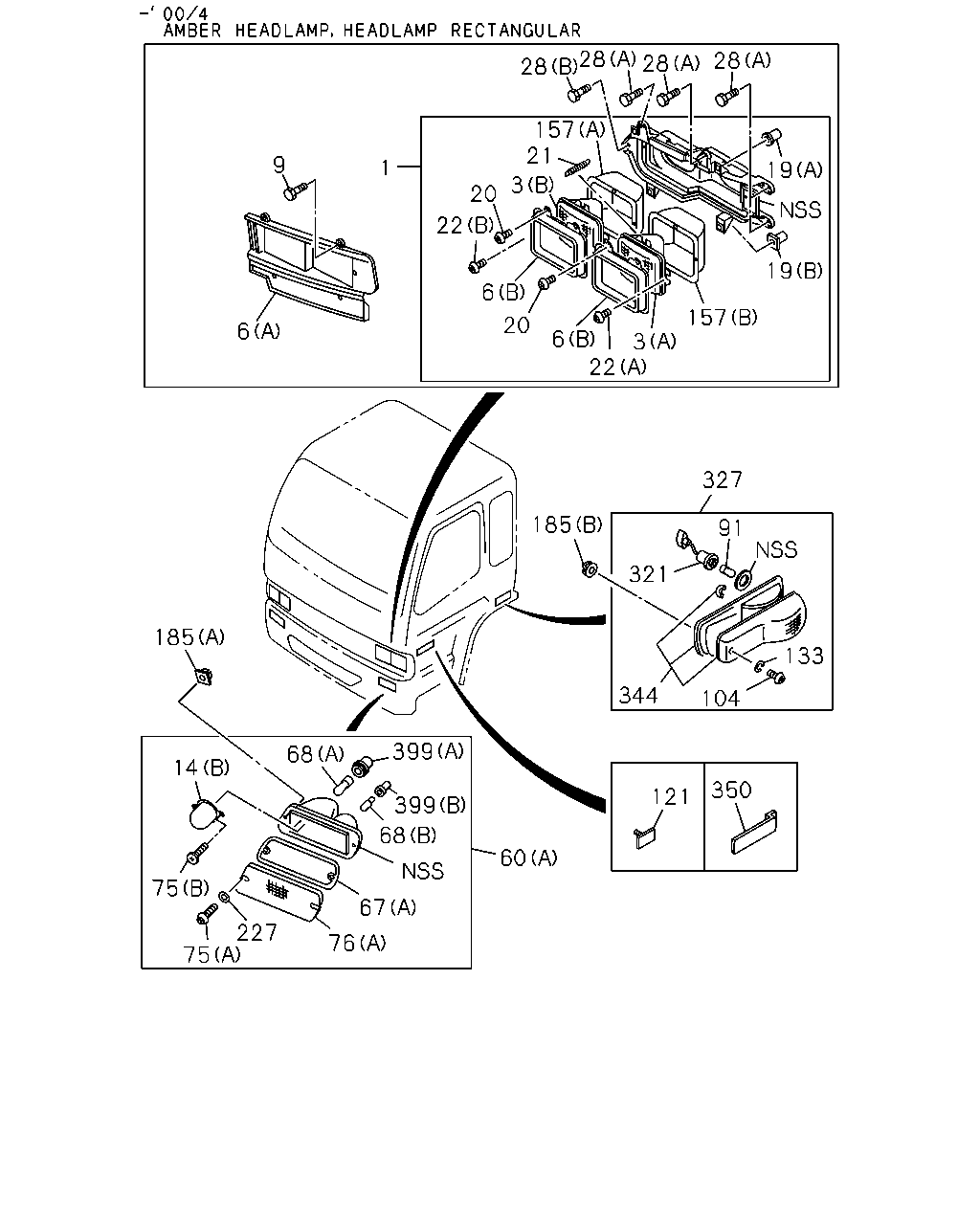

çizim 15661
28 28 28 28 157 21 9 3 1 19 20 22 19 6 157 20 6 6 3 22 327 185 91 321 133 185 344 104 399 68 14 350 121 399 68 60 75 67 227 76 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-313-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-314-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-175-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-439-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-176-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-440-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD 1-86830-123-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801- ●
1 LAMP ASM; HEAD 1-86830-124-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-259-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-483-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-261-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-485-0 01 1 0801- ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (A) TYPE2 24V 75/70W 		1-82113-015-0 02 1 9601-0004 ● ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (B) TYPE1 24V 70W 		1-82113-016-0 02 1 9601-0004 ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 50/65W 		8-94111-275-0 02 1 9601-0004 ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W 		8-94111-276-0 02 1 9601-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-94165-573-0 04 1 9601-9803 ● ●
6 RIM; HEADLAMP
(B) 		8-94165-573-0 04 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-746-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-746-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-745-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-745-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
(C) OUTER 24V 75/70W 		1-82114-019-0 02 1 0410- ●
6 RIM; HEADLAMP
(C) INNER 24V 70W 		1-82114-018-0 02 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-079-0 01 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-078-0 01 1 0410- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-005-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0309-0409 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-006-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0309-0409 ●
9 SCREW; HEADLAMP RIM
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9601-9803 ● ●
9 SCREW; HEADLAMP RIM
M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9804-0004 ● ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-030-0 02 1 9609-9705 ● ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-030-0 02 1 9706-9803 ● ●
14 CAP; BULB,LAMP
(B) 		1-82219-030-0 02 1 9804-0004 ● ●
14 CAP; BULB,LAMP
(A) 		1-86830-148-0 02 1 0005-0308 ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-148-0 02 1 9601-9803 ● ●
14 CAP; BULB,LAMP
(A) 		1-86830-148-0 02 1 0309-0409 ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-117-0 08 1 9601-9803 ● ●
19 NUT; HEADLAMP
(A) 		1-82119-117-0 08 1 9804-0004 ● ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-97044-618-0 08 1 9601-9803 ● ●
19 NUT; HEADLAMP
(B) 		8-97044-618-0 08 1 9804-0004 ● ●
19 NUT; HEADLAMP
(D) M10 FLANGE 		0-91150-210-0 02 1 0410-0602 ●
19 NUT; HEADLAMP
(D) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
19 NUT; HEADLAMP
(C) 		1-82119-056-0 04 1 0410- ●
19 NUT; HEADLAMP
(C) 		1-82119-056-0 04 1 0410- ●
20 SCREW; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> M4X8 		8-94165-886-0 16 1 9601-9803 ● ●
20 SCREW; HEADLAMP
M4X8 		8-94165-886-0 16 1 9804-0004 ● ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0410- ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0410- ●
21 SPRING; ADJ HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82119-120-0 04 1 9601-9803 ● ●
21 SPRING; ADJ HEADLAMP 1-82119-120-0 04 1 9804-0004 ● ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0410- ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0410- ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) RH,LH UPPER & OUTER SIDE 		1-82119-118-0 07 1 9601-9803 ● ●
22 SCREW; ADJ,HEADLAMP
(A) RH,LH UPPER & OUTER SIDE 		1-82119-118-0 07 1 9804-0004 ● ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) LH INNER SIDE 		1-82119-119-0 01 1 9601-9803 ● ●
22 SCREW; ADJ,HEADLAMP
(B) LH INNER SIDE 		1-82119-119-0 01 1 9804-0004 ● ●
22 SCREW; ADJ,HEADLAMP
(C) 		1-82119-095-0 04 1 0410- ●
22 SCREW; ADJ,HEADLAMP
(C) 		1-82119-095-0 04 1 0410- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9804-0004 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0308 ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9804-0004 ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0309-0409 ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-211-0 01 1 9601-9608 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-221-0 01 1 9609-9705 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82210-221-0 01 1 9706-9803 ● ●
60 LAMP ASM; FRT COMB
(A) 		1-82210-221-0 01 1 9804-0004 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-210-0 01 1 9601-9608 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-220-0 01 1 9609-9705 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82210-220-0 01 1 9706-9803 ● ●
60 LAMP ASM; FRT COMB
(A) 		1-82210-220-0 01 1 9804-0004 ● ●
60 LAMP ASM; FRT COMB
(B) 		1-82210-219-0 01 1 0410- ●
60 LAMP ASM; FRT COMB
(B) 		1-82210-218-0 01 1 0410- ●
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82216-033-0 02 1 9601-9705 ● ●
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82216-033-0 02 1 9706-9803 ● ●
67 GASKET; FRT COMB LAMP
(A) 		1-82216-033-0 02 1 9804-0004 ● ●
67 GASKET; FRT COMB LAMP
(B) 		1-82216-020-0 02 1 0410- ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W 		1-82194-036-0 02 1 9601-9705 ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 24V 21W 		1-82194-036-0 02 1 9706-9803 ● ●
68 BULB; FRT COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 9804-0004 ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W 		8-94135-397-0 02 1 9601-9705 ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 24V 5W 		8-94135-397-0 02 1 9706-9803 ● ●
68 BULB; FRT COMB LAMP
(B) 24V 5W 		8-94135-397-0 02 1 9804-0004 ● ●
68 BULB; FRT COMB LAMP
(C) 24V 25W 		9-82691-347-0 02 1 0410- ●
68 BULB; FRT COMB LAMP
(D) 24V 10/4W 		9-82691-607-0 02 1 0410- ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-026-0 04 1 9601-9705 ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82219-026-0 04 1 9706-9803 ● ●
75 SCREW; FRT COMB LAMP
(A) 		1-82219-026-0 04 1 9804-0004 ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-031-0 04 1 9609-9705 ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-031-0 04 1 9706-9803 ● ●
75 SCREW; FRT COMB LAMP
(B) 		1-82219-031-0 04 1 9804-0004 ● ●
75 SCREW; FRT COMB LAMP
(D) 		1-82219-029-0 08 1 0410- ●
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		1-09981-524-0 04 1 0507- ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) ORANGE 		1-82215-065-0 01 1 9601-9608 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82215-071-0 01 1 9609-9705 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82215-071-0 01 1 9706-9803 ● ●
76 LENS; FRT COMB LAMP
(A) 		1-82215-071-0 01 1 9804-0004 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) ORANGE 		1-82215-064-0 01 1 9601-9608 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82215-070-0 01 1 9609-9705 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82215-070-0 01 1 9706-9803 ● ●
76 LENS; FRT COMB LAMP
(A) 		1-82215-070-0 01 1 9804-0004 ● ●
76 LENS; FRT COMB LAMP
(B) 		1-82215-014-0 02 1 0410- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9601-9809 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0308 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0309- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9601-0308 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0309- ●
121 REFLECTOR; REFLEX
WHEEL BASE 4200MM(42W) 		1-82290-061-0 02 1 0309- ●
121 REFLECTOR; REFLEX
WHEEL BASE 5500MM(55W) 		1-82290-061-0 04 1 0309- ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9601-0206 ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-031-0 01 1 9601-9803 ● ●
157 RING; MTG,HEADLAMP
(A) 		1-82119-031-0 01 1 9804-0004 ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82119-032-0 01 1 9601-9803 ● ●
157 RING; MTG,HEADLAMP
(B) 		1-82119-032-0 01 1 9804-0004 ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-033-0 01 1 9601-9803 ● ●
157 RING; MTG,HEADLAMP
(A) 		1-82119-033-0 01 1 9804-0004 ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82119-034-0 01 1 9601-9803 ● ●
157 RING; MTG,HEADLAMP
(B) 		1-82119-034-0 01 1 9804-0004 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9601-0308 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0309-0409 ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
227 SEAT; SET SCREW,FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-032-0 04 1 9601-9705 ● ●
227 SEAT; SET SCREW,FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82216-032-0 04 1 9706-9803 ● ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-82216-032-0 04 1 9804-0004 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9601-0308 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0309- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0309- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0309- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0309- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0309- ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9601-9705 ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-033-0 02 1 9706-9803 ● ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-033-0 02 1 9804-0004 ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HEADLAMPSRECTANGULAR<TR4> (A) 		1-82219-034-0 02 1 9601-9705 ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9706-0308 ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 0309-0409 ●

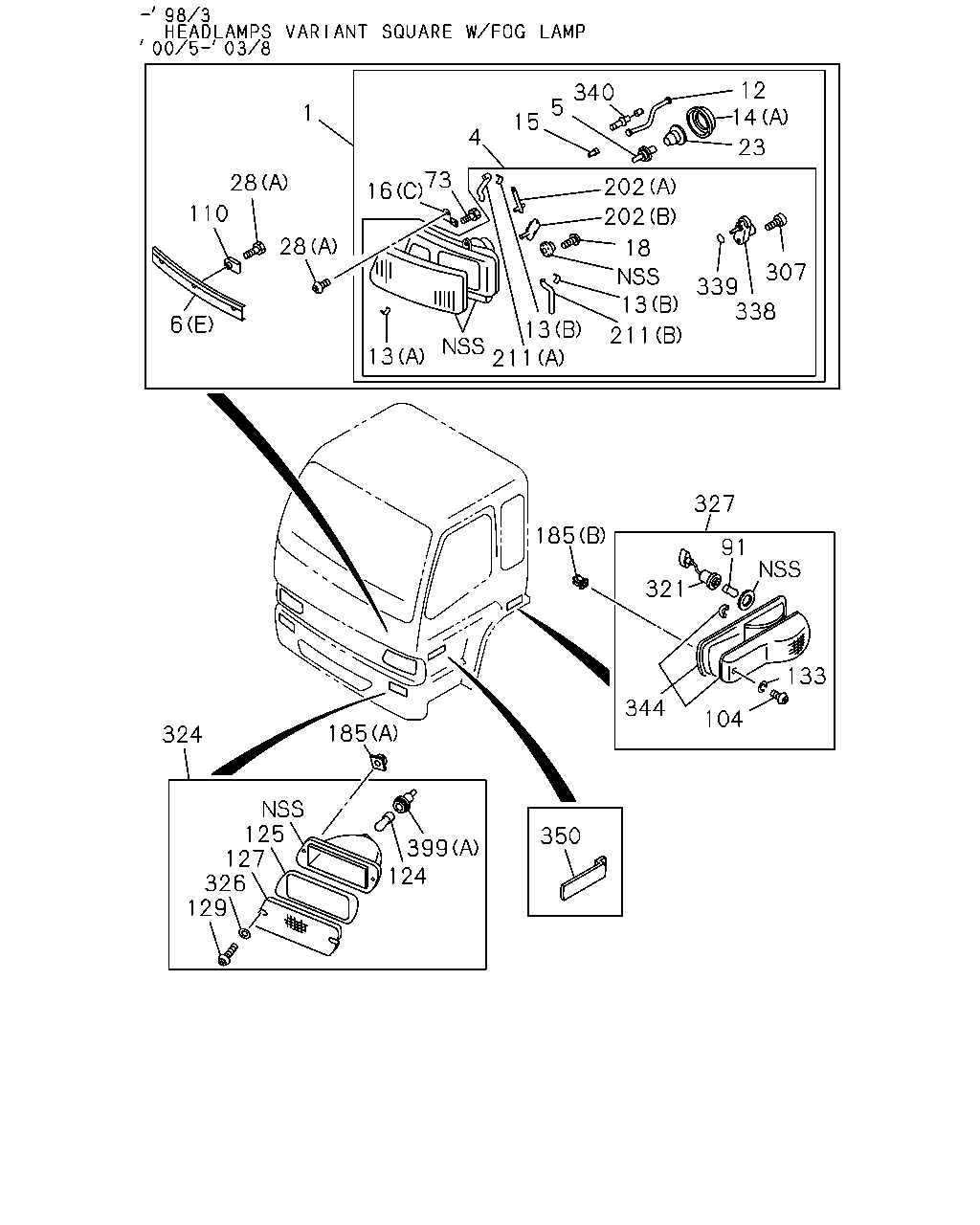

çizim 15662
12 14 340 5 1 15 4 23 73 16 28 202 110 202 28 18 307 13 339 338 6 13 211 211 13 327 185 91 321 133 344 104 185 324 125 127 326 129 350 399 124
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-313-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-314-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-175-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-439-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-176-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-440-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD 1-86830-123-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801- ●
1 LAMP ASM; HEAD 1-86830-124-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-259-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-483-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-261-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-485-0 01 1 0801- ●
4 HEADLAMP UNIT 1-86830-197-1 01 1 0005-0210 ● ●
4 HEADLAMP UNIT 1-82119-204-0 01 1 0211-0308 ● ●
4 HEADLAMP UNIT 1-86830-195-1 01 1 0309-0409 ●
4 HEADLAMP UNIT
INNER TYPE 1 24V 70W 		1-82191-032-0 02 1 0410- ●
4 HEADLAMP UNIT 1-86830-198-1 01 1 0005-0210 ● ●
4 HEADLAMP UNIT 1-82119-205-0 01 1 0211-0308 ● ●
4 HEADLAMP UNIT 1-86830-196-1 01 1 0309-0409 ●
4 HEADLAMP UNIT
OUTER TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0410- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-197-1 01 1 9601-9803 ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-198-1 01 1 9601-9803 ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0005-0308 ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 9601-9803 ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0309-0409 ●
5 BULB; HEADLAMP
OUTER 24V 75/70W 		1-82193-006-0 02 1 0410- ●
5 BULB; HEADLAMP
INNER 24V 70W 		1-82193-007-0 02 1 0410- ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-94165-573-0 04 1 9601-9803 ● ●
6 RIM; HEADLAMP
(B) 		8-94165-573-0 04 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-746-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-746-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-745-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-745-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
(C) OUTER 24V 75/70W 		1-82114-019-0 02 1 0410- ●
6 RIM; HEADLAMP
(C) INNER 24V 70W 		1-82114-018-0 02 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-079-0 01 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-078-0 01 1 0410- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-005-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0309-0409 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-006-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0309-0409 ●
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 0005-0308 ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-145-0 02 1 9601-9803 ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0309-0409 ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0005-0308 ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0005-0308 ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9601-9803 ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9601-9803 ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0309-0409 ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0309-0409 ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-030-0 02 1 9609-9705 ● ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-030-0 02 1 9706-9803 ● ●
14 CAP; BULB,LAMP
(B) 		1-82219-030-0 02 1 9804-0004 ● ●
14 CAP; BULB,LAMP
(A) 		1-86830-148-0 02 1 0005-0308 ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-148-0 02 1 9601-9803 ● ●
14 CAP; BULB,LAMP
(A) 		1-86830-148-0 02 1 0309-0409 ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0005-0308 ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 9601-9803 ● ●
16 BRACKET; HEADLAMP
(C) 		1-86830-075-0 01 1 0005-0308 ● ●
16 BRACKET; HEADLAMP
(C) 		1-86830-076-0 01 1 0005-0308 ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-075-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-076-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP
(C) 		1-86830-075-0 01 1 0309-0409 ●
16 BRACKET; HEADLAMP
(B) 		1-82117-103-1 04 1 0410- ●
16 BRACKET; HEADLAMP
(C) 		1-86830-076-0 01 1 0309-0409 ●
16 BRACKET; HEADLAMP
(A) 		1-82117-106-3 01 1 0410- ●
16 BRACKET; HEADLAMP
(A) 		1-82117-107-3 01 1 0410- ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0005-0308 ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9601-9803 ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0309-0409 ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0005-0308 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9601-9803 ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0309-0409 ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9804-0004 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0308 ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9804-0004 ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0309-0409 ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0005-0308 ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9601-9803 ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0309-0409 ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28681-025-0 08 1 0410-0512 ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9601-9809 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0308 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0309- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9601-0308 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0309- ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0005-0308 ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9601-9803 ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0309-0409 ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0005-0308 ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9601-9803 ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0309-0409 ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0005-0308 ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9601-9803 ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0309-0409 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0005-0308 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0005-0308 ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9601-9803 ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9601-9803 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0309-0409 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0309-0409 ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0005-0308 ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9601-9803 ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0309-0409 ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9601-0206 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9601-0308 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0309-0409 ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0005-0308 ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0005-0308 ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9601-9803 ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9601-9803 ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0309-0409 ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0309-0409 ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0005-0105 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0005-0105 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0005-0308 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0005-0308 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0309-0409 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0309-0409 ●
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0211-0308 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9601-0308 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0309- ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0005-0308 ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0005-0308 ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9601-9803 ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9601-9803 ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0309-0409 ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0309-0409 ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0005-0308 ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9601-9803 ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0309-0409 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0309- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0309- ●
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0211-0308 ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0211-0308 ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0005-0308 ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9601-9803 ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0309-0409 ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0309- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0309- ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9601-9705 ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-033-0 02 1 9706-9803 ● ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-033-0 02 1 9804-0004 ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HEADLAMPSRECTANGULAR<TR4> (A) 		1-82219-034-0 02 1 9601-9705 ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9706-0308 ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 0309-0409 ●

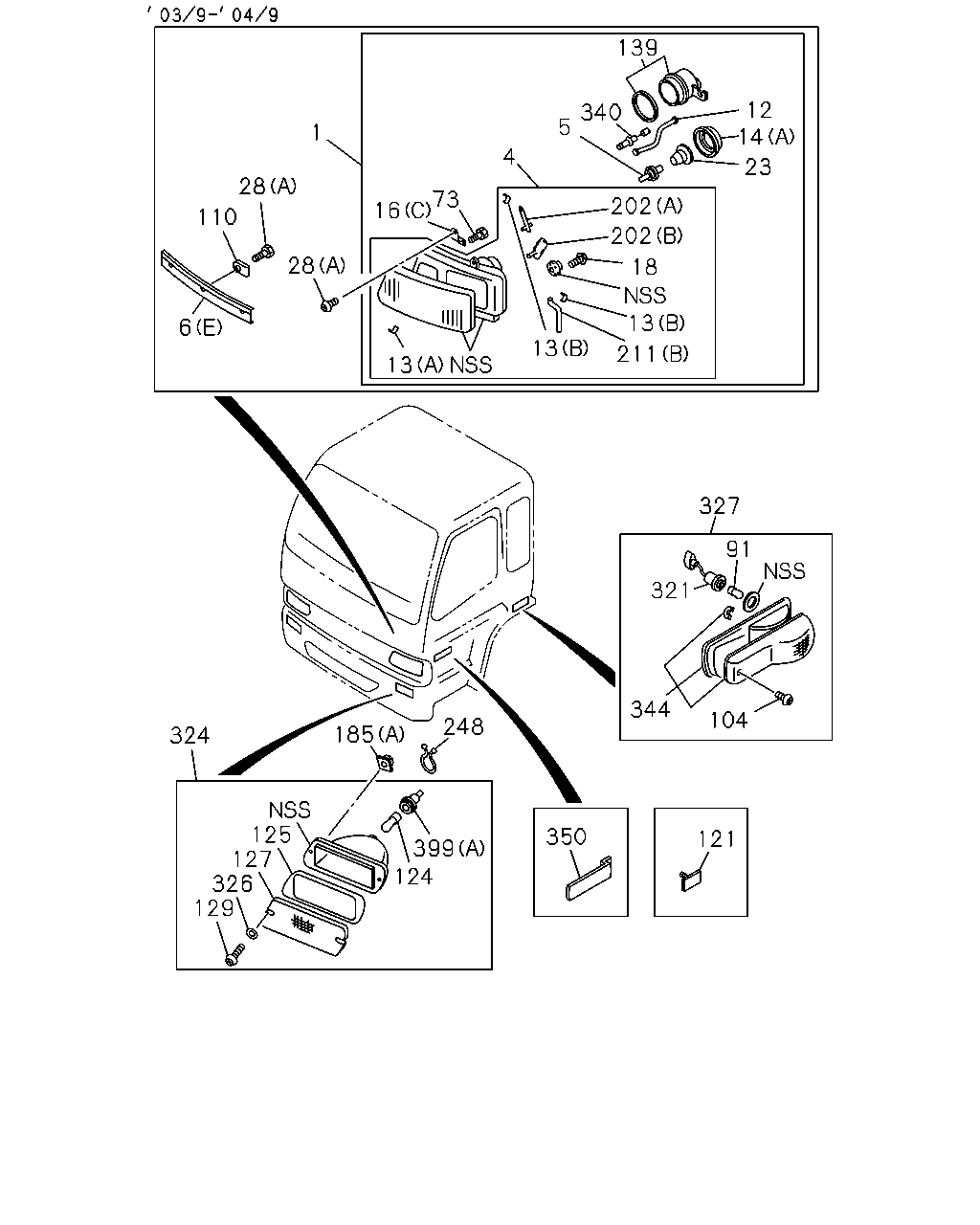

çizim 15663
139 12 14 340 5 1 4 23 28 73 16 202 110 202 28 18 13 6 13 211 13 327 91 321 344 104 248 185 324 125 127 326 129 350 121 399 124
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-313-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-314-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-175-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-439-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-176-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-440-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD 1-86830-123-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801- ●
1 LAMP ASM; HEAD 1-86830-124-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-259-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-483-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-261-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-485-0 01 1 0801- ●
4 HEADLAMP UNIT 1-86830-197-1 01 1 0005-0210 ● ●
4 HEADLAMP UNIT 1-82119-204-0 01 1 0211-0308 ● ●
4 HEADLAMP UNIT 1-86830-195-1 01 1 0309-0409 ●
4 HEADLAMP UNIT
INNER TYPE 1 24V 70W 		1-82191-032-0 02 1 0410- ●
4 HEADLAMP UNIT 1-86830-198-1 01 1 0005-0210 ● ●
4 HEADLAMP UNIT 1-82119-205-0 01 1 0211-0308 ● ●
4 HEADLAMP UNIT 1-86830-196-1 01 1 0309-0409 ●
4 HEADLAMP UNIT
OUTER TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0410- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-197-1 01 1 9601-9803 ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-198-1 01 1 9601-9803 ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0005-0308 ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 9601-9803 ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0309-0409 ●
5 BULB; HEADLAMP
OUTER 24V 75/70W 		1-82193-006-0 02 1 0410- ●
5 BULB; HEADLAMP
INNER 24V 70W 		1-82193-007-0 02 1 0410- ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-94165-573-0 04 1 9601-9803 ● ●
6 RIM; HEADLAMP
(B) 		8-94165-573-0 04 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-746-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-746-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-745-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-745-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
(C) OUTER 24V 75/70W 		1-82114-019-0 02 1 0410- ●
6 RIM; HEADLAMP
(C) INNER 24V 70W 		1-82114-018-0 02 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-079-0 01 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-078-0 01 1 0410- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-005-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0309-0409 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-006-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0309-0409 ●
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 0005-0308 ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-145-0 02 1 9601-9803 ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0309-0409 ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0005-0308 ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0005-0308 ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9601-9803 ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9601-9803 ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0309-0409 ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0309-0409 ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-030-0 02 1 9609-9705 ● ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-030-0 02 1 9706-9803 ● ●
14 CAP; BULB,LAMP
(B) 		1-82219-030-0 02 1 9804-0004 ● ●
14 CAP; BULB,LAMP
(A) 		1-86830-148-0 02 1 0005-0308 ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-148-0 02 1 9601-9803 ● ●
14 CAP; BULB,LAMP
(A) 		1-86830-148-0 02 1 0309-0409 ●
16 BRACKET; HEADLAMP
(C) 		1-86830-075-0 01 1 0005-0308 ● ●
16 BRACKET; HEADLAMP
(C) 		1-86830-076-0 01 1 0005-0308 ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-075-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-076-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP
(C) 		1-86830-075-0 01 1 0309-0409 ●
16 BRACKET; HEADLAMP
(B) 		1-82117-103-1 04 1 0410- ●
16 BRACKET; HEADLAMP
(C) 		1-86830-076-0 01 1 0309-0409 ●
16 BRACKET; HEADLAMP
(A) 		1-82117-106-3 01 1 0410- ●
16 BRACKET; HEADLAMP
(A) 		1-82117-107-3 01 1 0410- ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0005-0308 ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9601-9803 ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0309-0409 ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0005-0308 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9601-9803 ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0309-0409 ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9804-0004 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0308 ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9804-0004 ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0309-0409 ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0005-0308 ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9601-9803 ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0309-0409 ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28681-025-0 08 1 0410-0512 ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9601-9809 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0308 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0309- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9601-0308 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0309- ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0005-0308 ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9601-9803 ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0309-0409 ●
121 REFLECTOR; REFLEX
WHEEL BASE 4200MM(42W) 		1-82290-061-0 02 1 0309- ●
121 REFLECTOR; REFLEX
WHEEL BASE 5500MM(55W) 		1-82290-061-0 04 1 0309- ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0005-0308 ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9601-9803 ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0309-0409 ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0005-0308 ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9601-9803 ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0309-0409 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0005-0308 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0005-0308 ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9601-9803 ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9601-9803 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0309-0409 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0309-0409 ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0005-0308 ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9601-9803 ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0309-0409 ●
139 COVER; HEADLAMP 1-82119-224-0 02 1 0309-0409 ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9601-0308 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0309-0409 ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0005-0308 ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0005-0308 ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9601-9803 ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9601-9803 ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0309-0409 ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0309-0409 ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0005-0105 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0005-0105 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0005-0308 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0005-0308 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0309-0409 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0309-0409 ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9601-0308 ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 0309- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9601-0308 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0309- ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0005-0308 ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0005-0308 ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9601-9803 ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9601-9803 ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0309-0409 ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0309-0409 ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0005-0308 ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9601-9803 ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0309-0409 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0309- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0309- ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0005-0308 ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9601-9803 ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0309-0409 ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0309- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0309- ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9601-9705 ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-033-0 02 1 9706-9803 ● ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-033-0 02 1 9804-0004 ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HEADLAMPSRECTANGULAR<TR4> (A) 		1-82219-034-0 02 1 9601-9705 ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9706-0308 ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 0309-0409 ●

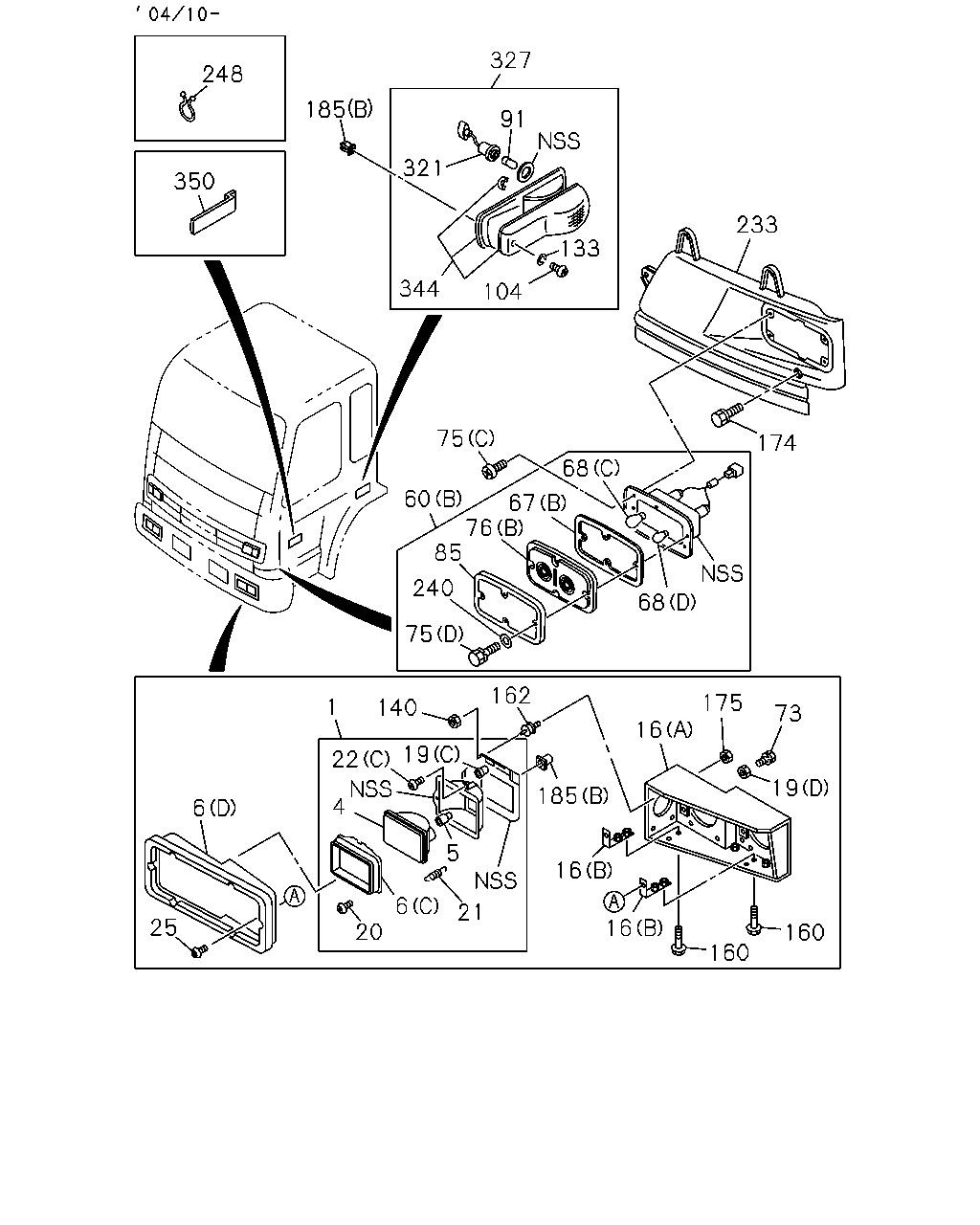

çizim 15664
327 248 185 91 321 350 233 133 344 104 75 174 68 60 67 76 85 240 68 75 162 175 1 140 73 16 19 22 19 4 185 6 5 16 16 6 21 25 20 160 160
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-313-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-314-0 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-175-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-439-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9601-0004 ● ●
1 LAMP ASM; HEAD 1-86830-176-4 01 1 0005-0210 ● ●
1 LAMP ASM; HEAD 1-82110-440-0 01 1 0211-0308 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-2 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD 1-86830-123-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801- ●
1 LAMP ASM; HEAD 1-86830-124-4 01 1 0309-0409 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-259-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-483-0 01 1 0801- ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-261-2 01 1 0410-0712 ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-485-0 01 1 0801- ●
4 HEADLAMP UNIT 1-86830-197-1 01 1 0005-0210 ● ●
4 HEADLAMP UNIT 1-82119-204-0 01 1 0211-0308 ● ●
4 HEADLAMP UNIT 1-86830-195-1 01 1 0309-0409 ●
4 HEADLAMP UNIT
INNER TYPE 1 24V 70W 		1-82191-032-0 02 1 0410- ●
4 HEADLAMP UNIT 1-86830-198-1 01 1 0005-0210 ● ●
4 HEADLAMP UNIT 1-82119-205-0 01 1 0211-0308 ● ●
4 HEADLAMP UNIT 1-86830-196-1 01 1 0309-0409 ●
4 HEADLAMP UNIT
OUTER TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0410- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-197-1 01 1 9601-9803 ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-198-1 01 1 9601-9803 ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0005-0308 ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 9601-9803 ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0309-0409 ●
5 BULB; HEADLAMP
OUTER 24V 75/70W 		1-82193-006-0 02 1 0410- ●
5 BULB; HEADLAMP
INNER 24V 70W 		1-82193-007-0 02 1 0410- ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-94165-573-0 04 1 9601-9803 ● ●
6 RIM; HEADLAMP
(B) 		8-94165-573-0 04 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-746-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-746-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-745-1 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(A) 		1-71118-745-1 01 1 9804-0004 ● ●
6 RIM; HEADLAMP
(C) OUTER 24V 75/70W 		1-82114-019-0 02 1 0410- ●
6 RIM; HEADLAMP
(C) INNER 24V 70W 		1-82114-018-0 02 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-079-0 01 1 0410- ●
6 RIM; HEADLAMP
(D) 		1-82117-078-0 01 1 0410- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-005-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-005-5 01 1 0309-0409 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (E) 		1-86830-006-4 01 1 9601-9803 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0005-0308 ● ●
6 RIM; HEADLAMP
(E) 		1-86830-006-5 01 1 0309-0409 ●
16 BRACKET; HEADLAMP
(C) 		1-86830-075-0 01 1 0005-0308 ● ●
16 BRACKET; HEADLAMP
(C) 		1-86830-076-0 01 1 0005-0308 ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-075-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-076-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP
(C) 		1-86830-075-0 01 1 0309-0409 ●
16 BRACKET; HEADLAMP
(B) 		1-82117-103-1 04 1 0410- ●
16 BRACKET; HEADLAMP
(C) 		1-86830-076-0 01 1 0309-0409 ●
16 BRACKET; HEADLAMP
(A) 		1-82117-106-3 01 1 0410- ●
16 BRACKET; HEADLAMP
(A) 		1-82117-107-3 01 1 0410- ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-117-0 08 1 9601-9803 ● ●
19 NUT; HEADLAMP
(A) 		1-82119-117-0 08 1 9804-0004 ● ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-97044-618-0 08 1 9601-9803 ● ●
19 NUT; HEADLAMP
(B) 		8-97044-618-0 08 1 9804-0004 ● ●
19 NUT; HEADLAMP
(D) M10 FLANGE 		0-91150-210-0 02 1 0410-0602 ●
19 NUT; HEADLAMP
(D) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
19 NUT; HEADLAMP
(C) 		1-82119-056-0 04 1 0410- ●
19 NUT; HEADLAMP
(C) 		1-82119-056-0 04 1 0410- ●
20 SCREW; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> M4X8 		8-94165-886-0 16 1 9601-9803 ● ●
20 SCREW; HEADLAMP
M4X8 		8-94165-886-0 16 1 9804-0004 ● ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0410- ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0410- ●
21 SPRING; ADJ HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82119-120-0 04 1 9601-9803 ● ●
21 SPRING; ADJ HEADLAMP 1-82119-120-0 04 1 9804-0004 ● ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0410- ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0410- ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) RH,LH UPPER & OUTER SIDE 		1-82119-118-0 07 1 9601-9803 ● ●
22 SCREW; ADJ,HEADLAMP
(A) RH,LH UPPER & OUTER SIDE 		1-82119-118-0 07 1 9804-0004 ● ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) LH INNER SIDE 		1-82119-119-0 01 1 9601-9803 ● ●
22 SCREW; ADJ,HEADLAMP
(B) LH INNER SIDE 		1-82119-119-0 01 1 9804-0004 ● ●
22 SCREW; ADJ,HEADLAMP
(C) 		1-82119-095-0 04 1 0410- ●
22 SCREW; ADJ,HEADLAMP
(C) 		1-82119-095-0 04 1 0410- ●
25 SCREW; LAMP
M5X12 W/PL WASHER 		1-09104-031-0 08 1 0410- ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-211-0 01 1 9601-9608 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-221-0 01 1 9609-9705 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82210-221-0 01 1 9706-9803 ● ●
60 LAMP ASM; FRT COMB
(A) 		1-82210-221-0 01 1 9804-0004 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-210-0 01 1 9601-9608 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82210-220-0 01 1 9609-9705 ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82210-220-0 01 1 9706-9803 ● ●
60 LAMP ASM; FRT COMB
(A) 		1-82210-220-0 01 1 9804-0004 ● ●
60 LAMP ASM; FRT COMB
(B) 		1-82210-219-0 01 1 0410- ●
60 LAMP ASM; FRT COMB
(B) 		1-82210-218-0 01 1 0410- ●
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82216-033-0 02 1 9601-9705 ● ●
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82216-033-0 02 1 9706-9803 ● ●
67 GASKET; FRT COMB LAMP
(A) 		1-82216-033-0 02 1 9804-0004 ● ●
67 GASKET; FRT COMB LAMP
(B) 		1-82216-020-0 02 1 0410- ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W 		1-82194-036-0 02 1 9601-9705 ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 24V 21W 		1-82194-036-0 02 1 9706-9803 ● ●
68 BULB; FRT COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 9804-0004 ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W 		8-94135-397-0 02 1 9601-9705 ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 24V 5W 		8-94135-397-0 02 1 9706-9803 ● ●
68 BULB; FRT COMB LAMP
(B) 24V 5W 		8-94135-397-0 02 1 9804-0004 ● ●
68 BULB; FRT COMB LAMP
(C) 24V 25W 		9-82691-347-0 02 1 0410- ●
68 BULB; FRT COMB LAMP
(D) 24V 10/4W 		9-82691-607-0 02 1 0410- ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0005-0308 ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9601-9803 ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0309-0409 ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28681-025-0 08 1 0410-0512 ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-026-0 04 1 9601-9705 ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82219-026-0 04 1 9706-9803 ● ●
75 SCREW; FRT COMB LAMP
(A) 		1-82219-026-0 04 1 9804-0004 ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-031-0 04 1 9609-9705 ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-031-0 04 1 9706-9803 ● ●
75 SCREW; FRT COMB LAMP
(B) 		1-82219-031-0 04 1 9804-0004 ● ●
75 SCREW; FRT COMB LAMP
(D) 		1-82219-029-0 08 1 0410- ●
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		1-09981-524-0 04 1 0507- ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) ORANGE 		1-82215-065-0 01 1 9601-9608 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82215-071-0 01 1 9609-9705 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82215-071-0 01 1 9706-9803 ● ●
76 LENS; FRT COMB LAMP
(A) 		1-82215-071-0 01 1 9804-0004 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) ORANGE 		1-82215-064-0 01 1 9601-9608 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82215-070-0 01 1 9609-9705 ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82215-070-0 01 1 9706-9803 ● ●
76 LENS; FRT COMB LAMP
(A) 		1-82215-070-0 01 1 9804-0004 ● ●
76 LENS; FRT COMB LAMP
(B) 		1-82215-014-0 02 1 0410- ●
85 RIM; FRT COMB 1-82214-025-0 02 1 0410- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9601-9809 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0308 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0309- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9601-0308 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0309- ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9601-0206 ● ●
140 NUT
M5 FLANGE 		1-09984-170-0 12 1 0410- ●
160 BOLT; BRKT TO FRAME
M8X16 FLANGE 		0-28080-816-0 08 1 0410-0512 ●
160 BOLT; BRKT TO FRAME
M8X16 FLANGE 		0-28050-816-0 08 1 0601- ●
162 RUBBER; CUSHION UPR 1-82117-166-0 16 1 0410- ●
174 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0603- ●
174 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0603-0904 ●
174 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0410-0602 ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0603- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9601-0308 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0309-0409 ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
233 COVER; SIDE COMB LAMP 1-71108-089-0 01 1 0410- ●
233 COVER; SIDE COMB LAMP 1-71108-088-0 01 1 0410- ●
240 WASHER; PL,COMB LAMP 1-82219-013-0 08 1 0410- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9601-0308 ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 0309- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9601-0308 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0309- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0309- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9601-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810-0308 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0309- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0309- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9601-0308 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0309- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9601-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-0308 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
