Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#16371) — 272 parça

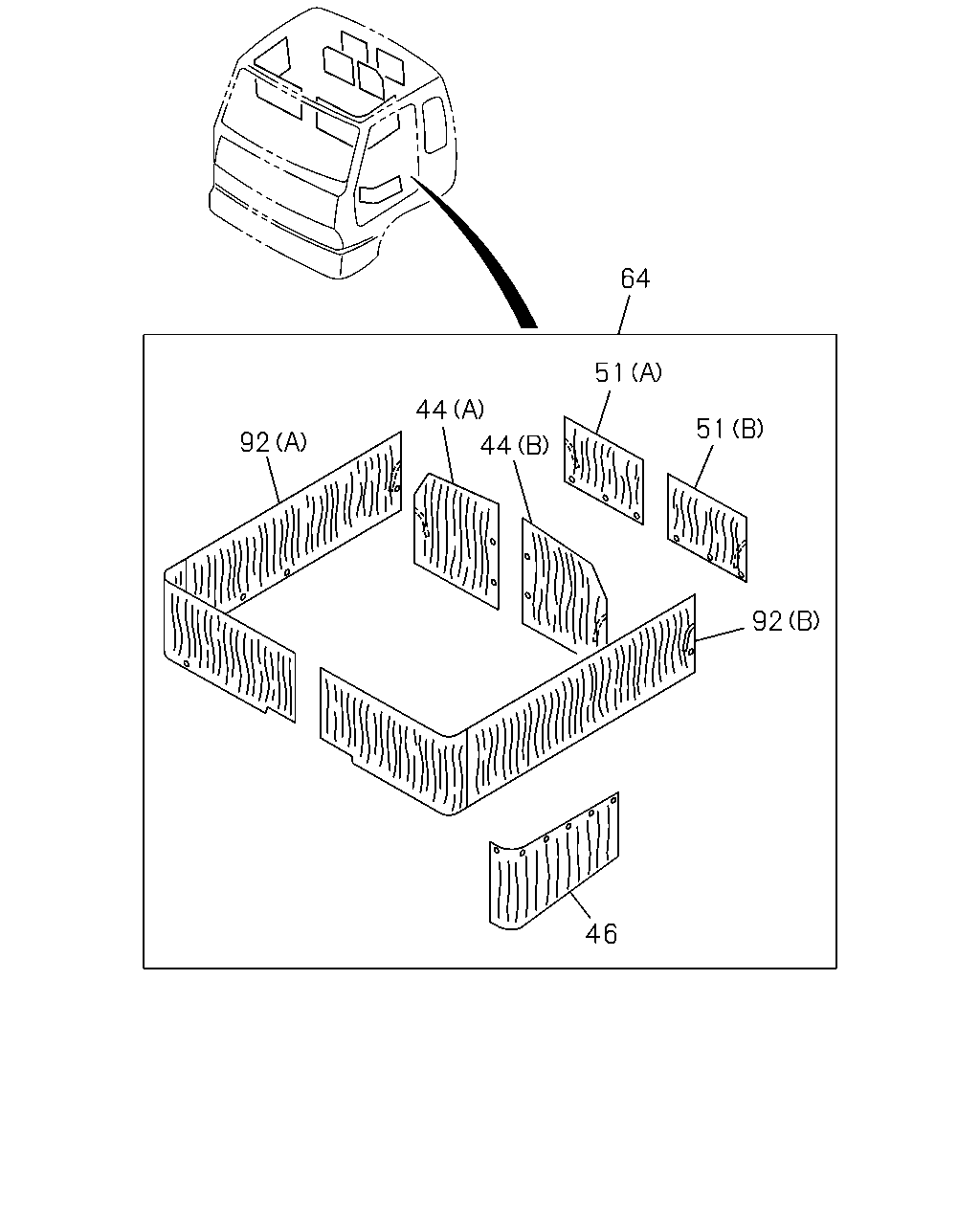

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-0	01	1	9601-9803	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-1	01	1	9804-0308	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-1	01	1	0309-		●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-0	01	1	9601-9803	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-1	01	1	9804-0308	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-1	01	1	0309-		●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	9601-9803	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73908-211-0	01	1	9601-9803	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73908-212-0	01	1	9601-9803	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-0	01	1	9601-9803	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73908-215-0	01	1	9601-9803	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73908-216-0	01	1	9601-9803	●	●

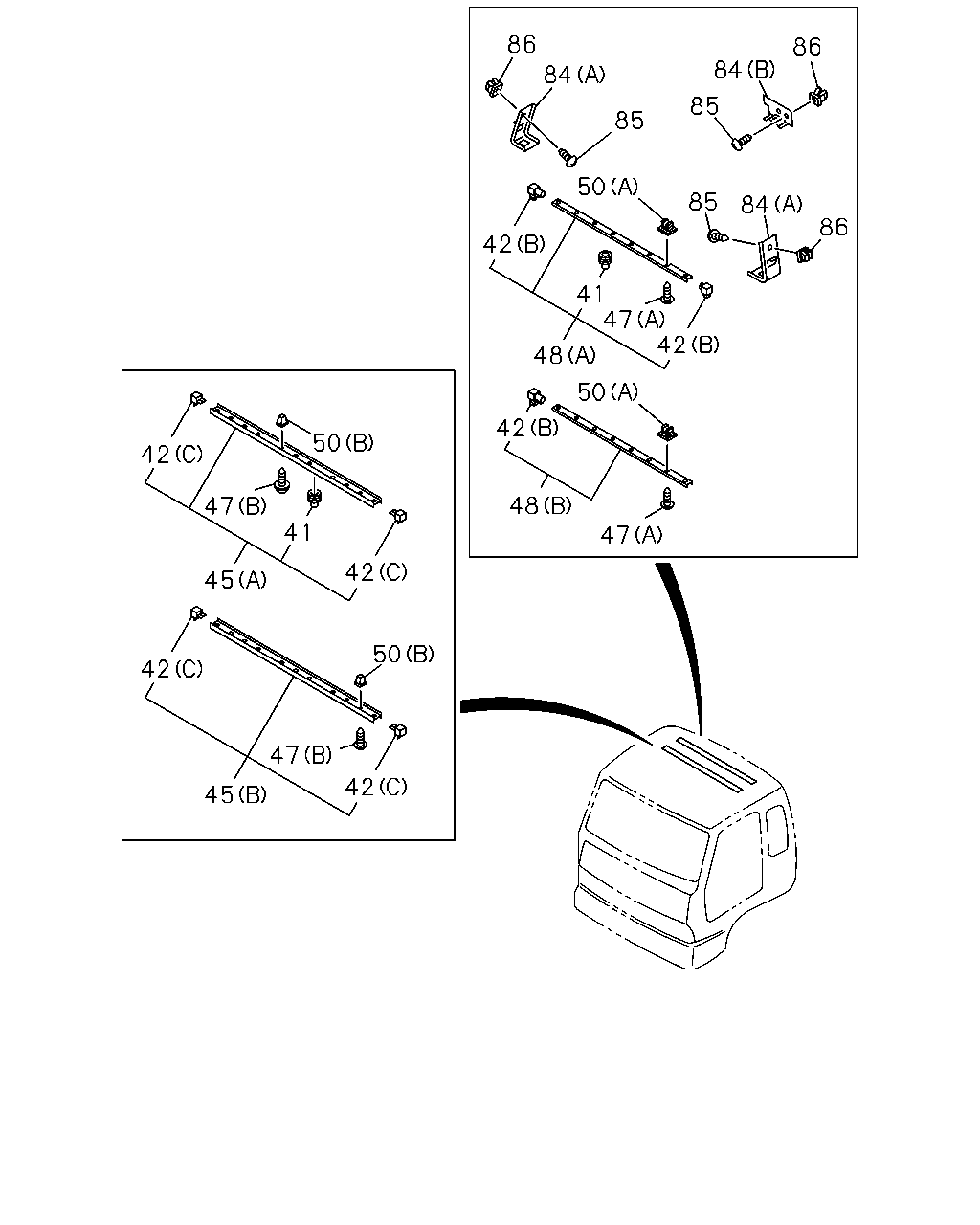

86 86 84 84 85 85 50 85 84 86 42 41 47 42 48 50 42 50 42 48 47 41 47 42 45 50 42 47 42 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9804-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0007-0308	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0309-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-9803	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-403-1	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0309-		●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	01	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0309-		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73908-193-0	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0309-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-150-0	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0005-0308	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0309-		●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-0308	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0309-		●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-4	01	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9803	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9804-0308	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0309-		●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X25	5-09981-093-0	09	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	9804-0308	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	0309-		●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X25	5-09981-093-0	07	1	9601-9803	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9601-9803	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9601-9803	●	●
48	RAIL; CURTAIN,BACK (B)	8-94265-811-0	01	1	9804-0004	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0005-0308	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0309-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0308	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0309-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-0308	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0309-		●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9601-0308	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0309-		●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9601-9803	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9804-0308	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0309-		●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9601-9803	●	●
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9804-0308	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0309-		●
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9804-0308	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0309-		●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9804-0308	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0309-		●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9804-0308	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0309-		●

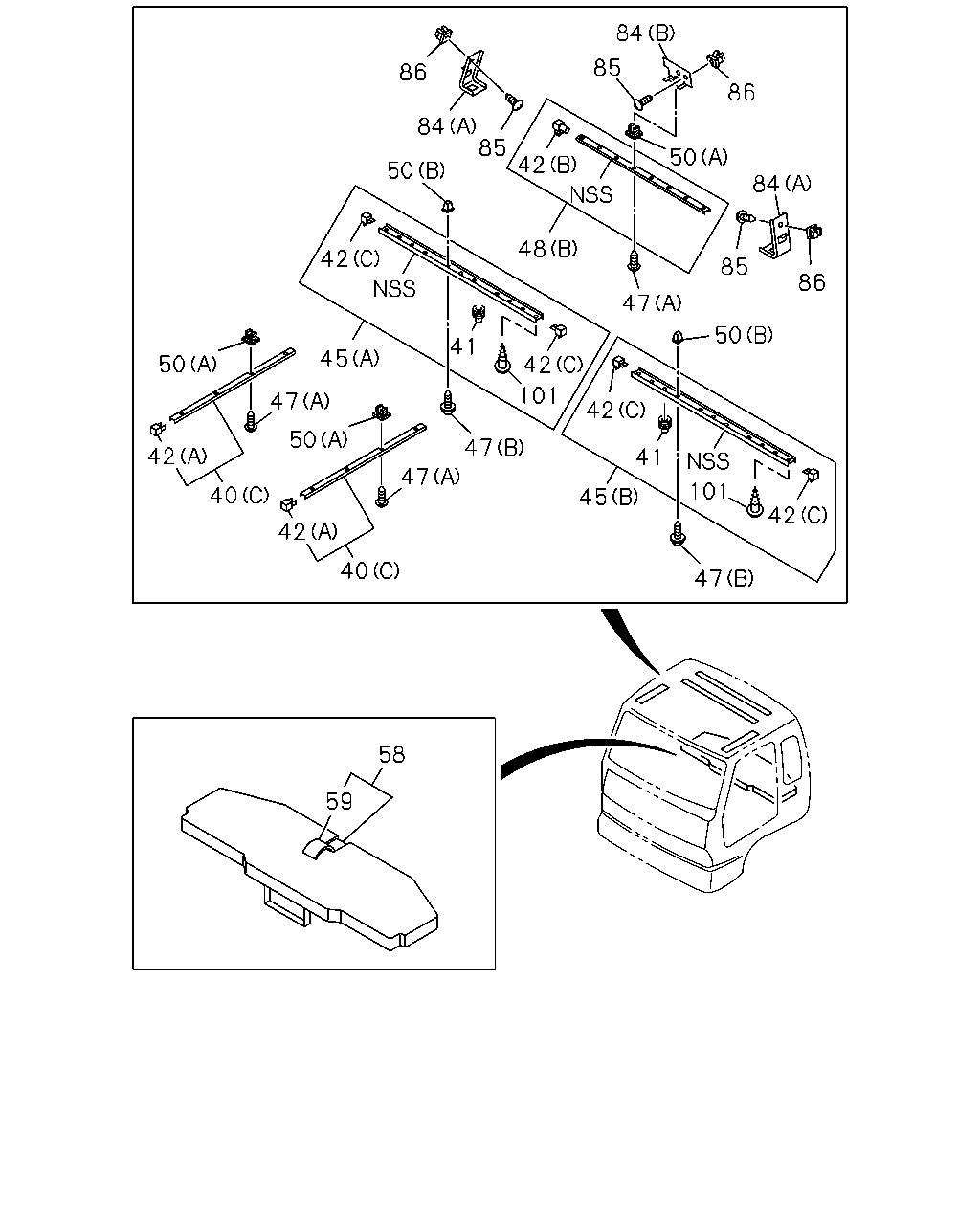

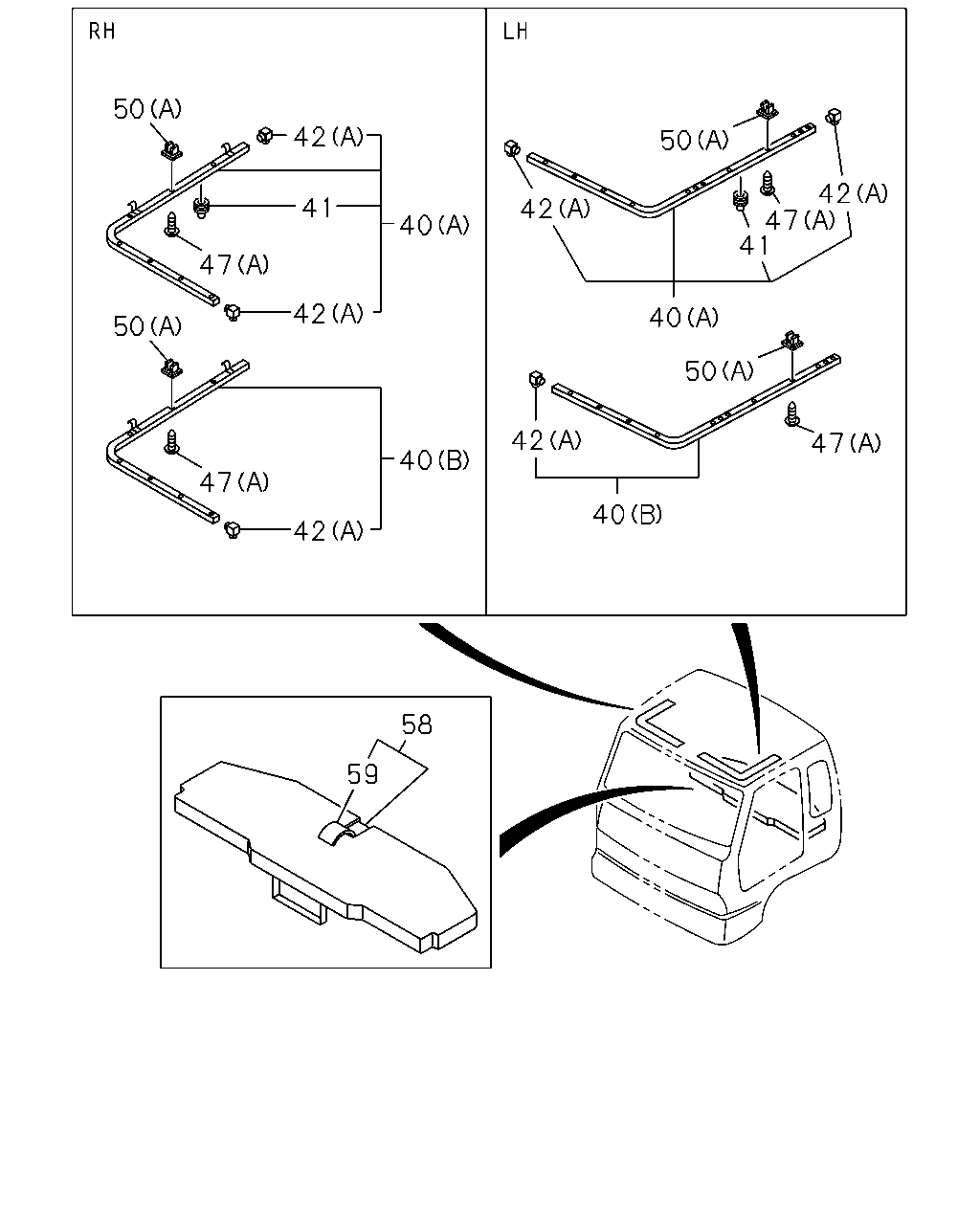

50 42 50 42 47 41 41 42 40 47 42 40 50 50 42 47 40 47 40 42 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-220-0	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-220-0	01	1	9804-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0005-0308	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0309-		●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-219-0	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-219-0	01	1	9804-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0005-0308	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0309-		●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9601-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9804-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0007-0308	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0309-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-9803	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-403-1	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0309-		●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	01	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0309-		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73908-193-0	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0309-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9803	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9804-0308	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0309-		●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X25	5-09981-093-0	09	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	9804-0308	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	0309-		●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X25	5-09981-093-0	07	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0308	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0309-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-0308	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0309-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9601-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-0308	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0309-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9601-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-0308	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0309-		●

84 85 86 86 84 85 50 42 50 84 48 42 85 86 47 50 41 45 50 42 101 47 42 50 47 42 41 47 101 40 45 42 42 40 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-220-0	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-220-0	01	1	9804-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0005-0308	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0309-		●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-219-0	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-219-0	01	1	9804-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0005-0308	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0309-		●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9601-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9804-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0007-0308	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0309-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-9803	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-403-1	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0309-		●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	01	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0309-		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73908-193-0	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0308	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0309-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-150-0	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0005-0308	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0309-		●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-0308	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0309-		●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-4	01	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9803	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9804-0308	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0309-		●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X25	5-09981-093-0	09	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	9804-0308	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	0309-		●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X25	5-09981-093-0	07	1	9601-9803	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9601-9803	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9601-9803	●	●
48	RAIL; CURTAIN,BACK (B)	8-94265-811-0	01	1	9804-0004	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0005-0308	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0309-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0308	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0309-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-0308	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0309-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9601-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-0308	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0309-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9601-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-0308	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0309-		●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9601-0308	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0309-		●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9601-9803	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9804-0308	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0309-		●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9601-9803	●	●
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9804-0308	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0309-		●
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9804-0308	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0309-		●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9804-0308	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0309-		●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9804-0308	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0309-		●
101	SCREW; STOPPER LOW ROOF<6XQ>	1-73907-400-0	02	1	9601-9803	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	9804-0308	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
