Sayfa 7-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶

7-60 — SEAT BELT (#16370) — 64 parça

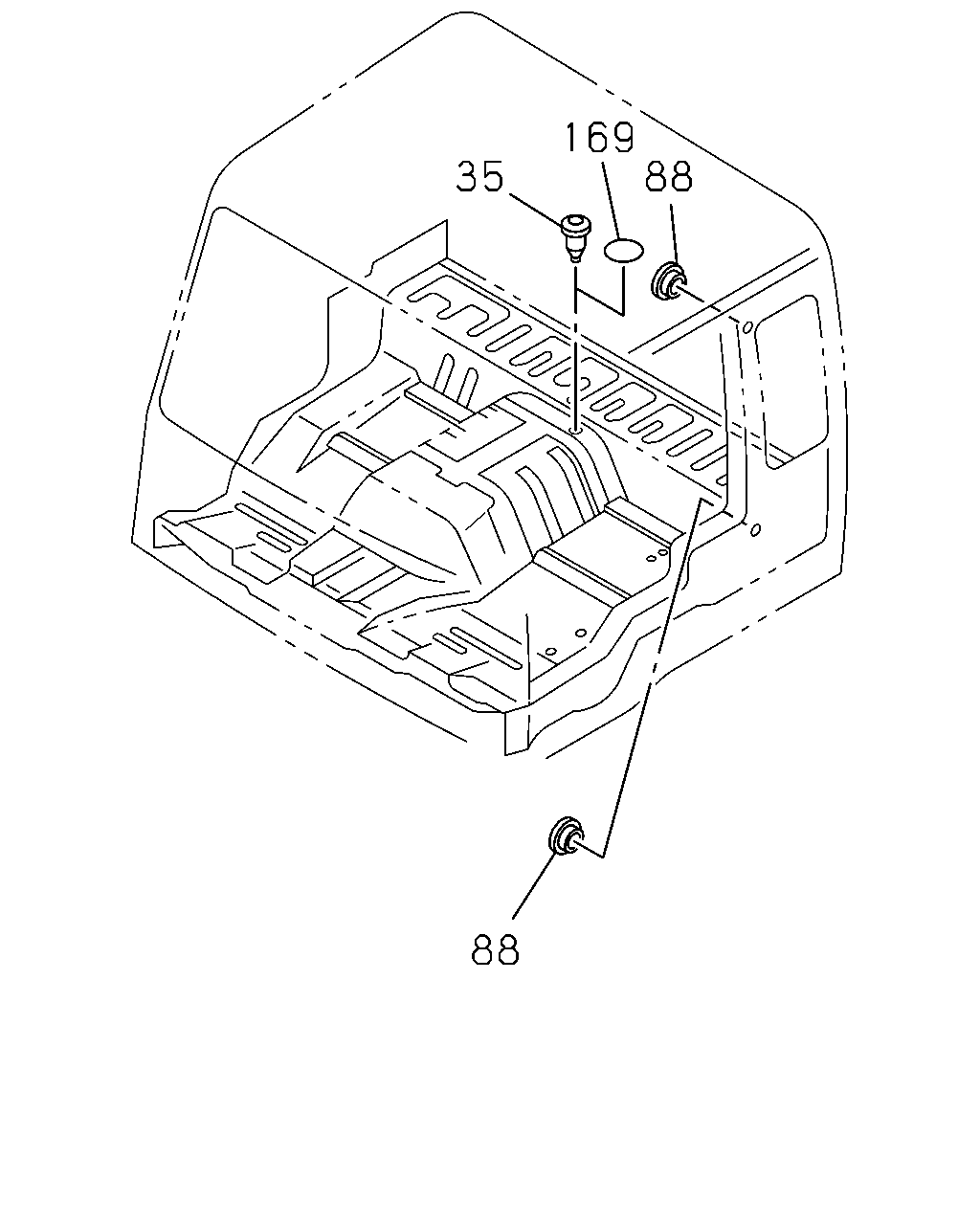

169 88 35 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	GROMMET; SEAT BELT ANCHOR EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRA CTOR 2 POINT<W25> OD=22	9-61168-535-0	03	1	9601-0308	●	●
35	GROMMET; SEAT BELT ANCHOR EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRA CTOR 2 POINT<W25> OD=22	9-61168-535-0	03	1	0309-1005		●
35	GROMMET; SEAT BELT ANCHOR EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRA CTOR 2 POINT<W25> OD=22	9-61168-535-0	02	1	1006-		●
35	GROMMET; SEAT BELT ANCHOR FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY> OD=22	9-61168-535-0	01	1	9804-0308	●	●
35	GROMMET; SEAT BELT ANCHOR FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY> OD=22	9-61168-535-0	01	1	0309-1005		●
88	PLUG; HOLE EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6	8-94198-177-0	01	1	9601-9602	●	●
88	PLUG; HOLE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=31.6	8-94198-177-0	02	1	9601-9709	●	●
88	PLUG; HOLE EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6	8-94198-177-0	02	1	9710-0308	●	●
88	PLUG; HOLE EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6	8-94198-177-0	02	1	0309-		●
169	SEAL EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRA CTOR 2 POINT<W25> OD=25 BLACK	1-76798-019-0	03	1	1006-		●
169	SEAL FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY> OD=25 BLACK	1-76798-019-0	01	1	1006-		●

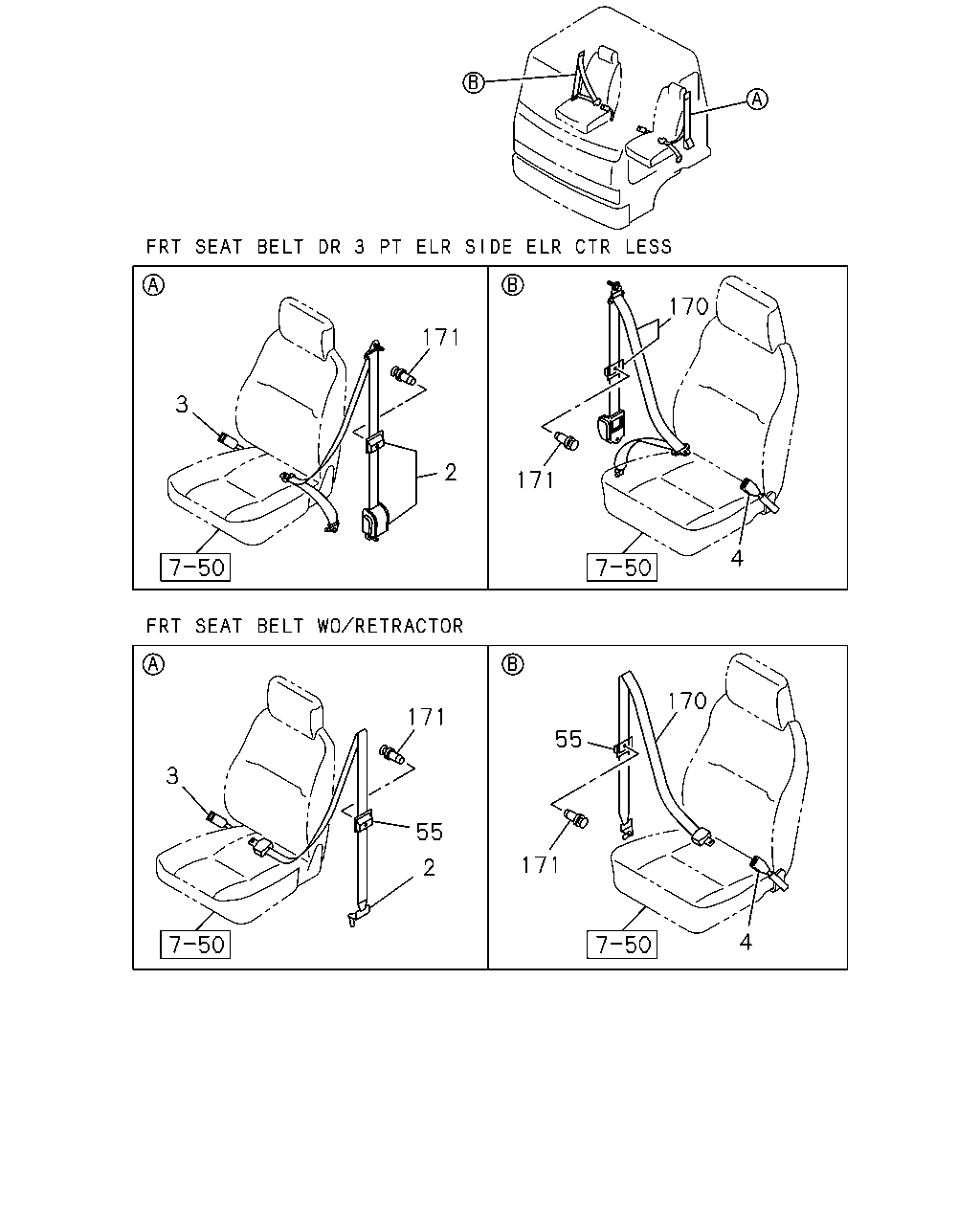

170 171 3 2 171 4 170 171 55 3 55 171 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-514-3	01	1	9601-0004	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-909-5	01	1	0005-0308	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-909-5	01	1	0309-0806		●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	8-98120-810-0	01	1	0807-		●
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-3	01	1	9601-0004	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0005-0308	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0309-		●
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-735-2	01	1	9601-0004	●	●
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-545-0	01	1	0005-0308	●	●
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-545-0	01	1	0309-		●
4	BELT; PASSENGER SEAT,BUCKLE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-797-0	01	1	9601-0004	●	●
4	BELT; PASSENGER SEAT,BUCKLE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-911-1	01	1	0005-0308	●	●
4	BELT; PASSENGER SEAT,BUCKLE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3PT ELR SIDE ELR CTR LESS<SHY>	1-75618-911-1	01	1	0309-		●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-513-0	02	1	9601-0004	●	●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-556-0	02	1	0005-0308	●	●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-556-0	02	1	0309-		●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-509-3	01	1	9601-0004	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-912-5	01	1	0005-0308	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-912-5	01	1	0309-0806		●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	8-98120-818-0	01	1	0807-		●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-3	01	1	9601-0004	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0005-0308	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0309-		●
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	9601-0308	●	●
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	0309-		●

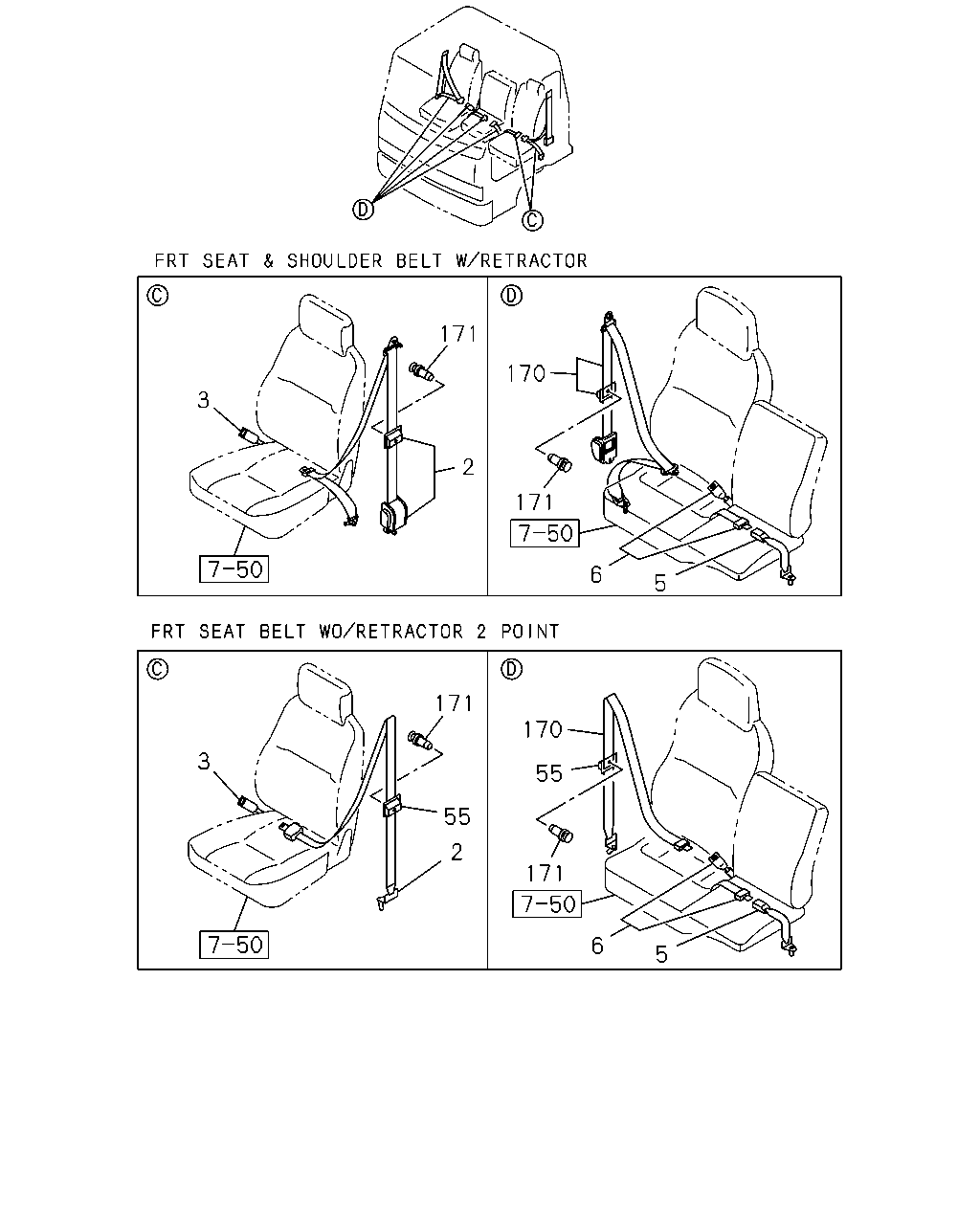

171 170 3 2 171 6 5 171 170 3 55 55 2 171 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-514-3	01	1	9601-0004	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-909-5	01	1	0005-0308	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-909-5	01	1	0309-0806		●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	8-98120-810-0	01	1	0807-		●
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-3	01	1	9601-0004	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0005-0308	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0309-		●
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-735-2	01	1	9601-0004	●	●
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-545-0	01	1	0005-0308	●	●
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75617-545-0	01	1	0309-		●
5	BELT; CENTER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25>	1-75618-739-0	01	1	9601-0004	●	●
5	BELT; CENTER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25>	1-75617-553-1	01	1	0005-0308	●	●
5	BELT; CENTER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25>	1-75617-553-1	01	1	0309-		●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25>	1-75617-511-3	01	1	9601-0004	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25>	1-75618-915-4	01	1	0005-0308	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT WO/RETRACTOR 2 POINT<W25>	1-75618-915-4	01	1	0309-		●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-513-0	02	1	9601-0004	●	●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-556-0	02	1	0005-0308	●	●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-556-0	02	1	0309-		●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75617-509-3	01	1	9601-0004	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-912-5	01	1	0005-0308	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	1-75618-912-5	01	1	0309-0806		●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>	8-98120-818-0	01	1	0807-		●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-780-3	01	1	9601-0004	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0005-0308	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25>	1-75618-936-4	01	1	0309-		●
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	9601-0308	●	●
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
