Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#16369) — 617 parça

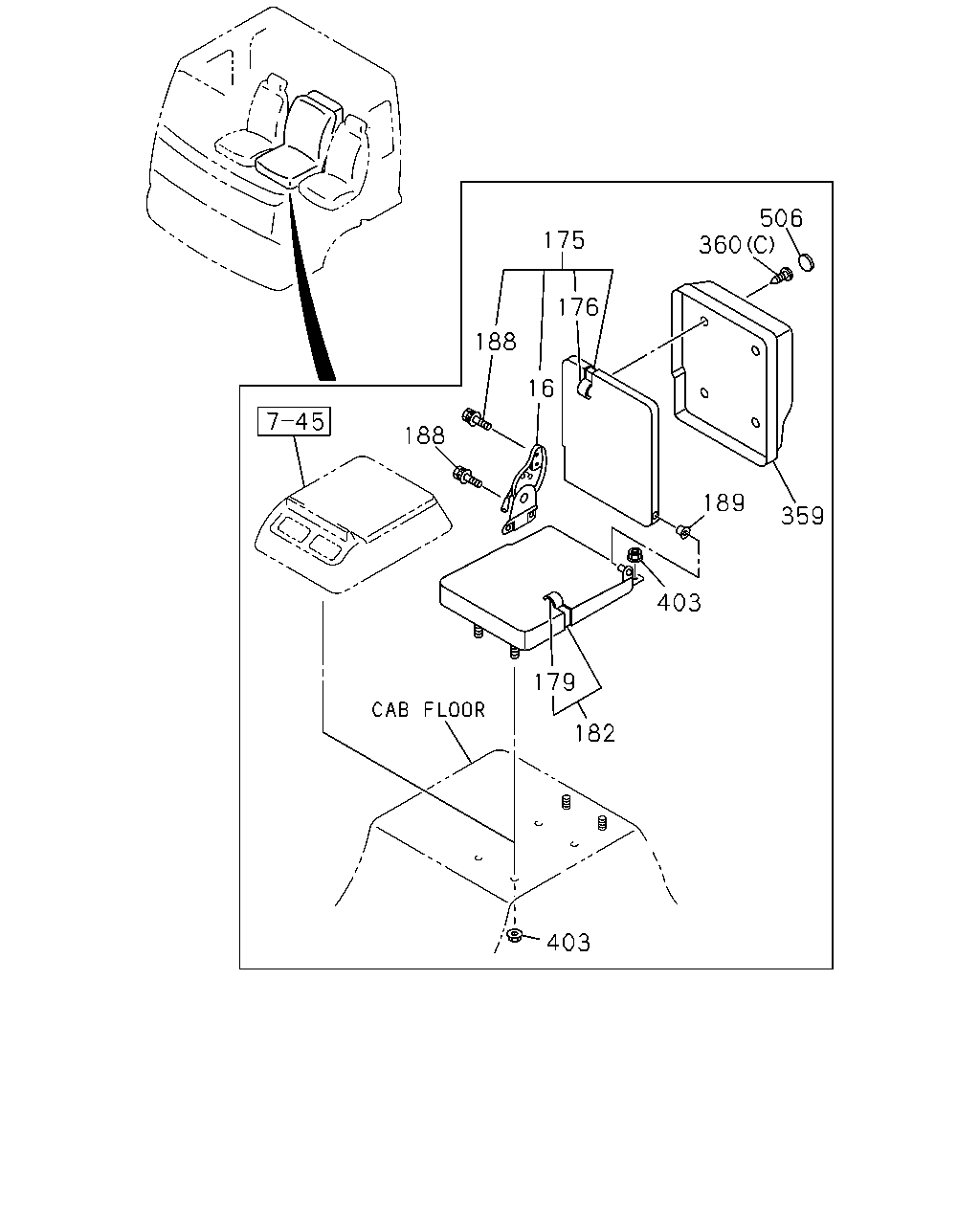

506 360 175 176 188 16 188 189 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-057-1	01	1	9601-9806	●	●
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-057-1	01	1	9807-0003	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-062-0	01	1	0004-0004	●	●
16	ADJUSTER ASM; RECLINING FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-062-0	01	1	0005-0211	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-062-1	01	1	0212-0308	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-062-1	01	1	0309-		●
16	ADJUSTER ASM; RECLINING FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-061-0	01	1	9807-0003	●	●
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75418-061-0	01	1	0005-0211	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-592-1	01	1	9601-9605	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-924-0	01	1	9606-9806	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-861-0	01	1	9807-0003	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-850-0	01	1	0004-0004	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-854-3	01	1	0005-0308	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-854-3	01	1	0309-		●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-587-1	01	1	9601-9605	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-925-0	01	1	9606-0003	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75207-253-0	01	1	0004-0004	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-856-3	01	1	0005-0308	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-856-3	01	1	0309-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-257-0	01	1	9601-9806	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-423-0	01	1	9807-0003	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-646-0	01	1	0004-0004	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-650-1	01	1	0005-0308	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-650-1	01	1	0309-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-258-1	01	1	9601-0003	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-641-0	01	1	0004-0004	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-710-1	01	1	0005-0308	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-710-1	01	1	0309-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-250-1	01	1	9601-9806	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-450-0	01	1	9807-0003	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-635-0	01	1	0004-0004	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-693-1	01	1	0005-0308	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-693-1	01	1	0309-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-223-1	01	1	9601-0003	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-629-0	01	1	0004-0004	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-692-1	01	1	0005-0308	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-692-1	01	1	0309-		●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-589-1	01	1	9601-9806	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-186-0	01	1	9807-0003	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-837-0	01	1	0004-0004	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-842-4	01	1	0005-0308	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-842-4	01	1	0309-		●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75028-533-2	01	1	9601-0003	●	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-831-0	01	1	0004-0004	●	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-841-4	01	1	0005-0308	●	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-841-4	01	1	0309-		●
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE	1-75198-053-0	04	1	9601-0308	●	●
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE	1-75198-053-0	04	1	0309-		●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE 2 CREWS<SP9>	8-97854-900-0	01	1	9601-0308	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE 2 CREWS<SP9>	8-97854-900-0	01	1	0309-		●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-157-2	01	1	9601-0004	●	●
359	BOX; PARCEL VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-157-2	01	1	0005-0211	●	●
359	BOX; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-275-0	01	1	0005-0211	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-275-4	01	1	0212-1006	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	8-98145-114-0	01	1	1007-		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9601-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	9601-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70040-416-0	06	1	0701-1104		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9601-0004	●	●
360	SCREW; PARCEL VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0308	●	●
360	SCREW; PARCEL VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0309-0310		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-		●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0005-0308	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0309-0310		●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X20	9-09829-324-1	02	1	0005-0211	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X20	9-09829-324-1	01	1	0212-0308	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X20	9-09829-324-1	01	1	0309-0310		●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	8-94279-504-1	04	1	9601-9803	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	8-94279-518-0	04	1	9804-0308	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	8-94279-518-0	04	1	0309-0312		●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	1-75538-207-0	04	1	0401-0703		●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	0-91180-108-0	04	1	0704-		●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-164-0	04	1	9601-0004	●	●
506	CAP; PARCEL BOX VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-164-0	04	1	0005-0211	●	●
506	CAP; PARCEL BOX FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-180-0	04	1	0005-0211	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-180-3	04	1	0212-1006	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-180-3	02	1	1007-		●

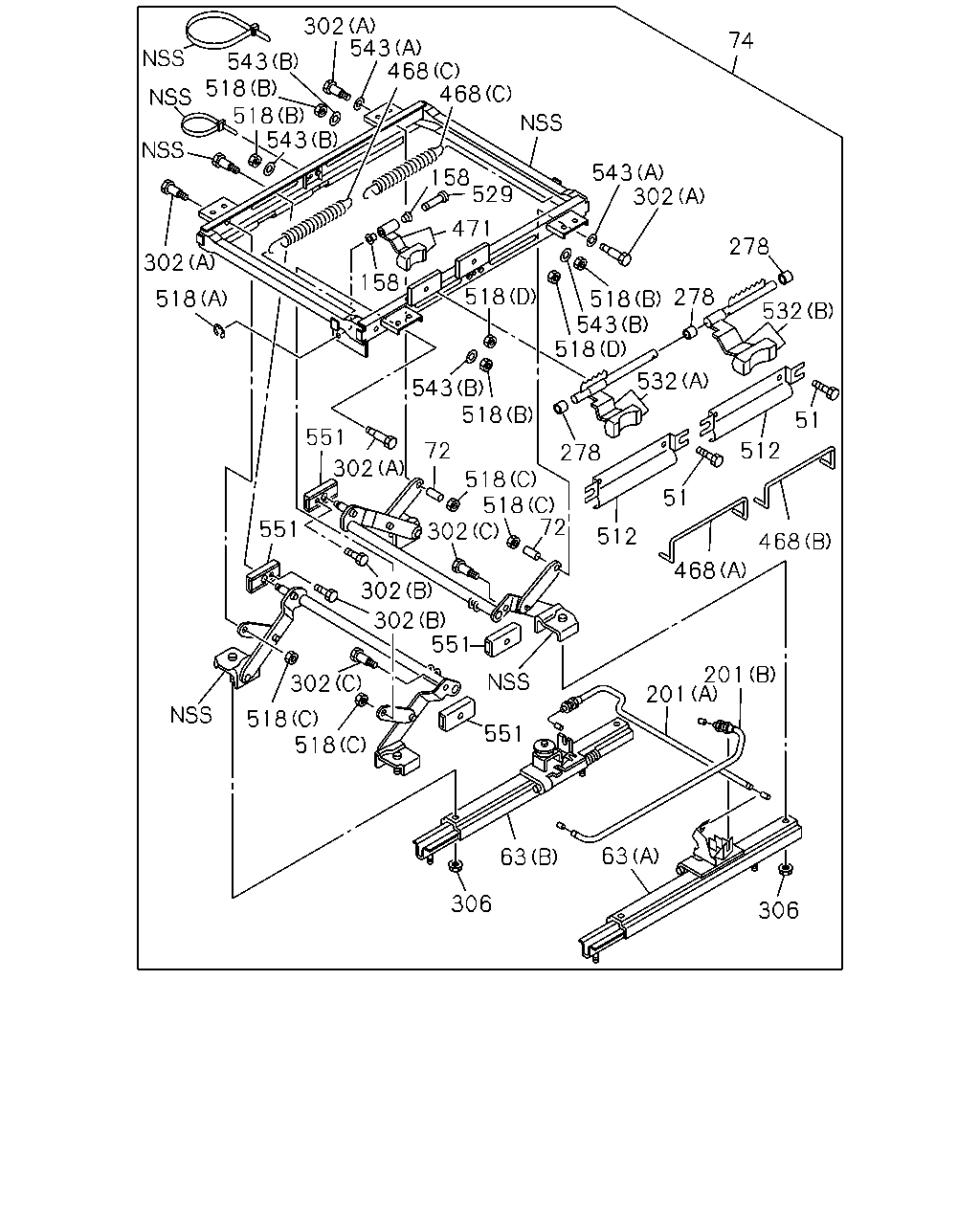

302 543 468 468 74 543 518 518 543 158 529 543 302 471 278 302 158 518 278 518 518 543 518 532 543 518 532 51 278 551 72 512 302 518 518 72 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	04	1	9601-9803	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9601-9705	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9706-0308	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	0309-		●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-0	01	1	9601-9705	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (B)	1-75518-227-0	01	1	9706-9803	●	●
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (B)	1-75518-227-0	01	1	9706-9803	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9804-0308	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0309-		●
63	ADJUSTER; SEAT SLIDE DELUXE CAB(W14) (A)	1-75518-226-0	01	1	9706-9803	●	●
72	SPACER; SEAT ADJ DELUXE CAB(W14)	1-75518-269-0	02	1	9603-9803	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-200-4	01	1	9601-9602	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-255-1	01	1	9603-9705	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-276-0	01	1	9706-9712	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-300-0	01	1	9801-9803	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9601-0308	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0309-		●
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9601-9705	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-0308	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0309-		●
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9601-9705	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9706-0308	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0309-		●
278	COLLAR; FRT SEAT DELUXE CAB(W14)	1-75518-244-0	03	1	9601-9803	●	●
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (A)	1-75518-236-0	04	1	9601-9602	●	●
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (A)	1-75518-270-0	04	1	9603-9803	●	●
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (C)	1-75518-266-0	02	1	9603-9803	●	●
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (B)	1-75518-271-1	02	1	9603-9803	●	●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9601-0003	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0308	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0309-0501		●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	12	1	0502-		●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9601-0308	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0309-		●
468	SPRING; RETURN DELUXE CAB(W14) (A)	1-75518-206-0	01	1	9601-9803	●	●
468	SPRING; RETURN DELUXE CAB(W14) (B)	1-75518-207-0	01	1	9601-9803	●	●
468	SPRING; RETURN DELUXE CAB(W14) (C)	1-75518-208-0	02	1	9601-9803	●	●
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9601-9705	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-0308	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0309-0710		●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-		●
512	COVER; LEVER DELUXE CAB(W14)	1-75518-245-0	02	1	9601-9803	●	●
518	NUT; TILT ADJ DELUXE CAB(W14) (A)	1-75518-263-0	01	1	9603-9705	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9706-0308	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0309-		●
518	NUT; TILT ADJ DELUXE CAB(W14) (C) M8	1-75518-264-0	04	1	9603-9803	●	●
518	NUT; TILT ADJ DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	9603-9803	●	●
518	NUT; TILT ADJ DELUXE CAB(W14) (B) M8 FLANGE	8-94152-886-0	04	1	9603-9803	●	●
529	PIN; LINK DELUXE CAB(W14)	1-75518-262-0	01	1	9603-9705	●	●
529	PIN; LINK	1-75518-262-0	01	1	9706-0308	●	●
529	PIN; LINK	1-75518-262-0	01	1	0309-		●
532	LEVER ASM; TILT DELUXE CAB(W14) (A)	1-75518-221-0	01	1	9601-9803	●	●
532	LEVER ASM; TILT DELUXE CAB(W14) (B)	1-75518-222-1	01	1	9601-9803	●	●
543	WASHER; HEIGHT ADJUSTER DELUXE CAB(W14) (A) ID=10.5	9-09164-510-0	02	1	9601-9803	●	●
543	WASHER; HEIGHT ADJUSTER DELUXE CAB(W14) (B) ID=6.4	9-09160-506-0	04	1	9603-9803	●	●
551	SLIDER; HEIGHT ADJ DELUXE CAB(W14)	1-75518-265-0	04	1	9603-9803	●	●

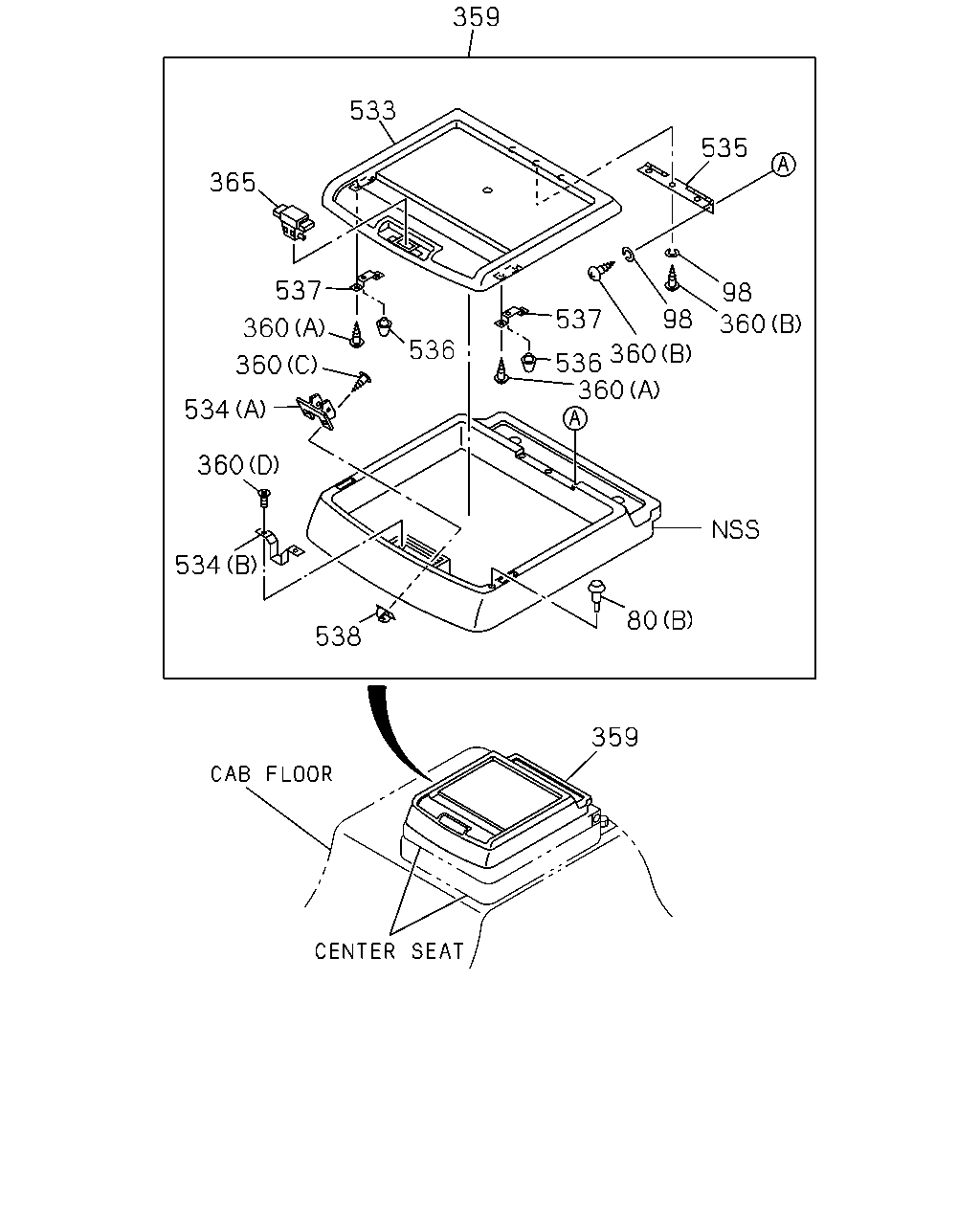

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	9601-0308	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0309-		●
80	RUBBER; STOPPER EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B)	1-72538-187-0	02	1	1007-		●
98	WASHER; HINGE EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9601-0004	●	●
98	WASHER; HINGE VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0005-0308	●	●
98	WASHER; HINGE VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0309-0310		●
98	WASHER; HINGE EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-		●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-157-2	01	1	9601-0004	●	●
359	BOX; PARCEL VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-157-2	01	1	0005-0211	●	●
359	BOX; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-275-0	01	1	0005-0211	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-275-4	01	1	0212-1006	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	8-98145-114-0	01	1	1007-		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9601-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	9601-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70040-416-0	06	1	0701-1104		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9601-0004	●	●
360	SCREW; PARCEL VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0308	●	●
360	SCREW; PARCEL VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0309-0310		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-		●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0005-0308	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0309-0310		●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X20	9-09829-324-1	02	1	0005-0211	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X20	9-09829-324-1	01	1	0212-0308	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X20	9-09829-324-1	01	1	0309-0310		●
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-180-0	01	1	9601-0308	●	●
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-180-0	01	1	0309-		●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-194-2	01	1	9601-0310	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-277-1	01	1	0311-1006	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	8-98145-118-0	01	1	1007-		●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A)	1-72538-181-0	01	1	9601-1006	●	●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B)	1-72538-190-0	01	1	1007-		●
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72447-391-1	01	1	9601-0308	●	●
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72447-391-1	01	1	0309-		●
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE 2 CREWS<SP9>	5-09983-002-1	02	1	9601-1006	●	●
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72548-057-1	02	1	9601-1006	●	●
538	GROMMET; SCREW EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-165-0	02	1	9601-1006	●	●

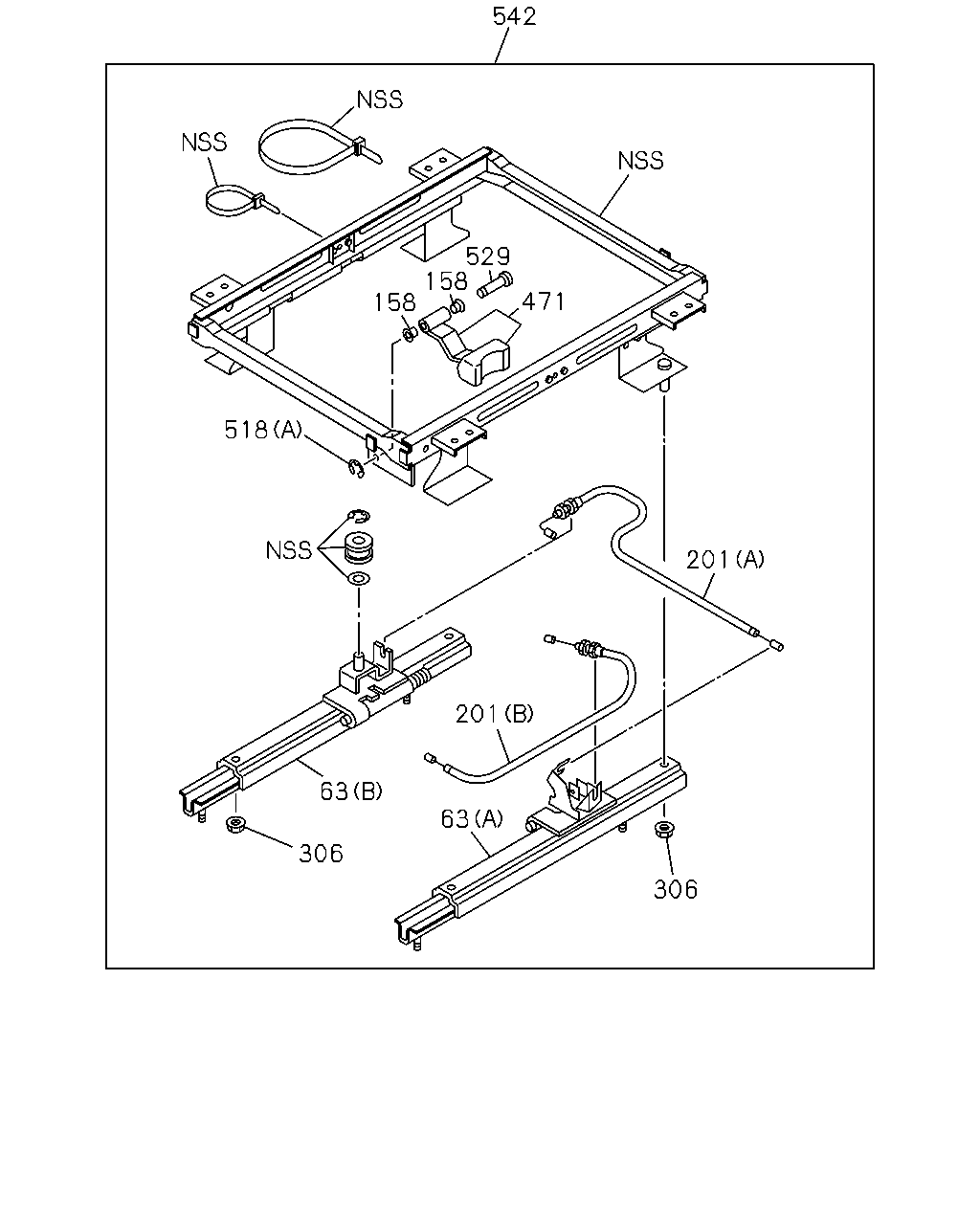

542 529 158 471 158 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9601-9705	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9706-0308	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	0309-		●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-0	01	1	9601-9705	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (B)	1-75518-227-0	01	1	9706-9803	●	●
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (B)	1-75518-227-0	01	1	9706-9803	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9804-0308	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0309-		●
63	ADJUSTER; SEAT SLIDE DELUXE CAB(W14) (A)	1-75518-226-0	01	1	9706-9803	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9601-0308	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0309-		●
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9601-9705	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-0308	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0309-		●
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9601-9705	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9706-0308	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0309-		●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9601-0003	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0308	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0309-0501		●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	12	1	0502-		●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-		●
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9601-9705	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-0308	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0309-0710		●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-		●
518	NUT; TILT ADJ DELUXE CAB(W14) (A)	1-75518-263-0	01	1	9603-9705	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9706-0308	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0309-		●
518	NUT; TILT ADJ DELUXE CAB(W14) (C) M8	1-75518-264-0	04	1	9603-9803	●	●
518	NUT; TILT ADJ DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	9603-9803	●	●
518	NUT; TILT ADJ DELUXE CAB(W14) (B) M8 FLANGE	8-94152-886-0	04	1	9603-9803	●	●
529	PIN; LINK DELUXE CAB(W14)	1-75518-262-0	01	1	9603-9705	●	●
529	PIN; LINK	1-75518-262-0	01	1	9706-0308	●	●
529	PIN; LINK	1-75518-262-0	01	1	0309-		●
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-189-2	01	1	9601-9705	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-189-2	01	1	9601-9705	●	●
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-283-0	01	1	9706-9803	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-0	01	1	9706-9803	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9804-0308	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	0309-1502		●
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-		●

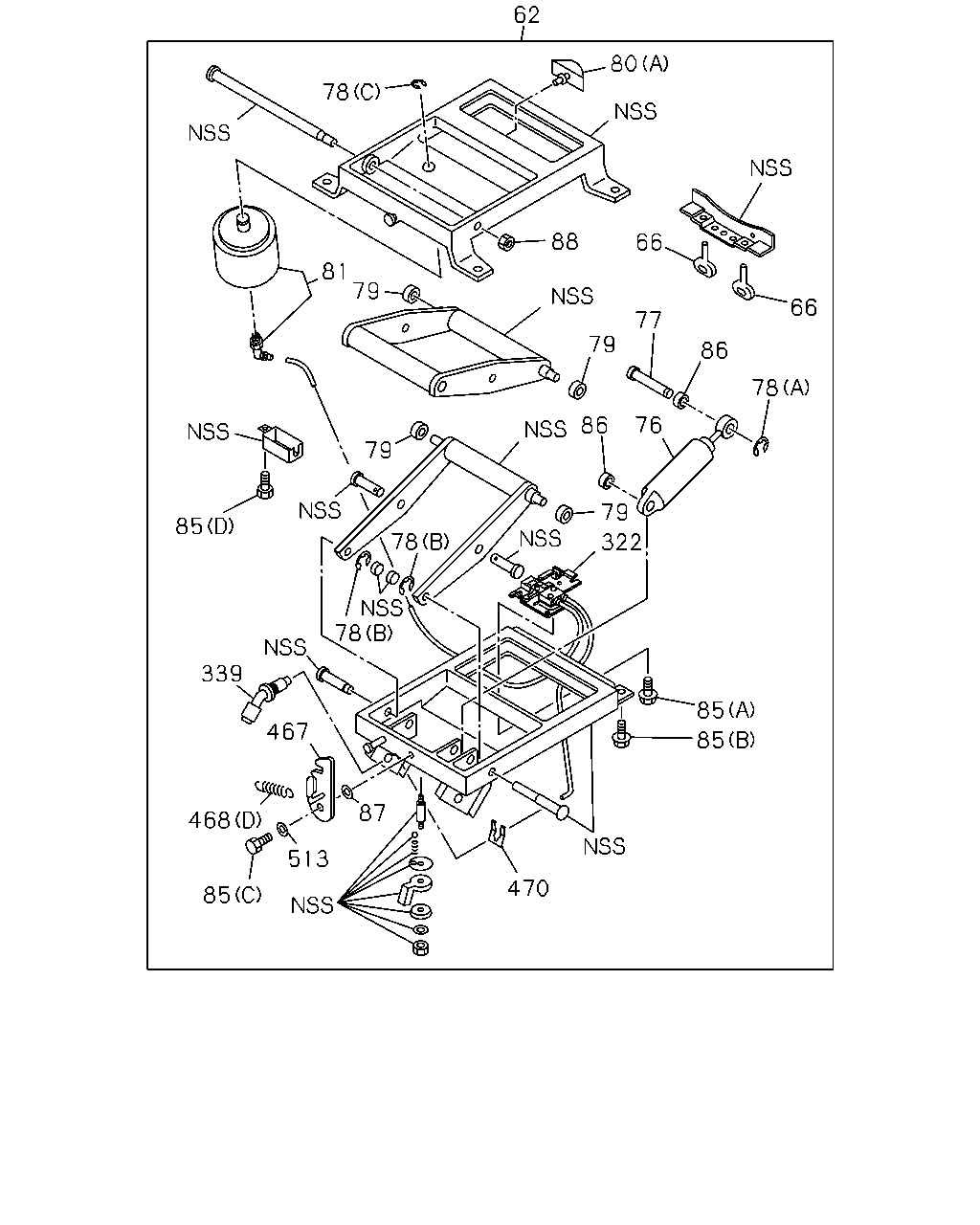

470 513 468 85 87 467 339 85 78 78 79 322 79 79 81 77 79 78 66 86 66 88 78 85 85 76 86 80 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-141-4	01	1	9601-9602	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9603-9712	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	9812-0308	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0309-1403		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-		●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	9601-0308	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0309-		●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	9601-0308	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	0309-		●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	9601-0308	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0309-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	9601-0308	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0309-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	9601-0308	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	0309-0406		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	9601-0308	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	0309-		●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-155-0	04	1	9601-9602	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	9603-0308	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0309-1403		●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-		●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	9601-0308	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0309-		●
80	RUBBER; STOPPER EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B)	1-72538-187-0	02	1	1007-		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	9601-0308	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	0309-1312		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9601-0102	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0103-0308	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0309-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9601-0003	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0004-0308	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0309-1312		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	9601-0308	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0309-		●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9601-0308	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0309-		●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	9601-0308	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	0309-0710		●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0711-		●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	8-94279-519-0	01	1	9601-0003	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0004-0308	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0309-		●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-148-1	01	1	9601-9804	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	9805-0308	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	0309-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-3	01	1	9601-0308	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-3	01	1	0309-		●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	9601-0308	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0309-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9601-0308	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0309-		●
468	SPRING; RETURN DELUXE CAB(W14) (A)	1-75518-206-0	01	1	9601-9803	●	●
468	SPRING; RETURN DELUXE CAB(W14) (B)	1-75518-207-0	01	1	9601-9803	●	●
468	SPRING; RETURN DELUXE CAB(W14) (C)	1-75518-208-0	02	1	9601-9803	●	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	9601-0308	●	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0309-		●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	9601-0308	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0309-		●

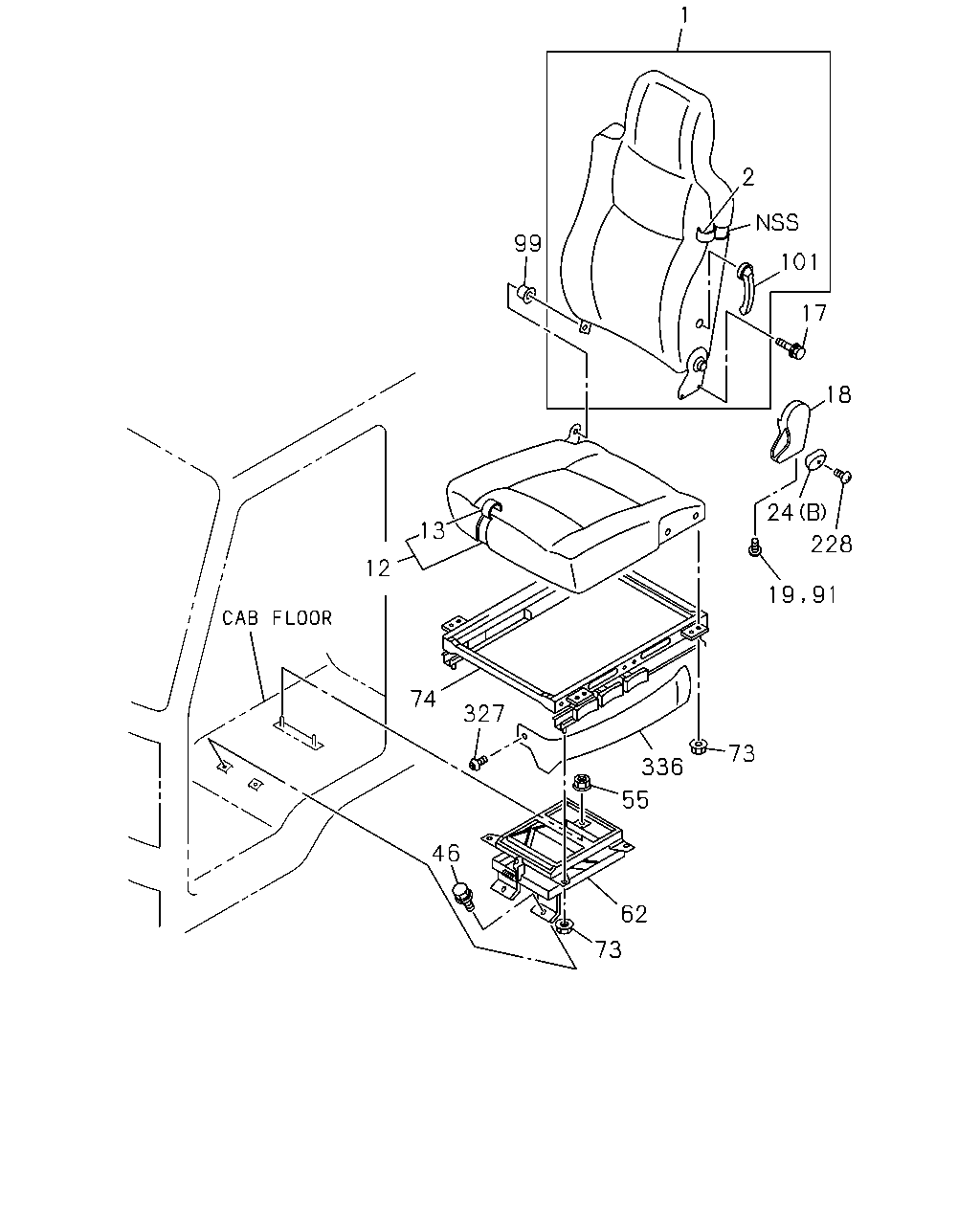

1 2 99 101 17 18 24 13 228 12 74 327 73 336 55 46 62 73 19 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75028-625-1	01	1	9601-9803	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-861-1	01	1	9804-0003	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-719-0	01	1	0004-0004	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-733-0	01	1	0005-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0106-0308	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0309-		●
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-576-1	01	1	9601-9803	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-637-2	01	1	9601-9803	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-615-2	01	1	9601-9803	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75028-615-2	01	1	9804-0003	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-720-0	01	1	0004-0004	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0005-0105	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0106-0308	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0309-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75116-279-0	01	1	9601-9611	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-253-0	01	1	9601-9611	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-253-1	01	1	9612-9803	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-343-0	01	1	9804-0003	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-598-0	01	1	0004-0004	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0005-0308	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0309-		●
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-284-1	01	1	9601-9611	●	●
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-276-2	01	1	9612-9803	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-273-1	01	1	9601-9803	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-273-1	01	1	9804-0003	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-599-0	01	1	0004-0004	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0005-0308	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0309-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-600-1	01	1	9601-9803	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-996-0	01	1	9804-0003	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-684-0	01	1	0004-0004	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0005-0308	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0309-		●
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-529-2	01	1	9601-9803	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-599-3	01	1	9601-9803	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75028-599-3	01	1	9804-0003	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-685-0	01	1	0004-0004	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0005-0308	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0309-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-842-0	01	1	9601-9803	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-371-0	01	1	9804-0003	●	●

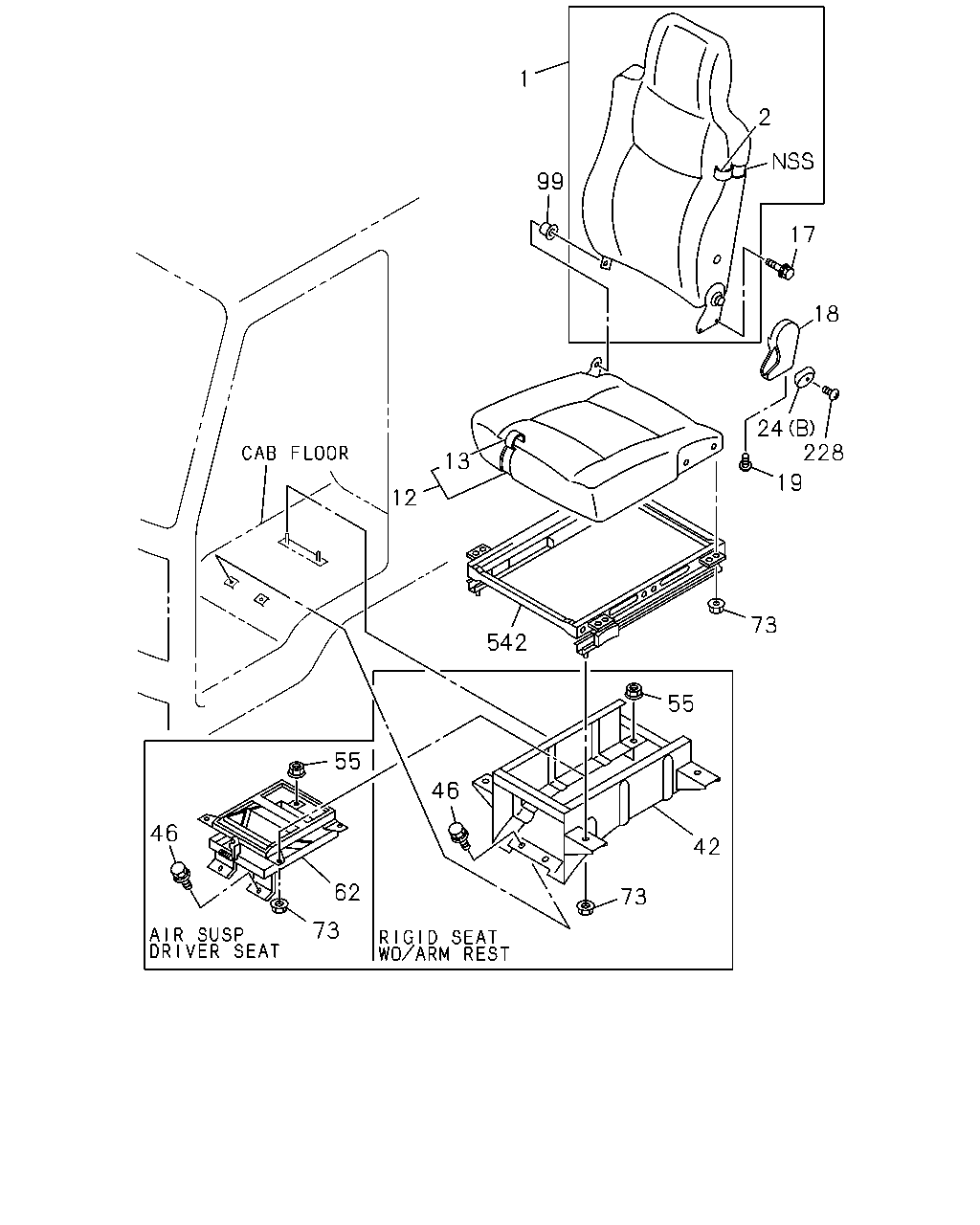

13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-552-0	01	1	0004-0004	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0005-0308	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0309-		●
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-224-1	01	1	9601-9803	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-272-2	01	1	9601-9705	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-277-2	01	1	9706-9803	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-277-2	01	1	9804-0003	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-553-0	01	1	0004-0004	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0005-0308	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0309-		●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9601-0003	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-0308	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0309-		●
18	COVER; RECLINING	1-75418-052-0	01	1	9601-0004	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0005-0308	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0309-		●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9601-0308	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0309-		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9601-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0005-0308	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0309-0710		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-		●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9601-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0005-0308	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0309-		●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9601-0308	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0309-0703		●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-		●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9601-0308	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0309-0703		●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-141-4	01	1	9601-9602	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9603-9712	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	9812-0308	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0309-1403		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9601-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0308	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0309-0501		●
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9601-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0308	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0309-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-200-4	01	1	9601-9602	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-255-1	01	1	9603-9705	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-276-0	01	1	9706-9712	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-300-0	01	1	9801-9803	●	●
91	SCREW; SEAT ADJ COVER DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9601-9803	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9601-0308	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0309-		●
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	5-75190-138-0	01	1	9601-9803	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9601-0004	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9601-0004	●	●
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4X6	8-97042-273-0	01	1	0005-0105	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-0105	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-0308	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-0308	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0309-0710		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0309-0710		●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-		●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-		●
327	CLIP; COVER DELUXE CAB(W14)	1-09987-249-0	01	1	9601-9803	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	0005-0201	●	●
336	COVER; DRIVER SEAT DELUXE CAB(W14)	1-75518-194-2	01	1	9601-9803	●	●

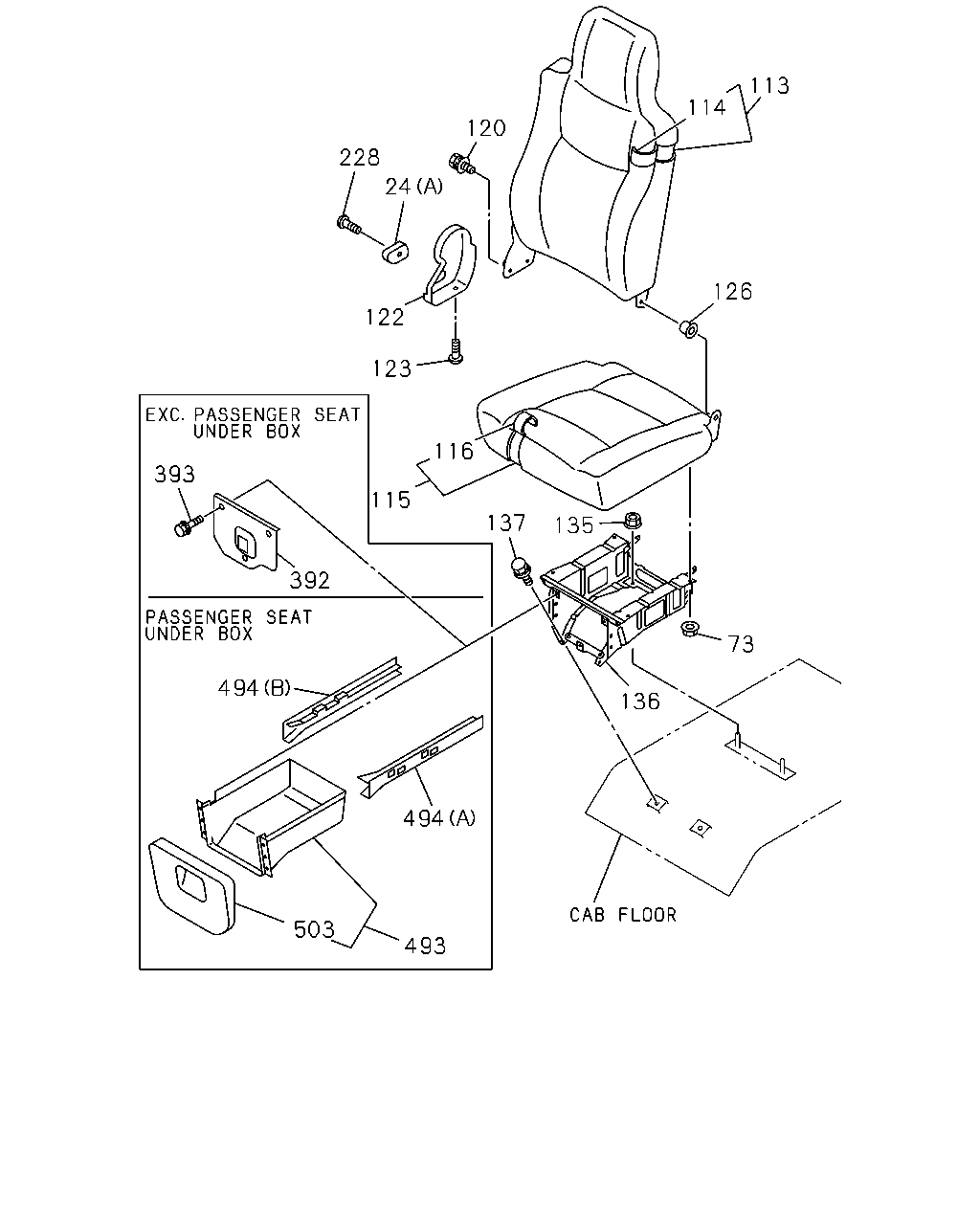

113 114 120 228 24 126 122 123 116 393 115 137 135 392 73 494 136 494 503 493

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9601-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0005-0308	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0309-0710		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-		●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9601-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0005-0308	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0309-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9601-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0308	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0309-0501		●
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9601-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0308	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0309-		●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-586-1	01	1	9601-9712	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75028-586-1	01	1	9801-9803	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-998-0	01	1	9804-0003	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-712-0	01	1	0004-0004	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-723-0	01	1	0005-0105	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-3	01	1	0106-0308	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-3	01	1	0309-		●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75028-618-1	01	1	9601-9610	●	●
113	BACK ASM; SEAT VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN>	1-75028-618-2	01	1	9611-9712	●	●
113	BACK ASM; SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75028-618-2	01	1	9801-9803	●	●
113	BACK ASM; SEAT VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75028-590-2	01	1	9611-9803	●	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75028-590-2	01	1	9804-0003	●	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-721-0	01	1	0004-0004	●	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-728-0	01	1	0005-0105	●	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0106-0308	●	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0309-		●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-256-0	01	1	9601-9712	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75116-256-0	01	1	9801-9803	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-373-0	01	1	9804-0003	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-587-0	01	1	0004-0004	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-1	01	1	0005-0308	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-1	01	1	0309-		●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-274-1	01	1	9601-9610	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN>	1-75116-274-1	01	1	9611-9712	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT UNDER BOX<TDN>	1-75116-274-1	01	1	9801-9803	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75116-277-2	01	1	9611-9803	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-277-2	01	1	9804-0003	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-600-0	01	1	0004-0004	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0005-0308	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0309-		●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-583-2	01	1	9601-9712	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75028-583-2	01	1	9801-9803	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-024-0	01	1	9804-0003	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-682-0	01	1	0004-0004	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-1	01	1	0005-0308	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-1	01	1	0309-		●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75028-620-2	01	1	9601-9610	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN>	1-75028-620-3	01	1	9611-9712	●	●
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75028-620-3	01	1	9801-9803	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75028-531-2	01	1	9611-9803	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75028-531-2	01	1	9804-0003	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-771-0	01	1	0004-0004	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0005-0308	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0309-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75117-841-1	01	1	9601-9712	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75117-841-1	01	1	9801-9803	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-378-0	01	1	9804-0003	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-550-0	01	1	0004-0004	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-1	01	1	0005-0308	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-1	01	1	0309-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-275-2	01	1	9601-9610	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN>	1-75116-275-2	01	1	9611-9712	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT UNDER BOX<TDN>	1-75116-275-2	01	1	9801-9803	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75116-225-1	01	1	9611-9803	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-225-1	01	1	9804-0003	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-575-0	01	1	0004-0004	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0005-0308	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0309-		●
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9601-0003	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-0308	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0309-		●
122	COVER; ADJ,RECLINING	1-75418-050-0	01	1	9601-0004	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0005-0308	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0309-		●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9601-0308	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0309-		●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9601-0308	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0309-		●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9601-0308	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0309-0703		●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-		●
136	STAND; PASSENGER SEAT	1-75558-547-1	01	1	9601-9610	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75558-547-2	01	1	9611-9803	●	●
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	9804-0004	●	●
136	STAND; PASSENGER SEAT	1-75558-582-1	01	1	0005-0005	●	●
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	0006-0105	●	●
136	STAND; PASSENGER SEAT	1-75558-587-0	01	1	0106-0212	●	●
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	0301-0308	●	●
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	0309-1305		●
136	STAND; PASSENGER SEAT	8-98242-292-0	01	1	1306-		●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-550-3	01	1	9611-9803	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9601-0308	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0309-0703		●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9601-0004	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9601-0004	●	●
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4X6	8-97042-273-0	01	1	0005-0105	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-0105	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-0308	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-0308	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0309-0710		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0309-0710		●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-		●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-		●
392	COVER; STAND,PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-535-2	01	1	9611-9803	●	●
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	9804-0308	●	●
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	0309-		●
393	BOLT; COVER,SEAT STAND EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9611-9803	●	●
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9804-0308	●	●
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0309-0703		●
393	BOLT; COVER,SEAT STAND M6X16	0-52000-616-0	03	1	0704-		●
493	BOX; SEAT STAND PASSENGER SEAT UNDER BOX<TDN>	1-72537-130-1	01	1	9601-9803	●	●
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (A)	1-72537-149-0	01	1	9601-9803	●	●
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (B)	1-72537-150-0	01	1	9601-9803	●	●
503	COVER; BOX PASSENGER SEAT UNDER BOX<TDN>	1-72537-136-0	01	1	9601-9803	●	●

1 99 2 17 18 24 228 19 73 55 42 73 46 542 12 13 55 62 73 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75028-625-1	01	1	9601-9803	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-861-1	01	1	9804-0003	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-719-0	01	1	0004-0004	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-733-0	01	1	0005-0105	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0106-0308	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0309-		●
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-576-1	01	1	9601-9803	●	●
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-637-2	01	1	9601-9803	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-615-2	01	1	9601-9803	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75028-615-2	01	1	9804-0003	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-720-0	01	1	0004-0004	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0005-0105	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0106-0308	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0309-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75116-279-0	01	1	9601-9611	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-253-0	01	1	9601-9611	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-253-1	01	1	9612-9803	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-343-0	01	1	9804-0003	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-598-0	01	1	0004-0004	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0005-0308	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0309-		●
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-284-1	01	1	9601-9611	●	●
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-276-2	01	1	9612-9803	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-273-1	01	1	9601-9803	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-273-1	01	1	9804-0003	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-599-0	01	1	0004-0004	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0005-0308	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0309-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-600-1	01	1	9601-9803	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-996-0	01	1	9804-0003	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-684-0	01	1	0004-0004	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0005-0308	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0309-		●
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-529-2	01	1	9601-9803	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-599-3	01	1	9601-9803	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75028-599-3	01	1	9804-0003	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-685-0	01	1	0004-0004	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0005-0308	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0309-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-842-0	01	1	9601-9803	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-371-0	01	1	9804-0003	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-552-0	01	1	0004-0004	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0005-0308	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0309-		●
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-224-1	01	1	9601-9803	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-272-2	01	1	9601-9705	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-277-2	01	1	9706-9803	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-277-2	01	1	9804-0003	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-553-0	01	1	0004-0004	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0005-0308	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0309-		●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9601-0003	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-0308	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0309-		●
18	COVER; RECLINING	1-75418-052-0	01	1	9601-0004	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0005-0308	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0309-		●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9601-0308	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0309-		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9601-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0005-0308	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0309-0710		●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-		●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9601-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0005-0308	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0309-		●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-491-4	01	1	9601-0003	●	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0004-0308	●	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0309-		●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9601-0308	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0309-0703		●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-		●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9601-0308	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0309-0703		●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-141-4	01	1	9601-9602	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9603-9712	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	9812-0308	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0309-1403		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9601-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0308	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0309-0501		●
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9601-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0308	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0309-		●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9601-0308	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0309-		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9601-0004	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9601-0004	●	●
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4X6	8-97042-273-0	01	1	0005-0105	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-0105	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-0308	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-0308	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0309-0710		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0309-0710		●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-		●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-		●
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-189-2	01	1	9601-9705	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-189-2	01	1	9601-9705	●	●
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-283-0	01	1	9706-9803	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-0	01	1	9706-9803	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9804-0308	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	0309-1502		●
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
