Isuzu WW
▶
TRUCKS
▶
FVR
▶
11352 - FVR(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#16368) — 29 parça
Tümü
A - FVR6MC
B - FVR6MF
◀

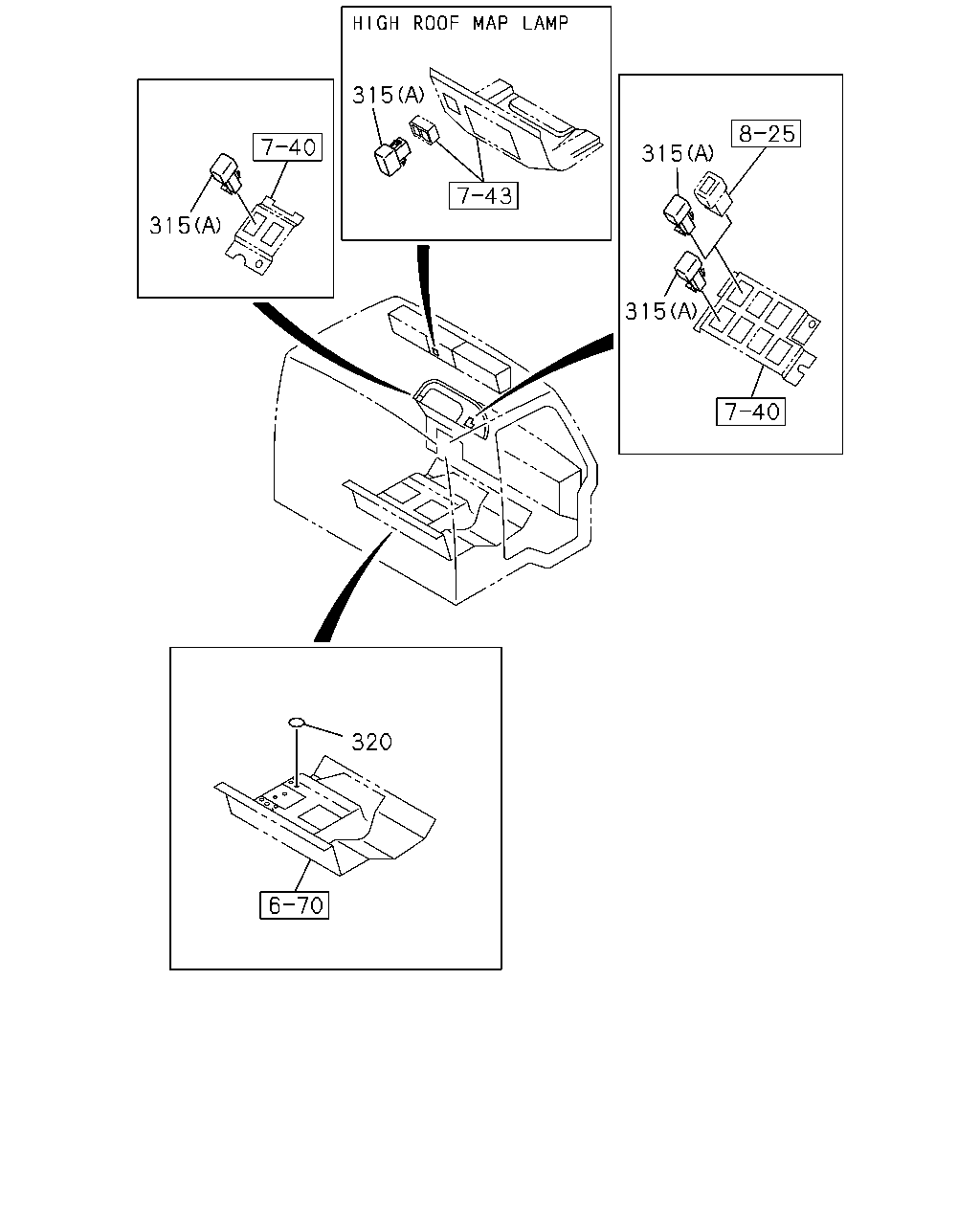

[745A] SEAL AND HOLE COVER (4 parça)
[745A] TRAY ASM AND COVER (6 parça)

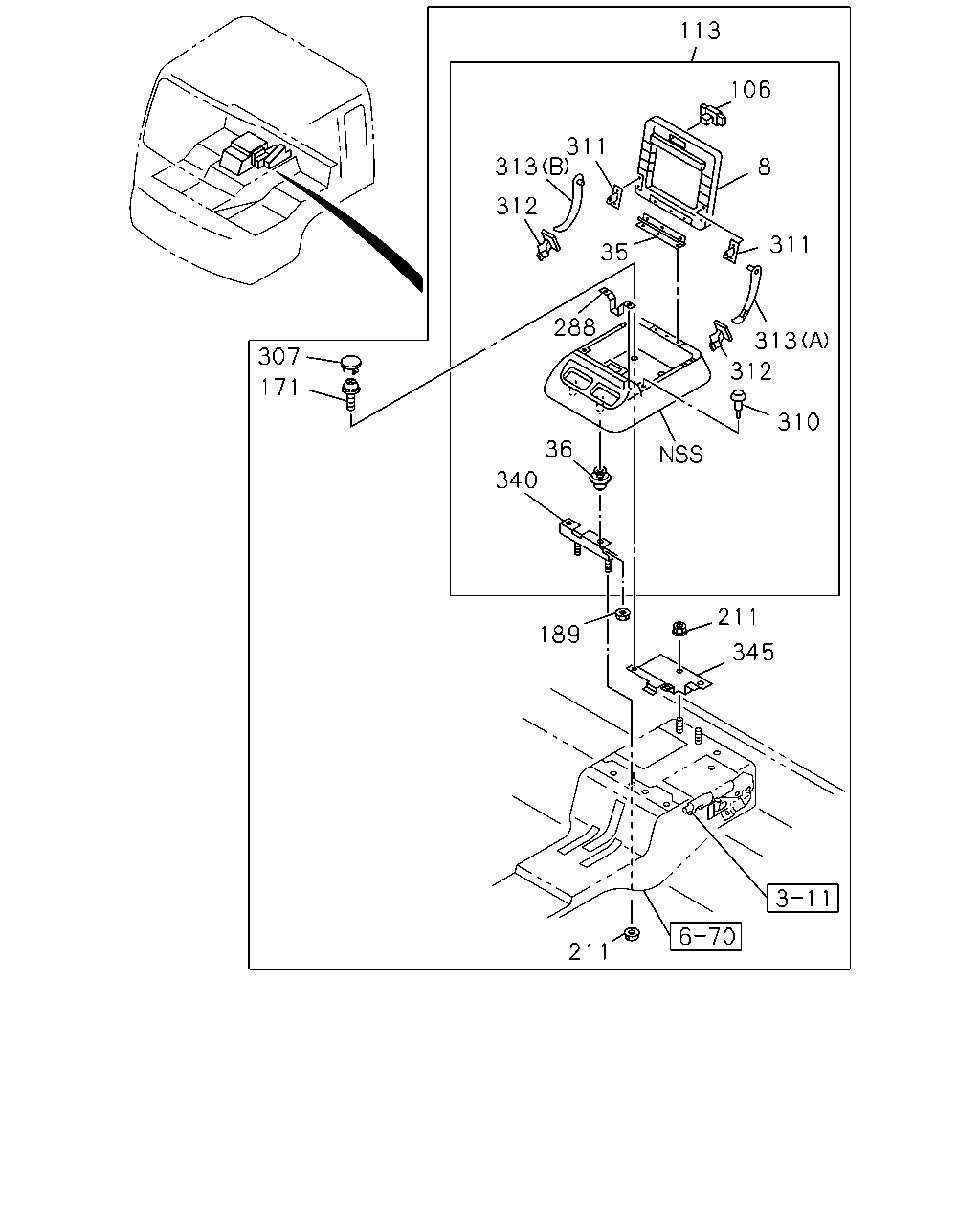

[745A] COMPONENT (19 parça)
▶
315
315
315
315
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
315
COVER; HOLE,SW
(B)
8-97043-732-1
AR
1
9803-
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
AR
1
9601-
●
●
320
SEAL; HOLE,TRAY
OD=25 BLACK
1-76798-019-0
03
1
9601-0308
●
●
320
SEAL; HOLE,TRAY
OD=25 BLACK
1-76798-019-0
03
1
0309-
●
316
315
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
315
COVER; HOLE,SW
(B)
8-97043-732-1
AR
1
9803-
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
AR
1
9601-
●
●
316
BOX; COIN
8-94482-280-2
02
1
9803-0308
●
●
316
BOX; COIN
8-94482-280-2
02
1
0309-
●
317
CONSENT
1-82523-020-2
01
1
9601-0308
●
●
317
CONSENT
1-82523-020-2
01
1
0309-
●
113
106
311
313
8
312
311
35
288
313
307
312
171
310
36
340
211
189
345
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-179-3
01
1
9601-9803
●
●
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-182-1
02
1
9601-9803
●
●
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-09984-190-0
02
1
9602-9803
●
●
106
LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-180-0
01
1
9601-9803
●
●
113
BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-175-5
01
1
9601-9601
●
●
113
BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-225-0
01
1
9602-9705
●
●
113
BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-234-0
01
1
9706-9803
●
●
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER
8-94279-404-0
02
1
9601-9803
●
●
189
NUT; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE
0-91150-108-0
02
1
9601-9601
●
●
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE
8-94279-518-0
04
1
9706-9803
●
●
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-190-0
01
1
9601-9803
●
●
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-166-0
02
1
9601-9803
●
●
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-187-0
02
1
9601-9803
●
●
311
HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-188-2
02
1
9601-9803
●
●
312
STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-186-1
02
1
9601-9803
●
●
313
ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A)
1-72538-184-3
01
1
9601-9803
●
●
313
ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B)
1-72538-185-3
01
1
9601-9803
●
●
340
BRACKET; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-232-0
01
1
9706-9803
●
●
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F>
1-72538-233-0
01
1
9706-9803
●
●
