7-40 — INSTRUMENT PANEL AND BOX (#16366) — 229 parça

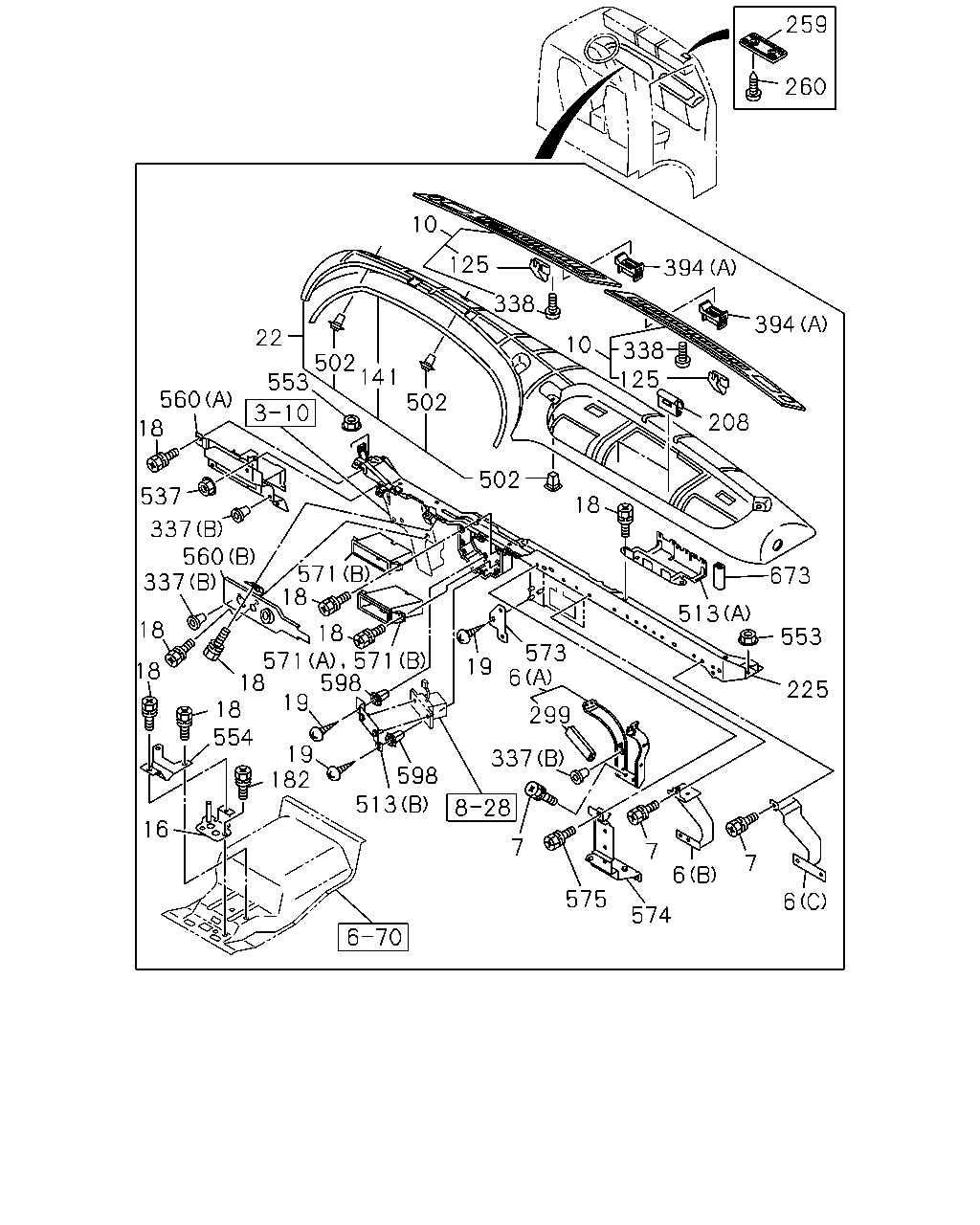

çizim 15500
259 260 10 125 394 338 394 22 10 338 502 141 553 125 560 502 208 18 502 537 18 337 560 337 571 18 673 513 18 18 598 18 554 18 553 573 6 18 19 225 19 299 19 182 337 598 513 16 7 7 7 6 575 6 574 571 571
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 9601-0308 ● ●
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 0309- ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 9601-9803 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 9804-0112 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 0201-0308 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 0309- ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 9601-9803 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 9804-0112 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 0201-0308 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 0309- ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9601-0308 ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0309- ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-9803 ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9804-0112 ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0201-0308 ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0309- ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72437-089-8 01 1 9601-9601 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-1 01 1 9602-9803 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 9804-0112 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0201-0308 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0309- ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-150-2 01 1 9601-9601 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-1 01 1 9602-9803 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 9804-0112 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0201-0308 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0309- ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-142-0 01 1 9601-9601 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-0 01 1 9602-9803 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 9804-0112 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 0201-0308 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 0309- ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-141-0 01 1 9601-9601 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-0 01 1 9602-9803 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 9804-0112 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 0201-0308 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 0309- ●
16 BRACKET; INST PNL 1-79738-802-1 01 1 9601-0308 ● ●
16 BRACKET; INST PNL 1-79738-802-1 01 1 0309- ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0308 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309- ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601-0308 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0309- ●
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-0308 ● ●
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0309- ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-9803 ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0112 ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0201-0308 ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0309- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-9803 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601-9803 ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9804-0112 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9804-0112 ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0201-0308 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0201-0308 ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0309- ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0309- ●
22 PAD; INST 1-72318-415-2 01 1 9601-0004 ● ●
22 PAD; INST 1-72318-435-3 01 1 0005-0308 ● ●
22 PAD; INST 1-72318-435-3 01 1 0309- ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-0308 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0309- ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0308 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0309- ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004 ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9601-0308 ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0309- ●
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0308 ● ●
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309- ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9601-0308 ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0309- ●
225 FRAME; FACIA 1-65681-028-8 01 1 9601-0308 ● ●
225 FRAME; FACIA 1-65681-028-8 01 1 0309-1002 ●
225 FRAME; FACIA 8-98142-104-0 01 1 1003- ●
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9601-9803 ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9804-0004 ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005-0308 ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0309- ●
260 SCREW; STUFF PLATE
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9601-9803 ● ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9804-0308 ● ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0309- ●
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=314 		8-94262-845-0 01 1 0006-0308 ● ●
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=314 		8-94262-845-0 01 1 0309- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-0308 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0309- ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9601-0308 ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 0309- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-0308 ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0309- ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9601-9803 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9804-9909 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 05 1 9910-0004 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 05 1 9910-0004 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0005-0112 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0201-0208 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 10 1 0209-0308 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 10 1 0309-0309 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 20 1 0310-0405 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0406-0801 ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 15 1 0802- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-0308 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0309- ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-0308 ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0309-0407 ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9601-0308 ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0309- ●
513 BRACKET; RELAY
(A) 		1-73908-056-3 01 1 9601-9604 ● ●
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 9605-0308 ● ●
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 0309- ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9601-0308 ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0309- ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9601-0308 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0309-0602 ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9601-0308 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0309-0602 ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9601-0308 ● ●
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 0309- ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9601-0308 ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 0309- ●
560 BRACKET
(B) 		1-65681-043-2 01 1 9601-0308 ● ●
560 BRACKET
(B) 		1-65681-043-2 01 1 0309- ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9601-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9601-9812 ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901-0308 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-3 01 1 9901-0308 ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 0309- ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-3 01 1 0309- ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 9601-9803 ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 9804-0112 ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0201-0308 ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0309- ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 9601-9803 ● ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 9804-0112 ● ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 0201-0308 ● ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 0309- ●
574 PANEL; RELAY BOX 1-73908-058-7 01 1 9601-0308 ● ●
574 PANEL; RELAY BOX 1-73908-058-7 01 1 0309- ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0308 ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309- ●
598 GROMMET; SCREW
PTO CONTROL<SV6> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 9601-0308 ● ●
598 GROMMET; SCREW
PTO CONTROL<SV6> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 0309- ●
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-0308 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0309- ●
çizim 15783
597
BalonParca AdiParca NoAdetTipApplied Date A B
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0104-0308 ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0309- ●

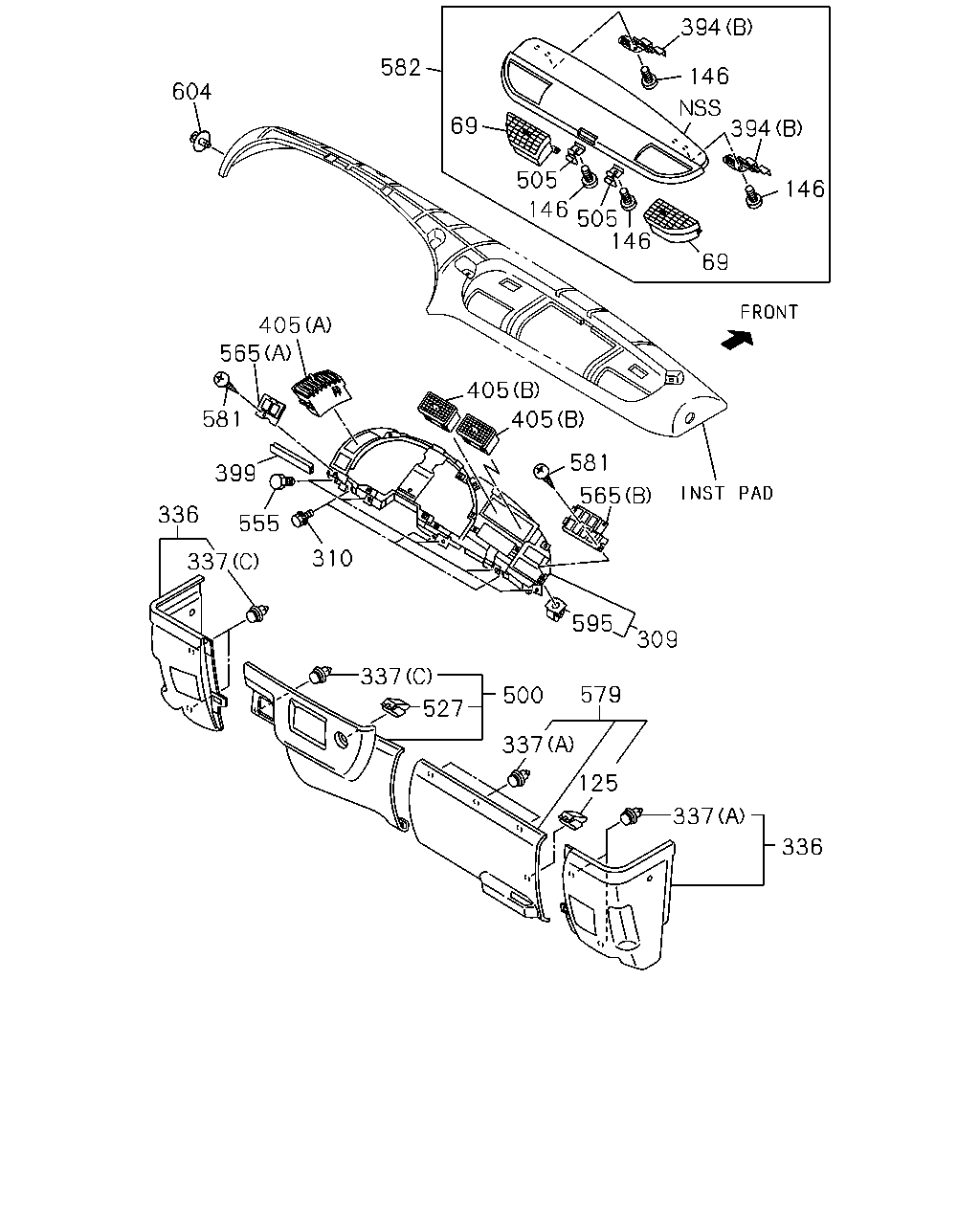

çizim 16428
394 582 146 604 394 69 505 146 146 505 146 69 405 565 405 581 405 581 399 565 336 555 310 337 595 309 337 579 500 527 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date A B
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9601-0308 ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0309- ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9601-0308 ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0309- ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-0308 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0309- ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0308 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0309- ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004 ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9601-0308 ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0309- ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9601-0308 ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 0309- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-0308 ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0309- ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9601-0004 ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0005-0308 ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0309- ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9601-0004 ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0005-0308 ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0309- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-0308 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0309- ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9601-0308 ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 0309- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-0308 ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0309- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-0308 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0309- ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-0308 ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0309-0407 ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ●
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807 ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808-0112 ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0201-0308 ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0309- ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9601-0308 ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 0309- ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9601-0308 ● ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 0309- ●
500 CLUSTER; INST CENTER 1-72438-126-3 01 1 9601-0004 ● ●
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0005-0308 ● ●
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0309- ●
505 LOCK; LID 1-72558-024-2 02 1 9601-0308 ● ●
505 LOCK; LID 1-72558-024-2 02 1 0309- ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9601-9812 ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-0308 ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0309- ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9601-0308 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0309-0512 ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-0308 ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0309- ●
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 9601-0308 ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 0309- ●
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 9601-0308 ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 0309- ●
579 COVER; INST PNL 1-72438-128-1 01 1 9601-0004 ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 0005-0308 ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 0309- ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-0308 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0309-0604 ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9601-0004 ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0005-0308 ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0309- ●
595 NUT; HOOK 1-72418-013-0 10 1 9601-0308 ● ●
595 NUT; HOOK 1-72418-013-0 10 1 0309- ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9601-0308 ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
