◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#16364) — 296 parça
çizim 16549
2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 1-73118-026-0 01 1 9601-0004 ● ●
1 MIRROR; ROOM 1-73117-033-1 01 1 0005-0308 ● ●
1 MIRROR; ROOM 1-73117-033-1 01 1 0309- ●
2 SCREW; MIRROR TO BODY
M6X25 		1-09981-441-0 02 1 9601-9906 ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 9907-0308 ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0309- ●

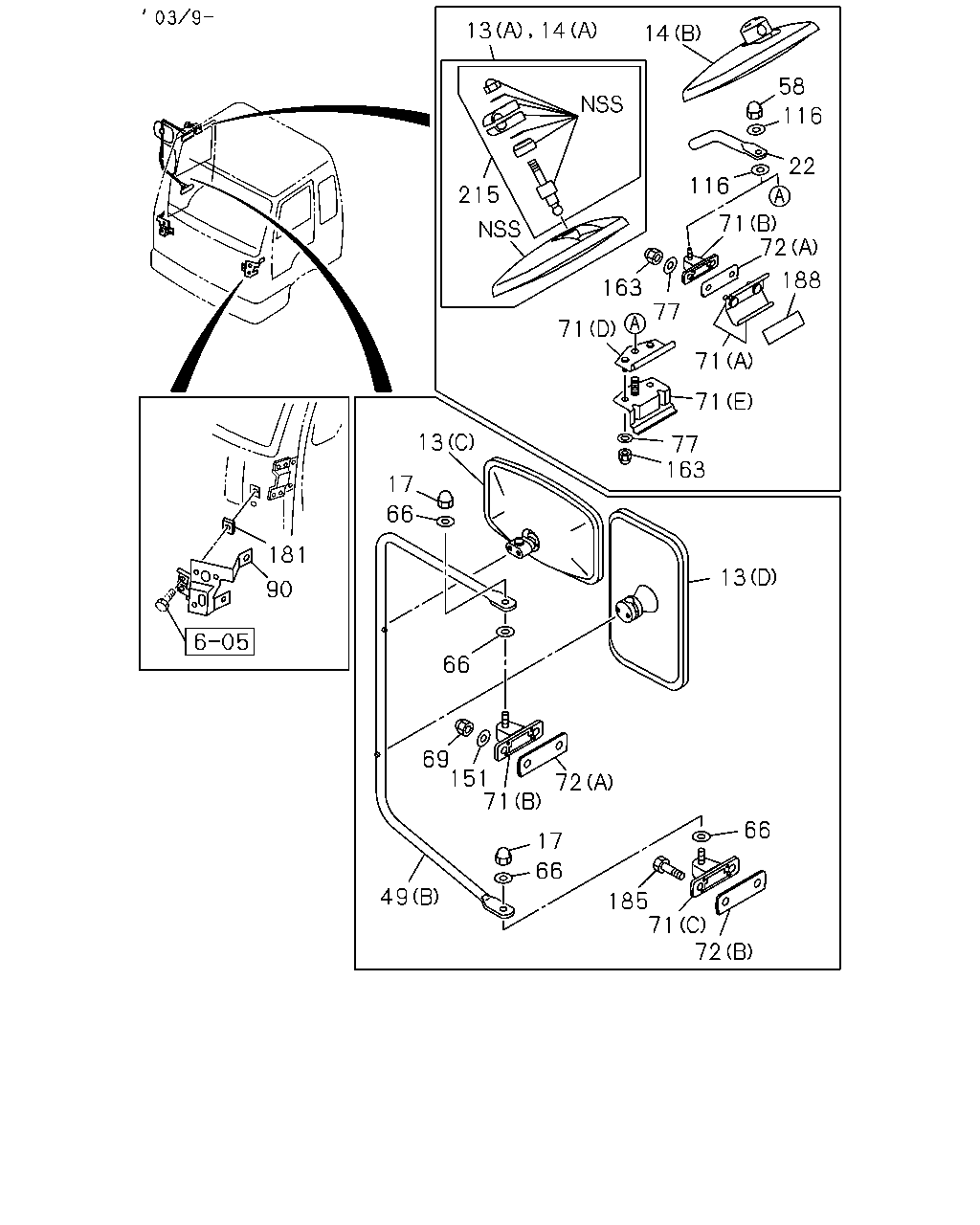

çizim 16550
13 14 14 58 116 22 116 71 72 215 188 163 77 71 71 71 13 77 163 17 66 181 13 90 66 69 151 71 72 66 17 66 49 185 71 72
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-587-2 02 1 9601-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-97867-880-1 02 1 0309-0602 ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-98037-583-1 02 1 0603- ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-1 02 1 9601-9612 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-2 01 1 9701-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		1-71798-862-1 01 1 0309- ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71798-651-2 01 1 9701-0308 ● ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71798-651-2 01 1 0309-0310 ●
14 MIRROR ASM; OUTSIDE
(B) 		1-71798-862-1 01 1 0311- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 04 1 9601-0208 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0209-0308 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0309- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 01 1 9601-9602 ● ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 9701-0308 ● ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 0309- ●
49 STAY; MIRROR SIDE
(A) 		1-71798-584-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(C) 		1-71798-873-1 01 1 0309- ●
49 STAY; MIRROR SIDE
(A) 		1-71798-583-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-872-2 01 1 0309- ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 9603-0004 ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 0005-0308 ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 9601-9710 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9711-0308 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 9601-9602 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 9601-0308 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0309-0809 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810- ●
69 NUT; CAP
M8 		1-09984-187-0 02 1 9601-9602 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9804-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 9601-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9804-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 9601-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0804-1007 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008- ●
72 SHEET
(A) 		1-71798-487-3 02 1 9601-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 02 1 0309- ●
72 SHEET
(B) 		1-71798-488-1 02 1 9601-0308 ● ●
72 SHEET
(B) 		1-71798-488-1 02 1 0309- ●
72 SHEET
(A) 		1-71798-487-3 01 1 9601-0004 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0005-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0309-0803 ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9603-0004 ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0005-0308 ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0309- ●
90 BRACKET; MIRROR STAY 1-71798-229-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0309- ●
90 BRACKET; MIRROR STAY 1-71798-228-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0309-0809 ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0810- ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 9603-0004 ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0005-0308 ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0309- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 9601-0308 ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0309- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9601-9602 ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 9603-0004 ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 0005-0308 ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 0309-0910 ●
163 NUT; MIRROR BRKT
M8 CAP NUT 		8-98059-914-0 02 1 0911- ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9601-9707 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9902-0308 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0309- ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 9601-0308 ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 0309-0512 ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ●
185 BOLT; BRKT
M8X35 FLANGE 		8-98046-876-0 04 1 0606- ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 9612-0004 ● ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 0005-0308 ● ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 0309-0803 ●
215 FIXING KIT; MIRROR 1-71707-040-0 02 1 9601-0308 ● ●
215 FIXING KIT; MIRROR 1-71707-040-0 01 1 0309-0310 ●

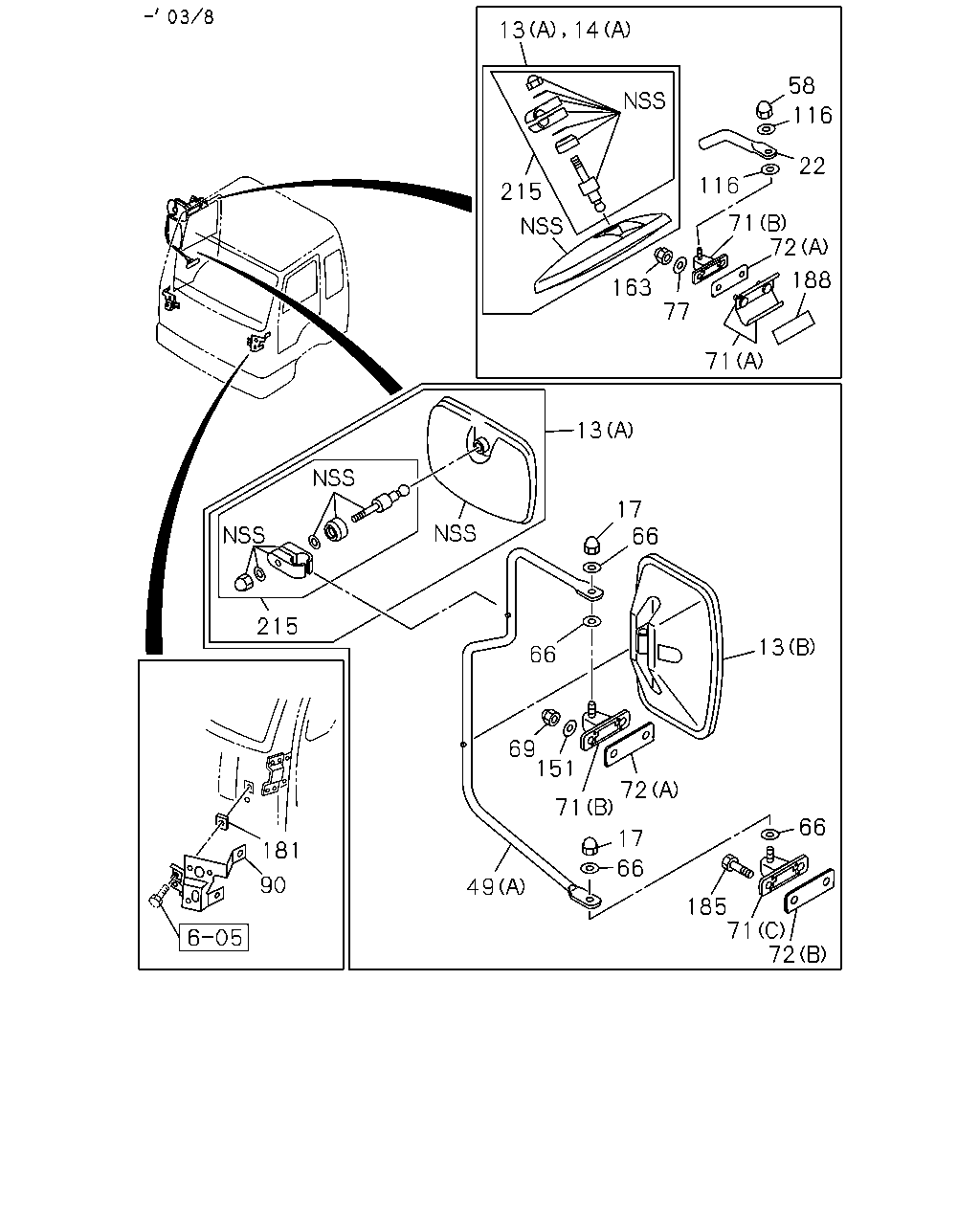

çizim 65955
13 14 58 116 22 116 71 72 215 188 163 77 71 13 17 66 215 13 66 69 151 72 71 66 17 181 66 90 49 185 71 72
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-587-2 02 1 9601-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-97867-880-1 02 1 0309-0602 ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-98037-583-1 02 1 0603- ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-1 02 1 9601-9612 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-2 01 1 9701-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		1-71798-862-1 01 1 0309- ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71798-651-2 01 1 9701-0308 ● ●
14 MIRROR ASM; OUTSIDE
(A) 		1-71798-651-2 01 1 0309-0310 ●
14 MIRROR ASM; OUTSIDE
(B) 		1-71798-862-1 01 1 0311- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 04 1 9601-0208 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0209-0308 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0309- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 01 1 9601-9602 ● ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 9701-0308 ● ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 0309- ●
49 STAY; MIRROR SIDE
(A) 		1-71798-584-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(C) 		1-71798-873-1 01 1 0309- ●
49 STAY; MIRROR SIDE
(A) 		1-71798-583-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-872-2 01 1 0309- ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 9603-0004 ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 0005-0308 ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 9601-9710 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9711-0308 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 9601-9602 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 9601-0308 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0309-0809 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810- ●
69 NUT; CAP
M8 		1-09984-187-0 02 1 9601-9602 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9804-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 9601-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9804-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 9601-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0804-1007 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008- ●
72 SHEET
(A) 		1-71798-487-3 02 1 9601-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 02 1 0309- ●
72 SHEET
(B) 		1-71798-488-1 02 1 9601-0308 ● ●
72 SHEET
(B) 		1-71798-488-1 02 1 0309- ●
72 SHEET
(A) 		1-71798-487-3 01 1 9601-0004 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0005-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0309-0803 ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9603-0004 ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0005-0308 ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0309- ●
90 BRACKET; MIRROR STAY 1-71798-229-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0309- ●
90 BRACKET; MIRROR STAY 1-71798-228-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0309-0809 ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0810- ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 9603-0004 ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0005-0308 ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0309- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 9601-0308 ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0309- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9601-9602 ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 9603-0004 ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 0005-0308 ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 0309-0910 ●
163 NUT; MIRROR BRKT
M8 CAP NUT 		8-98059-914-0 02 1 0911- ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9601-9707 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9902-0308 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0309- ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 9601-0308 ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 0309-0512 ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ●
185 BOLT; BRKT
M8X35 FLANGE 		8-98046-876-0 04 1 0606- ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 9612-0004 ● ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 0005-0308 ● ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 0309-0803 ●
215 FIXING KIT; MIRROR 1-71707-040-0 02 1 9601-0308 ● ●
215 FIXING KIT; MIRROR 1-71707-040-0 01 1 0309-0310 ●

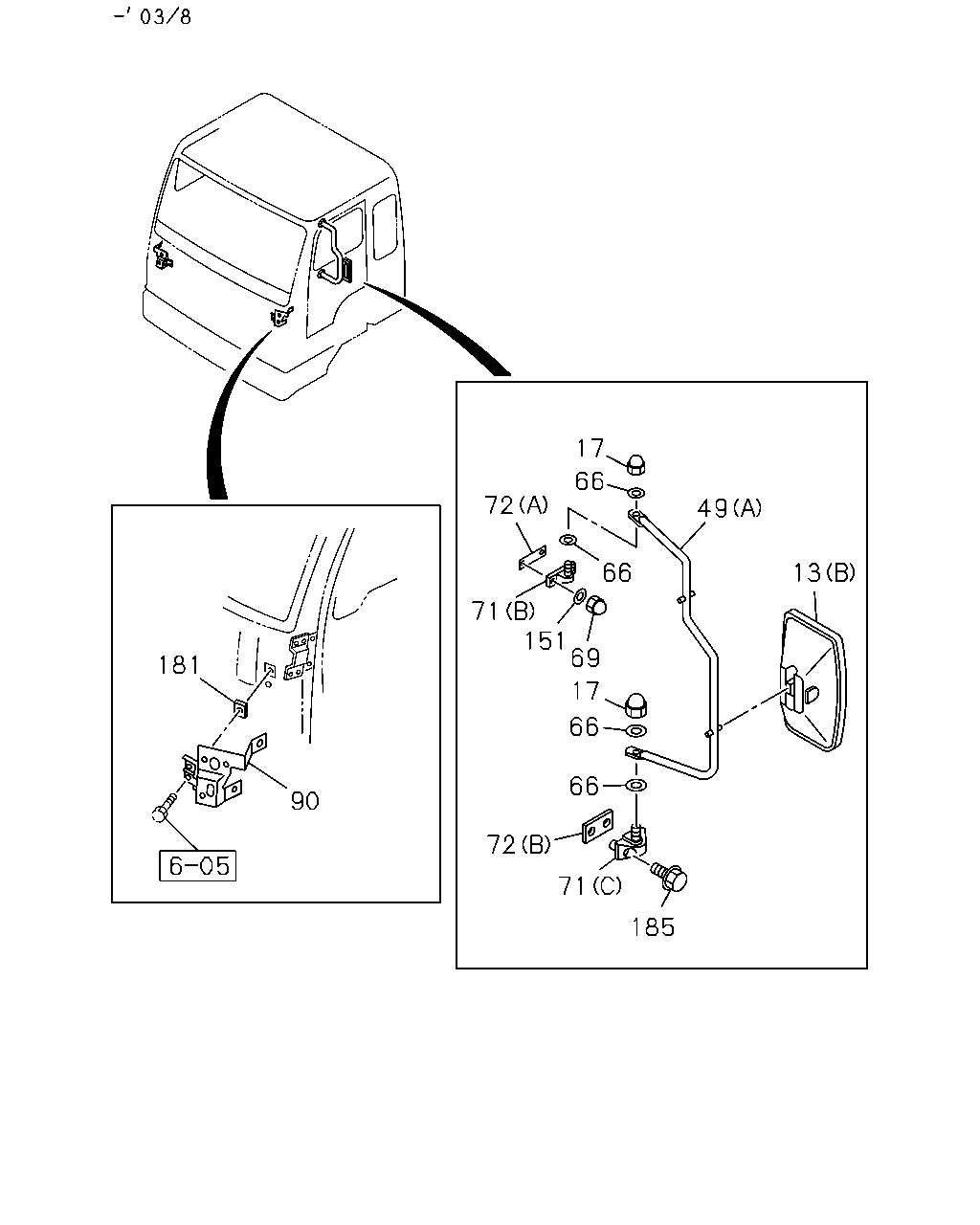

çizim 66580
17 66 72 49 13 66 71 151 69 181 17 66 66 90 72 71 185
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-587-2 02 1 9601-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-97867-880-1 02 1 0309-0602 ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-98037-583-1 02 1 0603- ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-1 02 1 9601-9612 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-2 01 1 9701-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		1-71798-862-1 01 1 0309- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 04 1 9601-0208 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0209-0308 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0309- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 01 1 9601-9602 ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-584-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(C) 		1-71798-873-1 01 1 0309- ●
49 STAY; MIRROR SIDE
(A) 		1-71798-583-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-872-2 01 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 9601-9710 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9711-0308 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 9601-9602 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 9601-0308 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0309-0809 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810- ●
69 NUT; CAP
M8 		1-09984-187-0 02 1 9601-9602 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9804-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 9601-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9804-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 9601-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0804-1007 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008- ●
72 SHEET
(A) 		1-71798-487-3 02 1 9601-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 02 1 0309- ●
72 SHEET
(B) 		1-71798-488-1 02 1 9601-0308 ● ●
72 SHEET
(B) 		1-71798-488-1 02 1 0309- ●
72 SHEET
(A) 		1-71798-487-3 01 1 9601-0004 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0005-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0309-0803 ●
90 BRACKET; MIRROR STAY 1-71798-229-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0309- ●
90 BRACKET; MIRROR STAY 1-71798-228-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0309-0809 ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0810- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 9601-0308 ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0309- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9601-9602 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9601-9707 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9902-0308 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0309- ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 9601-0308 ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 0309-0512 ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ●
185 BOLT; BRKT
M8X35 FLANGE 		8-98046-876-0 04 1 0606- ●

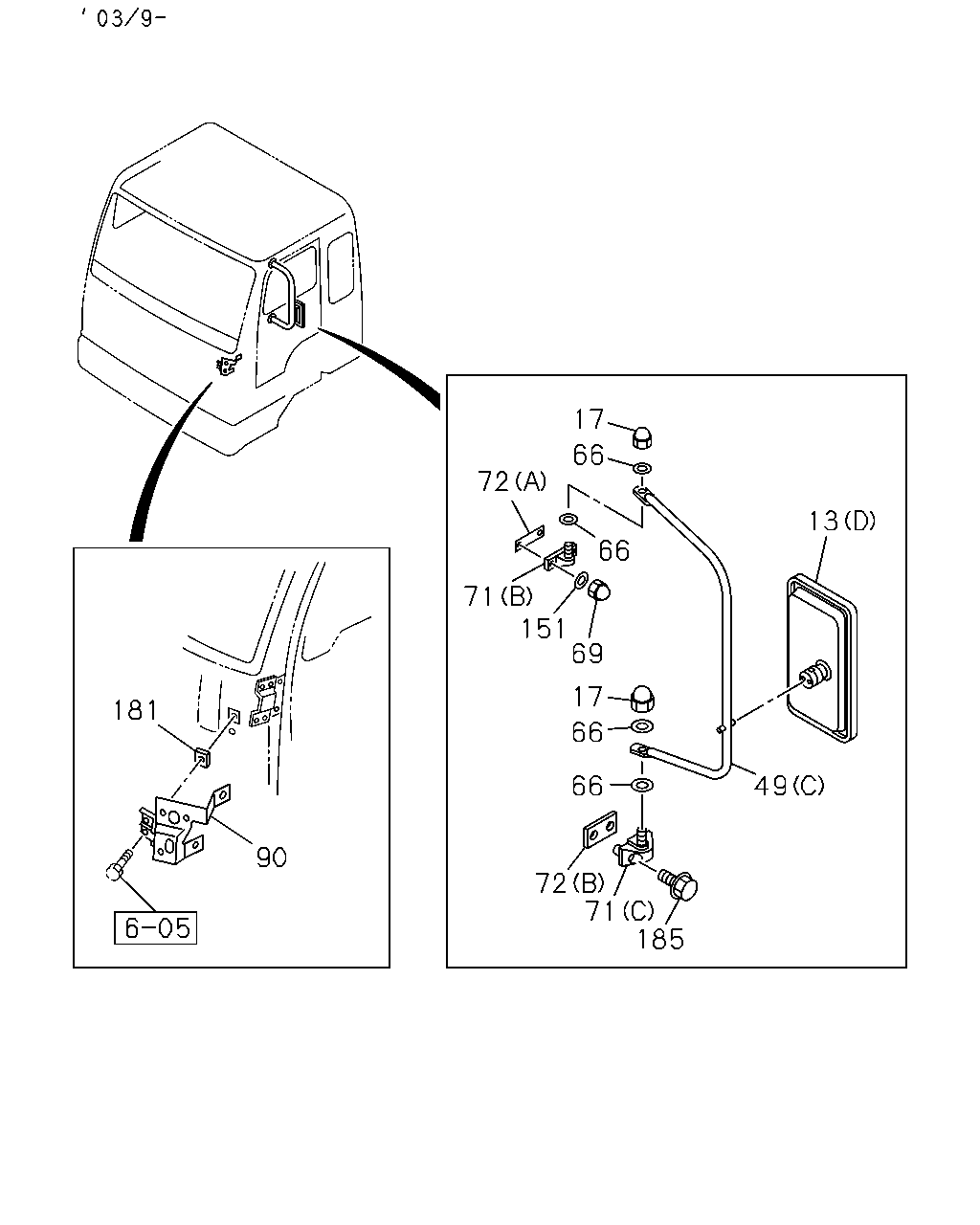

çizim 66582
17 66 72 13 66 71 151 69 17 181 66 49 66 90 72 71 185
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-587-2 02 1 9601-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-97867-880-1 02 1 0309-0602 ●
13 MIRROR ASM; OUTSIDE RR VIEW
(D) 		8-98037-583-1 02 1 0603- ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-1 02 1 9601-9612 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71798-651-2 01 1 9701-0308 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		1-71798-862-1 01 1 0309- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 04 1 9601-0208 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0209-0308 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 0309- ●
17 NUT; CAP,MIRROR STAY
M10 		1-09984-183-0 01 1 9601-9602 ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-584-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(C) 		1-71798-873-1 01 1 0309- ●
49 STAY; MIRROR SIDE
(A) 		1-71798-583-2 01 1 9601-0308 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-872-2 01 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 9601-9710 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9711-0308 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0309- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 9601-9602 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 9601-0308 ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0309-0809 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810- ●
69 NUT; CAP
M8 		1-09984-187-0 02 1 9601-9602 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9804-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0804- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 9601-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9601-9803 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 9804-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 02 1 0309- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 9601-0004 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0005-0308 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-664-2 01 1 0309-0803 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0804-1007 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008- ●
72 SHEET
(A) 		1-71798-487-3 02 1 9601-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 02 1 0309- ●
72 SHEET
(B) 		1-71798-488-1 02 1 9601-0308 ● ●
72 SHEET
(B) 		1-71798-488-1 02 1 0309- ●
72 SHEET
(A) 		1-71798-487-3 01 1 9601-0004 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0005-0308 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0309-0803 ●
90 BRACKET; MIRROR STAY 1-71798-229-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0309- ●
90 BRACKET; MIRROR STAY 1-71798-228-4 01 1 9601-9903 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 9904-0308 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0309-0809 ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0810- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 9601-0308 ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0309- ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9601-9602 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9601-9707 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9902-0308 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0309- ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 9601-0308 ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 04 1 0309-0512 ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ●
185 BOLT; BRKT
M8X35 FLANGE 		8-98046-876-0 04 1 0606- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
