Sayfa 7-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

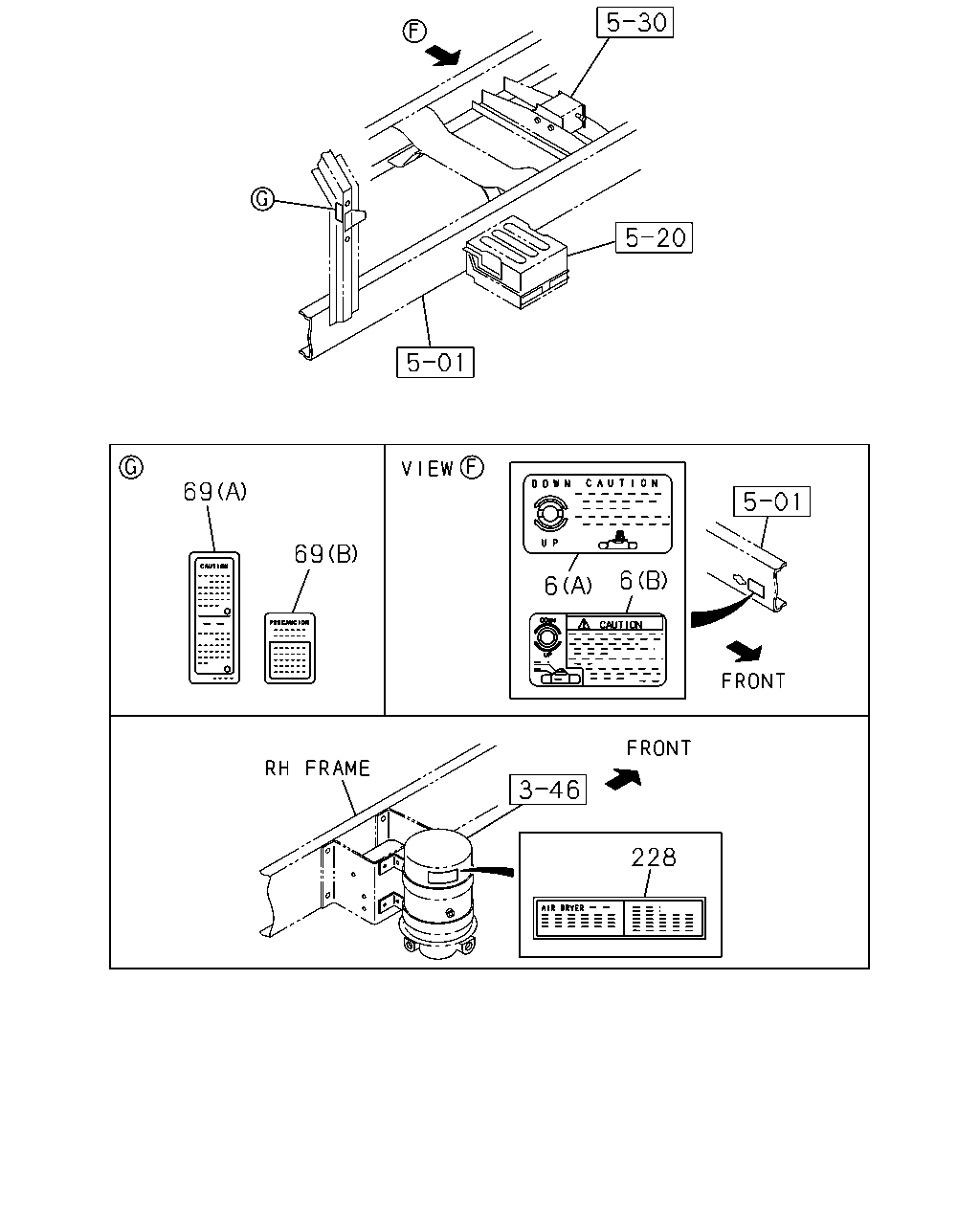

7-10 — CAUTION PLATE AND LABEL (#16363) — 83 parça

69 69 6 6 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	9601-0308	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	9601-0308		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	0309-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0709-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	9601-0308	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	9601-0308		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	0309-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B)	8-98082-437-0	01	1	0709-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	9601-0308	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	9601-0308		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	0309-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	0709-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	9601-0308	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	9601-0308		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	0309-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (B)	8-98082-439-0	01	1	0709-		●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> (A)	1-85887-537-0	01	1	9601-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D> (A)	1-85887-537-0	01	1	0303-0308	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D> (A)	1-85887-537-0	01	1	0309-		●
69	PLATE; CAUTION,STARTER SW EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A)	1-85887-389-0	01	1	9601-0302	●	●
69	PLATE; CAUTION,STARTER SW EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-85887-389-0	01	1	0303-0308	●	●
69	PLATE; CAUTION,STARTER SW EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-85887-389-0	01	1	0309-		●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> (A)	1-85887-535-0	01	1	9601-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> EXC. STARTER SWITCH DELETION<E5D> (A)	1-85887-535-0	01	1	0303-0308	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> EXC. STARTER SWITCH DELETION<E5D> (A)	1-85887-535-0	01	1	0309-		●
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1> (B)	9-83999-419-0	01	1	9601-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1> EXC. STARTER SWITCH DELETION<E5D> (B)	9-83999-419-0	01	1	0303-0308	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1> EXC. STARTER SWITCH DELETION<E5D> (B)	9-83999-419-0	01	1	0309-		●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-85887-936-0	01	1	0110-0308	●	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-85887-936-0	01	1	0309-1001		●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	0110-0308	●	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	0309-1001		●

51 51 49 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85888-558-0	01	1	9601-0109	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0110-0308	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0309-		●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85888-554-2	01	1	9601-9803	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85877-623-0	01	1	9804-0004	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85878-278-0	01	1	0005-0308	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85878-278-0	01	1	0309-		●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-557-0	01	1	9601-0308	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-557-0	01	1	0309-		●
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	9601-0308	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	0309-0607		●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	0608-0805		●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1>	1-85878-460-0	01	1	0806-		●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-710-0	01	1	9601-9601	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	9602-0308	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	0309-		●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	9601-0308	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	0309-		●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	9601-0308	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	0309-		●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	9601-0004	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	0005-0308	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	0309-		●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-709-0	01	1	9601-9601	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-710-1	01	1	9602-0308	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-710-1	01	1	0309-		●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-173-0	01	1	9601-9601	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-172-0	01	1	9602-0308	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-172-0	01	1	0309-		●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-169-0	01	1	9601-0308	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-169-0	01	1	0309-		●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-172-0	01	1	9601-9601	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-173-0	01	1	9602-0308	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-173-0	01	1	0309-		●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-170-0	01	1	9601-0308	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-170-0	01	1	0309-		●

173 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L)	8-94395-931-0	01	1	9601-0209	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-931-0	01	1	0210-0308	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-593-0	01	1	0210-0308	●	●
4	LABEL; ENG MAINTENANCE	8-94390-593-0	01	1	0309-		●
4	LABEL; ENG MAINTENANCE 6SD1 STD ENG(37L) CAUTIONS ARABIAN<WJ7>	1-85886-791-0	01	1	9601-0308	●	●
4	LABEL; ENG MAINTENANCE 6SD1 STD ENG(37L) EXC. CAUTIONS ARABIAN<WJ7>	1-85886-789-0	01	1	9601-0308	●	●
7	LABEL; EMISSION 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	0210-0308	●	●
7	LABEL; EMISSION	8-94391-418-0	01	1	0309-		●
173	PLATE; CAUTION,FUEL FILTER 6SD1 STD ENG(37L) CAUTIONS ARABIAN<WJ7>	1-85886-348-0	01	1	9601-0308	●	●

119 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-726-0	01	1	9601-9606	●	●
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	9607-0308	●	●
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	0309-		●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	9601-9803	●	●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	0201-0308	●	●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	0309-0504		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
