Isuzu WW
▶
TRUCKS
▶
FVR
▶
11352 - FVR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

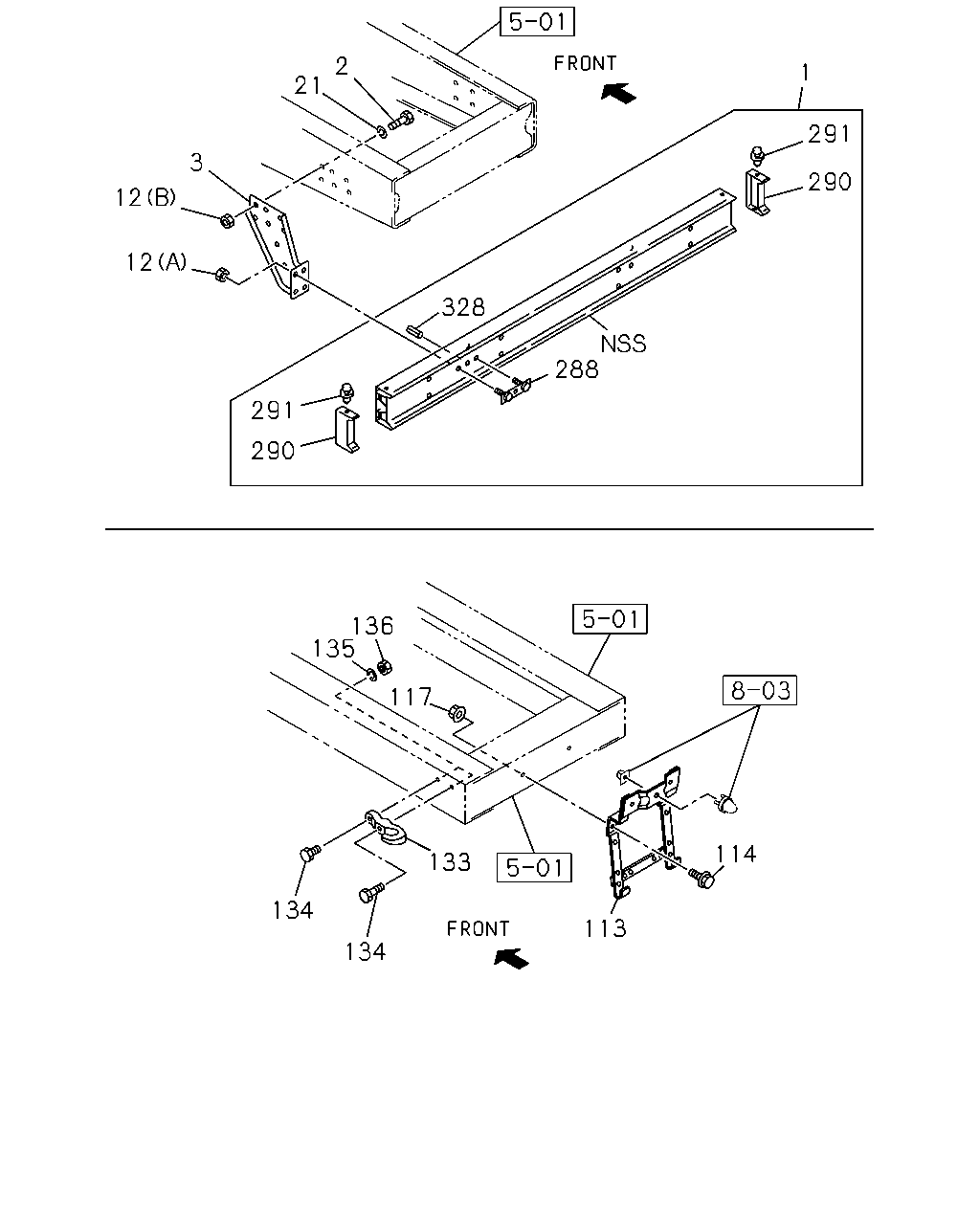

6-90 — REAR BUMPER
(#16361) — 54 parça
Tümü
A - FVR6MF
B - FVR6MC
2
1
21
291
3
290
12
12
328
288
291
290
136
135
117
114
133
134
113
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
STAMP D4L
1-71220-166-1
01
1
0309-
●
2
BOLT; BACK BAR
M16X40
0-20801-640-0
12
1
0309-0512
●
2
BOLT; BACK BAR
M16X40
0-20851-640-0
12
1
0601-
●
3
BRACKET; BUMPER
STAMP BU
1-71230-254-1
01
1
0309-
●
3
BRACKET; BUMPER
STAMP BU
1-71230-255-1
01
1
0309-
●
12
NUT; BRKT
(A) M12 FLANGE
0-91150-212-0
08
1
0309-0602
●
12
NUT; BRKT
(A) M12 FLANGE
0-91180-212-0
08
1
0603-
●
12
NUT; BRKT
(B) M16
9-99110-516-0
12
1
0309-0512
●
12
NUT; BRKT
(B) M16
0-91110-516-0
12
1
0601-
●
21
WASHER; LK,BUMPER
ID=16.2
9-09150-816-0
12
1
0309-0603
●
21
WASHER; LK,BUMPER
ID=16.2
0-91510-816-0
12
1
0604-
●
113
BRACKET; LICENSE PLATE
1-53485-048-2
01
1
9601-9608
●
●
113
BRACKET; LICENSE PLATE
1-53485-065-0
01
1
9609-0302
●
●
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0303-0308
●
●
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0309-
●
114
BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE
0-28080-820-0
02
1
9601-9606
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
9607-0308
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
0309-0512
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
117
NUT; BRKT
M8
9-09110-408-0
02
1
9601-9606
●
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9607-0308
●
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0309-0602
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
133
HOOK
1-57181-027-1
01
1
9601-0208
●
●
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
0209-0308
●
●
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
0309-0409
●
133
HOOK
1-57181-027-1
01
1
0410-
●
134
BOLT; HOOK
M16X70
0-10811-670-0
01
1
9601-0208
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X70
0-10811-670-0
01
1
0209-0308
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X70
0-10811-670-0
01
1
0309-0409
●
134
BOLT; HOOK
M16X70
0-10811-670-0
01
1
0410-0512
●
134
BOLT; HOOK
M16X70
0-10861-670-0
01
1
0601-
●
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
9601-0208
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20801-650-0
01
1
0209-0308
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20801-650-0
01
1
0309-0409
●
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
0410-0512
●
134
BOLT; HOOK
M16X50
0-20851-650-0
01
1
0601-
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9601-0208
●
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
9-09150-516-0
02
1
0209-0308
●
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
9-09150-516-0
02
1
0309-0409
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0410-0603
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-0607
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
0608-
●
136
NUT; HOOK
M16
9-99110-416-0
02
1
9601-0206
●
●
136
NUT; HOOK
M16
9-99110-516-0
02
1
0207-0208
●
●
136
NUT; HOOK
TOW HOOK<V76> M16
9-99110-516-0
02
1
0209-0308
●
●
136
NUT; HOOK
TOW HOOK<V76> M16
9-99110-516-0
02
1
0309-0409
●
136
NUT; HOOK
M16
9-99110-516-0
02
1
0410-0512
●
136
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
●
288
PLATE; RR BUMPER,REFLECTOR
1-71290-053-0
04
1
0309-
●
290
COVER; RR
1-71290-056-0
01
1
0309-
●
290
COVER; RR
1-71290-057-0
01
1
0309-
●
291
RIVET; REFLECTOR
PUSH RIVET BLACK
1-71290-041-0
04
1
0309-
●
328
PIN; REFLECTOR
1-71290-054-0
04
1
0309-
●
