◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#1636) — 67 parça

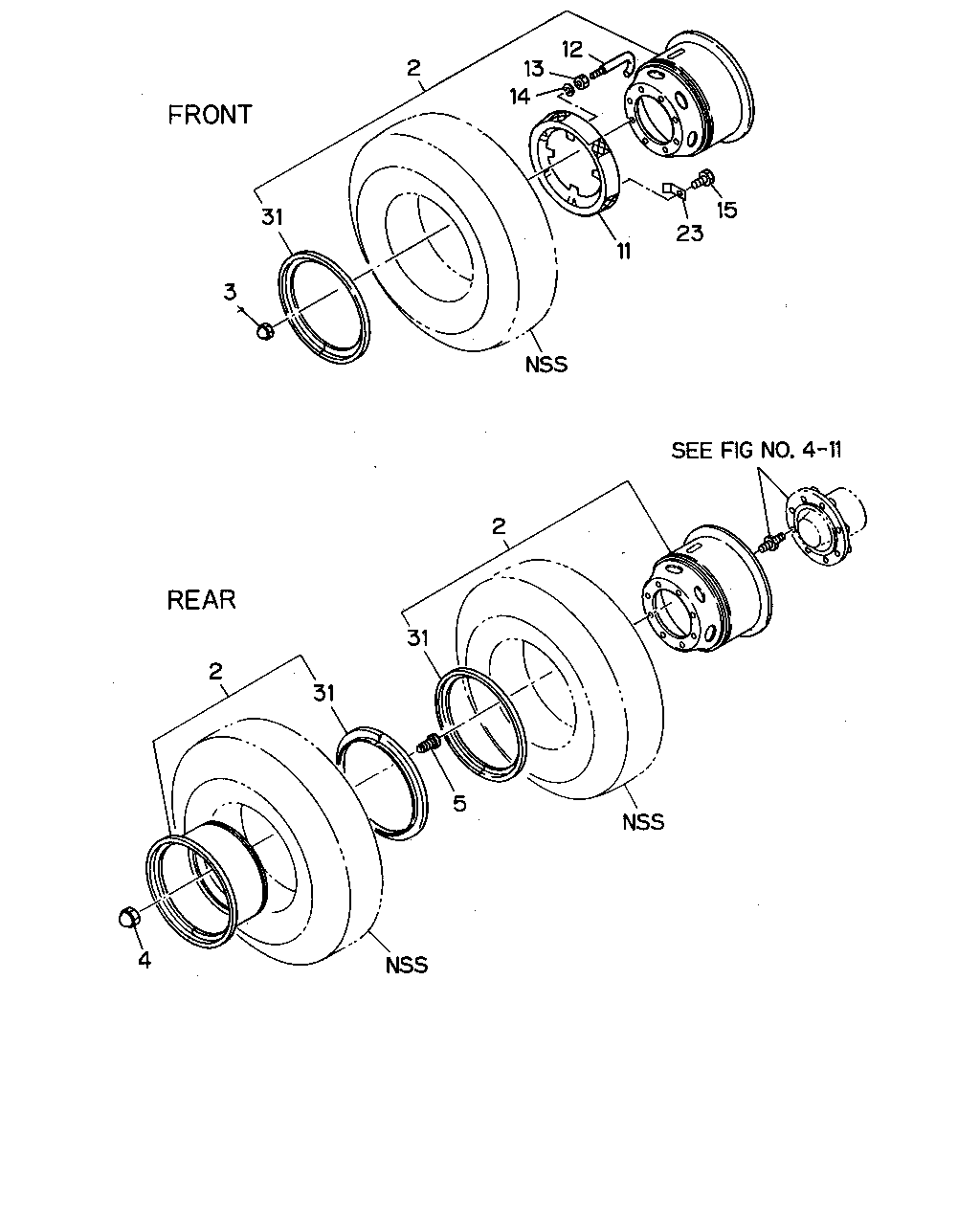

çizim 94129
2 12 13 14 15 23 11 31 3 2 31 31 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42350-197-0 01 1 9207- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42350-197-0 01 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 8-STUD 		1-42350-302-2 01 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> 8-STUD 		1-42350-302-2 01 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42350-197-0 06 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 8-STUD 		1-42350-302-2 06 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-131-3 01 1 9207-9402 ● ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> 		1-42350-131-3 01 1 9207-9402 ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-478-0 01 1 9403- ● ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> 		1-42350-478-0 01 1 9403- ● ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-131-3 06 1 9207-9402 ● ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-478-0 06 1 9403- ● ● ●
2 WHEEL; DISC
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8S TUD 20X8.50V 130-13(SFW) FRONT 		1-42350-268-2 02 1 9207- ● ● ●
2 WHEEL; DISC
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8S TUD 20X8.50V 130-13(SFW) REAR 		1-42350-268-2 04 1 9207- ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-268-2 01 1 9207- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42350-268-2 01 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42350-268-2 01 1 9207- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42350-268-2 01 1 9207- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.50V 130-13(SEG) 		1-42350-189-1 01 1 9207- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X7.50V 130-13(SEG) 		1-42350-189-1 01 1 9207- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42350-301-2 01 1 9207- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42350-301-2 01 1 9207- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.50V 130-13(SEG) 		1-42350-189-1 02 1 9207- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.50V 130-13(SEG) REARWARD INNER SINGLE TIRE<YK3> 		1-42350-189-1 02 1 9207- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42350-301-2 02 1 9207- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X8.50V 130-13(SFW) REARWARD INNER SINGLE TIRE<YK3> 		1-42350-301-2 02 1 9207- ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		1-42334-021-0 08 1 9207- ● ● ● ● ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		1-42333-021-0 08 1 9207- ● ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 08 1 9207- ● ● ● ●
4 NUT; WHEEL,RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> M30 LH THREAD 		1-42334-023-0 08 1 9207- ●
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 08 1 9207- ● ● ● ●
4 NUT; WHEEL,RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> M30 		1-42333-023-0 08 1 9207- ●
4 NUT; WHEEL,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M20 LH THREAD 		1-42334-021-0 08 1 9207- ●
4 NUT; WHEEL,RR AXLE
REARWARD INNER SINGLE TIRE<YK3> M20 RH THREAD 		1-42333-021-0 08 1 9207- ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9207- ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9207- ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9207- ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. REARWARD INNER SINGLE TIRE<YK3> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9207- ●
11 STEP; DISC WHEEL SIDE 1-43139-002-2 02 1 9207- ● ● ● ●
11 STEP; DISC WHEEL SIDE
EXC. DISC WHEEL 8STUD 20X7.50V 130-13(SEG), DISCWHEEL 8STUD 20X8.50V 130-13(SFW) 		1-43139-002-2 02 1 9207- ●
11 STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-43139-019-1 02 1 9207- ●
12 U-BOLT; STEP DISC
L=44 		9-43139-023-1 06 1 9207- ● ● ● ●
12 U-BOLT; STEP DISC
EXC. DISC WHEEL 8STUD 20X7.50V 130-13(SEG), DISCWHEEL 8STUD 20X8.50V 130-13(SFW) L=44 		9-43139-023-1 06 1 9207- ●
12 U-BOLT; STEP DISC
DISC WHEEL 8STUD 20X8.50V 130-13(SFW) L=60 		1-43139-016-0 06 1 9207- ●
13 NUT; STEP DISC
M10 		9-09110-510-0 06 1 9207- ● ● ● ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		9-09150-510-0 06 1 9207- ● ● ● ● ●
15 BOLT; STEP DISC
DISC WHEEL 8STUD 20X7.50V 130-13(SEG) M10X45 		0-10806-045-0 06 1 9207- ●
23 PLATE; CLAMP,STEP DISC
DISC WHEEL 8STUD 20X7.50V 130-13(SEG) 		1-43139-020-0 06 1 9207- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-012-1 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42355-012-1 01 1 9207- ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42355-012-1 01 1 9207- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 06 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 06 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 01 1 9207- ● ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-003-1 01 1 9207- ● ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 06 1 9207- ● ● ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8S TUD 20X8.50V 130-13(SFW) FRONT 		1-42355-012-1 02 1 9207- ● ● ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54), DISCWHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8S TUD 20X8.50V 130-13(SFW) REAR 		1-42355-012-1 04 1 9207- ● ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42355-004-1 01 1 9207- ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42355-004-1 01 1 9207- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) 		1-42355-004-1 02 1 9207- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.50V 130-13(SEG),DISC WHEEL 8STUD 20X8.50V 130-13(SFW) REARWARD INNER SINGLE TIRE<YK3> 		1-42355-004-1 02 1 9207- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
