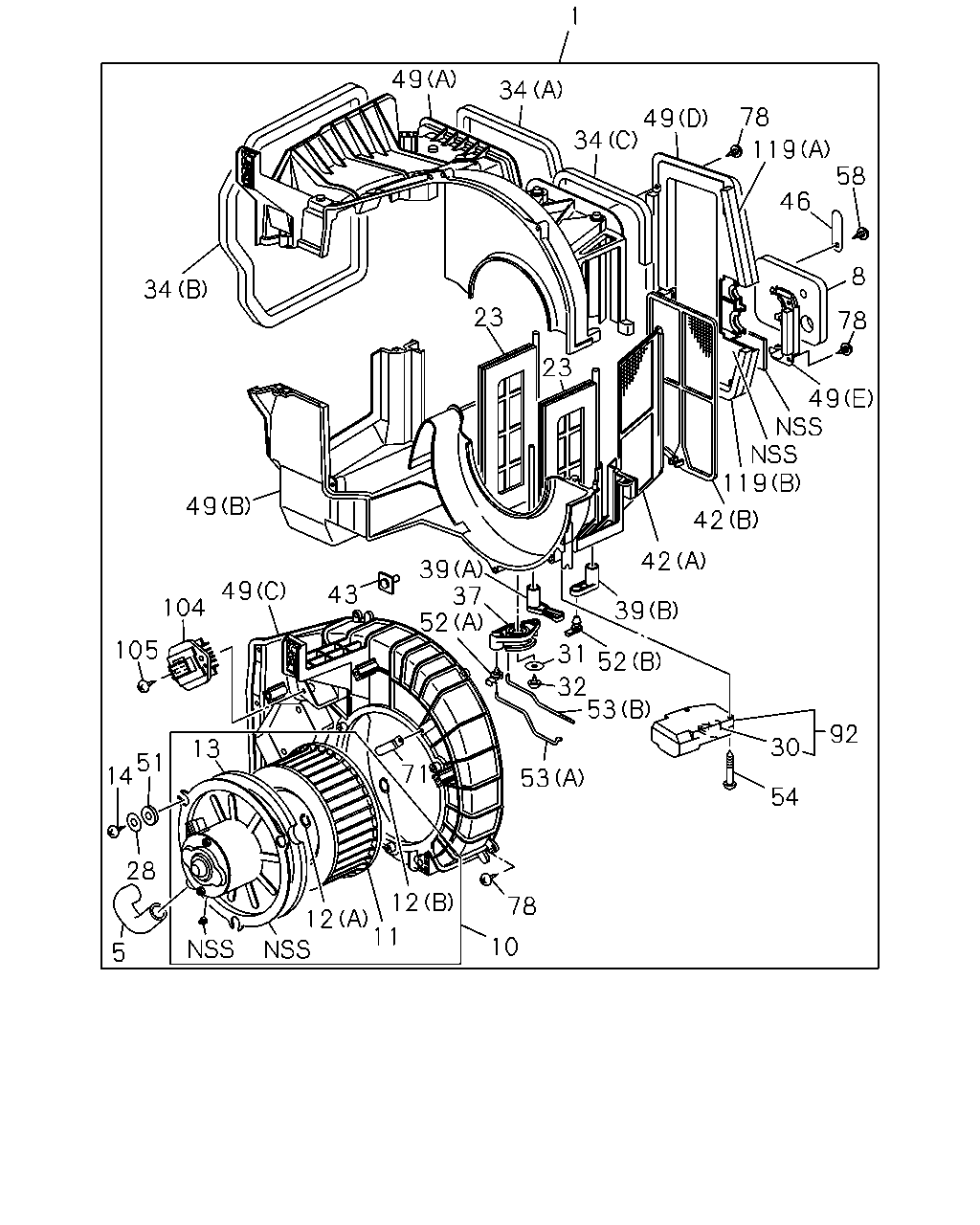

8-73 — BLOWER UNIT (#16357) — 47 parça

1 49 34 78 49 34 119 58 46 8 34 23 78 23 49 119 49 42 42 39 37 52 49 43 104 39 105 31 52 32 53 92 30 13 51 14 71 53 54 28 12 78 12 11 10 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83561-110-6	01	1	9905-	●	●
5	HOSE; AIR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83563-147-0	01	1	9905-	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-801-1	01	1	9905-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83561-121-0	01	1	9905-0011	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83561-164-0	01	1	0012-	●	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-796-0	01	1	9905-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	5-83569-088-0	01	1	9905-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	8-94243-962-0	01	1	9905-	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-636-0	01	1	9905-	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97130-601-0	03	1	9905-0011	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X20	9-09829-324-1	03	1	0012-	●	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-797-0	02	1	9905-	●	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-170-0	03	1	9905-	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83564-345-1	01	1	9905-	●	●
31	WASHER; LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-095-0	01	1	9905-	●	●
32	SCREW; LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97130-601-0	01	1	9905-0011	●	●
32	SCREW; LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X20	9-09829-324-1	01	1	0012-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-633-2	01	1	9905-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C)	1-83579-634-2	01	1	9905-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-644-0	01	1	9905-	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83564-375-0	01	1	9905-	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83564-373-0	01	1	9905-	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83564-374-0	01	1	9905-	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-800-1	01	1	9905-	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-933-0	02	1	9905-0011	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-993-0	02	1	0012-	●	●
43	BOLT; CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-657-2	04	1	9905-	●	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83571-870-1	01	1	9905-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83564-368-0	01	1	9905-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83564-369-0	01	1	9905-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C)	1-83564-370-0	01	1	9905-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D)	1-83564-371-0	01	1	9905-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (E)	1-83564-372-0	01	1	9905-	●	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-496-0	03	1	9905-	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83574-136-0	01	1	9905-	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	8-94248-794-0	01	1	9905-	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-639-0	01	1	9905-	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-799-0	01	1	9905-	●	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-94348-809-0	02	1	9905-	●	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16	8-94324-850-0	01	1	9905-	●	●
71	CLIP; HARNESS HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97096-145-0	01	1	9905-	●	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16	8-94324-850-0	18	1	9905-	●	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-798-1	01	1	9905-	●	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83519-073-1	01	1	9905-	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16	8-94324-850-0	02	1	9905-	●	●
119	LINING; CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-670-1	01	1	9905-	●	●
119	LINING; CASE HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-671-1	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
