Isuzu WW
▶
TRUCKS
▶
CYH
▶
11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

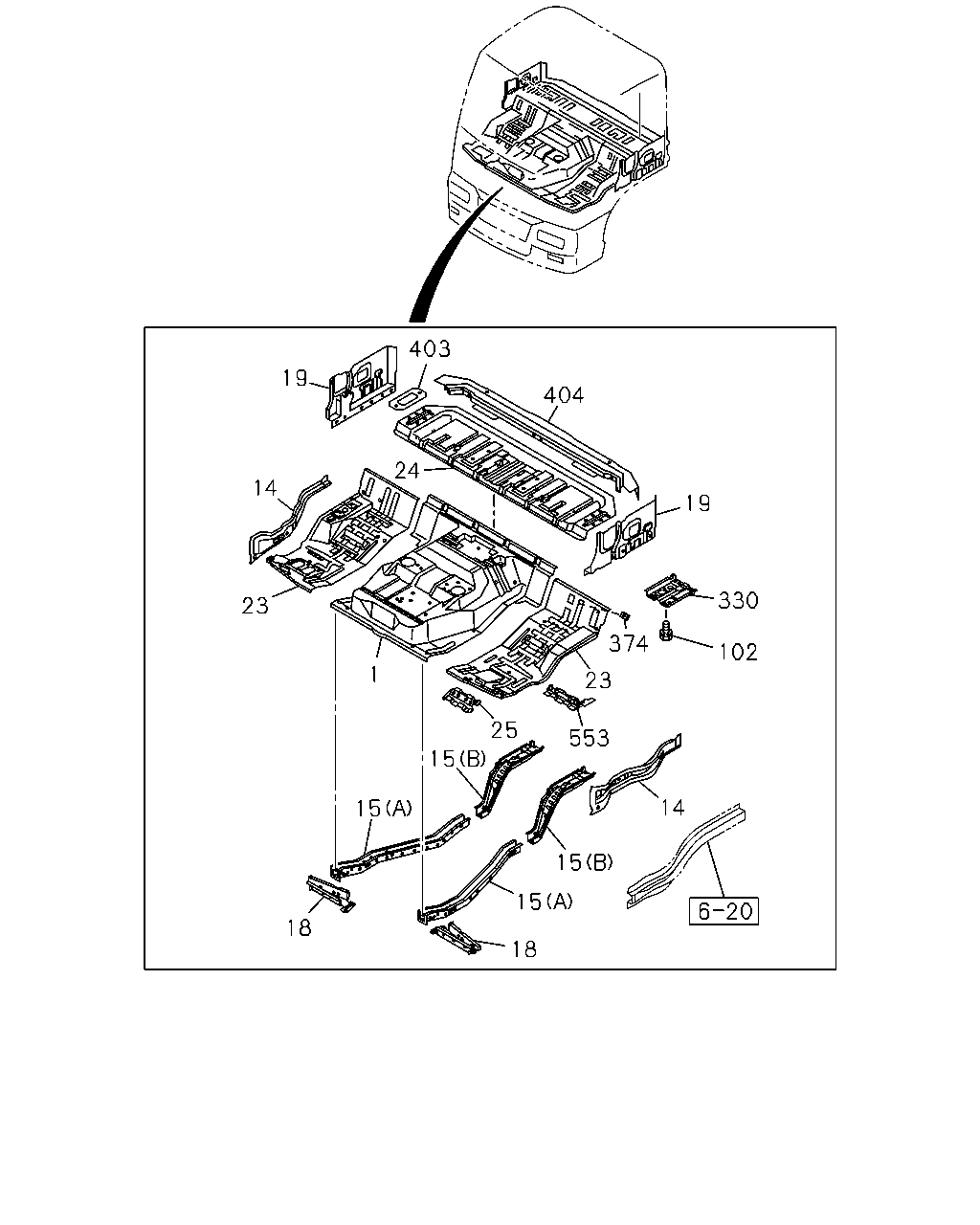

6-70 — FLOOR PANEL
(#16352) — 22 parça
403
19
404
24
14
19
330
23
374
102
1
23
25
553
15
14
15
15
15
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
1-62172-892-1
01
1
0904-
14
PANEL; FLOOR SIDE,FRT
1-62482-917-6
01
1
0904-
14
PANEL; FLOOR SIDE,FRT
1-62482-918-6
01
1
0904-
15
FRAME; UNDER
(B)
1-62472-598-6
01
1
0904-
15
FRAME; UNDER
(A)
1-62472-603-9
01
1
0904-
15
FRAME; UNDER
(B)
1-62472-680-1
01
1
0904-
15
FRAME; UNDER
(A)
1-62472-766-1
01
1
0904-
18
FRAME; FLOOR,CENTER SIDE
1-62482-997-6
01
1
0904-
18
FRAME; FLOOR,CENTER SIDE
1-62483-168-3
01
1
0904-
19
PANEL; FLOOR SIDE,REAR
1-62472-615-4
01
1
0904-
19
PANEL; FLOOR SIDE,REAR
1-62472-659-2
01
1
0904-
23
PANEL; FLOOR,SIDE
1-62172-866-0
01
1
0904-
23
PANEL; FLOOR,SIDE
1-62172-798-0
01
1
0904-
24
PANEL; BED PAN
1-62172-540-9
01
1
0904-
25
REINFORCEMENT; FRAME FLOOR,FRT
1-62182-926-4
01
1
0904-
102
BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0904-0904
102
BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
0905-
330
REINFORCEMENT; FLOOR
1-62172-585-5
01
1
0904-
374
NUT; FLOOR
M6
1-09984-110-0
01
1
0904-
403
PATCH; FIRE EXTINGUSHER
1-62172-569-0
01
1
0904-
404
RAIL ASM; MTG,RR
1-62472-596-8
01
1
0904-
553
REINFORCEMENT; SEAT STAND RR
1-62172-795-0
01
1
0904-
