6-20 — SIDE PANEL AND STEP (#16342) — 114 parça

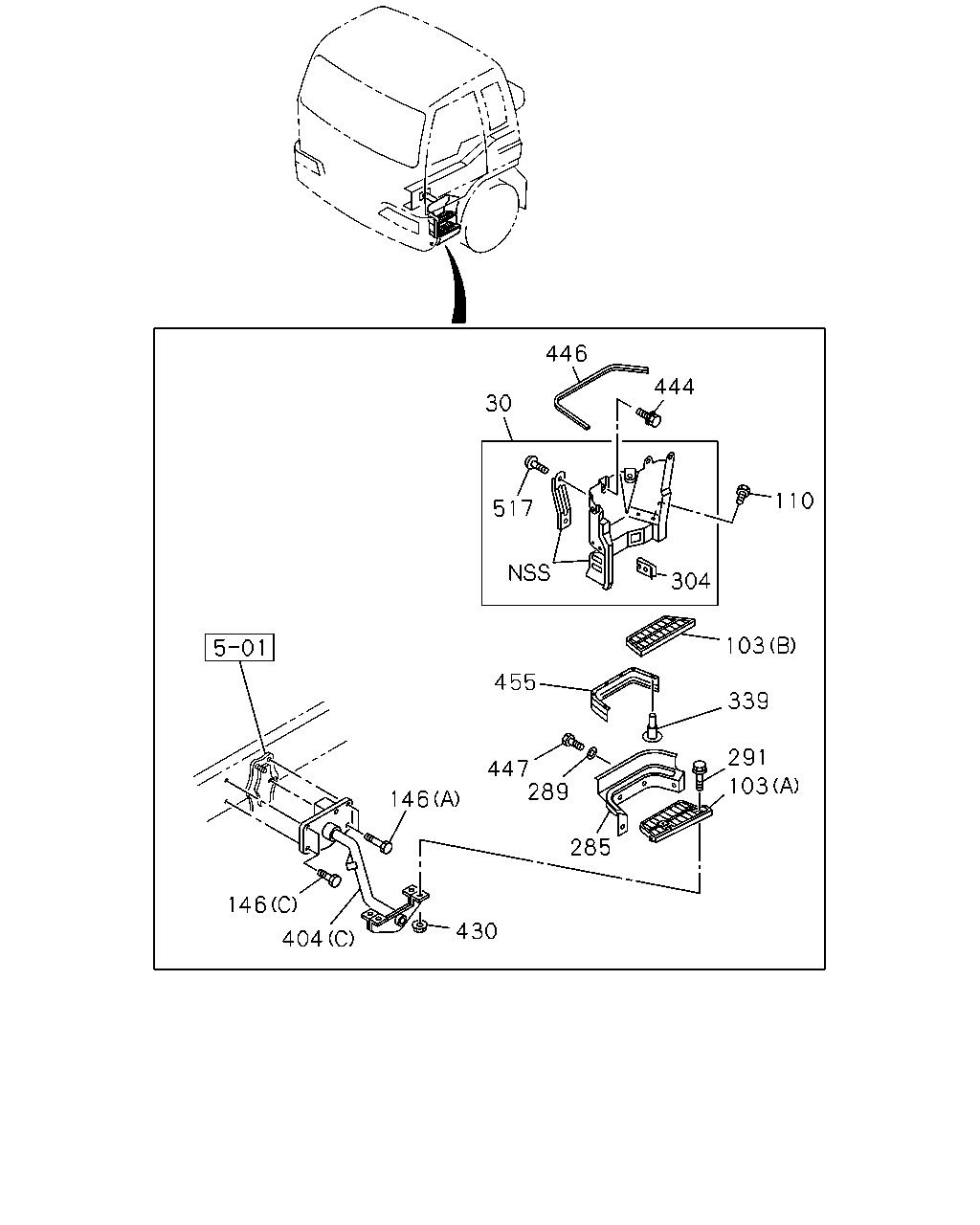

çizim 62150
446 444 30 110 517 304 103 455 339 291 447 289 103 146 285 146 430 404
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0904-0910
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0904-0910
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0904-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0904-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0904-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0904-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0904-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 02 1 0904-
146 BOLT; STEP BRKT
(C) M12X70 FLANGE 		0-28051-270-0 02 1 0904-
146 BOLT; STEP BRKT
FRONT SPOILER<VP1> (B) M12X35 FLANGE 		0-28651-235-0 02 1 0904-1006
146 BOLT; STEP BRKT
RADIATOR GUARD<WV1> (B) M12X35 FLANGE 		0-28651-235-0 03 1 1007-
146 BOLT; STEP BRKT
EXC. FRONT SPOILER<VP1> (D) M12X35 FLANGE 		0-28651-235-0 03 1 0904-1006
146 BOLT; STEP BRKT
EXC. RADIATOR GUARD<WV1> (D) M12X35 FLANGE 		0-28651-235-0 02 1 1007-
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0904-
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0904-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0904-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0904-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0904-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0904-
404 BRACKET
FRONT SPOILER<VP1> (B) 		8-97609-131-2 01 1 0904-1006
404 BRACKET
EXC. RADIATOR GUARD<WV1> (B) 		8-97609-131-3 01 1 1007-
404 BRACKET
(C) 		1-53414-159-4 01 1 0904-
404 BRACKET
EXC. FRONT SPOILER<VP1> (A) 		8-97609-965-0 01 1 0904-1006
404 BRACKET
RADIATOR GUARD<WV1> (A) 		8-97609-965-1 01 1 1007-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0904-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0904-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0904-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0904-
455 PROTECTOR; STEP 1-71907-837-1 01 1 0904-
455 PROTECTOR; STEP 1-71907-838-1 01 1 0904-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0904-

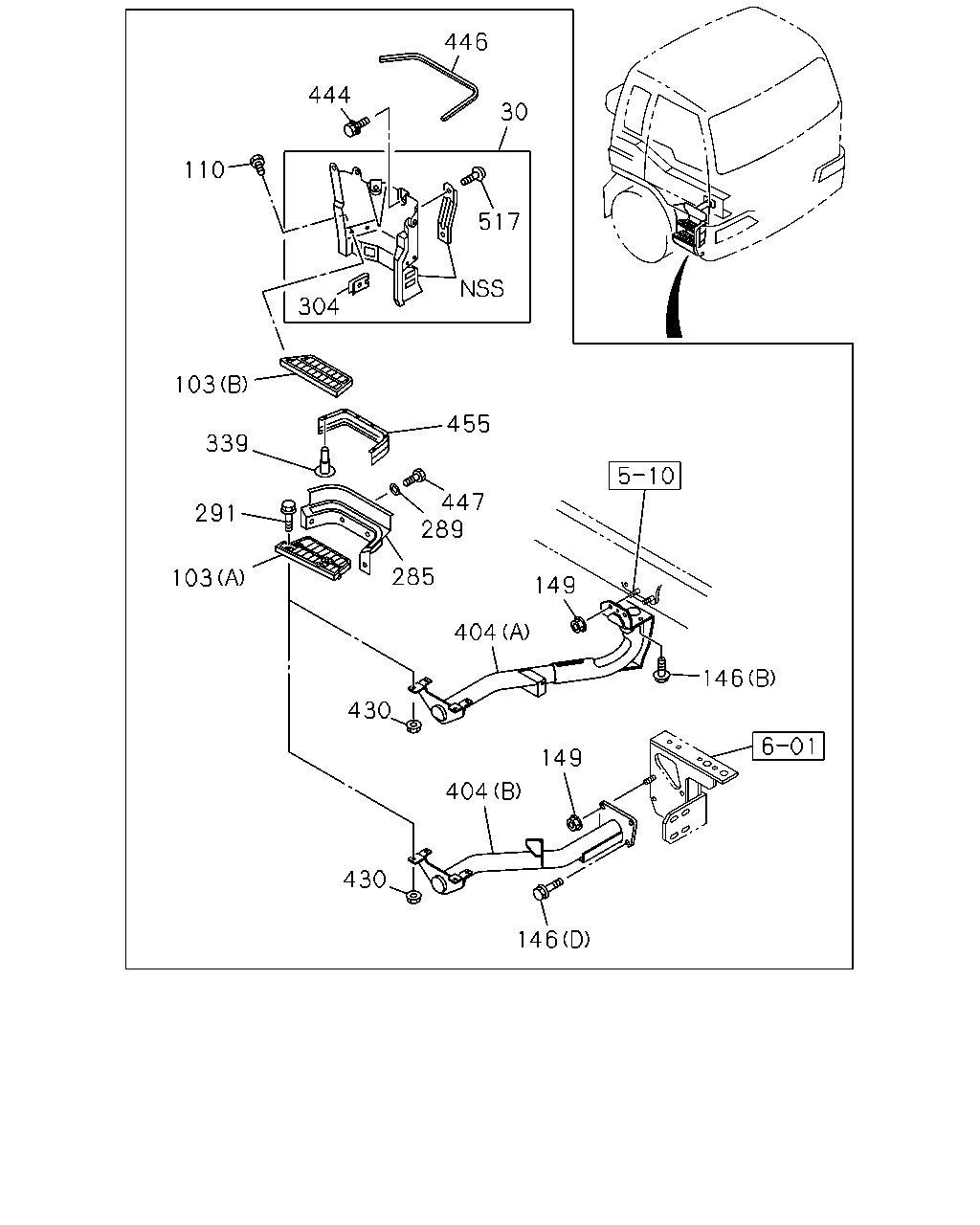

çizim 62252
446 444 30 110 517 304 103 455 339 447 289 291 285 103 149 404 146 149 404 430 146
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0904-0910
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0904-0910
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0904-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0904-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0904-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0904-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0904-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 02 1 0904-
146 BOLT; STEP BRKT
(C) M12X70 FLANGE 		0-28051-270-0 02 1 0904-
146 BOLT; STEP BRKT
FRONT SPOILER<VP1> (B) M12X35 FLANGE 		0-28651-235-0 02 1 0904-1006
146 BOLT; STEP BRKT
RADIATOR GUARD<WV1> (B) M12X35 FLANGE 		0-28651-235-0 03 1 1007-
146 BOLT; STEP BRKT
EXC. FRONT SPOILER<VP1> (D) M12X35 FLANGE 		0-28651-235-0 03 1 0904-1006
146 BOLT; STEP BRKT
EXC. RADIATOR GUARD<WV1> (D) M12X35 FLANGE 		0-28651-235-0 02 1 1007-
149 NUT; STEP BRKT
FRONT SPOILER<VP1> M12 FLANGE 		0-91180-212-0 02 1 0904-1006
149 NUT; STEP BRKT
RADIATOR GUARD<WV1> M12 FLANGE 		0-91180-212-0 01 1 1007-
149 NUT; STEP BRKT
EXC. FRONT SPOILER<VP1> M12 FLANGE 		0-91180-212-0 01 1 0904-1006
149 NUT; STEP BRKT
EXC. RADIATOR GUARD<WV1> M12 FLANGE 		0-91180-212-0 02 1 1007-
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0904-
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0904-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0904-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0904-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0904-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0904-
404 BRACKET
FRONT SPOILER<VP1> (B) 		8-97609-131-2 01 1 0904-1006
404 BRACKET
EXC. RADIATOR GUARD<WV1> (B) 		8-97609-131-3 01 1 1007-
404 BRACKET
(C) 		1-53414-159-4 01 1 0904-
404 BRACKET
EXC. FRONT SPOILER<VP1> (A) 		8-97609-965-0 01 1 0904-1006
404 BRACKET
RADIATOR GUARD<WV1> (A) 		8-97609-965-1 01 1 1007-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0904-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0904-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0904-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0904-
455 PROTECTOR; STEP 1-71907-837-1 01 1 0904-
455 PROTECTOR; STEP 1-71907-838-1 01 1 0904-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0904-

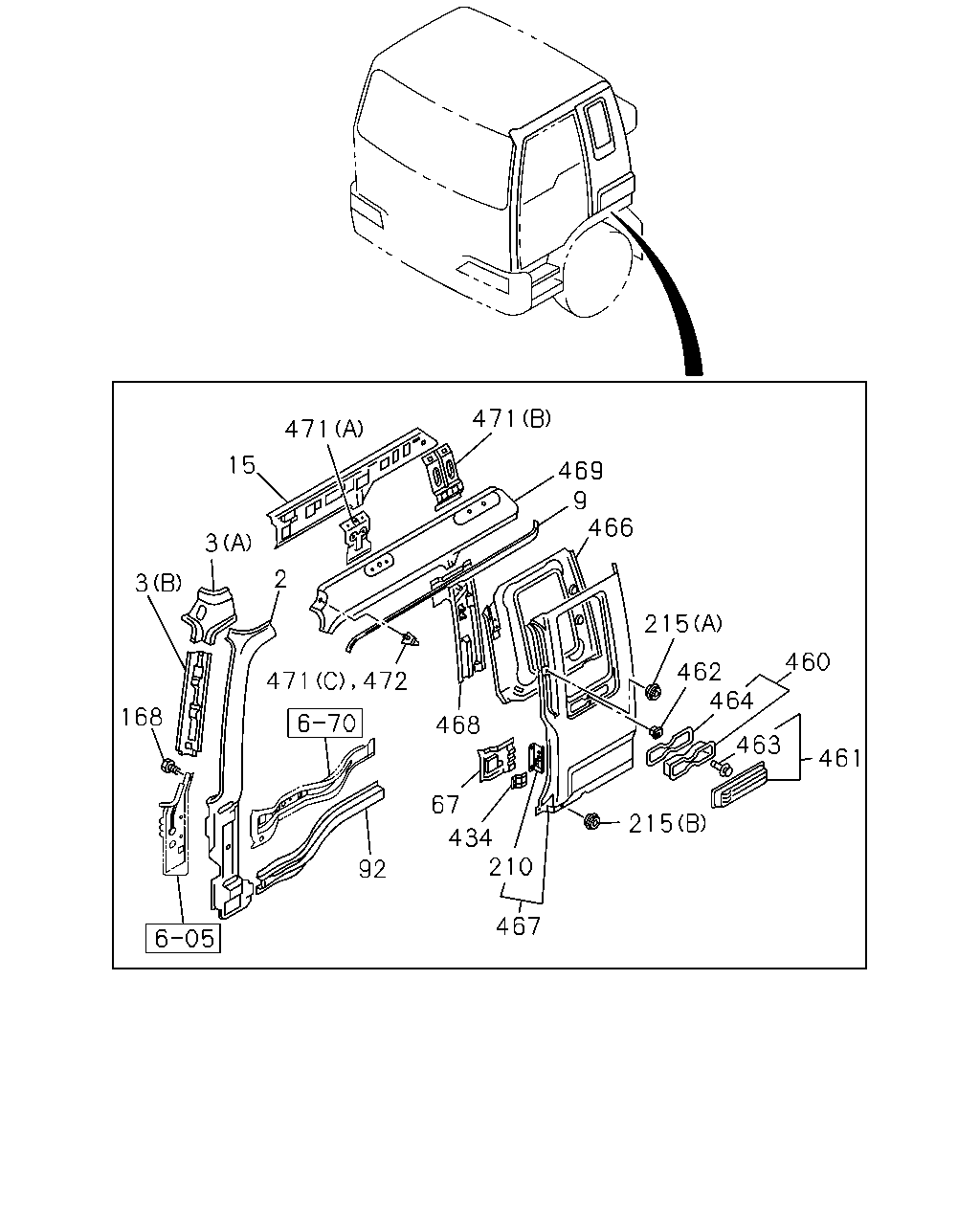

çizim 62256
471 471 15 469 9 466 3 2 3 215 460 462 464 168 468 463 461 67 215 434 210 92 467 471 472
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-410-2 01 1 0904-
2 PILLAR; FRT 1-61281-155-4 01 1 0904-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0904-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0904-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0904-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0904-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 0904-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 0904-
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-281-5 01 1 0904-
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-280-5 01 1 0904-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0904-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0904-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0904-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0904-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0904-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0904-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0904-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0904-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0904-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0904-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0904-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0904-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0904-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0904-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0904-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0904-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0904-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0904-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0904-
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0904-
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> 		1-61270-939-2 01 1 0904-0908
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61270-773-3 01 1 0904-0908
467 PANEL; OUTER,BACK CORNER 1-61270-773-3 01 1 0909-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0904-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0904-
469 ROOF; SIDE 1-61281-199-8 01 1 0904-
469 ROOF; SIDE 1-61281-198-8 01 1 0904-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 02 1 0904-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 0904-
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0904-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 0904-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0904-
