11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005
▶
5 - Frame, Cab Mounting
▶

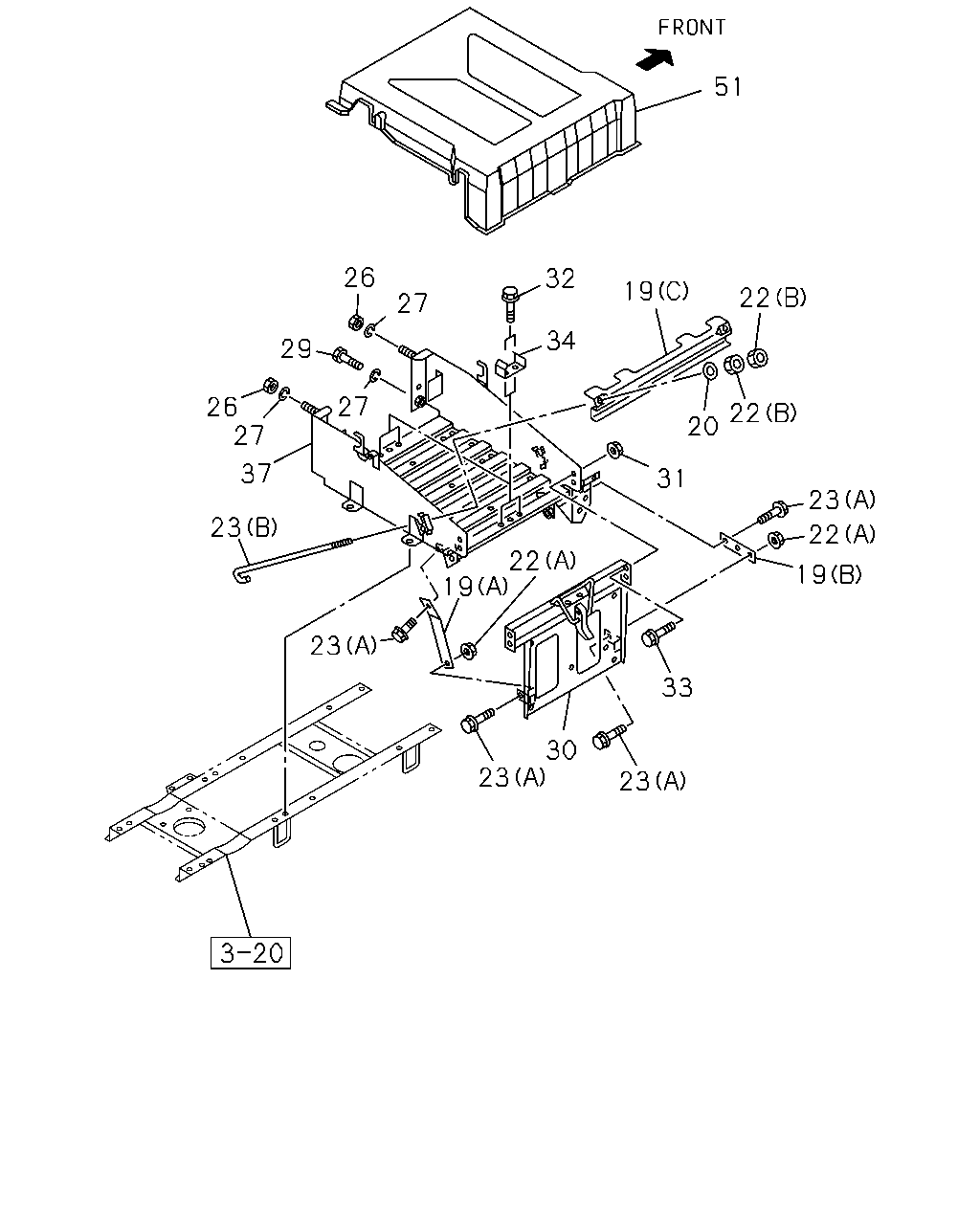

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#16337) — 19 parça
51
26
32
19
22
27
34
29
27
26
27
22
20
37
31
23
23
22
22
19
19
23
33
30
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0904-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0904-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0904-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0904-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0904-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0904-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0904-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0904-
26
NUT; BRKT
M14
1-09440-072-0
02
1
0904-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0904-
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0904-
30
PLATE; BATTERY
1-53619-148-1
01
1
0904-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0904-
32
BOLT; PLATE TO SPACER
M8X16 FLANGE
0-28050-816-0
04
1
0904-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0904-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
1-53619-084-0
02
1
0904-
37
BRACKET; BATTERY
1-53610-161-3
01
1
0904-
51
COVER; BATTERY
1-53612-068-0
01
1
0904-
