Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#16332) — 308 parça

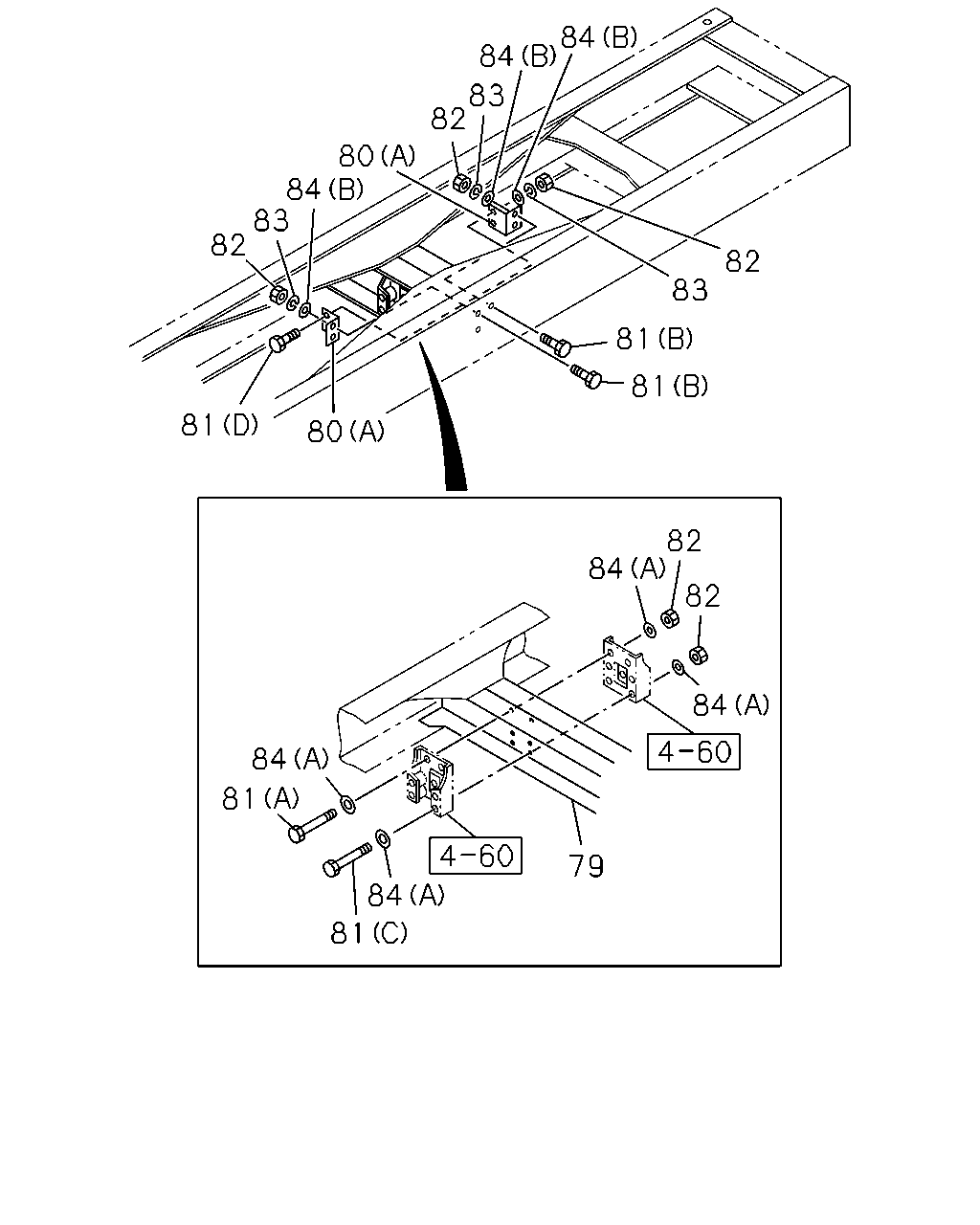

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 84 82 84 80 84 81 80 79 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-054-1	01	1	1006-
79	MEMBER; CROSS,TRUNNION ASM	1-53181-686-2	01	1	0904-1005
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-R(75L)	1-53181-686-2	01	1	1006-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-665-1	02	1	1006-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-53167-666-1	02	1	1006-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-53363-031-2	02	1	1006-
80	BRACKET; C/MBR (A)	1-53167-610-0	04	1	0904-1005
80	BRACKET; C/MBR 6WG1 TC-R(75L) (A)	1-53167-610-0	04	1	1006-
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X45	1-09000-764-0	08	1	1006-
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X50	0-20951-450-0	07	1	1006-
81	BOLT; BRKT (B) M14X40	0-20951-440-0	08	1	0904-1005
81	BOLT; BRKT 6WG1 TC-R(75L) (B) M14X40	0-20951-440-0	08	1	1006-
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	0904-1005
81	BOLT; BRKT 6WG1 TC-R(75L) (A) M14X50	0-20951-450-0	02	1	1006-
81	BOLT; BRKT (D) M14X60	0-20951-460-0	04	1	0904-
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	0904-
82	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	13	1	1006-
82	NUT; BRKT M14	0-91110-514-0	08	1	0904-1005
82	NUT; BRKT 6WG1 TC-R(75L) M14	0-91110-514-0	08	1	1006-
82	NUT; BRKT M14	0-91110-514-0	12	1	0904-
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0904-
84	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	08	1	1006-1201
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1202-
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	0904-1104
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-
84	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	08	1	0904-1005
84	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	08	1	1006-1201

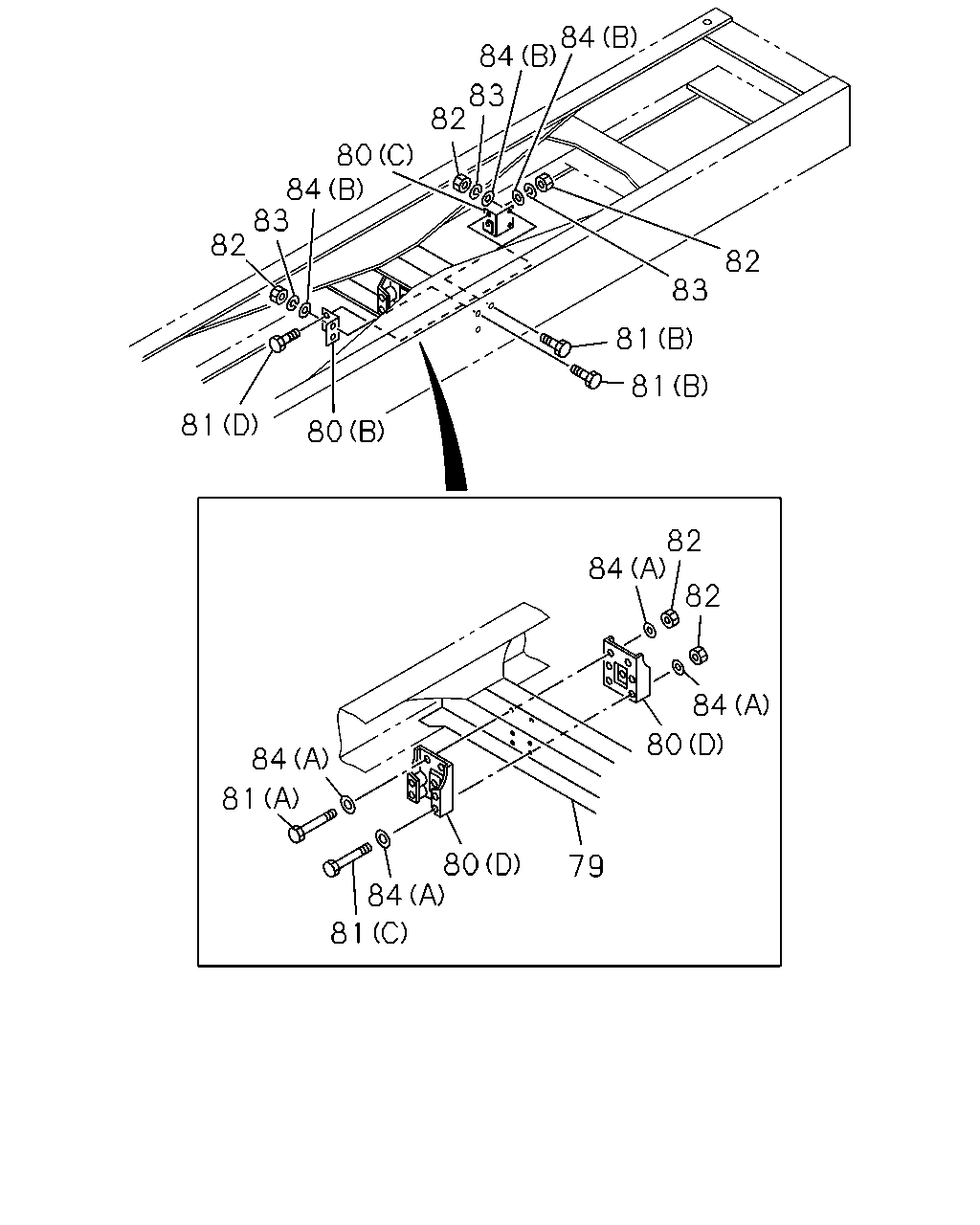

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 84 82 84 84 81 79 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-054-1	01	1	1006-
79	MEMBER; CROSS,TRUNNION ASM	1-53181-686-2	01	1	0904-1005
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-R(75L)	1-53181-686-2	01	1	1006-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-665-1	02	1	1006-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-53167-666-1	02	1	1006-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-53363-031-2	02	1	1006-
80	BRACKET; C/MBR (A)	1-53167-610-0	04	1	0904-1005
80	BRACKET; C/MBR 6WG1 TC-R(75L) (A)	1-53167-610-0	04	1	1006-
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X45	1-09000-764-0	08	1	1006-
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X50	0-20951-450-0	07	1	1006-
81	BOLT; BRKT (B) M14X40	0-20951-440-0	08	1	0904-1005
81	BOLT; BRKT 6WG1 TC-R(75L) (B) M14X40	0-20951-440-0	08	1	1006-
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	0904-1005
81	BOLT; BRKT 6WG1 TC-R(75L) (A) M14X50	0-20951-450-0	02	1	1006-
81	BOLT; BRKT (D) M14X60	0-20951-460-0	04	1	0904-
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	0904-
82	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	13	1	1006-
82	NUT; BRKT M14	0-91110-514-0	08	1	0904-1005
82	NUT; BRKT 6WG1 TC-R(75L) M14	0-91110-514-0	08	1	1006-
82	NUT; BRKT M14	0-91110-514-0	12	1	0904-
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0904-
84	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	08	1	1006-1201
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1202-
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	0904-1104
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-
84	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	08	1	0904-1005
84	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	08	1	1006-1201

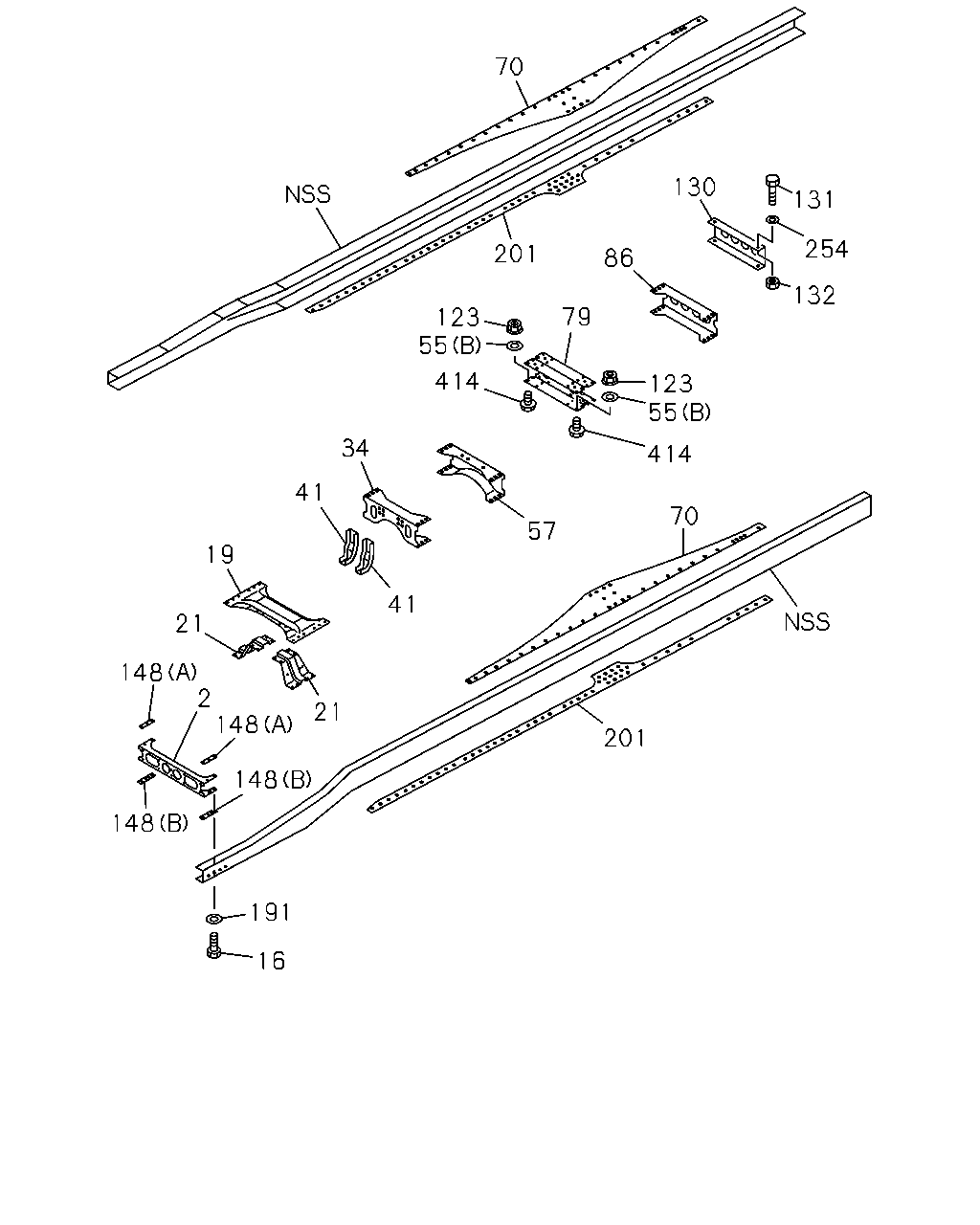

70 130 131 254 201 86 132 79 123 55 414 123 55 34 414 41 70 57 19 41 21 148 2 148 21 201 148 148 191 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0904-
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0904-
19	MEMBER; CROSS,2ND 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53174-221-0	01	1	1006-
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0904-1005
19	MEMBER; CROSS,2ND 6WG1 TC-R(75L)	1-53174-231-1	01	1	1006-
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53164-225-0	02	1	1006-
21	GUSSET; 2ND CROSS	1-53164-185-1	02	1	0904-1005
21	GUSSET; 2ND CROSS 6WG1 TC-R(75L)	1-53164-185-1	02	1	1006-
34	MEMBER; CROSS,3RD 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-091-0	01	1	1006-
34	MEMBER; CROSS,3RD	1-53182-090-0	01	1	0904-1005
34	MEMBER; CROSS,3RD 6WG1 TC-R(75L)	1-53182-090-0	01	1	1006-
41	BRACKET; CENTER BRG,FRAME SIDE L=325	1-53271-341-0	02	1	0904-1005
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-R(75L) L=325	1-53271-341-0	02	1	1006-
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	10	1	1006-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
55	WASHER; PL (B) ID=19	9-09160-518-0	32	1	0904-1005
55	WASHER; PL 6WG1 TC-R(75L) (B) ID=19	9-09160-518-0	32	1	1006-
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0904-1005
55	WASHER; PL 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	10	1	1006-1201
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-0	10	1	1002-
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-994-1	01	1	1006-
57	MEMBER; CROSS,RR SUSP FRT	1-53181-937-3	01	1	0904-1005
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-R(75L)	1-53181-937-3	01	1	1006-
70	GUSSET; TRUNNION,UPR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-97620-862-1	02	1	1006-
70	GUSSET; TRUNNION,UPR	1-53161-928-0	02	1	0904-1005
70	GUSSET; TRUNNION,UPR 6WG1 TC-R(75L)	1-53161-928-0	02	1	1006-
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-054-1	01	1	1006-
79	MEMBER; CROSS,TRUNNION ASM	1-53181-686-2	01	1	0904-1005
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-R(75L)	1-53181-686-2	01	1	1006-
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-134-2	01	1	1006-
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-8	01	1	0904-1005
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-R(75L)	1-53181-646-8	01	1	1006-
123	NUT M18	0-91110-518-0	16	1	0904-1005
123	NUT 6WG1 TC-R(75L) M18	0-91110-518-0	16	1	1006-
130	MEMBER; CROSS,END 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-537-2	01	1	1006-
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0904-1005
130	MEMBER; CROSS,END 6WG1 TC-R(75L)	1-53181-613-1	01	1	1006-
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0904-
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0904-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) T=7.0	1-53168-486-0	02	1	1006-
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0904-
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0904-
191	WASHER; PL,1ST C/MBR TO S/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-316-0	02	1	1006-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0904-1005
191	WASHER; PL,1ST C/MBR TO S/MBR 6WG1 TC-R(75L) ID=16.2	1-09503-223-0	02	1	1006-
201	GUSSET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-97620-863-1	02	1	1006-
201	GUSSET; C/MBR	1-53161-929-0	02	1	0904-1005
201	GUSSET; C/MBR 6WG1 TC-R(75L)	1-53161-929-0	02	1	1006-
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	04	1	1006-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1202-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	04	1	0904-1005
254	WASHER; PL,C/MBR 6WG1 TC-R(75L) ID=15	9-09651-069-0	04	1	1006-1201
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-0	04	1	1002-
414	BOLT M18X60	8-98036-497-0	16	1	0904-1005
414	BOLT 6WG1 TC-R(75L) M18X60	8-98036-497-0	16	1	1006-

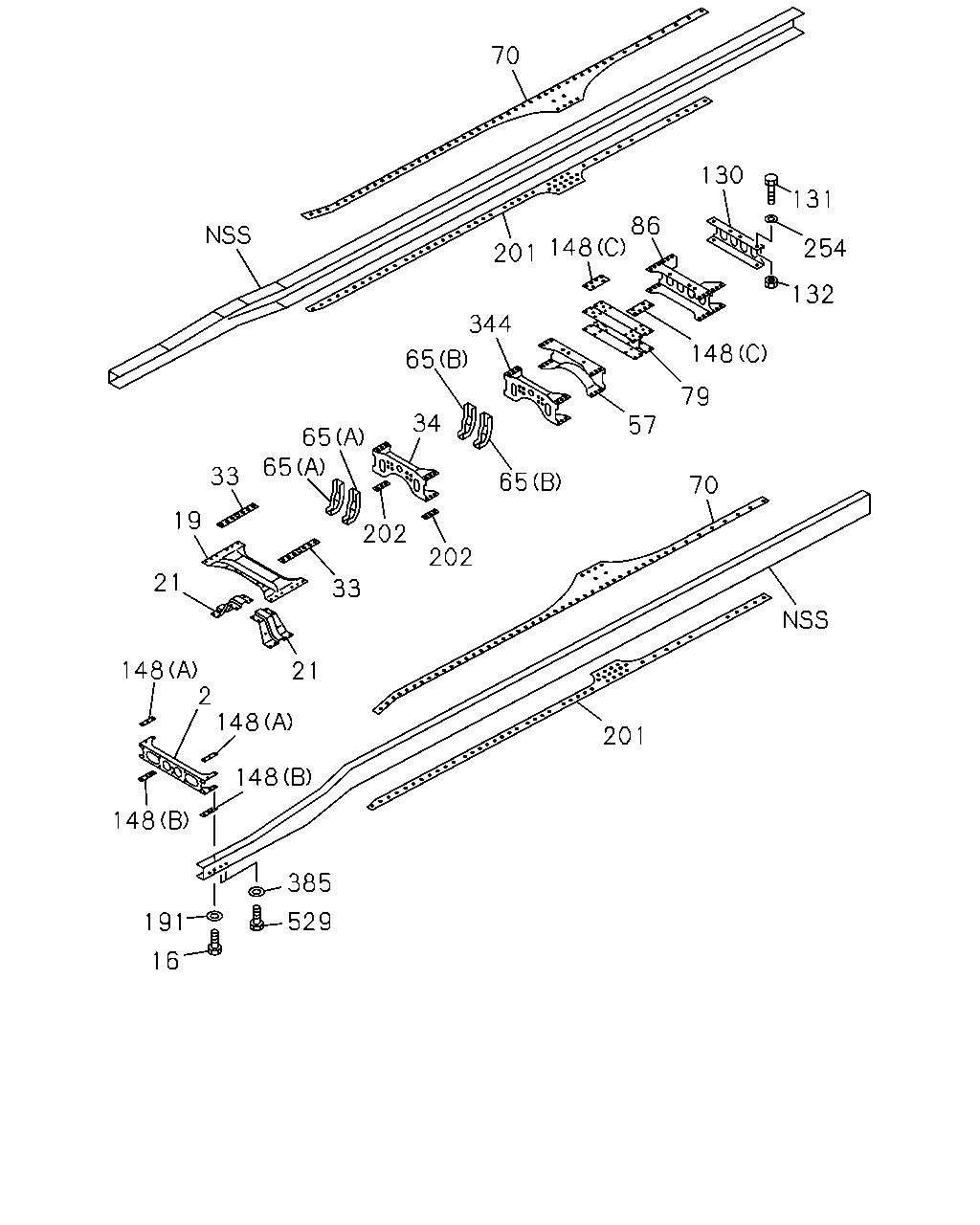

70 130 131 86 148 254 201 132 344 148 65 79 34 57 65 65 33 65 70 19 202 202 21 33 148 2 148 21 201 148 148 385 529 191 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0904-
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0904-
19	MEMBER; CROSS,2ND 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53174-221-0	01	1	1006-
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0904-1005
19	MEMBER; CROSS,2ND 6WG1 TC-R(75L)	1-53174-231-1	01	1	1006-
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53164-225-0	02	1	1006-
21	GUSSET; 2ND CROSS	1-53164-185-1	02	1	0904-1005
21	GUSSET; 2ND CROSS 6WG1 TC-R(75L)	1-53164-185-1	02	1	1006-
33	SPACER; 2ND C/MBR,UPR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53168-443-0	02	1	1006-
34	MEMBER; CROSS,3RD 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-091-0	01	1	1006-
34	MEMBER; CROSS,3RD	1-53182-090-0	01	1	0904-1005
34	MEMBER; CROSS,3RD 6WG1 TC-R(75L)	1-53182-090-0	01	1	1006-
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-994-1	01	1	1006-
57	MEMBER; CROSS,RR SUSP FRT	1-53181-937-3	01	1	0904-1005
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-R(75L)	1-53181-937-3	01	1	1006-
65	BRACKET; CENTER BRG 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=330	1-53271-263-2	02	1	1006-
65	BRACKET; CENTER BRG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=355	1-53271-289-1	02	1	1006-
70	GUSSET; TRUNNION,UPR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-97620-862-1	02	1	1006-
70	GUSSET; TRUNNION,UPR	1-53161-928-0	02	1	0904-1005
70	GUSSET; TRUNNION,UPR 6WG1 TC-R(75L)	1-53161-928-0	02	1	1006-
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-054-1	01	1	1006-
79	MEMBER; CROSS,TRUNNION ASM	1-53181-686-2	01	1	0904-1005
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-R(75L)	1-53181-686-2	01	1	1006-
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-134-2	01	1	1006-
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-8	01	1	0904-1005
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-R(75L)	1-53181-646-8	01	1	1006-
130	MEMBER; CROSS,END 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-537-2	01	1	1006-
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0904-1005
130	MEMBER; CROSS,END 6WG1 TC-R(75L)	1-53181-613-1	01	1	1006-
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0904-
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0904-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) T=7.0	1-53168-486-0	02	1	1006-
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0904-
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0904-
191	WASHER; PL,1ST C/MBR TO S/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-316-0	02	1	1006-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0904-1005
191	WASHER; PL,1ST C/MBR TO S/MBR 6WG1 TC-R(75L) ID=16.2	1-09503-223-0	02	1	1006-
201	GUSSET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-97620-863-1	02	1	1006-
201	GUSSET; C/MBR	1-53161-929-0	02	1	0904-1005
201	GUSSET; C/MBR 6WG1 TC-R(75L)	1-53161-929-0	02	1	1006-
202	SPACER; 3RD C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53168-506-0	02	1	1006-
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	04	1	1006-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1202-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	04	1	0904-1005
254	WASHER; PL,C/MBR 6WG1 TC-R(75L) ID=15	9-09651-069-0	04	1	1006-1201
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-0	04	1	1002-
344	MEMBER; CROSS,4TH 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-091-0	01	1	1006-
385	WASHER; PL,DUMMY 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-316-0	04	1	1006-
529	BOLT; DUMMY,HOLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M16X40	0-20951-640-0	04	1	1006-

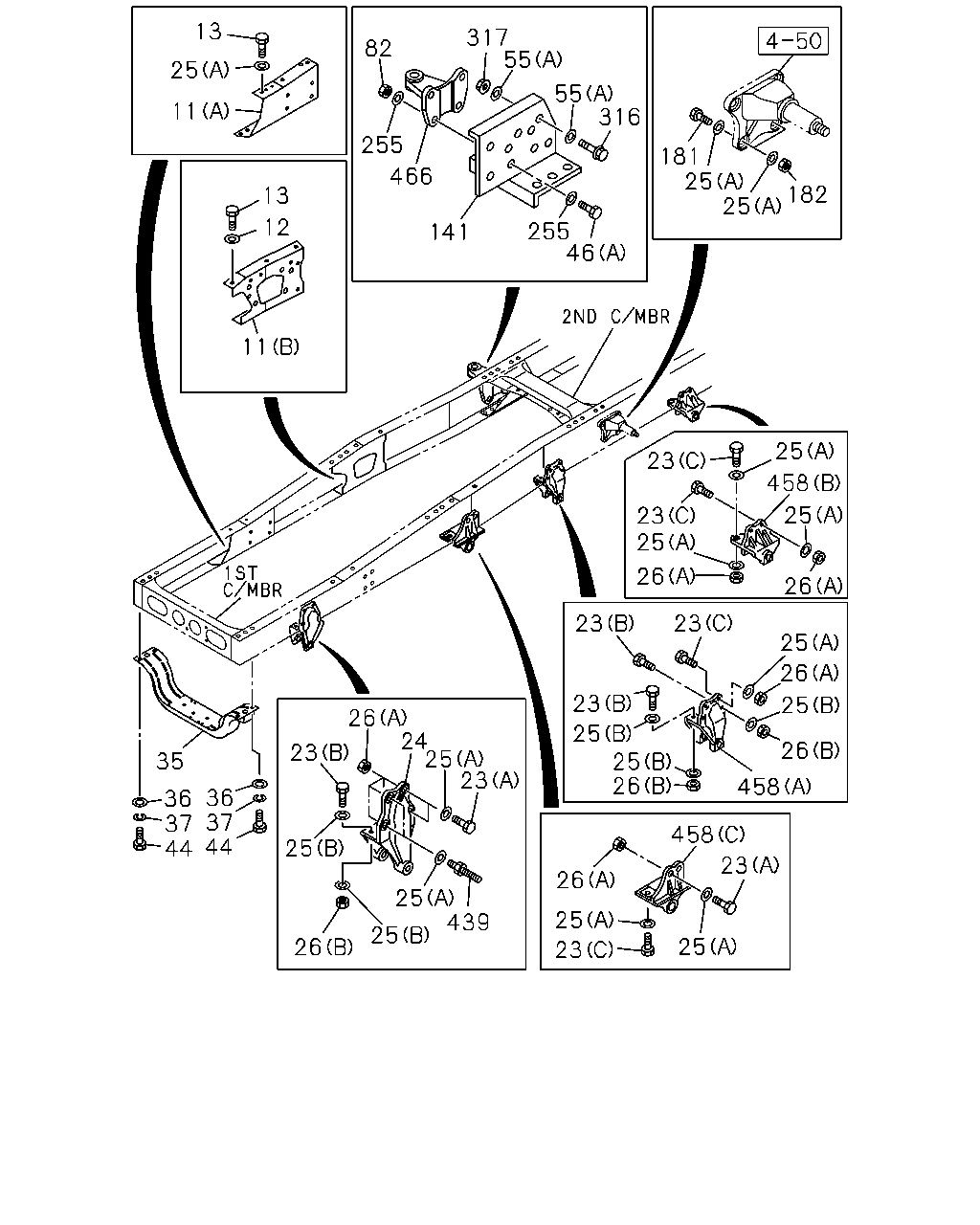

13 82 55 82 255 55 81 11 255 181 25 25 466 182 13 255 255 46 141 11 25 46 458 25 46 25 26 26 23 23 25 26 257 23 25 26 24 25 23 25 25 26 26 23 35 458 36 37 44 36 37 44 39 25 46 26 25 439 25 25 25 26 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53221-227-4	01	1	1006-
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97613-751-0	01	1	1006-
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0904-
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0904-
11	BRACKET; ENG MTG (B)	8-98056-611-1	01	1	0904-1005
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (B)	8-98056-611-1	01	1	1006-
11	BRACKET; ENG MTG (B)	8-98056-612-0	01	1	0904-1005
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (B)	8-98056-612-0	01	1	1006-
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	0904-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X40	0-20951-440-0	06	1	1006-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X50	0-20951-450-0	04	1	1006-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	10	1	0904-1005
23	BOLT; BRKT,SPR 6WG1 TC-R(75L) (A) M14X40	0-20951-440-0	10	1	1006-
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	16	1	0904-1005
23	BOLT; BRKT,SPR 6WG1 TC-R(75L) (C) M14X50	0-20951-450-0	16	1	1006-
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	0904-
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0904-
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0904-
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=16.2	1-09503-316-0	20	1	1006-
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	48	1	1006-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0904-1005
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (B) ID=16.2	1-09503-223-0	20	1	1006-
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	50	1	0904-1005
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	50	1	1006-1201
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	8-98010-627-1	50	1	1202-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	0904-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0904-
35	MEMBER; UNDER	1-53174-263-2	01	1	0904-
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0904-
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0904-
39	BRACKET; FRT SPR,RR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53352-179-0	01	1	1006-
39	BRACKET; FRT SPR,RR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53352-180-0	01	1	1006-
44	BOLT; UNDER MBR 6WG1 TC-S(97L) M16X80	0-10961-680-0	04	1	1008-1504
44	BOLT; UNDER MBR 6WG1 TC-S(97L) M16X80	8-98135-460-0	04	1	1505-
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0904-1007
44	BOLT; UNDER MBR 6WG1 TC-C(72L),6WG1 TC-R(75L) M16X60	0-20951-660-0	04	1	1008-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X40	0-20951-440-0	04	1	1006-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X50	0-20951-450-0	08	1	1006-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X60	0-20951-460-0	08	1	1006-
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	0904-1005
46	BOLT; BRKT FIX 6WG1 TC-R(75L) (A) M14X60	0-20951-460-0	04	1	1006-
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	10	1	1006-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
55	WASHER; PL (B) ID=19	9-09160-518-0	32	1	0904-1005
55	WASHER; PL 6WG1 TC-R(75L) (B) ID=19	9-09160-518-0	32	1	1006-
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0904-1005
55	WASHER; PL 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	10	1	1006-1201
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-0	10	1	1002-
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X45	1-09000-764-0	08	1	1006-
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X50	0-20951-450-0	07	1	1006-
81	BOLT; BRKT (B) M14X40	0-20951-440-0	08	1	0904-1005
81	BOLT; BRKT 6WG1 TC-R(75L) (B) M14X40	0-20951-440-0	08	1	1006-
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	0904-1005
81	BOLT; BRKT 6WG1 TC-R(75L) (A) M14X50	0-20951-450-0	02	1	1006-
81	BOLT; BRKT (D) M14X60	0-20951-460-0	04	1	0904-
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	0904-
82	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	13	1	1006-
82	NUT; BRKT M14	0-91110-514-0	08	1	0904-1005
82	NUT; BRKT 6WG1 TC-R(75L) M14	0-91110-514-0	08	1	1006-
82	NUT; BRKT M14	0-91110-514-0	12	1	0904-
141	STIFFENER	1-53151-833-1	01	1	0904-
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	0904-
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	0904-
255	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	16	1	1006-
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0904-1005
255	WASHER; PL,BRKT 6WG1 TC-R(75L) ID=15	9-09651-069-0	08	1	1006-1201
255	WASHER; PL,BRKT 6WG1 TC-R(75L) ID=15	8-98010-627-1	08	1	1202-
257	SPACER; UNDER MBR 6WG1 TC-S(97L)	1-53168-447-1	02	1	1008-
439	STUD; BRKT,SPR M12X25,M14X45 L=81	1-09029-103-0	02	1	0904-
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	0904-
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	0904-
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	0904-
458	BRACKET; LEAF SPRING (C)	1-53352-179-0	01	1	0904-1005
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (C)	1-53352-179-0	01	1	1006-
458	BRACKET; LEAF SPRING (C)	1-53352-180-0	01	1	0904-1005
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (C)	1-53352-180-0	01	1	1006-
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0904-

13 317 55 82 25 55 316 11 255 181 25 25 466 182 13 12 255 46 141 11 25 23 458 25 23 25 26 26 23 23 25 26 23 25 26 24 25 23 25 25 26 26 23 35 458 36 37 44 36 37 44 458 25 23 26 25 439 25 25 25 26 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53221-227-4	01	1	1006-
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97613-751-0	01	1	1006-
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0904-
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0904-
11	BRACKET; ENG MTG (B)	8-98056-611-1	01	1	0904-1005
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (B)	8-98056-611-1	01	1	1006-
11	BRACKET; ENG MTG (B)	8-98056-612-0	01	1	0904-1005
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (B)	8-98056-612-0	01	1	1006-
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0904-1005
12	WASHER; PL,BRKT,ENG MTG 6WG1 TC-R(75L) ID=15	9-09651-069-0	02	1	1006-1201
12	WASHER; PL,BRKT,ENG MTG 6WG1 TC-R(75L) ID=15	8-98010-627-1	02	1	1202-
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	0904-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X40	0-20951-440-0	06	1	1006-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X50	0-20951-450-0	04	1	1006-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	10	1	0904-1005
23	BOLT; BRKT,SPR 6WG1 TC-R(75L) (A) M14X40	0-20951-440-0	10	1	1006-
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	16	1	0904-1005
23	BOLT; BRKT,SPR 6WG1 TC-R(75L) (C) M14X50	0-20951-450-0	16	1	1006-
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	0904-
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0904-
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0904-
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=16.2	1-09503-316-0	20	1	1006-
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	48	1	1006-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0904-1005
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (B) ID=16.2	1-09503-223-0	20	1	1006-
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	50	1	0904-1005
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	50	1	1006-1201
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	8-98010-627-1	50	1	1202-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	0904-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0904-
35	MEMBER; UNDER	1-53174-263-2	01	1	0904-
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0904-
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0904-
44	BOLT; UNDER MBR 6WG1 TC-S(97L) M16X80	0-10961-680-0	04	1	1008-1504
44	BOLT; UNDER MBR 6WG1 TC-S(97L) M16X80	8-98135-460-0	04	1	1505-
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0904-1007
44	BOLT; UNDER MBR 6WG1 TC-C(72L),6WG1 TC-R(75L) M16X60	0-20951-660-0	04	1	1008-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X40	0-20951-440-0	04	1	1006-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X50	0-20951-450-0	08	1	1006-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X60	0-20951-460-0	08	1	1006-
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	0904-1005
46	BOLT; BRKT FIX 6WG1 TC-R(75L) (A) M14X60	0-20951-460-0	04	1	1006-
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	10	1	1006-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
55	WASHER; PL (B) ID=19	9-09160-518-0	32	1	0904-1005
55	WASHER; PL 6WG1 TC-R(75L) (B) ID=19	9-09160-518-0	32	1	1006-
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0904-1005
55	WASHER; PL 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	10	1	1006-1201
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-0	10	1	1002-
82	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	13	1	1006-
82	NUT; BRKT M14	0-91110-514-0	08	1	0904-1005
82	NUT; BRKT 6WG1 TC-R(75L) M14	0-91110-514-0	08	1	1006-
82	NUT; BRKT M14	0-91110-514-0	12	1	0904-
141	STIFFENER	1-53151-833-1	01	1	0904-
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	0904-
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	0904-
255	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	16	1	1006-
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0904-1005
255	WASHER; PL,BRKT 6WG1 TC-R(75L) ID=15	9-09651-069-0	08	1	1006-1201
255	WASHER; PL,BRKT 6WG1 TC-R(75L) ID=15	8-98010-627-1	08	1	1202-
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0904-1005
316	BOLT; STIFFENER 6WG1 TC-R(75L) M14X50	0-20951-450-0	05	1	1006-
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0904-1005
317	NUT; STIFFENER 6WG1 TC-R(75L) M14	0-91110-514-0	05	1	1006-
439	STUD; BRKT,SPR M12X25,M14X45 L=81	1-09029-103-0	02	1	0904-
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	0904-
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	0904-
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	0904-
458	BRACKET; LEAF SPRING (C)	1-53352-179-0	01	1	0904-1005
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (C)	1-53352-179-0	01	1	1006-
458	BRACKET; LEAF SPRING (C)	1-53352-180-0	01	1	0904-1005
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (C)	1-53352-180-0	01	1	1006-
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
