◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#16331) — 35 parça

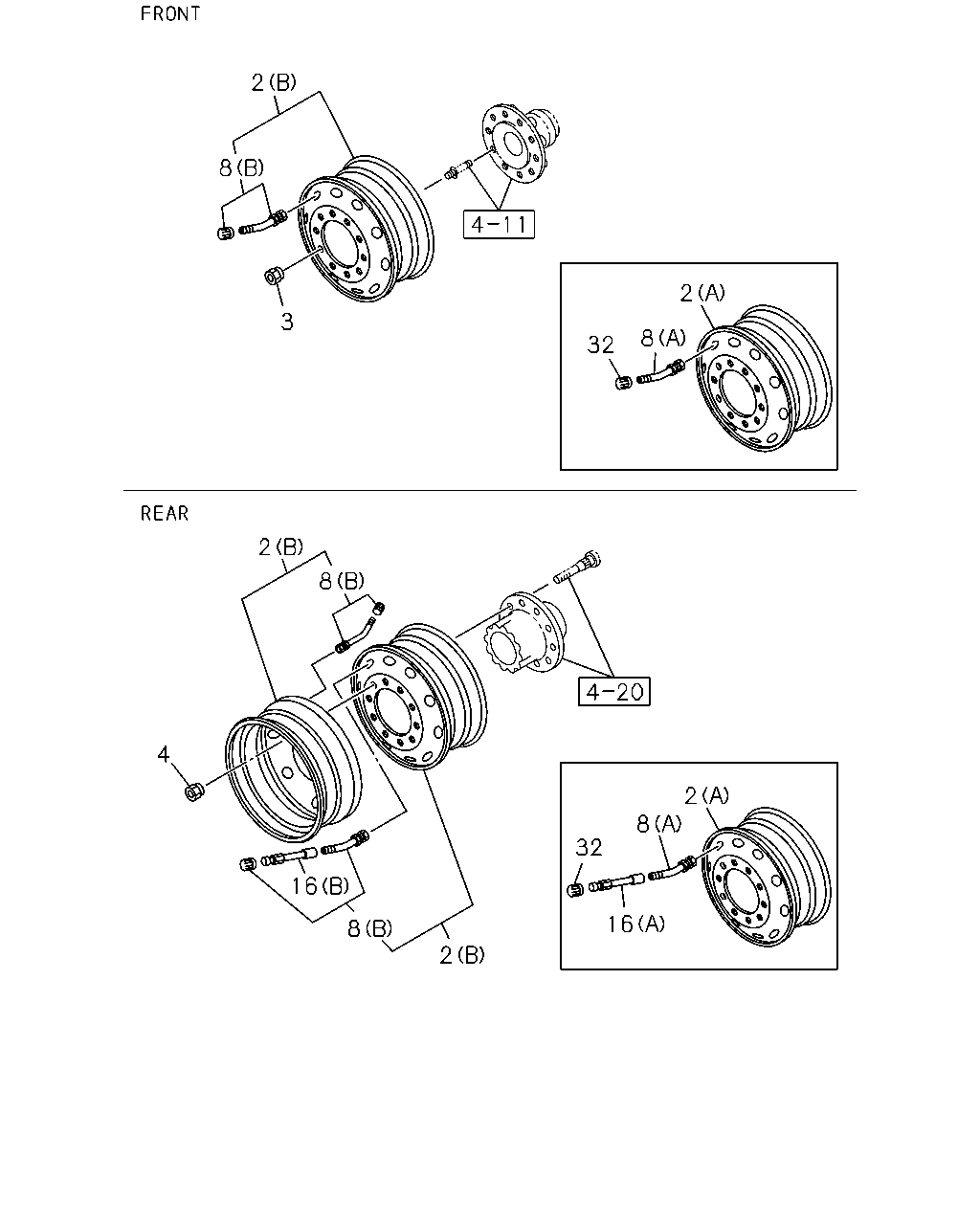

çizim 102177
2 8 2 3 8 32 2 8 4 2 8 32 16 16 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42350-730-0 01 1 0904-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-730-0 01 1 0904-1205
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42350-694-0 01 1 0904-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-694-0 01 1 0904-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42350-730-0 12 1 0904-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 12 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 12 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT,REAR 		1-42350-694-0 12 1 0904-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 40 1 0904-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 40 1 0908-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0904-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 0908-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42370-020-3 01 1 0904-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-020-3 01 1 0904-1205
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42370-044-0 01 1 0904-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-044-0 01 1 0904-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-020-3 12 1 0904-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-048-0 12 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-019-3 12 1 1408-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT,REAR 		1-42370-044-0 12 1 0904-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170 		1-42370-024-0 04 1 0904-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170 		8-98167-052-0 04 1 1004-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115 		1-42370-015-2 04 1 0904-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115 		8-98167-051-0 04 1 1004-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 01 1 0904-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 0904-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 12 1 0904-
