4-60 — REAR SUSPENSION (#1633) — 65 parça

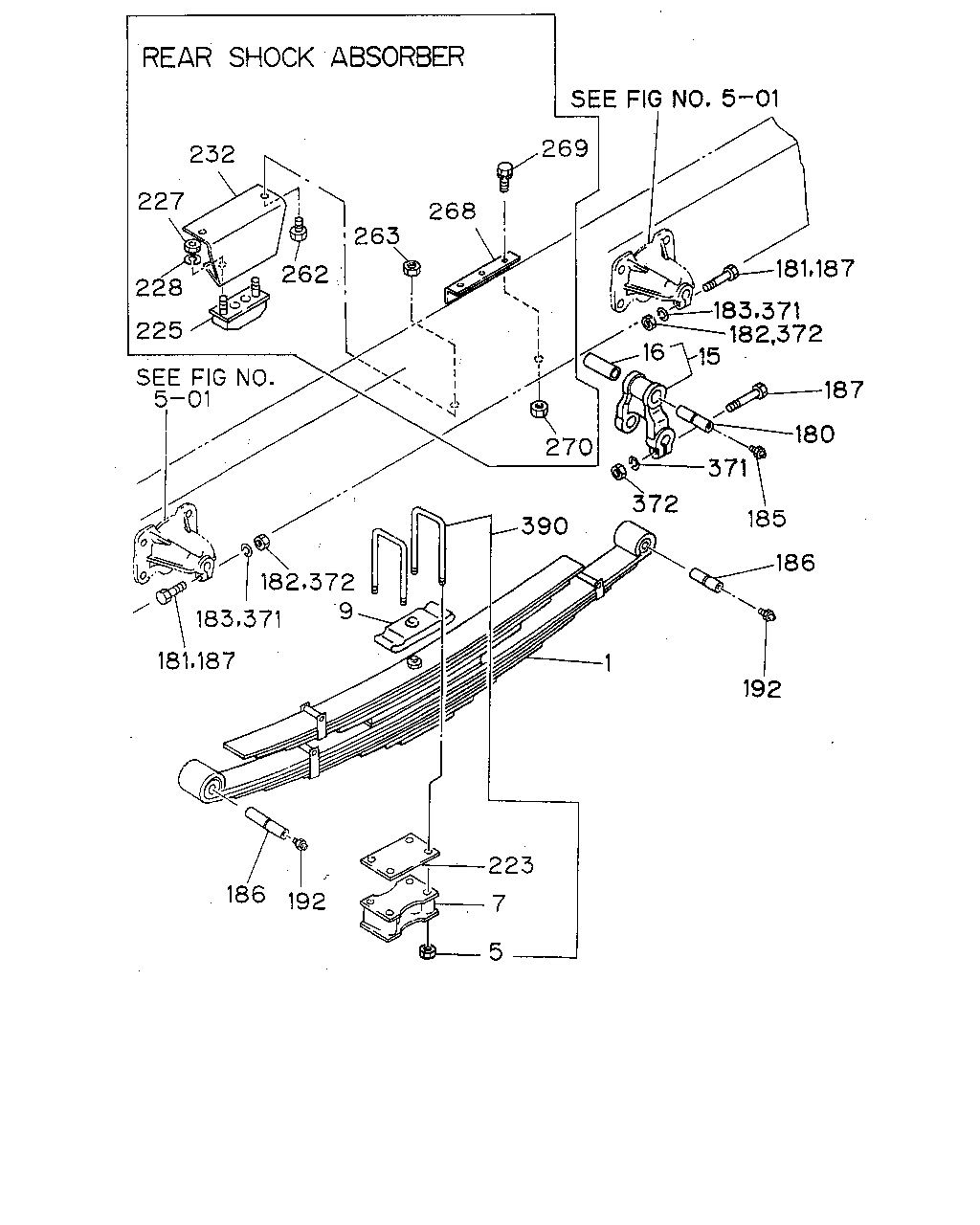

çizim 29163
269 268 263 262 232 227 228 225 9 372 182 371 183 181 187 186 192 5 223 7 1 390 372 270 192 186 185 371 180 187 15 16 187 181 183 371 182 372
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51300-366-0 02 1 9207- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51300-358-2 02 1 9207- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-51300-358-2 02 1 9207- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REARWARD INNER SINGLE TIRE<YK3> 		1-51300-408-0 02 1 9207- ●
5 NUT; U-BOLT,RR SPR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> M18 FLANGE 		1-09440-039-1 08 1 9207- ● ●
5 NUT; U-BOLT,RR SPR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		9-09840-325-1 08 1 9207- ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9207- ● ● ●
7 SEAT; SPR,LWR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51385-086-1 02 1 9207- ●
7 SEAT; SPR,LWR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. REAR WHEEL PARKING(B3A) 		1-51385-086-1 02 1 9207- ●
7 SEAT; SPR,LWR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51385-025-2 02 1 9207- ●
7 SEAT; SPR,LWR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A) 		1-51385-025-2 02 1 9207- ●
7 SEAT; SPR,LWR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A) 		1-51385-090-1 02 1 9207- ●
7 SEAT; SPR,LWR
REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51385-073-1 02 1 9207- ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 9207- ● ● ●
9 PAD; U BOLT,RR SPR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51372-066-0 02 1 9207- ●
9 PAD; U BOLT,RR SPR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. REAR WHEEL PARKING(B3A) 		1-51372-066-0 02 1 9207- ●
9 PAD; U BOLT,RR SPR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51372-024-1 02 1 9207- ●
9 PAD; U BOLT,RR SPR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A) 		1-51372-024-1 02 1 9207- ●
9 PAD; U BOLT,RR SPR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A) 		1-51372-059-0 02 1 9207- ●
9 PAD; U BOLT,RR SPR
REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51372-047-0 02 1 9207- ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 9207- ● ● ●
15 SHACKLE; RR SPR 1-51362-038-1 02 1 9207- ● ●
15 SHACKLE; RR SPR 1-51362-049-1 02 1 9207- ● ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 9207- ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-0 02 1 9207- ● ● ●
180 PIN; RR SPR 1-51361-016-0 02 1 9207- ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9207- ● ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9207- ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 9207- ● ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 9207- ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9207- ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-512-0 02 1 9207-9209 ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 9210- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9207- ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9207- ● ● ● ● ●
186 PIN; SHACKLE,RR SPR 1-51361-016-0 04 1 9207- ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9207- ● ● ●
187 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9207- ● ●
187 BOLT; SPR & SHACKLE
M12X65 		0-10811-265-0 02 1 9207- ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 9207- ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9207- ● ● ● ● ●
223 SPACER; U BOLT,RR SPR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51377-307-0 01 1 9207- ●
223 SPACER; U BOLT,RR SPR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. REAR WHEEL PARKING(B3A) 		1-51377-307-0 01 1 9207- ●
223 SPACER; U BOLT,RR SPR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51377-243-0 01 1 9207- ●
223 SPACER; U BOLT,RR SPR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A) 		1-51377-243-0 01 1 9207- ●
223 SPACER; U BOLT,RR SPR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> REAR WHEEL PARKING(B3A) 		1-51377-330-0 01 1 9207- ●
223 SPACER; U BOLT,RR SPR
REAR WHEEL PARKING(B3A) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-51377-265-0 01 1 9207- ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 9207- ● ● ●
225 RUBBER; CUSHION,RR SPR
REAR SHOCK ABSORBER<GL6> 		9-53366-056-0 02 1 9207- ●
227 NUT; CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> M10 		9-09110-510-0 04 1 9207- ●
228 WASHER; LK,CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> ID=10.2 		9-09150-510-0 04 1 9207- ●
232 BRACKET; CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> 		1-53369-120-0 02 1 9207- ●
262 BOLT; BRKT TO CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9207- ●
263 NUT; CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> M10 		9-09110-510-0 04 1 9207- ●
268 STIFFENER
REAR SHOCK ABSORBER<GL6> 		1-53157-576-0 02 1 9207- ●
269 BOLT; STIFFENER
REAR SHOCK ABSORBER<GL6> M10X30 W/LK WASHER 		0-50041-030-0 06 1 9207- ●
270 NUT; STIFFENER
REAR SHOCK ABSORBER<GL6> M10 		9-09110-510-0 06 1 9207- ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-512-0 04 1 9207-9209 ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 9210- ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 9207- ● ● ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 9207- ● ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 9207- ● ● ●
390 U-BOLT SET; RR SPRING
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> L=495 		1-87870-364-0 04 1 9207- ● ●
390 U-BOLT SET; RR SPRING
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> L=495 		1-87870-261-0 04 1 9207- ● ●
390 U-BOLT SET; RR SPRING
L=570 		1-87870-320-0 04 1 9207- ● ● ●
