4-55 — FRONT LEAF SPRING (#16328) — 45 parça

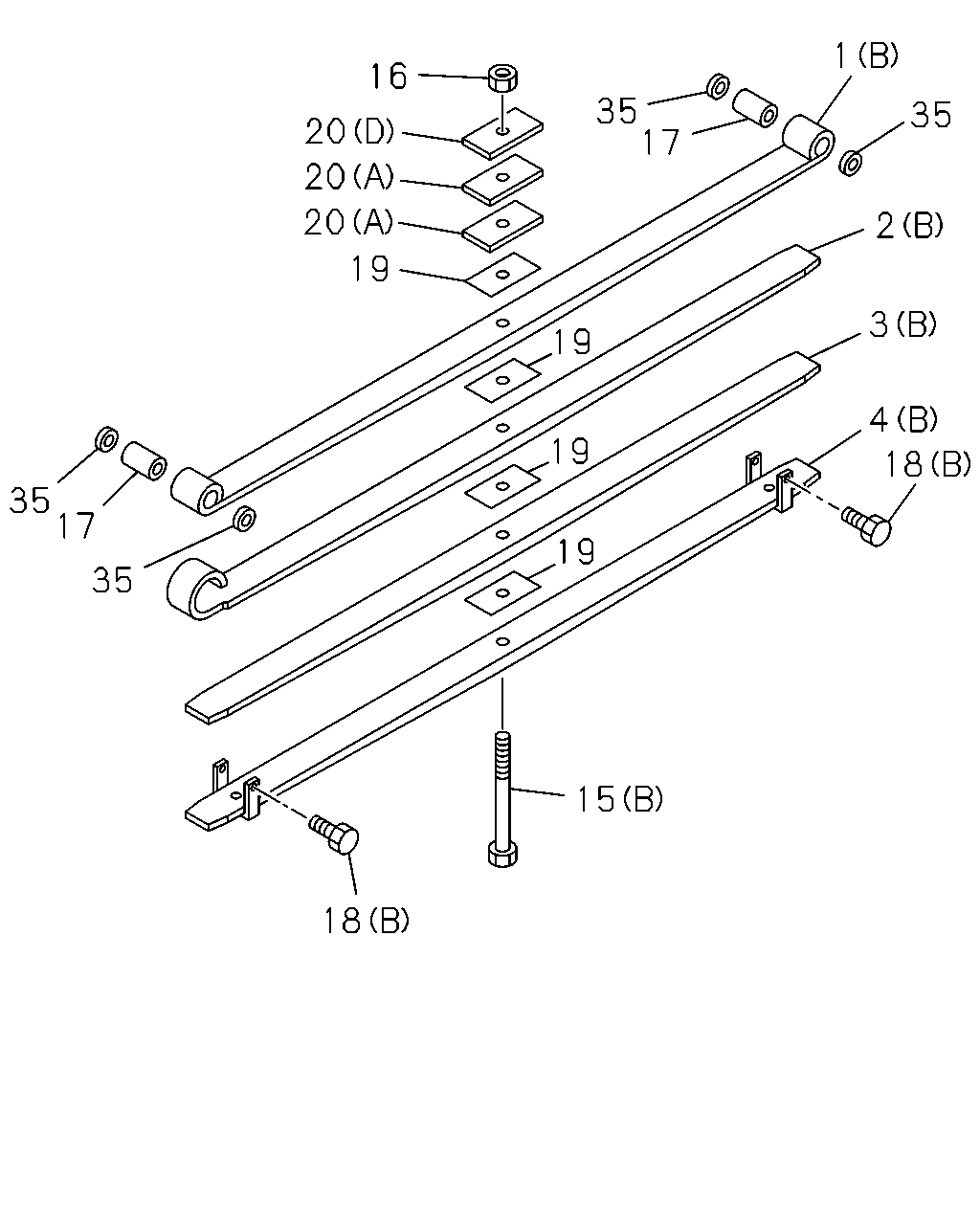

1 16 35 17 35 20 20 20 2 19 3 19 4 19 18 35 17 19 35 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98202-918-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-028-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98202-918-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-029-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98202-918-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-030-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98202-918-0	1-51134-929-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-031-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=150 ASM PART: A = 8-98118-962-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=190 ASM PART: B = 8-98202-918-0	1-51156-342-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-98202-918-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 8-98118-962-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (E), T=6 ASM PART: B = 8-98202-918-0	1-51177-070-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 8-98202-918-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=9 ASM PART: A = 8-98118-962-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 8-98202-918-0	1-51177-097-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 8-98118-962-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: B = 8-98202-918-0	1-51177-347-0	02	1	-
35	SEAL; DUST ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-51177-321-0	04	1	-

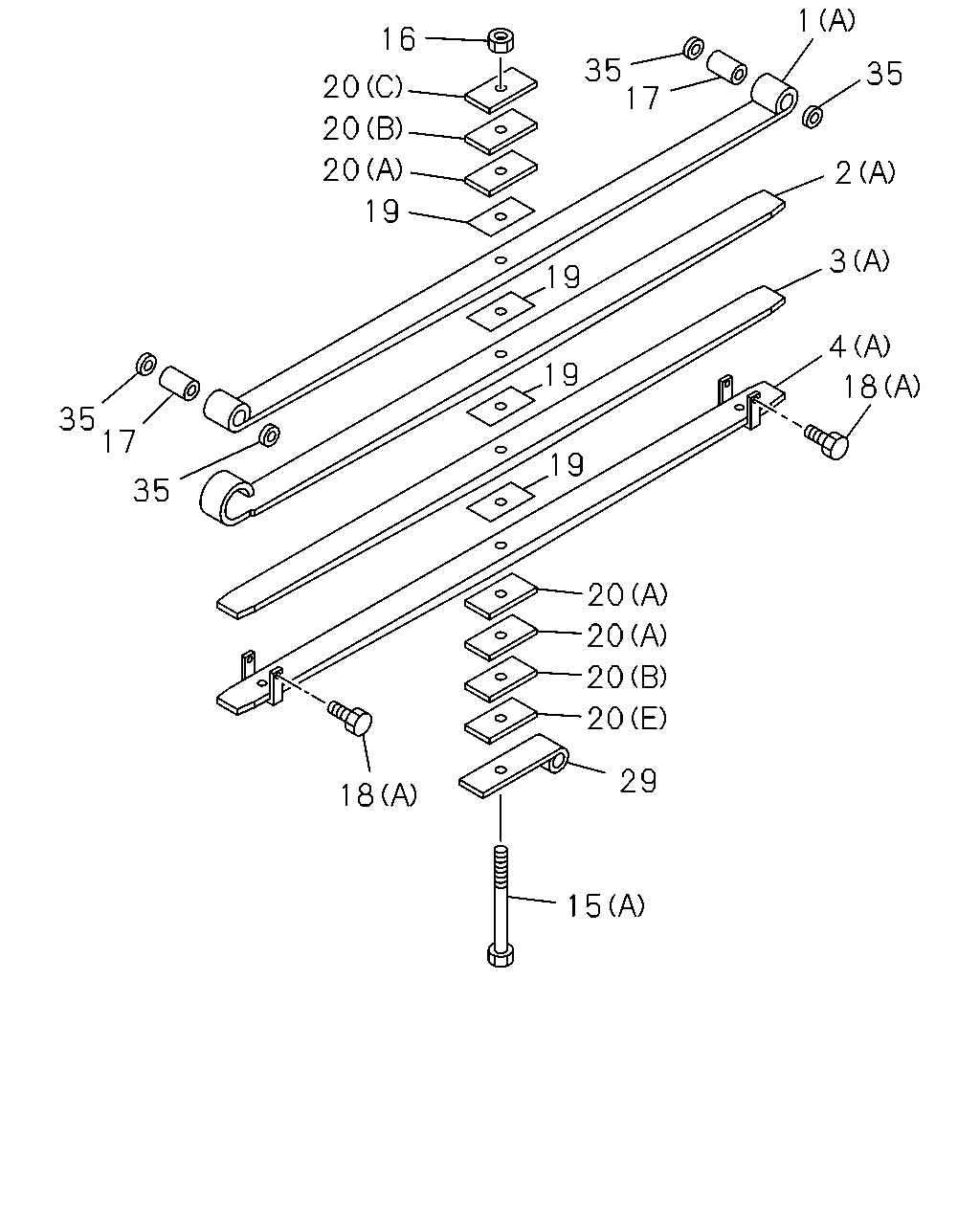

1 16 35 17 35 20 20 20 2 19 3 19 4 19 18 35 17 19 35 20 20 20 20 29 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98202-918-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-028-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98202-918-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-029-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98202-918-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-030-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98202-918-0	1-51134-929-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: A = 8-98118-962-0	8-98140-031-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=150 ASM PART: A = 8-98118-962-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=190 ASM PART: B = 8-98202-918-0	1-51156-342-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-98202-918-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 8-98118-962-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (E), T=6 ASM PART: B = 8-98202-918-0	1-51177-070-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 8-98202-918-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=9 ASM PART: A = 8-98118-962-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 8-98202-918-0	1-51177-097-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 8-98118-962-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: B = 8-98202-918-0	1-51177-347-0	02	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: B = 8-98202-918-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-98118-962-0, B = 8-98202-918-0	1-51177-321-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
