4-50 — FRONT SUSPENSION (#16327) — 97 parça

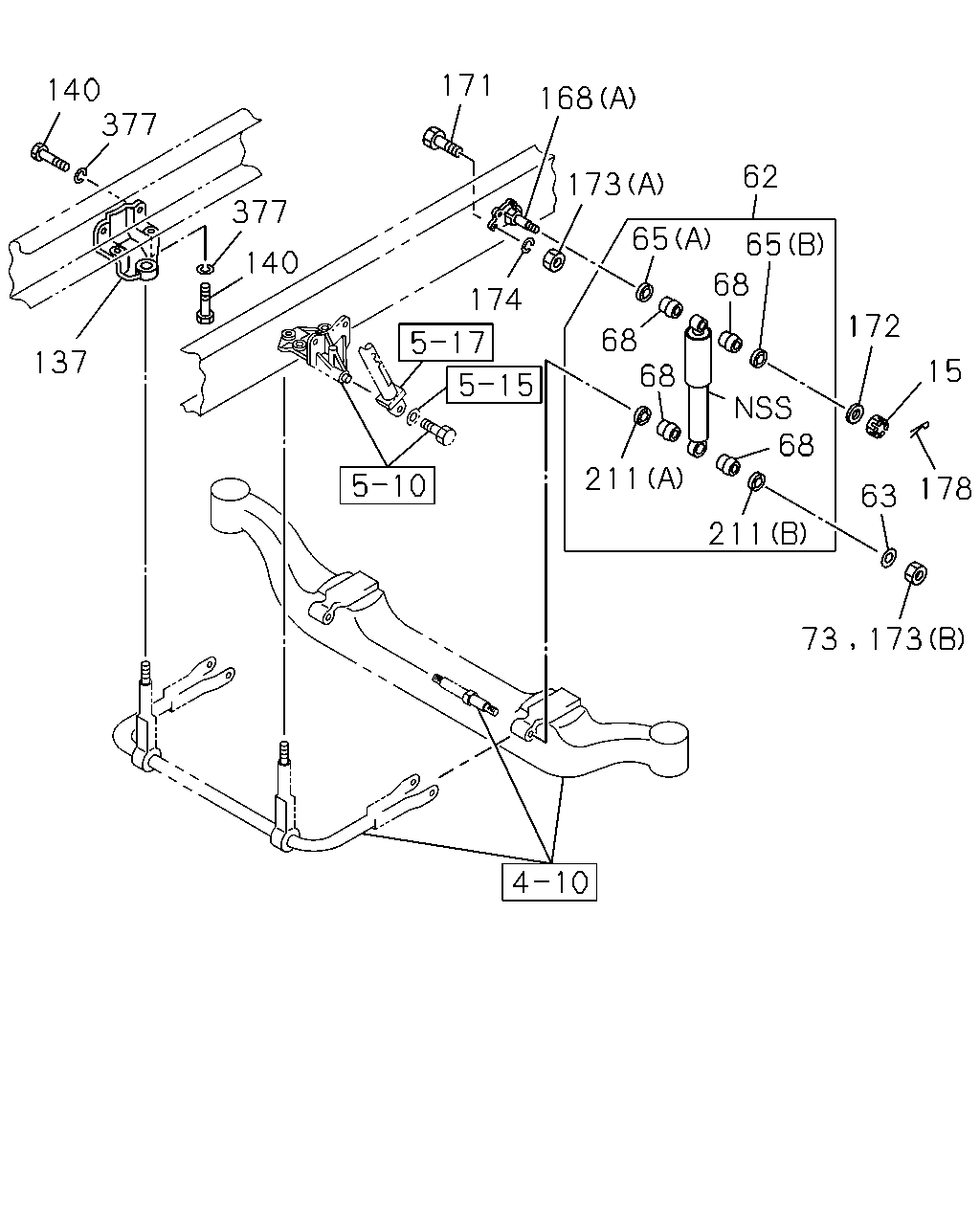

çizim 62281
171 140 377 168 62 173 377 65 65 140 68 174 172 68 68 137 15 68 211 178 63 211 73 173
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0904-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
62 ABSORBER ASM; SHOCK,FRT 8-98136-315-0 02 1 0904-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0904-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0904-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0904-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0904-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 01 1 0904-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0904-
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0904-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0904-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0904-1012
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1101-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0904-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0904-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0904-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0904-
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 0904-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0904-1011
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0904-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0904-
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0904-1005
377 WASHER; LK,BRKT
6WG1 TC-R(75L) ID=15 		9-09651-069-0 04 1 1006-1201
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1202-
377 WASHER; LK,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15 		8-98010-627-0 04 1 1006-

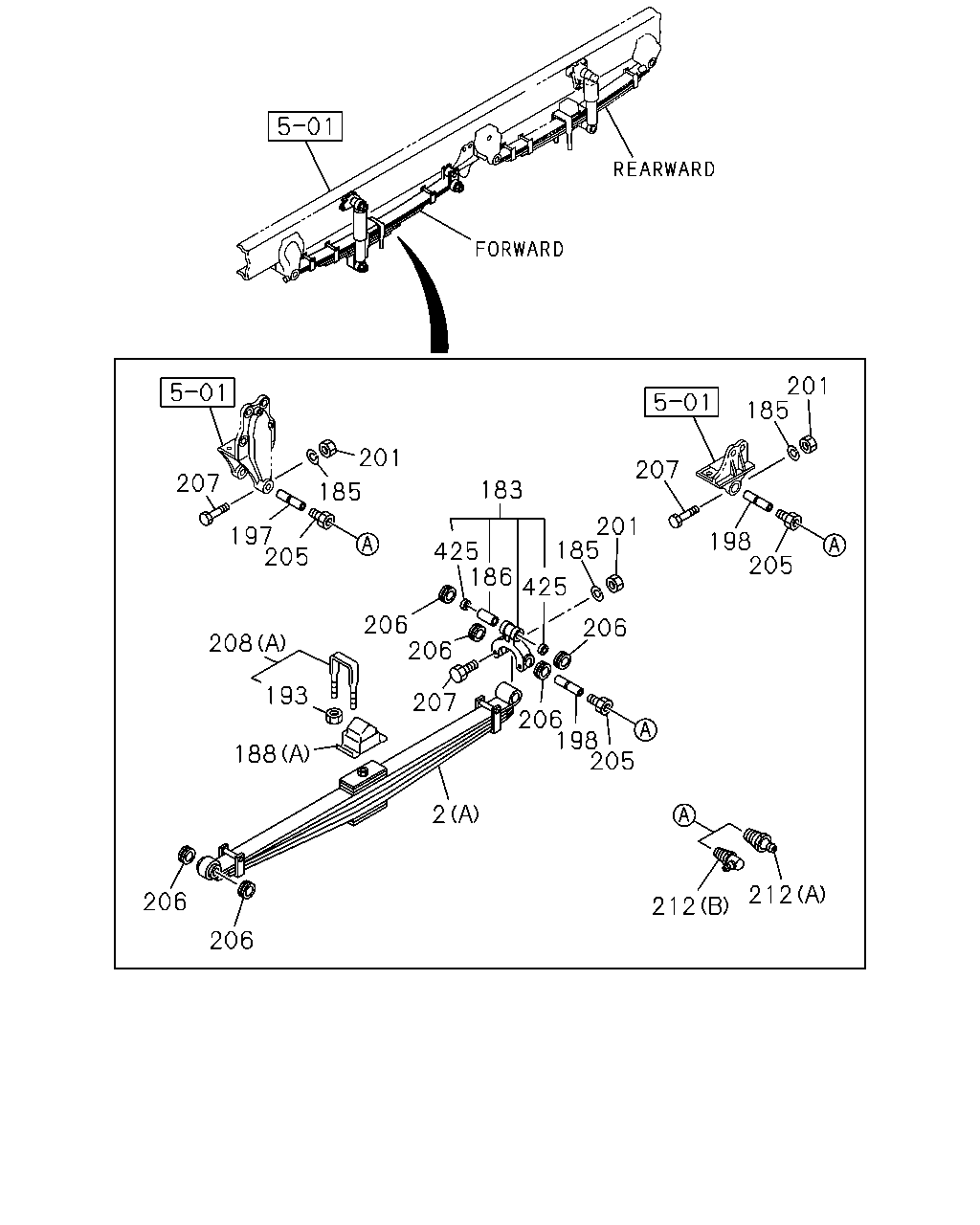

çizim 63070
201 185 201 207 207 183 185 201 185 197 205 198 205 425 186 425 206 206 206 208 193 207 206 198 205 188 2 212 206 212 206
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		8-98118-962-0 02 1 0904-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		8-98202-918-0 02 1 0904-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0904-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0904-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0904-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 0904-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-088-1 02 1 0904-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0904-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0904-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0904-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0904-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0904-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0904-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0904-
208 U-BOLT SET; FRT SPRING
(A) L=230 		1-87870-269-2 04 1 0904-1206
208 U-BOLT SET; FRT SPRING
(A) L=230 		1-87870-493-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
(B) L=240 		1-87870-376-1 04 1 0904-1108
208 U-BOLT SET; FRT SPRING
(B) L=270 		1-87870-327-2 04 1 1109-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0904-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0904-
425 SEAL; DUST 1-51177-321-0 08 1 0904-1005

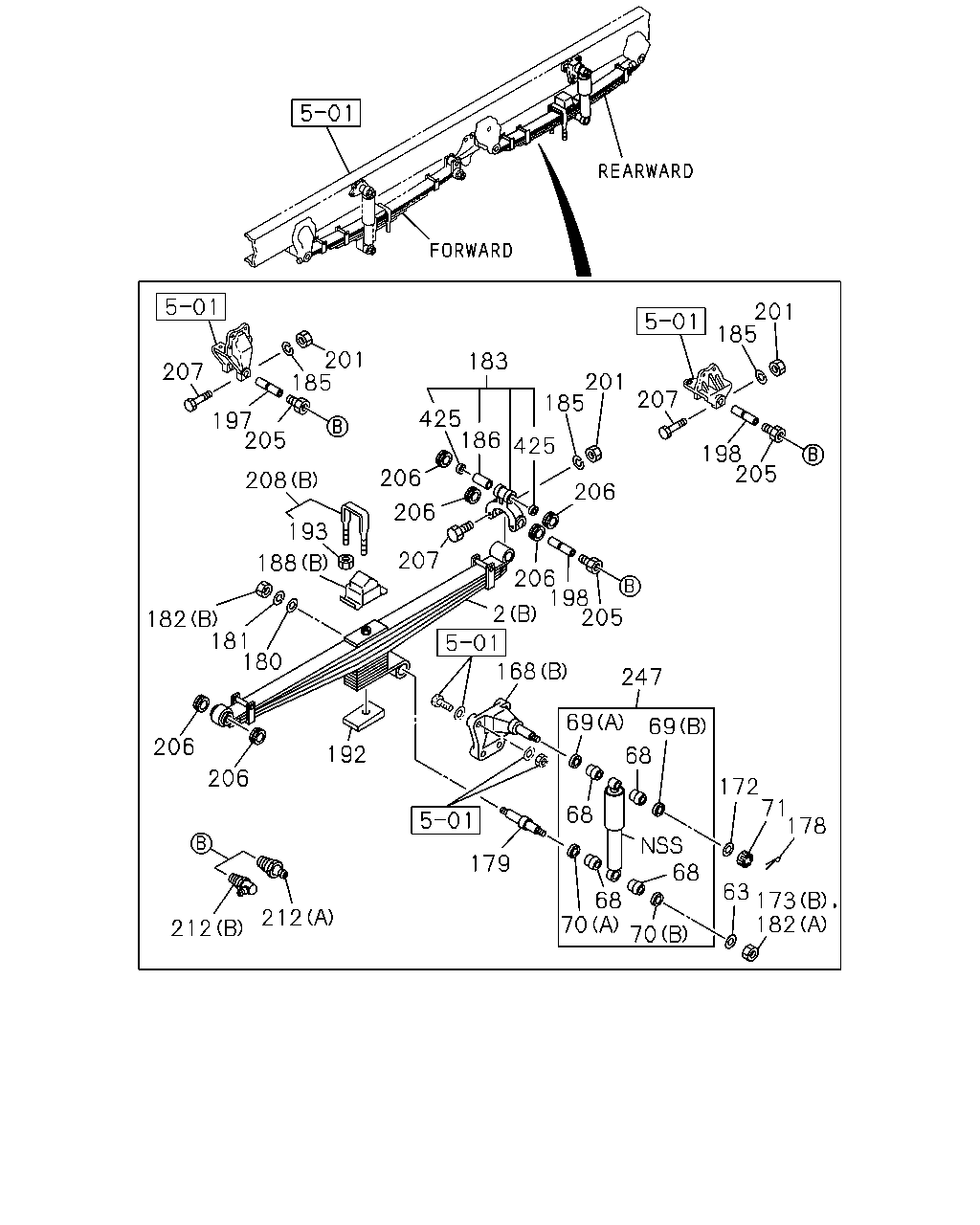

çizim 102176
201 185 201 185 183 207 207 201 185 425 186 197 205 425 198 205 206 208 206 206 193 207 188 206 198 205 2 182 181 180 168 247 69 69 206 192 68 206 172 71 178 68 68 179 63 173 182 68 70 212 70 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		8-98118-962-0 02 1 0904-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		8-98202-918-0 02 1 0904-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0904-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0904-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0904-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0904-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0904-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0904-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0904-1010
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0904-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0904-1012
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1101-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0904-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0904-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0904-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0904-1011
179 PIN 1-51682-094-1 02 1 0904-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 0904-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 0904-
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 01 1 0904-
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 0904-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0904-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0904-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0904-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 0904-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-088-1 02 1 0904-
192 PIECE; DIST 1-51177-281-1 02 1 0904-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0904-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0904-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0904-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0904-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0904-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0904-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0904-
208 U-BOLT SET; FRT SPRING
(A) L=230 		1-87870-269-2 04 1 0904-1206
208 U-BOLT SET; FRT SPRING
(A) L=230 		1-87870-493-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
(B) L=240 		1-87870-376-1 04 1 0904-1108
208 U-BOLT SET; FRT SPRING
(B) L=270 		1-87870-327-2 04 1 1109-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0904-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0904-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-810-0 02 1 0904-
425 SEAL; DUST 1-51177-321-0 08 1 0904-1005
