4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#16322) — 136 parça

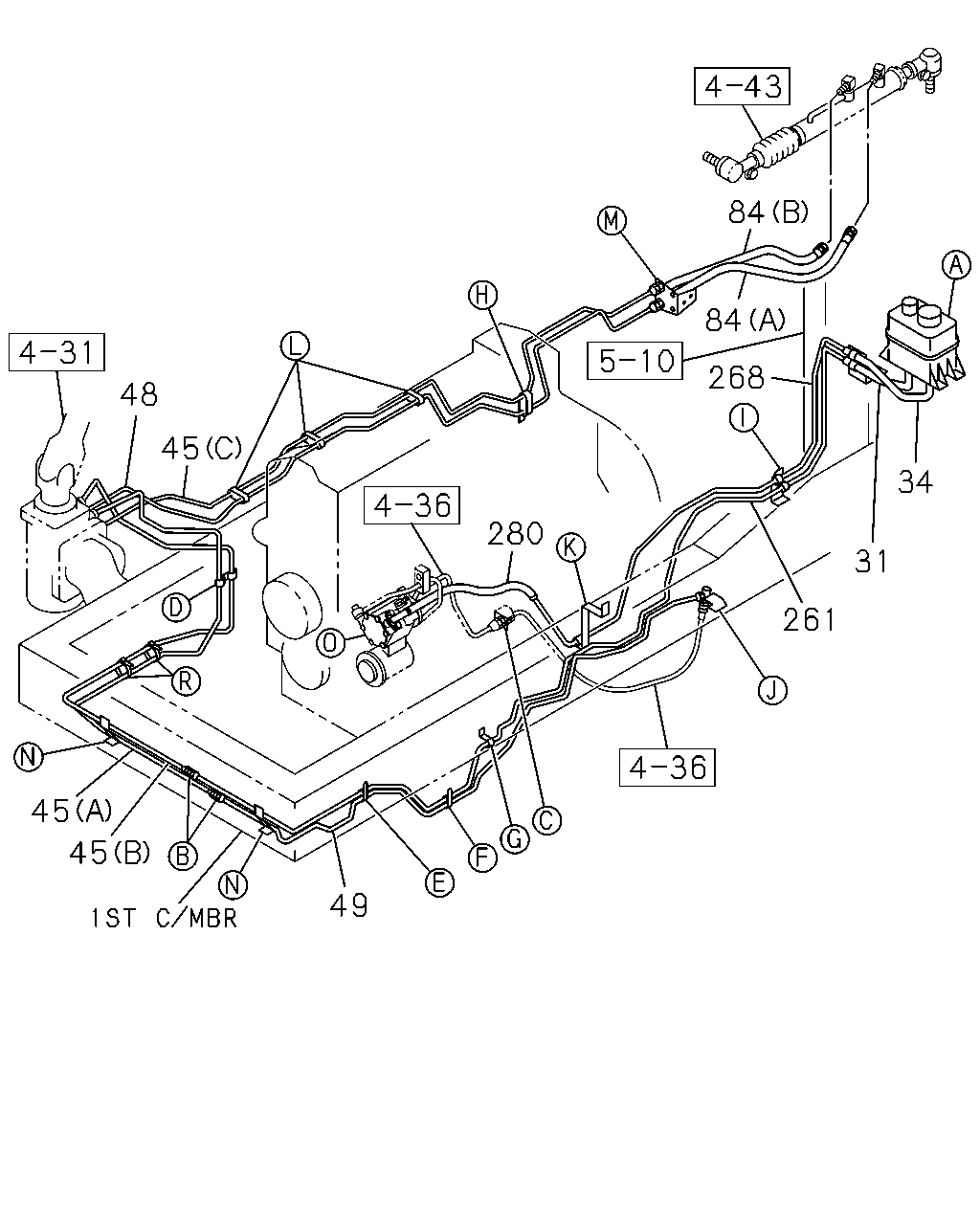

48 45 45 45 49 280 268 261 84 84 34 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0904-
34	HOSE; P/S OIL TANK,OUTLET	8-98105-152-0	01	1	0904-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	0904-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0904-1309
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0904-1309
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0904-
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-S(97L) L=2177	8-98177-582-0	01	1	1008-
49	PIPE; OIL,FLEX HOSE TO UNION L=2147	1-21117-763-0	01	1	0904-1007
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-R(75L) L=2147	1-21117-763-0	01	1	1008-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0904-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0904-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-S(97L) L=3386	8-98177-583-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE L=3357	8-98140-495-0	01	1	0904-1007
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-R(75L) L=3357	8-98140-495-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0904-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0904-

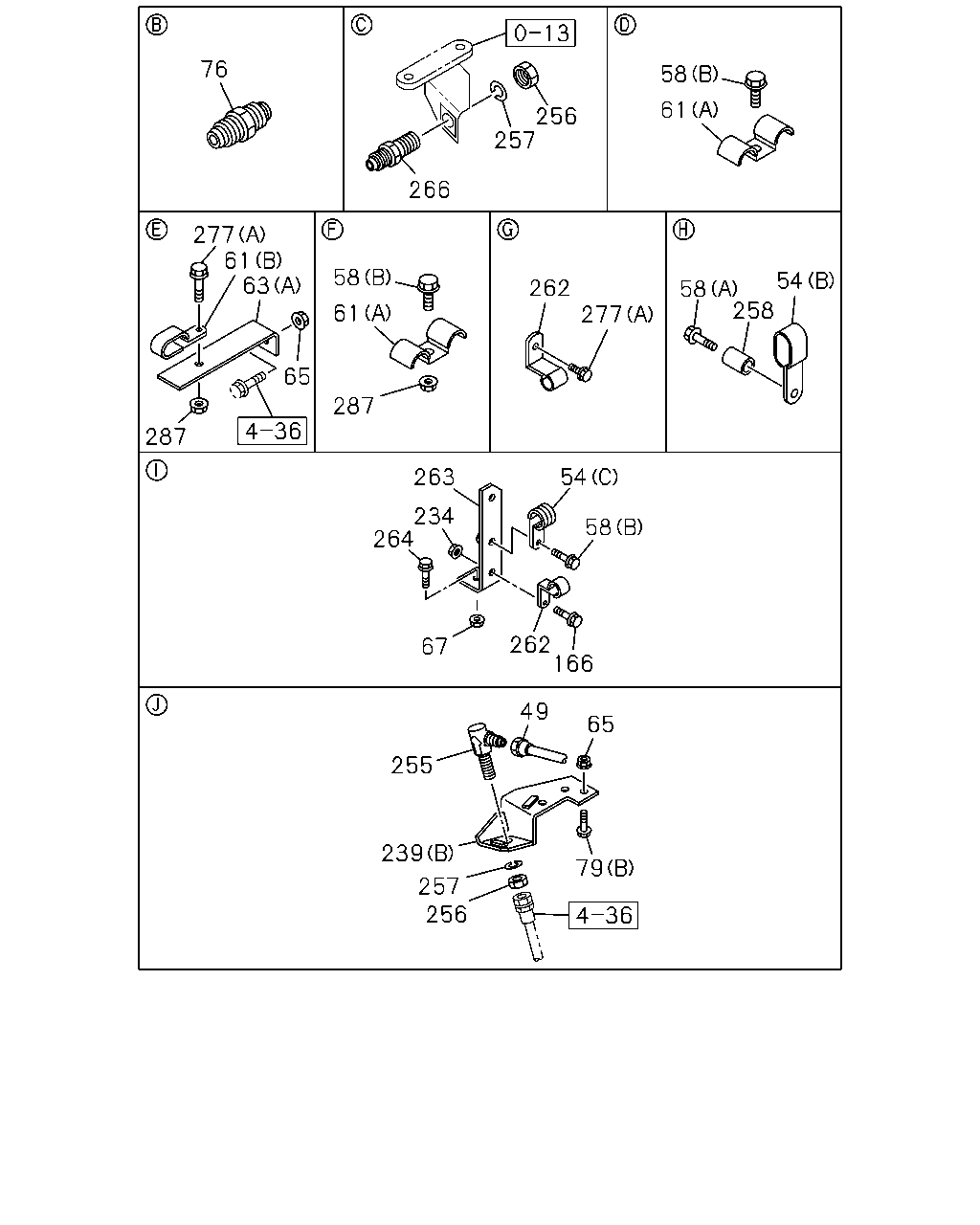

76 58 61 256 257 266 277 61 63 58 54 262 58 258 61 277 65 287 287 263 54 234 264 58 262 166 67 49 65 255 239 79 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-S(97L) L=2177	8-98177-582-0	01	1	1008-
49	PIPE; OIL,FLEX HOSE TO UNION L=2147	1-21117-763-0	01	1	0904-1007
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-R(75L) L=2147	1-21117-763-0	01	1	1008-
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0904-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0904-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	0904-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0904-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	01	1	0904-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	0904-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28651-020-0	03	1	0904-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0904-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0904-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0904-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0904-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0904-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0904-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0904-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	0904-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	0904-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0904-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0904-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0904-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0904-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0904-
256	NUT; UNION M22	0-91111-522-0	01	1	0904-
256	NUT; UNION M22	0-91111-522-0	01	1	0904-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0904-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0904-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	0904-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0904-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0904-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0904-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0904-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0904-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0904-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0904-

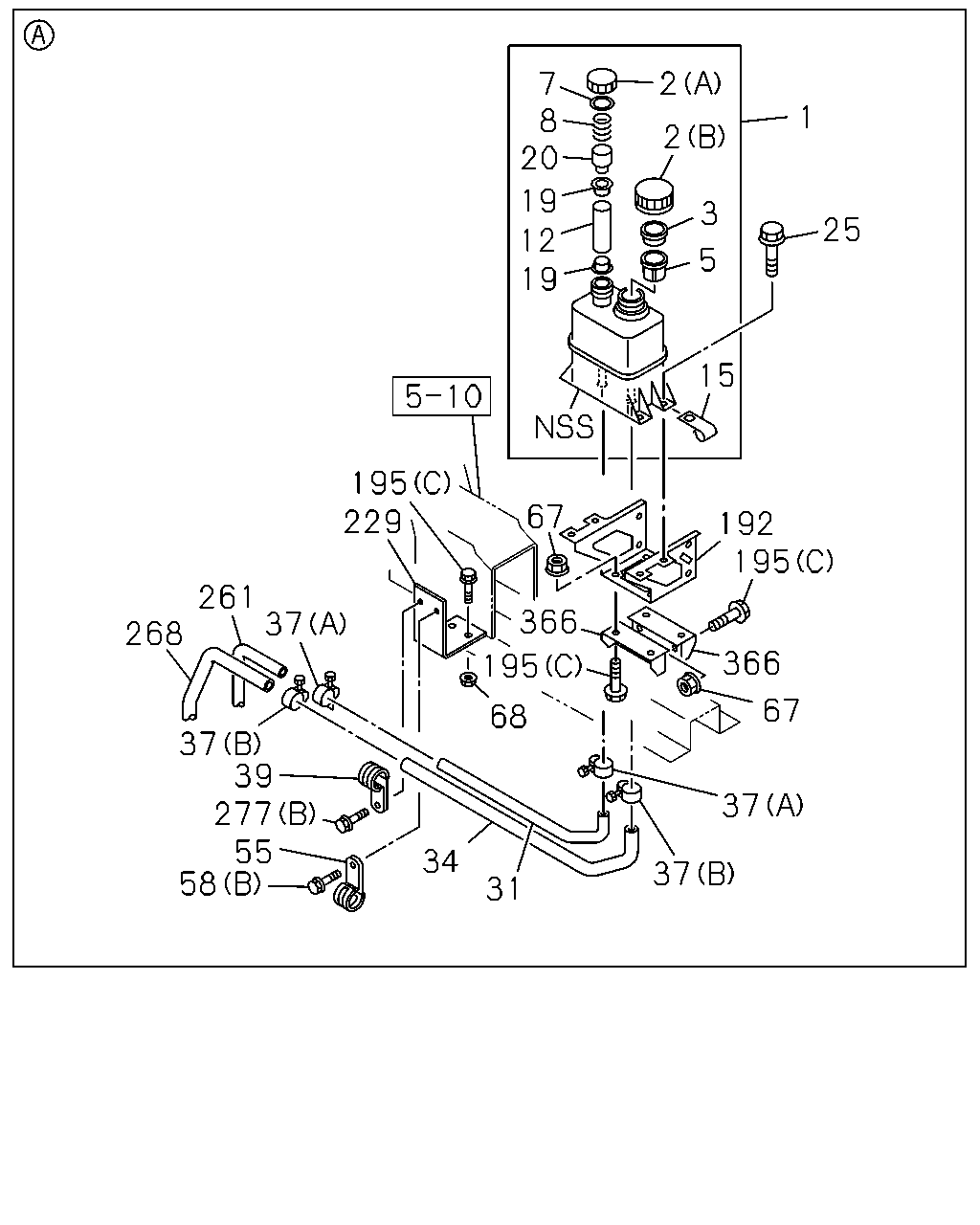

2 7 8 20 1 2 19 12 19 3 25 5 15 195 229 67 192 195 261 366 195 68 37 268 366 67 37 39 277 55 58 37 34 37 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0904-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0904-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0904-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0904-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0904-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0904-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0904-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0904-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0904-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0904-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0904-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0904-
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0904-
34	HOSE; P/S OIL TANK,OUTLET	8-98105-152-0	01	1	0904-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0904-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0904-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0904-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0904-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0904-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	01	1	0904-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	0904-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28651-020-0	03	1	0904-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0904-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91180-210-0	02	1	0904-
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	0904-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0904-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0904-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	08	1	0904-
229	BRACKET; HOSE,POWER STRG	1-21464-780-0	01	1	0904-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-S(97L) L=3386	8-98177-583-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE L=3357	8-98140-495-0	01	1	0904-1007
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-R(75L) L=3357	8-98140-495-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0904-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0904-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0904-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0904-

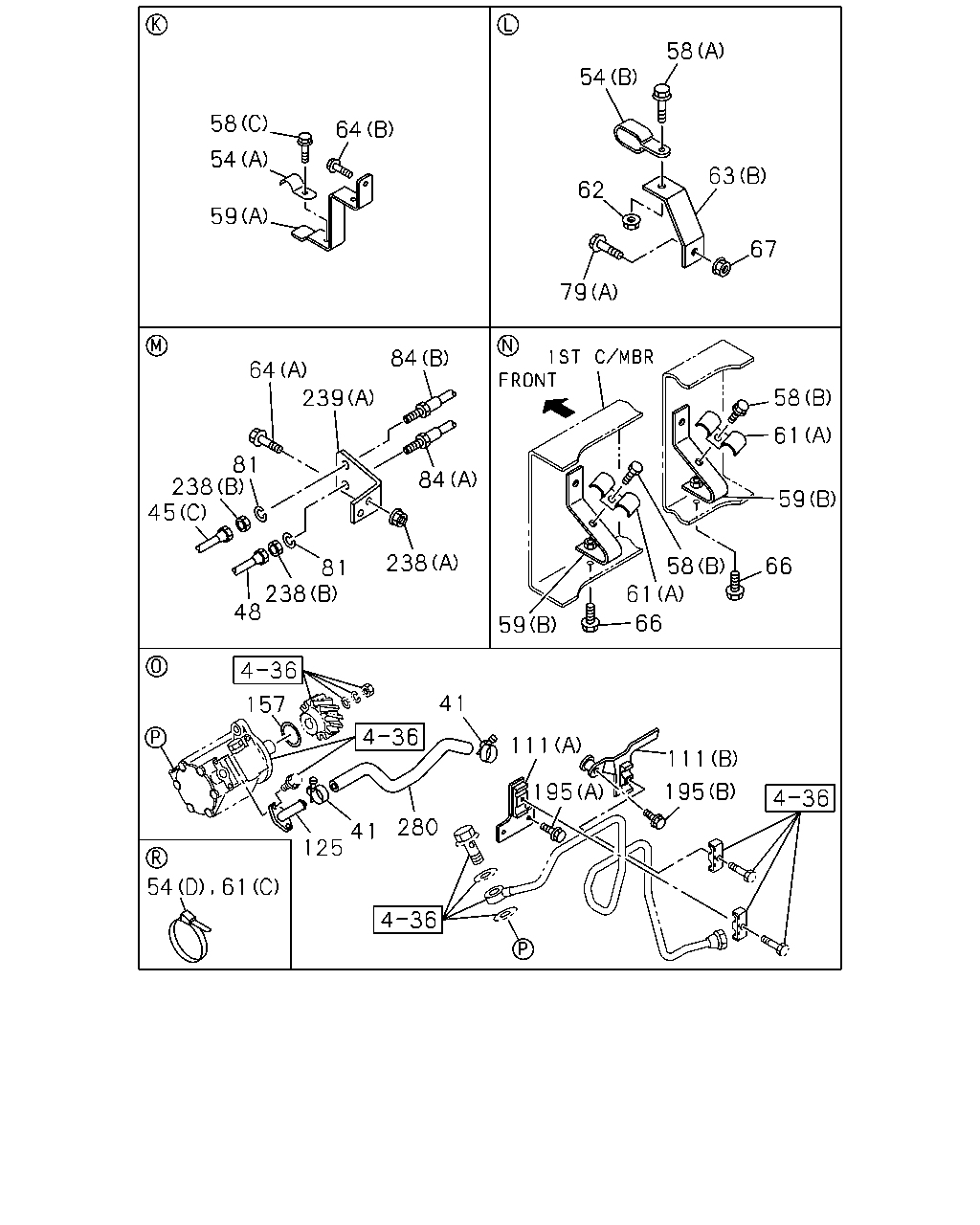

58 59 66 61 58 61 59 66 238 84 84 239 64 81 81 238 48 45 238 157 41 111 111 195 195 41 125 280 61 54 79 67 63 58 54 62 64 58 59 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0904-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	0904-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0904-1309
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0904-1309
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0904-
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0904-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0904-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	0904-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0904-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	01	1	0904-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	0904-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28651-020-0	03	1	0904-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	0904-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0904-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0904-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0904-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0904-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0904-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0904-
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0904-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0904-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0904-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0904-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	0904-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	0904-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	0904-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0904-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0904-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0904-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0904-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0904-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0904-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0904-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0904-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	08	1	0904-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0904-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	0904-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0904-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0904-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0904-
