4-55 — FRONT LEAF SPRING (#1632) — 115 parça

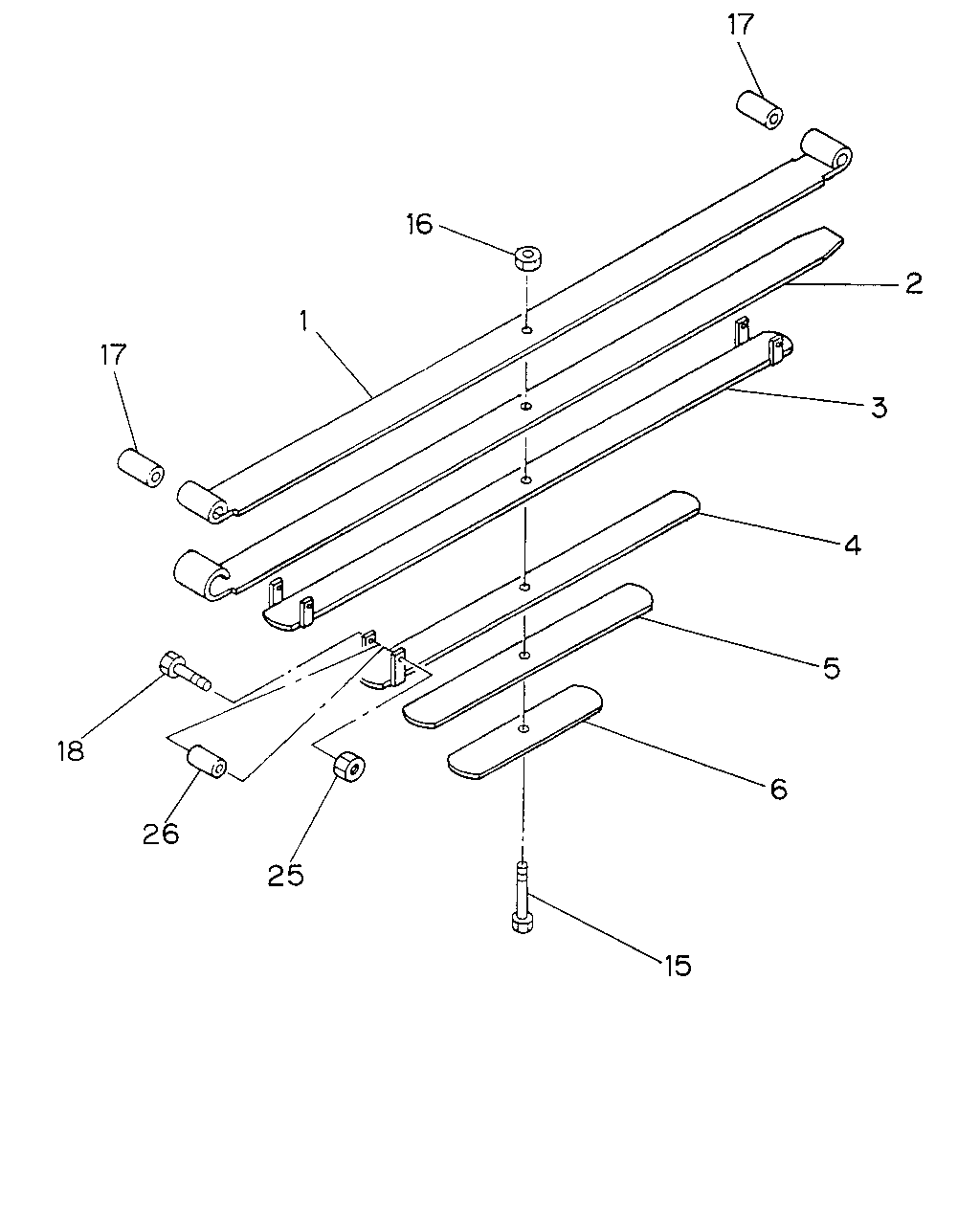

17 2 3 4 5 6 15 25 26 18 17 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-723-0	1-51111-723-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-730-0	1-51111-730-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-811-0	1-51111-811-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51110-920-0	1-51111-920-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-723-0	1-51112-723-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-730-0	1-51112-730-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-811-0	1-51112-811-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51110-920-0	1-51112-920-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-723-0	1-51113-723-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51110-730-0	1-51113-730-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-811-0	1-51113-811-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51110-920-0	1-51113-920-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-723-0	1-51114-723-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51110-730-0	1-51114-730-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-811-0	1-51114-811-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51110-920-0	1-51114-920-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-723-0	1-51115-723-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-730-0	1-51115-730-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-811-0	1-51115-811-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51110-920-0	1-51115-920-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-723-0	1-51116-723-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-730-0	1-51116-730-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-811-0	1-51116-811-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51110-920-0	1-51116-920-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: B = 1-51110-730-0	1-51156-195-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=125 ASM PART: A = 1-51110-723-0	1-51156-196-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: C = 1-51110-811-0, D = 1-51110-920-0	1-51156-206-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT ASM PART: B = 1-51110-730-0	9-99110-512-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: B = 1-51110-730-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X90 ASM PART: B = 1-51110-730-0	1-09000-392-0	03	1	-
25	NUT; CLAMP M8 ASM PART: B = 1-51110-730-0	9-09110-008-0	03	1	-
26	PIPE; CLIP,LEAF SPR,FRT ASM PART: B = 1-51110-730-0	1-51153-006-0	03	1	-

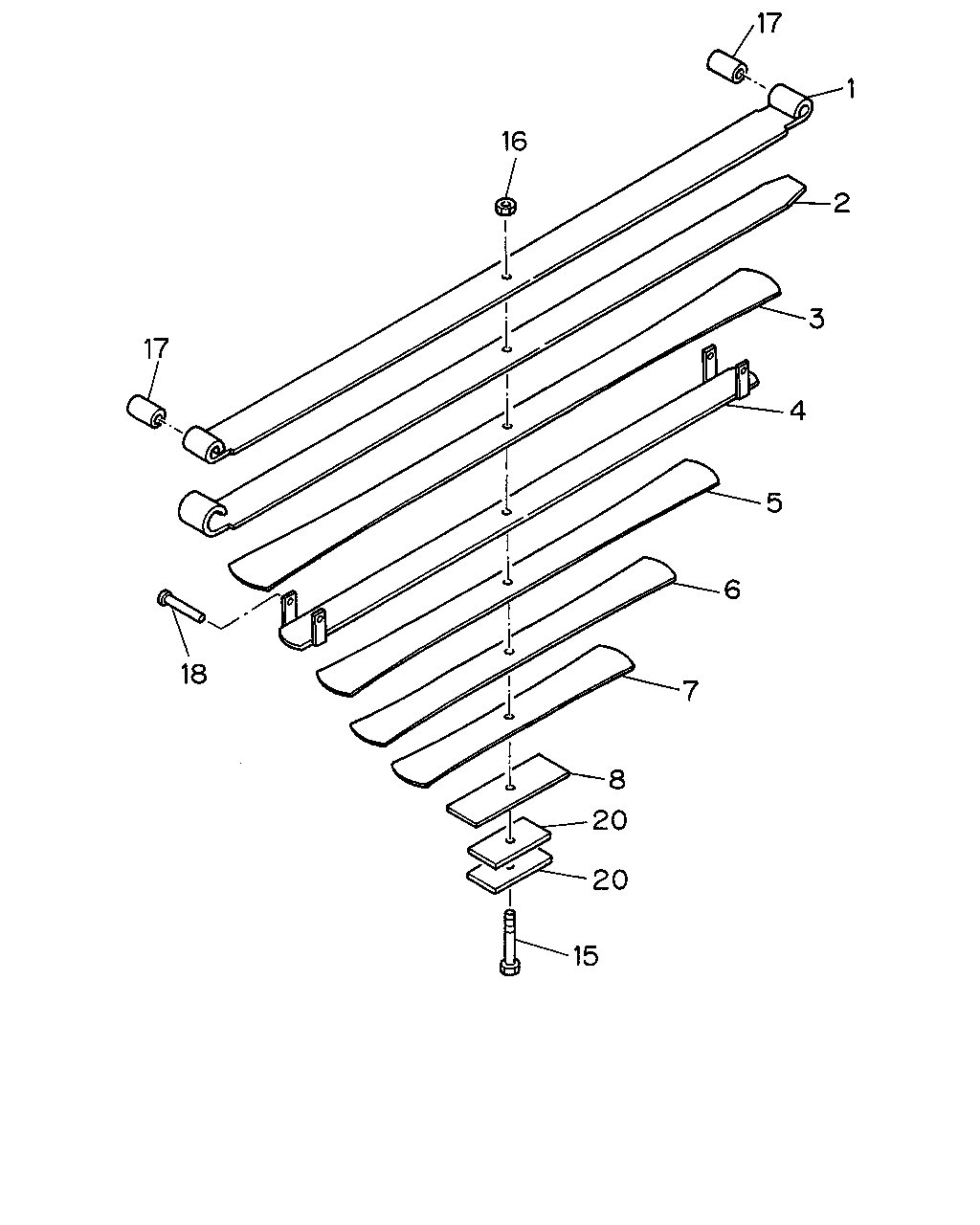

17 1 2 3 4 5 6 7 8 20 20 15 18 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-723-0	1-51111-723-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-730-0	1-51111-730-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-811-0	1-51111-811-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51110-920-0	1-51111-920-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-723-0	1-51112-723-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-730-0	1-51112-730-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-811-0	1-51112-811-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51110-920-0	1-51112-920-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-723-0	1-51113-723-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51110-730-0	1-51113-730-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-811-0	1-51113-811-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51110-920-0	1-51113-920-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-723-0	1-51114-723-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51110-730-0	1-51114-730-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-811-0	1-51114-811-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51110-920-0	1-51114-920-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-723-0	1-51115-723-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-730-0	1-51115-730-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-811-0	1-51115-811-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51110-920-0	1-51115-920-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-723-0	1-51116-723-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-730-0	1-51116-730-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-811-0	1-51116-811-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51110-920-0	1-51116-920-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51110-723-0	1-51117-723-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51110-811-0	1-51117-811-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51110-920-0	1-51117-920-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51110-723-0	1-51118-723-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51110-811-0	1-51118-811-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51110-920-0	1-51118-920-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: B = 1-51110-730-0	1-51156-195-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=125 ASM PART: A = 1-51110-723-0	1-51156-196-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: C = 1-51110-811-0, D = 1-51110-920-0	1-51156-206-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT ASM PART: B = 1-51110-730-0	9-99110-512-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: B = 1-51110-730-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X90 ASM PART: B = 1-51110-730-0	1-09000-392-0	03	1	-
20	SEAT; LEAF SPR,FRT ASM PART: D = 1-51110-920-0	1-51177-252-0	02	1	-

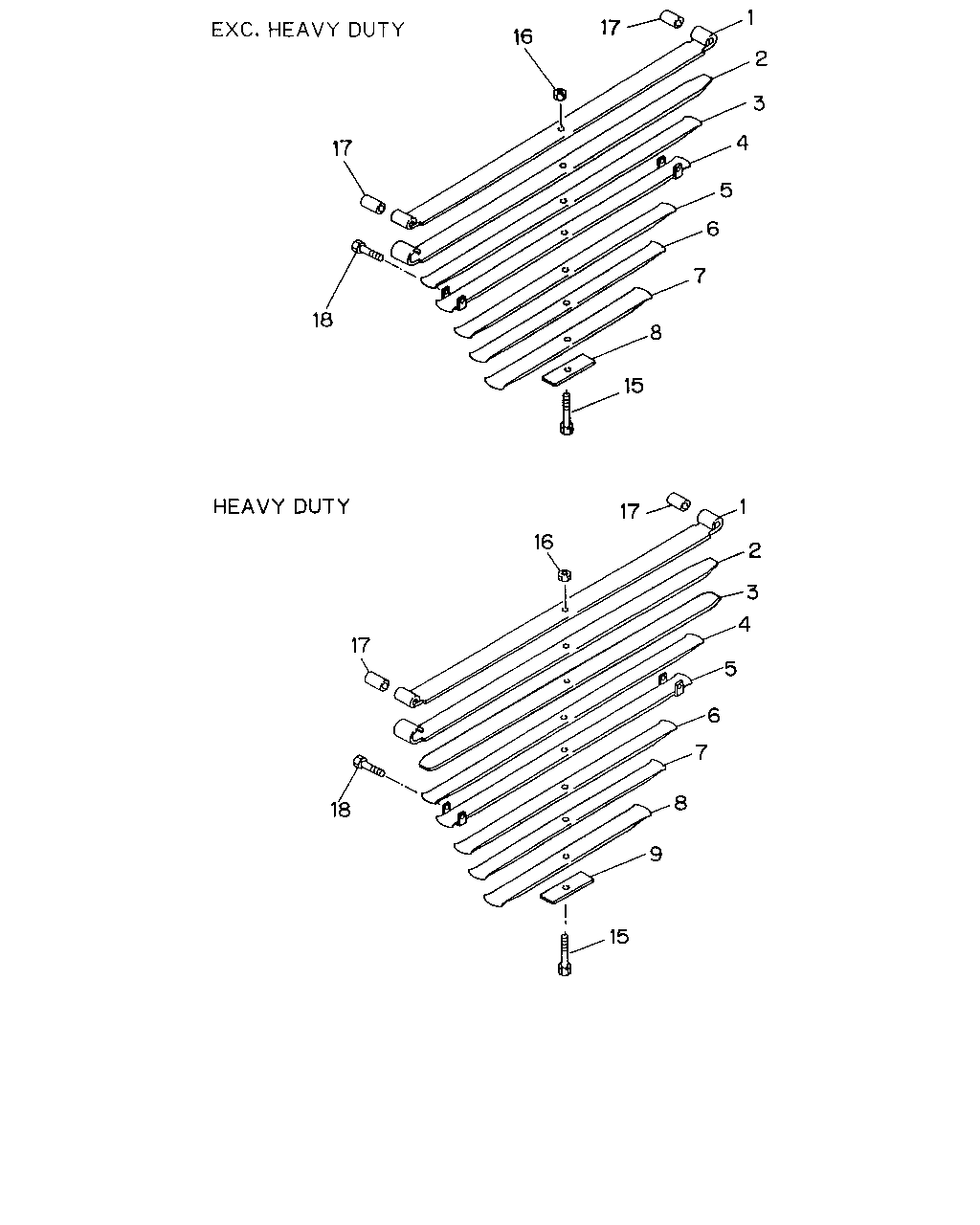

17 1 3 2 4 5 6 7 8 15 17 1 16 2 3 4 5 6 7 8 9 15 18 17 18 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-723-0	1-51111-723-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-730-0	1-51111-730-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-811-0	1-51111-811-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51110-920-0	1-51111-920-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-723-0	1-51112-723-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-730-0	1-51112-730-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-811-0	1-51112-811-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51110-920-0	1-51112-920-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-723-0	1-51113-723-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51110-730-0	1-51113-730-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-811-0	1-51113-811-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51110-920-0	1-51113-920-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-723-0	1-51114-723-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51110-730-0	1-51114-730-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-811-0	1-51114-811-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51110-920-0	1-51114-920-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-723-0	1-51115-723-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-730-0	1-51115-730-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-811-0	1-51115-811-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51110-920-0	1-51115-920-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-723-0	1-51116-723-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-730-0	1-51116-730-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-811-0	1-51116-811-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51110-920-0	1-51116-920-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51110-723-0	1-51117-723-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51110-811-0	1-51117-811-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51110-920-0	1-51117-920-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51110-723-0	1-51118-723-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51110-811-0	1-51118-811-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51110-920-0	1-51118-920-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51110-811-0	1-51119-811-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: B = 1-51110-730-0	1-51156-195-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=125 ASM PART: A = 1-51110-723-0	1-51156-196-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: C = 1-51110-811-0, D = 1-51110-920-0	1-51156-206-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT ASM PART: B = 1-51110-730-0	9-99110-512-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: B = 1-51110-730-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51110-723-0, C = 1-51110-811-0, D = 1-51110-920-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X90 ASM PART: B = 1-51110-730-0	1-09000-392-0	03	1	-
