◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#16319) — 16 parça

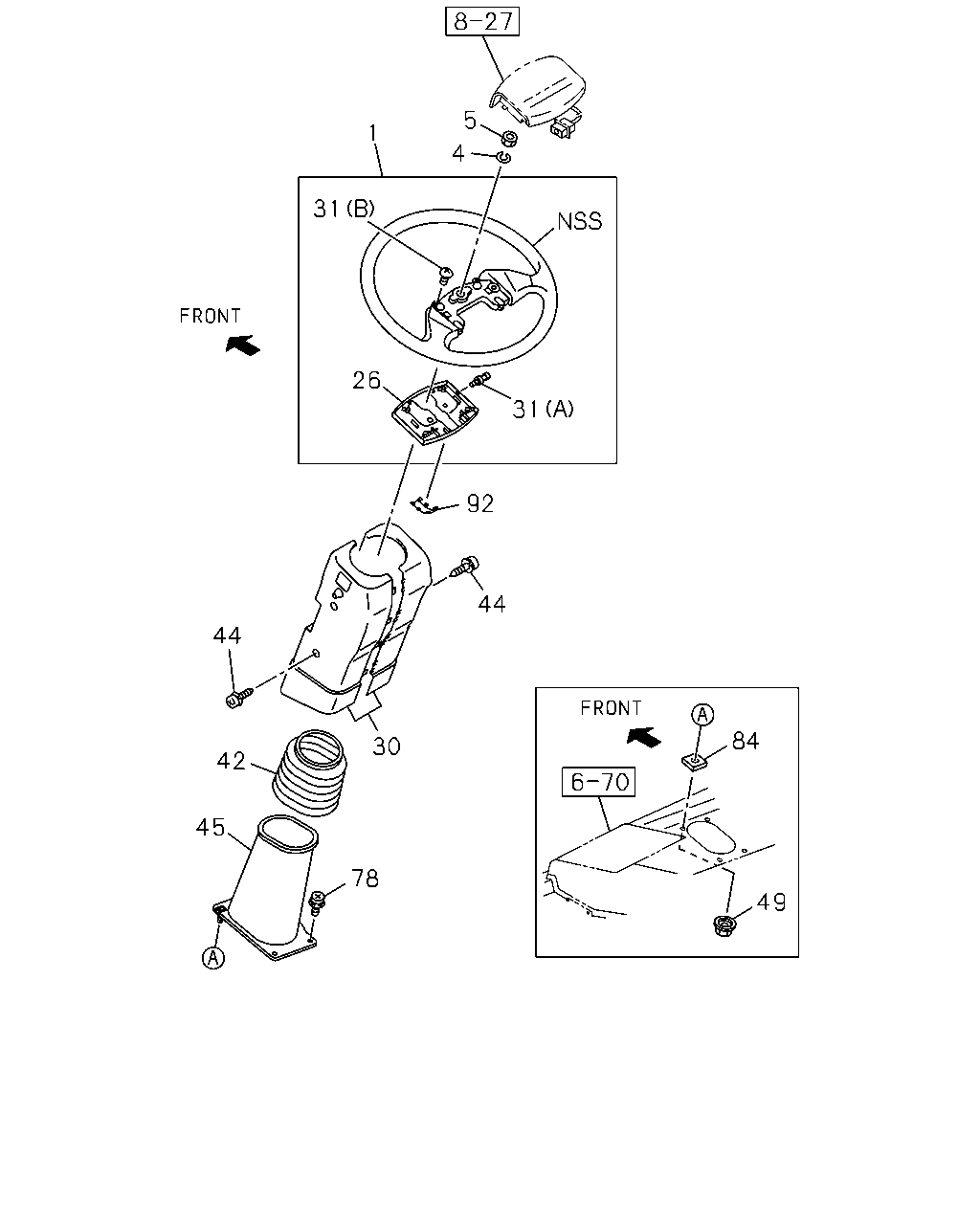

çizim 62148
5 1 4 31 26 31 92 44 44 84 30 42 45 78 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-167-2 01 1 0904-
1 WHEEL; STRG
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44110-166-2 01 1 0904-
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0904-
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0904-
26 COVER; STRG WHEEL,LWR 1-44129-057-1 01 1 0904-
30 COWL; STEERING 1-79907-142-2 01 1 0904-
31 SCREW; BOSS TO COVER
(A) 		1-09169-005-0 02 1 0904-
31 SCREW; BOSS TO COVER
(B) M4X14 TAPPING 		9-07066-414-0 04 1 0904-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0904-
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0904-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0904-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0904-1205
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0904-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0904-1205
92 LID; WHEEL COVER 1-44119-001-1 01 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
