◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#16310) — 355 parça

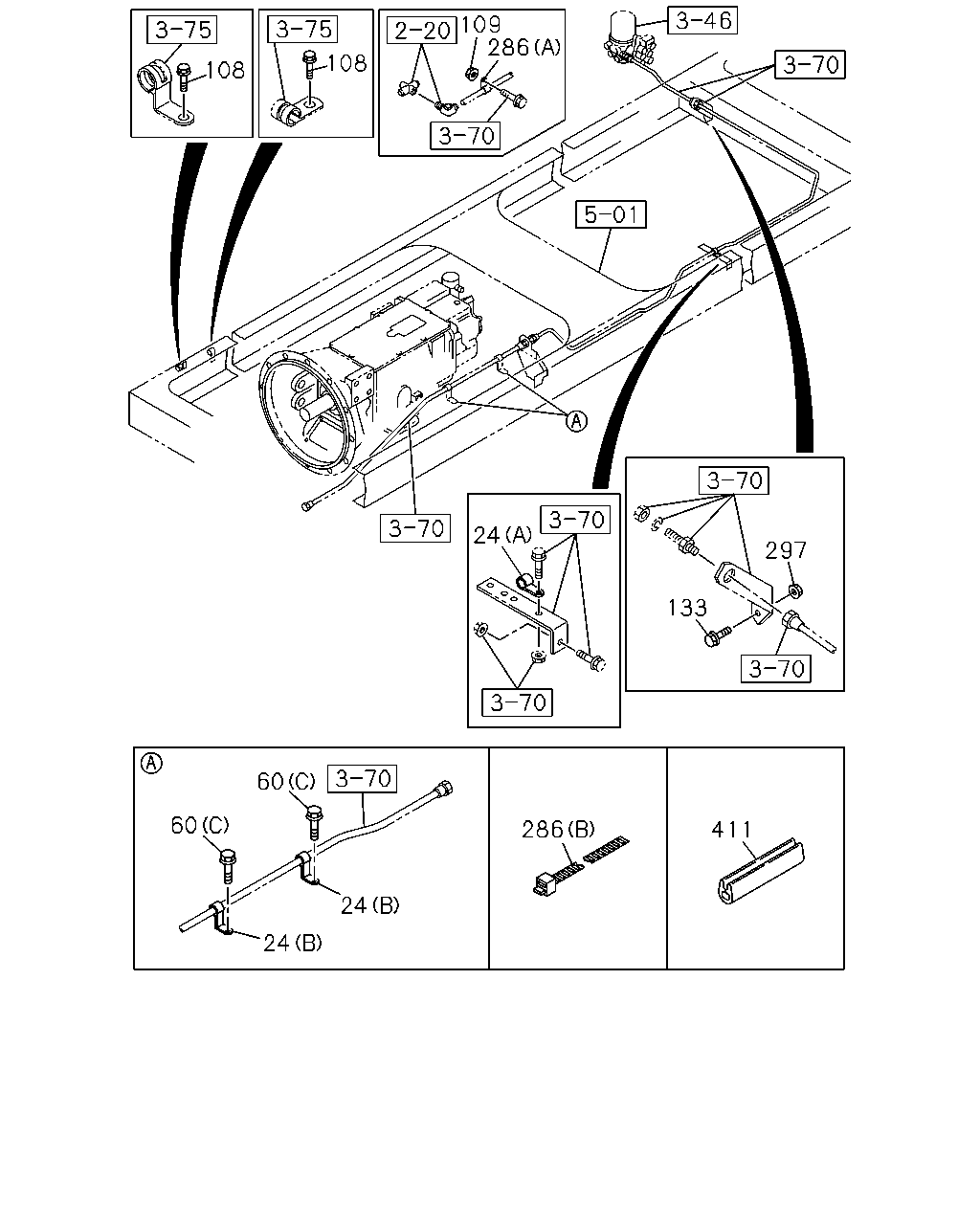

çizim 62180
109 286 108 108 24 297 133 60 60 286 411 24 24
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 0904-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0904-
60 BOLT; CLIP FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
60 BOLT; CLIP FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0904-
60 BOLT; CLIP FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0904-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0904-1311
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1312-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0904-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 03 1 1006-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 07 1 1006-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0905-1005
133 BOLT; BRKT
6WG1 TC-R(75L) M8X30 FLANGE 		0-28650-830-0 06 1 1006-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0904-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 05 1 0904-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 15 1 0904-0904
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0905-
286 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0904-1311
286 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 02 1 1312-
286 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 02 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 23 1 0904-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0904-
411 SLEEVE; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) L=60 		8-97865-346-0 02 1 1006-
411 SLEEVE; RUBBER
L=60 		8-97865-346-0 01 1 0904-

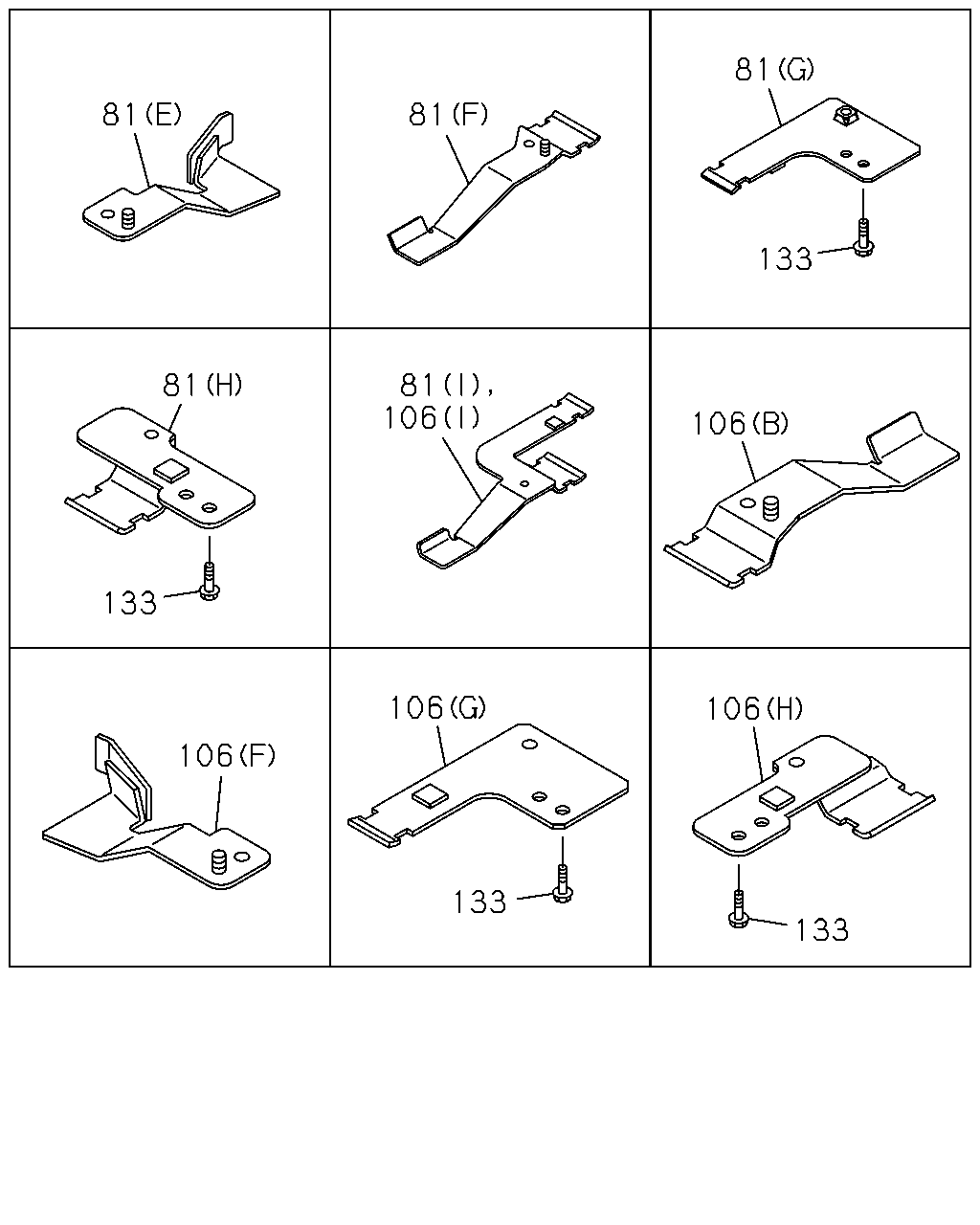

çizim 62213
81 81 81 133 81 81 106 106 133 106 106 106 133 133
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		8-98043-314-0 01 1 1006-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0904-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0904-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0904-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0904-
81 BRACKET; CLIP
(G) 		8-98052-412-0 01 1 0904-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 0904-
81 BRACKET; CLIP
(F) 		8-98052-414-0 01 1 0904-
81 BRACKET; CLIP
(E) 		8-98052-415-0 01 1 0904-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		8-98043-312-0 01 1 1006-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0904-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0904-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0904-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0904-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 0904-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 0904-
106 BRACKET; TUBE CLIP
(B) 		8-98052-410-0 01 1 0904-
106 BRACKET; TUBE CLIP
(F) 		8-98052-411-0 01 1 0904-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 03 1 1006-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 07 1 1006-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0905-1005
133 BOLT; BRKT
6WG1 TC-R(75L) M8X30 FLANGE 		0-28650-830-0 06 1 1006-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0904-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 05 1 0904-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 15 1 0904-0904
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0905-

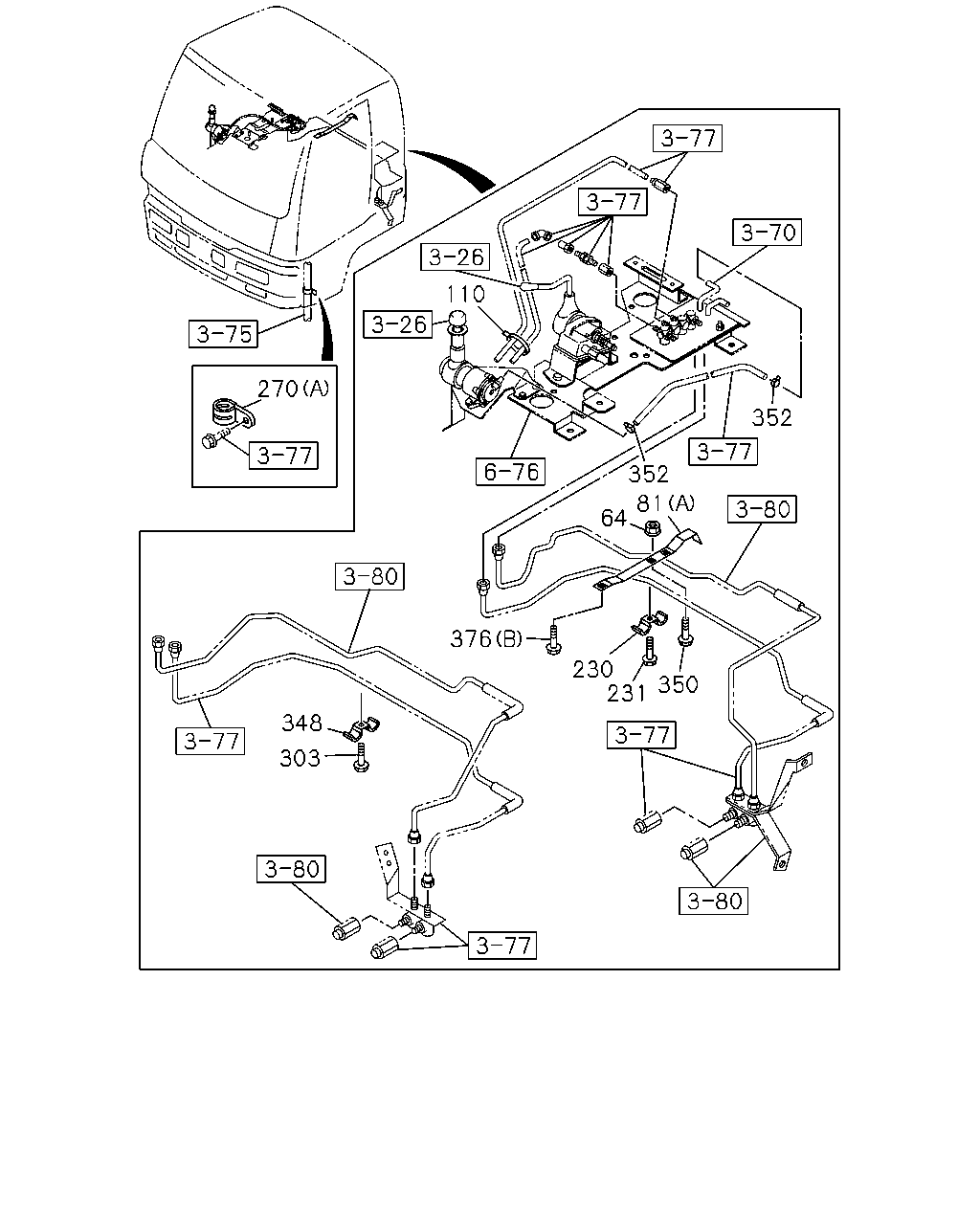

çizim 62215
110 270 352 352 81 64 376 230 231 350 348 303
BalonParca AdiParca NoAdetTipApplied Date
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0904-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		8-98043-314-0 01 1 1006-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0904-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0904-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0904-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0904-
81 BRACKET; CLIP
(G) 		8-98052-412-0 01 1 0904-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 0904-
81 BRACKET; CLIP
(F) 		8-98052-414-0 01 1 0904-
81 BRACKET; CLIP
(E) 		8-98052-415-0 01 1 0904-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0904-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0904-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0904-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0904-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0904-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0904-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0904-
350 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0904-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0904-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-

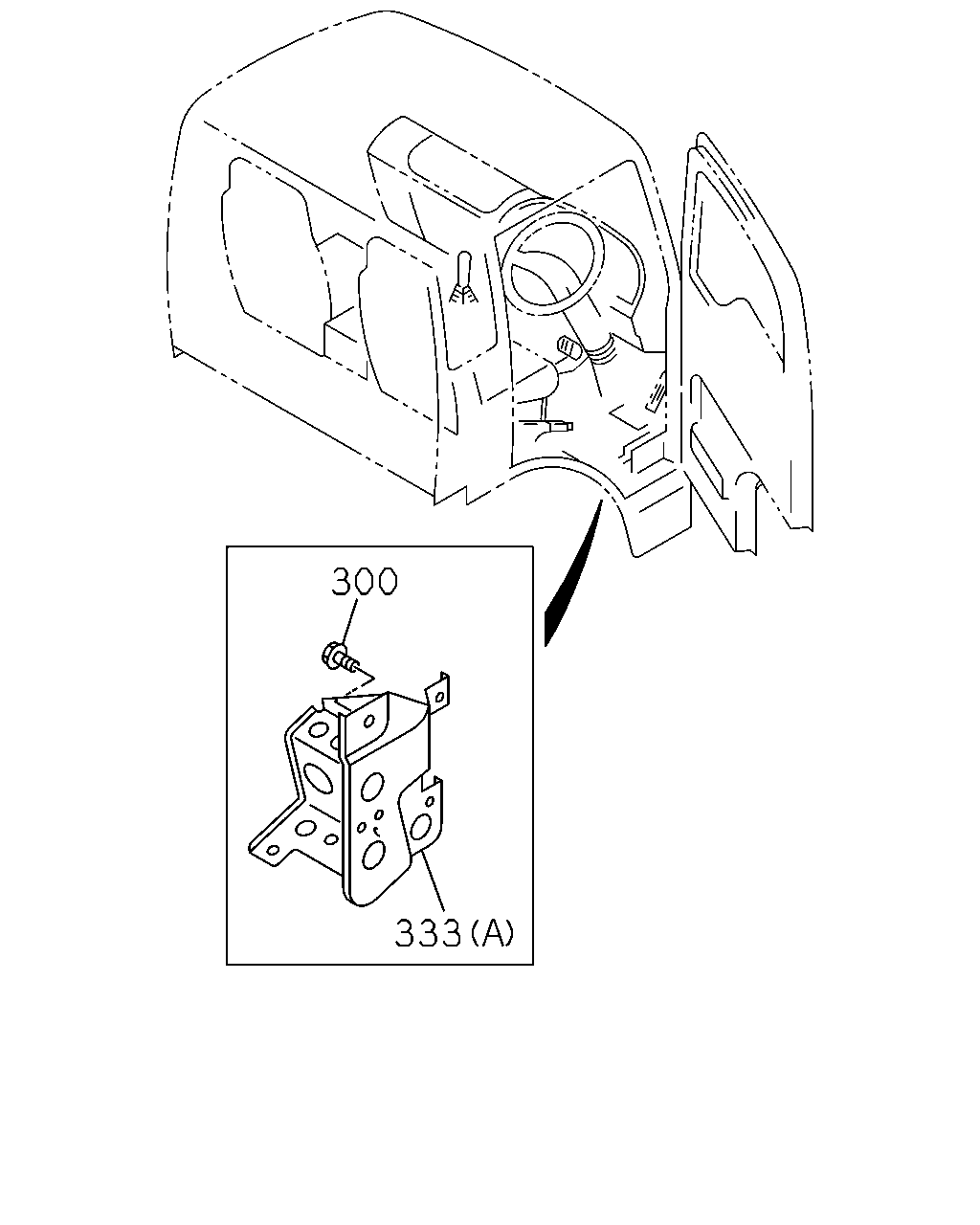

çizim 102121
300 333
BalonParca AdiParca NoAdetTipApplied Date
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0904-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0904-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0904-

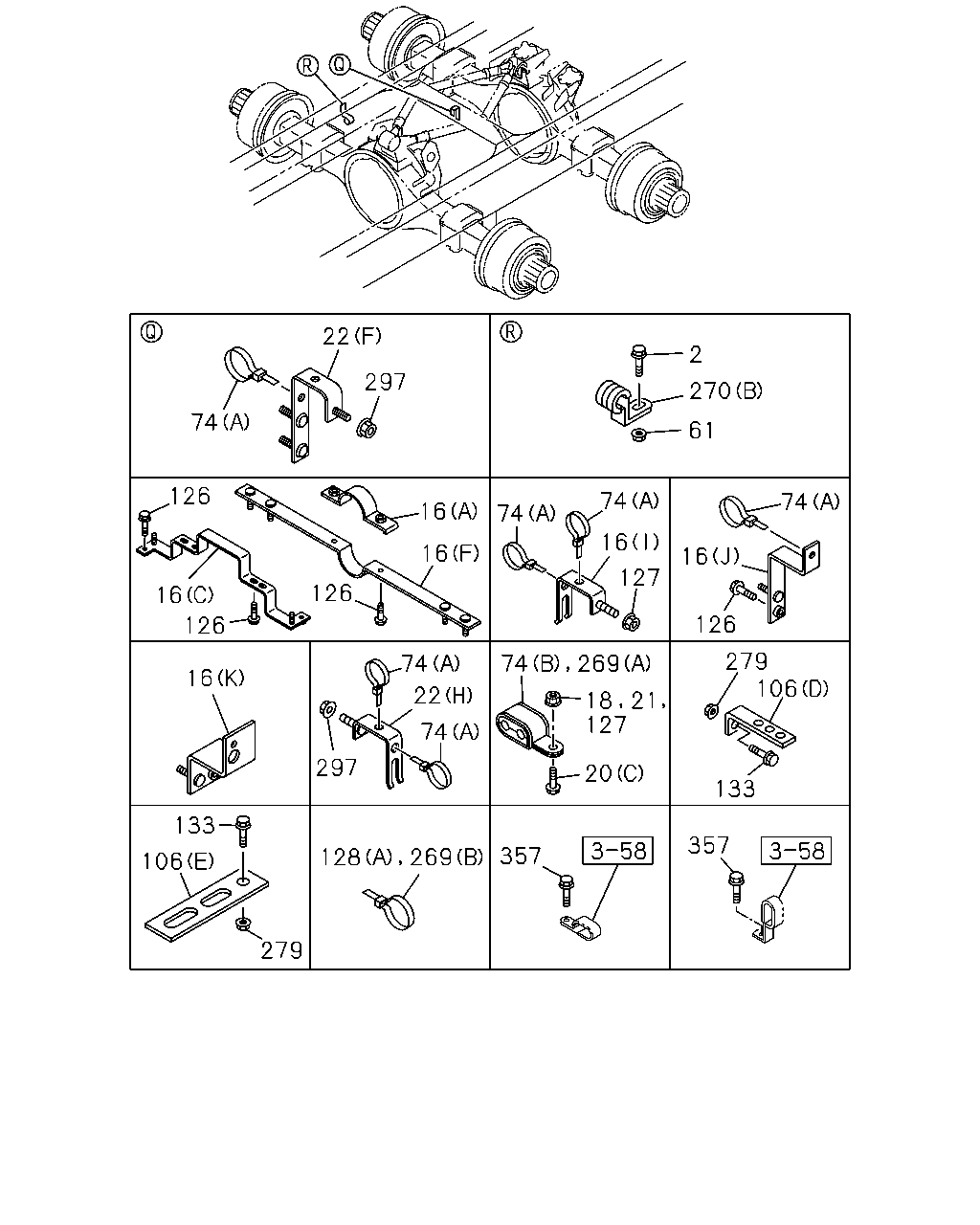

çizim 102125
22 2 297 270 74 61 126 74 74 16 74 16 16 16 127 126 16 126 126 279 106 74 16 22 127 74 297 20 133 133 357 357 128 106 279 74 269 18 21 269
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
16 BRACKET; PIPE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		1-47479-381-2 07 1 1006-
16 BRACKET; PIPE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-693-0 03 1 1006-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 02 1 0904-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 08 1 0904-1005
16 BRACKET; PIPE CLIP
6WG1 TC-R(75L) (I) 		1-47479-381-2 08 1 1006-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0904-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0904-
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0904-1005
16 BRACKET; PIPE CLIP
6WG1 TC-R(75L) (H) 		1-47479-693-0 02 1 1006-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0904-
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0904-
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0904-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0904-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0904-
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 01 1 0904-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0904-
18 NUT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 1006-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0904-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-1005
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1006-
20 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1006-
20 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
20 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0904-
21 NUT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 1006-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0904-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0904-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) L=50 		1-47475-299-2 01 1 1006-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-381-2 11 1 1006-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-47479-693-0 04 1 1006-
22 BRACKET; CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 0904-1006
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0904-
22 BRACKET; CLIP
(H) 		1-47479-381-2 12 1 0904-1005
22 BRACKET; CLIP
6WG1 TC-R(75L) (H) 		1-47479-381-2 12 1 1006-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0904-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 0904-
22 BRACKET; CLIP
(D) 		1-47479-800-0 01 1 0904-
22 BRACKET; CLIP
(B) 		1-47479-693-0 03 1 0904-
22 BRACKET; CLIP
(C) 		1-47479-754-0 01 1 0904-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0904-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0904-1109
74 CLIP; NYLON TUBE
(C) ID=39 H=40 L=32 		1-09701-267-0 02 1 1110-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0904-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0904-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0904-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		8-98043-312-0 01 1 1006-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0904-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0904-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0904-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0904-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 0904-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 0904-
106 BRACKET; TUBE CLIP
(B) 		8-98052-410-0 01 1 0904-
106 BRACKET; TUBE CLIP
(F) 		8-98052-411-0 01 1 0904-
126 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 05 1 1006-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0904-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0904-1005
126 BOLT; CLIP BRKT
6WG1 TC-R(75L) M8X30 FLANGE 		0-28650-830-0 04 1 1006-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0904-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 15 1 0904-
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 0904-
128 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0904-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 03 1 1006-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 07 1 1006-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0905-1005
133 BOLT; BRKT
6WG1 TC-R(75L) M8X30 FLANGE 		0-28650-830-0 06 1 1006-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0904-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 05 1 0904-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 15 1 0904-0904
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0905-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 0904-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0904-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0904-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0904-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0904-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0904-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 23 1 0904-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0904-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0904-

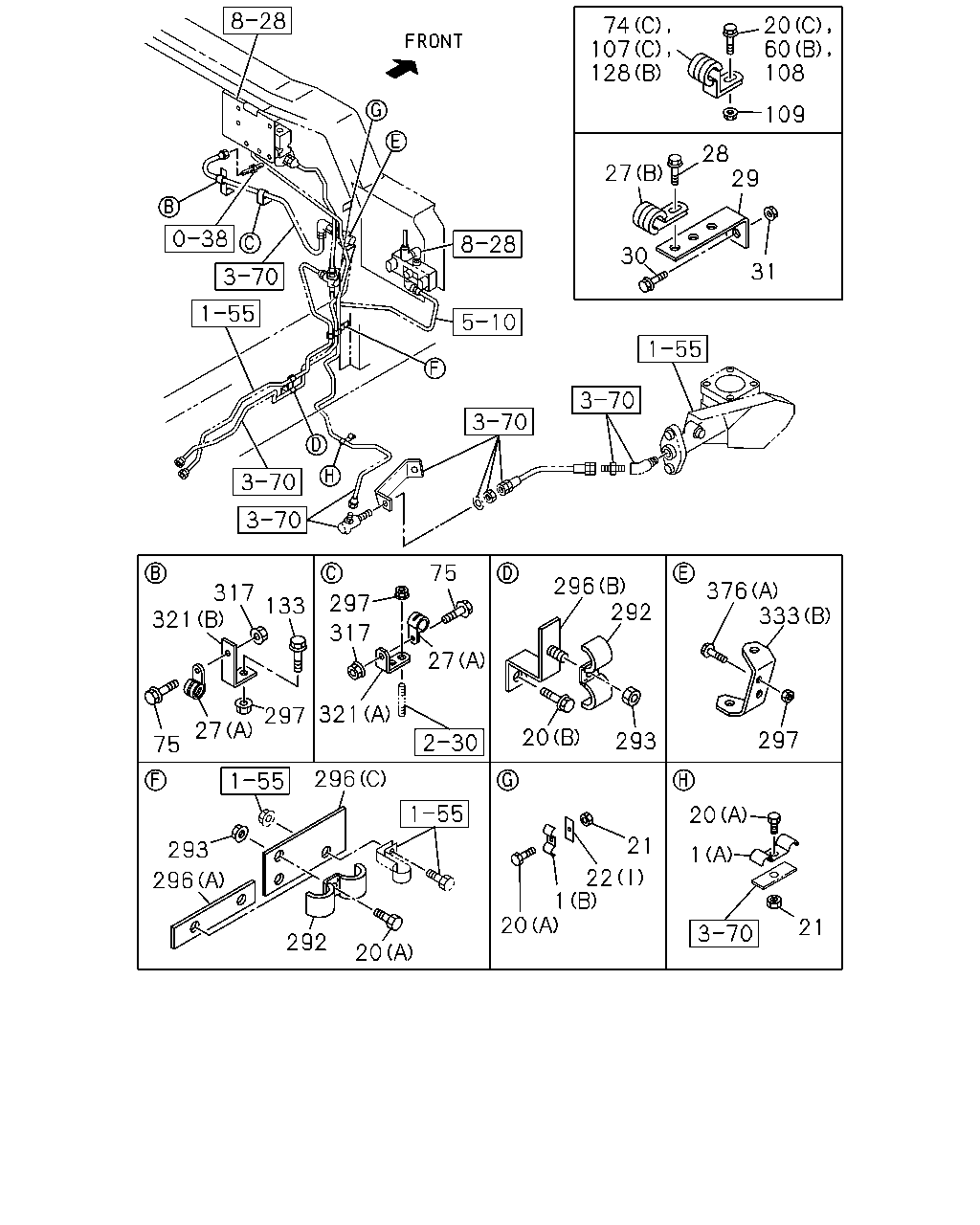

çizim 102150
74 107 128 20 60 108 109 28 29 27 30 31 75 296 292 376 333 317 321 297 133 317 27 321 297 27 20 297 293 75 296 20 21 293 1 22 1 296 20 21 292 20
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=13 & 7 L=20 & 17 		1-09700-692-0 01 1 1006-
1 CLIP; AIR PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1006-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-1005
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1006-
20 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1006-
20 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
20 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0904-
21 NUT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 1006-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0904-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0904-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) L=50 		1-47475-299-2 01 1 1006-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-381-2 11 1 1006-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-47479-693-0 04 1 1006-
22 BRACKET; CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 0904-1006
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0904-
22 BRACKET; CLIP
(H) 		1-47479-381-2 12 1 0904-1005
22 BRACKET; CLIP
6WG1 TC-R(75L) (H) 		1-47479-381-2 12 1 1006-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0904-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 0904-
22 BRACKET; CLIP
(D) 		1-47479-800-0 01 1 0904-
22 BRACKET; CLIP
(B) 		1-47479-693-0 03 1 0904-
22 BRACKET; CLIP
(C) 		1-47479-754-0 01 1 0904-
27 CLIP; FLEX HOSE
(B) ID=26 L=27 		1-09701-006-0 01 1 0904-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0904-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0904-
29 BRACKET; CLIP,AIR PIPE
L=145 B=25 		1-47479-123-0 01 1 0904-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0904-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0904-
60 BOLT; CLIP FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
60 BOLT; CLIP FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0904-
60 BOLT; CLIP FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0904-1109
74 CLIP; NYLON TUBE
(C) ID=39 H=40 L=32 		1-09701-267-0 02 1 1110-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0904-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0904-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0904-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0904-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 0904-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0904-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 0904-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0904-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0904-1311
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1312-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0904-
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 0904-
128 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0904-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 03 1 1006-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 07 1 1006-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0905-1005
133 BOLT; BRKT
6WG1 TC-R(75L) M8X30 FLANGE 		0-28650-830-0 06 1 1006-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0904-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 05 1 0904-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 15 1 0904-0904
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0905-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0904-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0904-
296 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		8-97612-942-0 01 1 1006-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0904-1005
296 BRACKET; CLIP
6WG1 TC-R(75L) (A) 		1-47475-648-0 01 1 1006-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 23 1 0904-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0904-
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0904-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0904-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0904-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0904-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0904-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0904-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-

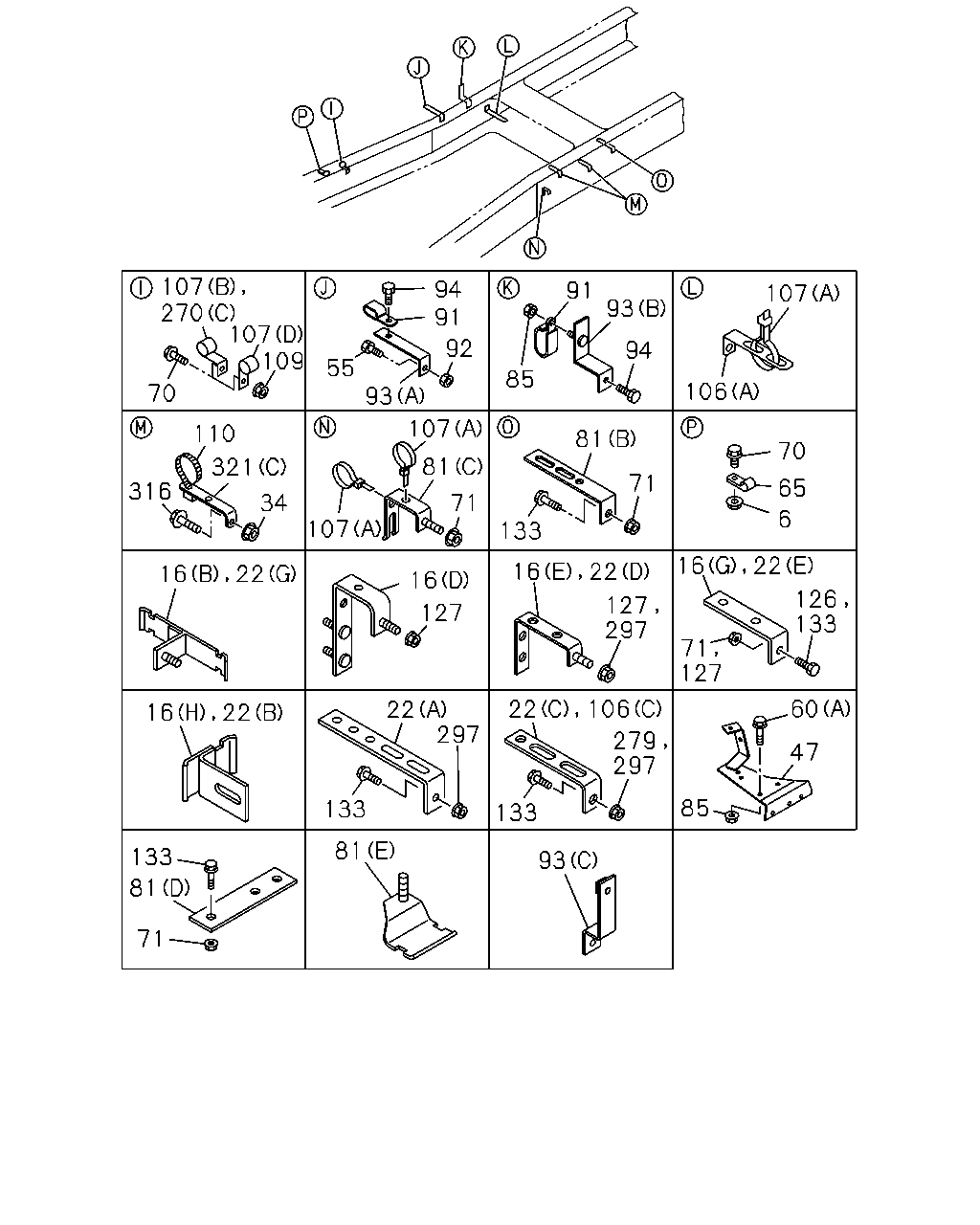

çizim 102157
107 270 107 109 94 91 91 107 93 92 94 55 85 106 70 93 107 110 81 70 81 321 71 65 316 34 71 6 107 133 16 22 16 126 133 127 297 127 71 127 22 106 60 22 297 279 297 47 85 133 133 81 133 93 81 71 16 22 16 22 16 22
BalonParca AdiParca NoAdetTipApplied Date
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0904-
16 BRACKET; PIPE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		1-47479-381-2 07 1 1006-
16 BRACKET; PIPE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-693-0 03 1 1006-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 02 1 0904-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 08 1 0904-1005
16 BRACKET; PIPE CLIP
6WG1 TC-R(75L) (I) 		1-47479-381-2 08 1 1006-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0904-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0904-
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0904-1005
16 BRACKET; PIPE CLIP
6WG1 TC-R(75L) (H) 		1-47479-693-0 02 1 1006-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0904-
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0904-
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0904-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0904-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0904-
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 01 1 0904-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0904-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) L=50 		1-47475-299-2 01 1 1006-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-381-2 11 1 1006-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-47479-693-0 04 1 1006-
22 BRACKET; CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 0904-1006
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0904-
22 BRACKET; CLIP
(H) 		1-47479-381-2 12 1 0904-1005
22 BRACKET; CLIP
6WG1 TC-R(75L) (H) 		1-47479-381-2 12 1 1006-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0904-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 0904-
22 BRACKET; CLIP
(D) 		1-47479-800-0 01 1 0904-
22 BRACKET; CLIP
(B) 		1-47479-693-0 03 1 0904-
22 BRACKET; CLIP
(C) 		1-47479-754-0 01 1 0904-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0904-1005
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1006-
34 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 1006-
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0904-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
60 BOLT; CLIP FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
60 BOLT; CLIP FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0904-
60 BOLT; CLIP FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 0904-
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0904-
70 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0904-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		8-98043-314-0 01 1 1006-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0904-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0904-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0904-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0904-
81 BRACKET; CLIP
(G) 		8-98052-412-0 01 1 0904-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 0904-
81 BRACKET; CLIP
(F) 		8-98052-414-0 01 1 0904-
81 BRACKET; CLIP
(E) 		8-98052-415-0 01 1 0904-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0904-
91 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0904-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0904-
93 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0904-
93 BRACKET; PIPE CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 0904-
93 BRACKET; PIPE CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0904-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0904-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		8-98043-312-0 01 1 1006-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0904-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0904-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0904-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0904-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 0904-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 0904-
106 BRACKET; TUBE CLIP
(B) 		8-98052-410-0 01 1 0904-
106 BRACKET; TUBE CLIP
(F) 		8-98052-411-0 01 1 0904-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0904-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 0904-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0904-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 0904-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0904-1311
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1312-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0904-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0904-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0904-
126 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 05 1 1006-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0904-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0904-1005
126 BOLT; CLIP BRKT
6WG1 TC-R(75L) M8X30 FLANGE 		0-28650-830-0 04 1 1006-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0904-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 15 1 0904-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 03 1 1006-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 07 1 1006-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0905-1005
133 BOLT; BRKT
6WG1 TC-R(75L) M8X30 FLANGE 		0-28650-830-0 06 1 1006-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0904-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 05 1 0904-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 15 1 0904-0904
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0905-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0904-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0904-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0904-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0904-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 23 1 0904-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0904-
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0904-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0904-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0904-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
