4-50 — FRONT SUSPENSION (#1631) — 134 parça

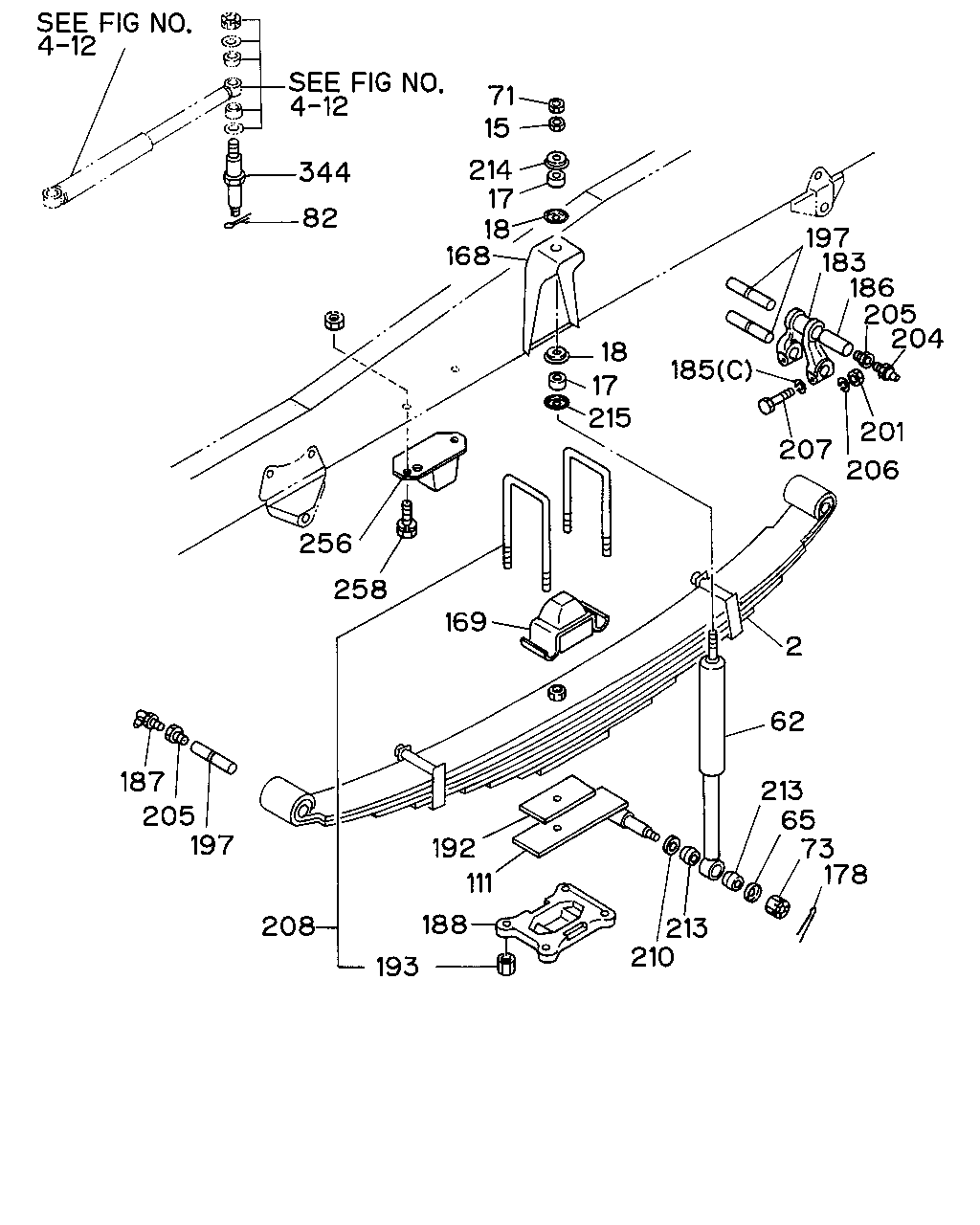

çizim 27645
71 344 82 15 214 17 18 168 18 17 215 185 197 183 186 205 204 201 207 206 2 62 213 65 73 178 213 210 192 111 183 193 208 197 205 187 169 258 256
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 9207- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51110-723-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60>,REARWARD INNER SINGLE TIRE<YK3> 		1-51110-723-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> 		1-51110-723-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-51110-811-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> 		1-51110-811-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD INNER SINGLE TIRE<YK3> 		1-51110-920-0 02 1 9207- ●
15 NUT; S/ABS,UPR
M10 		9-09110-510-0 02 1 9207- ● ●
15 NUT; S/ABS,UPR
M12 M12 		1-09400-006-0 02 1 9207- ● ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9207- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9207- ● ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9207- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9207- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9207- ● ● ●
65 WASHER; S/ABS 1-51631-018-0 02 1 9207- ● ●
65 WASHER; S/ABS 1-51631-019-0 02 1 9207- ● ● ●
71 NUT; LK,S/ABS,UPR 9-09111-410-0 02 1 9207- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9207- ● ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9207- ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9207- ● ● ●
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 9207- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-470-1 01 1 9207- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-469-1 01 1 9207- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9207- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9207- ● ● ●
169 PAD; U BOLT,FRT SPR 1-51172-061-0 02 1 9207- ● ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 9207- ● ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9207- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9207- ● ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9207- ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9207- ● ●
185 WASHER; LK,PIN
(C) 		9-09150-512-0 12 1 9207-9209 ● ● ●
185 WASHER; LK,PIN
(C) 		9-09150-612-0 12 1 9210- ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9207- ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ● ● ●
192 PIECE; DIST 1-51177-218-1 01 1 9207- ● ●
192 PIECE; DIST 1-51177-219-0 01 1 9207- ● ●
192 PIECE; DIST 9-51377-038-0 01 1 9207- ● ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9207- ● ●
193 NUT; U BOLT 9-09840-326-0 08 1 9207- ● ● ●
197 PIN; FRT SPR,FRT 1-51161-005-3 04 1 9207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9207- ● ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9207- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9207- ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9207- ● ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9207- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9207- ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9207- ● ● ●
207 BOLT; SPR TO SHACKLE
M12X75 		0-10806-275-0 12 1 9207- ● ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
L=370 		1-87870-325-0 04 1 9207- ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=370 		1-87870-325-0 04 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-324-0 04 1 9207- ● ●
210 WASHER; S/ABS,OUTER 1-51631-017-0 02 1 9207- ● ●
210 WASHER; S/ABS,OUTER 1-51631-020-0 02 1 9207- ● ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9207- ● ● ●
214 WASHER; S/ABS,UPR,INNER 1-51631-005-0 04 1 9207- ● ●
214 WASHER; S/ABS,UPR,INNER 9-51631-051-0 02 1 9207- ● ● ●
215 WASHER; S/ABS,UPR,OUTER 1-51631-023-0 02 1 9207- ● ●
215 WASHER; S/ABS,UPR,OUTER 9-51631-051-0 02 1 9207- ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-001-2 02 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-1 01 1 9207- ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-1 01 1 9207- ● ● ●
258 BOLT; CUSHION,WIND UP
M8X16 FLANGE 		0-28080-816-0 01 1 9207-9207 ● ● ●
258 BOLT; CUSHION,WIND UP
M8X16 FLANGE 		0-28080-816-0 04 1 9208- ● ● ●
258 BOLT; CUSHION,WIND UP
M8X30 FLANGE 		0-28080-830-0 03 1 9207-9207 ● ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 9207- ● ● ●

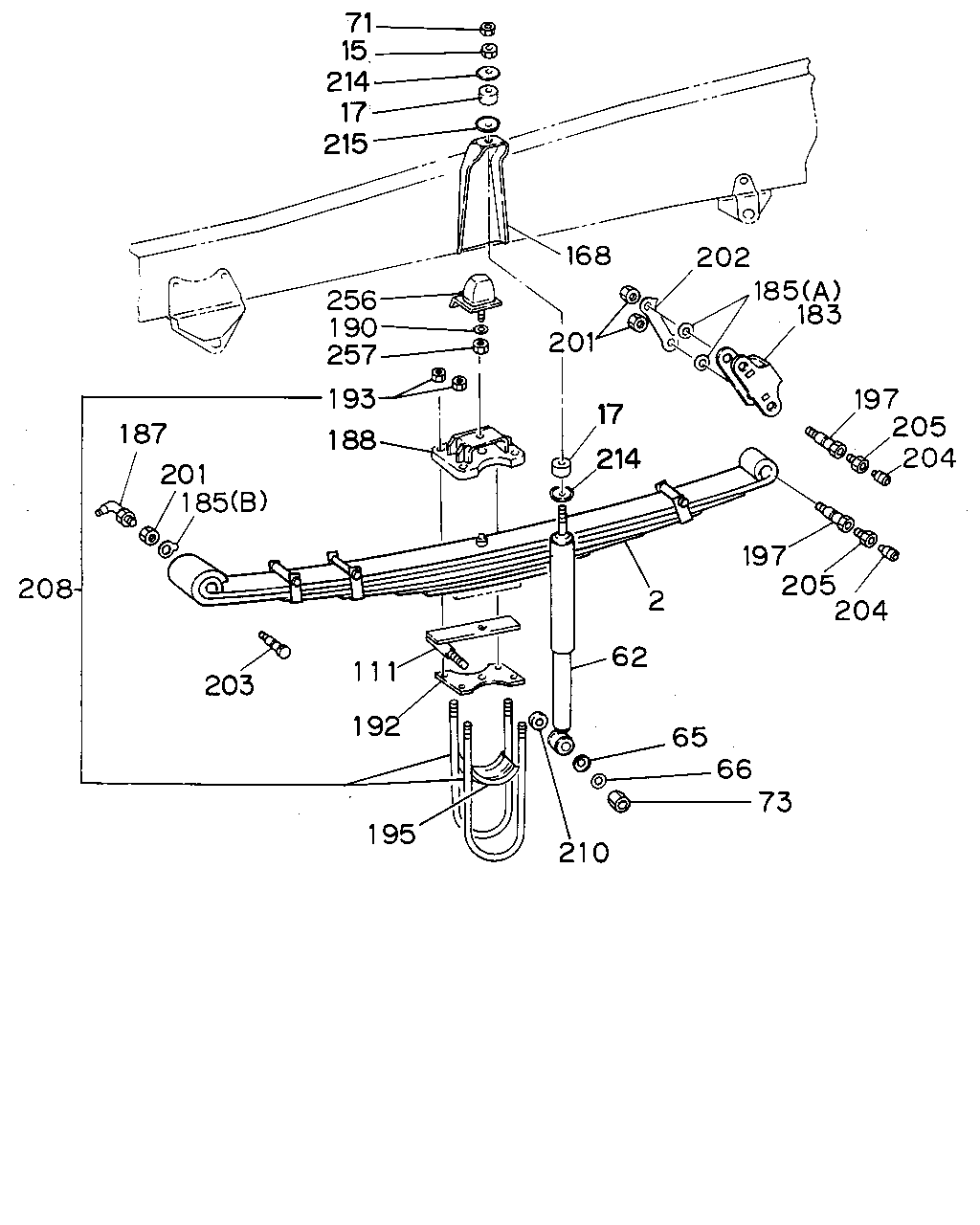

çizim 28413
71 15 214 17 215 168 202 183 185 201 197 205 204 204 205 197 214 17 256 190 193 257 188 187 208 201 185 203 111 192 195 210 73 66 65 62 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 9207- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51110-723-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60>,REARWARD INNER SINGLE TIRE<YK3> 		1-51110-723-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> 		1-51110-723-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-51110-811-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> 		1-51110-811-0 02 1 9207- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD INNER SINGLE TIRE<YK3> 		1-51110-920-0 02 1 9207- ●
15 NUT; S/ABS,UPR
M10 		9-09110-510-0 02 1 9207- ● ●
15 NUT; S/ABS,UPR
M12 M12 		1-09400-006-0 02 1 9207- ● ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9207- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9207- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9207- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9207- ● ● ●
65 WASHER; S/ABS 1-51631-018-0 02 1 9207- ● ●
65 WASHER; S/ABS 1-51631-019-0 02 1 9207- ● ● ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 9207- ● ●
71 NUT; LK,S/ABS,UPR 9-09111-410-0 02 1 9207- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9207- ● ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9207- ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9207- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-470-1 01 1 9207- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-469-1 01 1 9207- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9207- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9207- ● ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9207- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9207- ● ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9207- ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9207- ● ●
185 WASHER; LK,PIN
(C) 		9-09150-512-0 12 1 9207-9209 ● ● ●
185 WASHER; LK,PIN
(C) 		9-09150-612-0 12 1 9210- ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 9207- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-016-1 02 1 9207- ● ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9207- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 9207- ● ●
192 PIECE; DIST 1-51177-219-0 01 1 9207- ● ●
192 PIECE; DIST 9-51377-038-0 01 1 9207- ● ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9207- ● ●
193 NUT; U BOLT 9-09840-326-0 08 1 9207- ● ● ●
195 BRACKET; U BOLT,FRT SUSP 1-43219-020-1 01 1 9207- ● ●
197 PIN; FRT SPR,FRT 1-51161-005-3 04 1 9207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9207- ● ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9207- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9207- ● ● ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9207- ● ●
203 PIN; SPR TO SHACKLE 1-51161-004-3 02 1 9207- ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9207- ● ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9207- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9207- ● ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
L=370 		1-87870-325-0 04 1 9207- ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=370 		1-87870-325-0 04 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-324-0 04 1 9207- ● ●
210 WASHER; S/ABS,OUTER 1-51631-017-0 02 1 9207- ● ●
210 WASHER; S/ABS,OUTER 1-51631-020-0 02 1 9207- ● ● ●
214 WASHER; S/ABS,UPR,INNER 1-51631-005-0 04 1 9207- ● ●
214 WASHER; S/ABS,UPR,INNER 9-51631-051-0 02 1 9207- ● ● ●
215 WASHER; S/ABS,UPR,OUTER 1-51631-023-0 02 1 9207- ● ●
215 WASHER; S/ABS,UPR,OUTER 9-51631-051-0 02 1 9207- ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-001-2 02 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-1 01 1 9207- ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-1 01 1 9207- ● ● ●
257 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9207- ● ●
