3-70 — BRAKE PIPING; AIR,AIR MASTER (#16307) — 140 parça

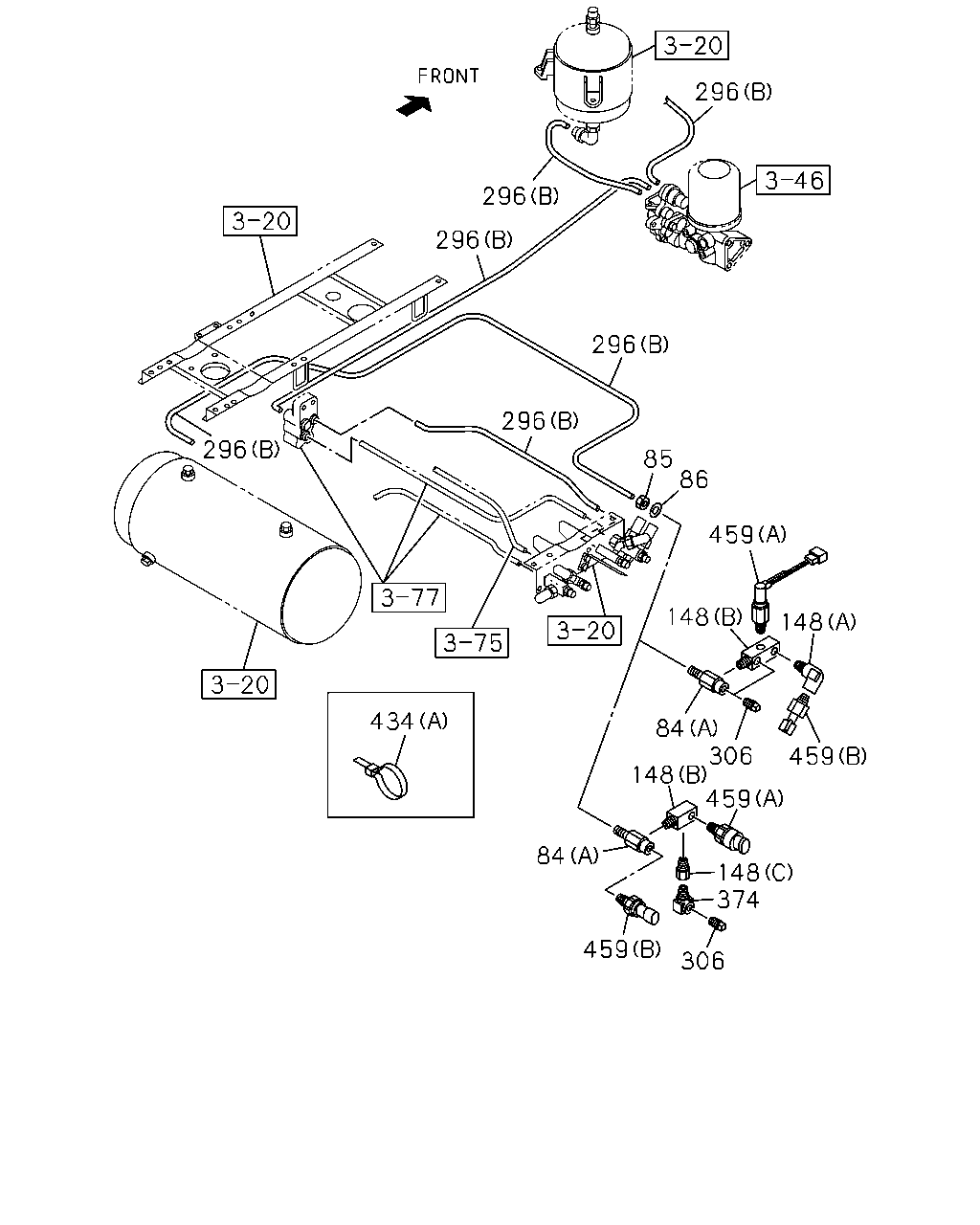

çizim 62217
296 296 296 296 296 296 85 86 459 148 148 434 84 306 148 459 459 84 148 374 459 306
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0904-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0904-
85 NUT; UNION
M18 		0-91110-518-0 01 1 0904-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0904-
148 CONNECTOR; UNION
(C) 		1-09660-090-0 01 1 1201-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0904-1002
148 CONNECTOR; UNION
(B) 		1-09661-729-0 01 1 1003-
148 CONNECTOR; UNION
(A) PT1/4 2WAY 		1-09660-693-0 01 1 0904-1002
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0904-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0904-1002
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 1003-
374 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) PT1/4 2WAY 		1-09660-693-0 01 1 1006-1112
374 CONNECTOR
PT1/4 2WAY 		1-09660-693-0 01 1 1201-
374 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) PT1/4 2WAY 		1-09660-693-0 01 1 1201-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0904-
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0904-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0904-
459 SWITCH; PRESS
(A) STAMP 5.5 		8-97609-249-0 01 1 0904-

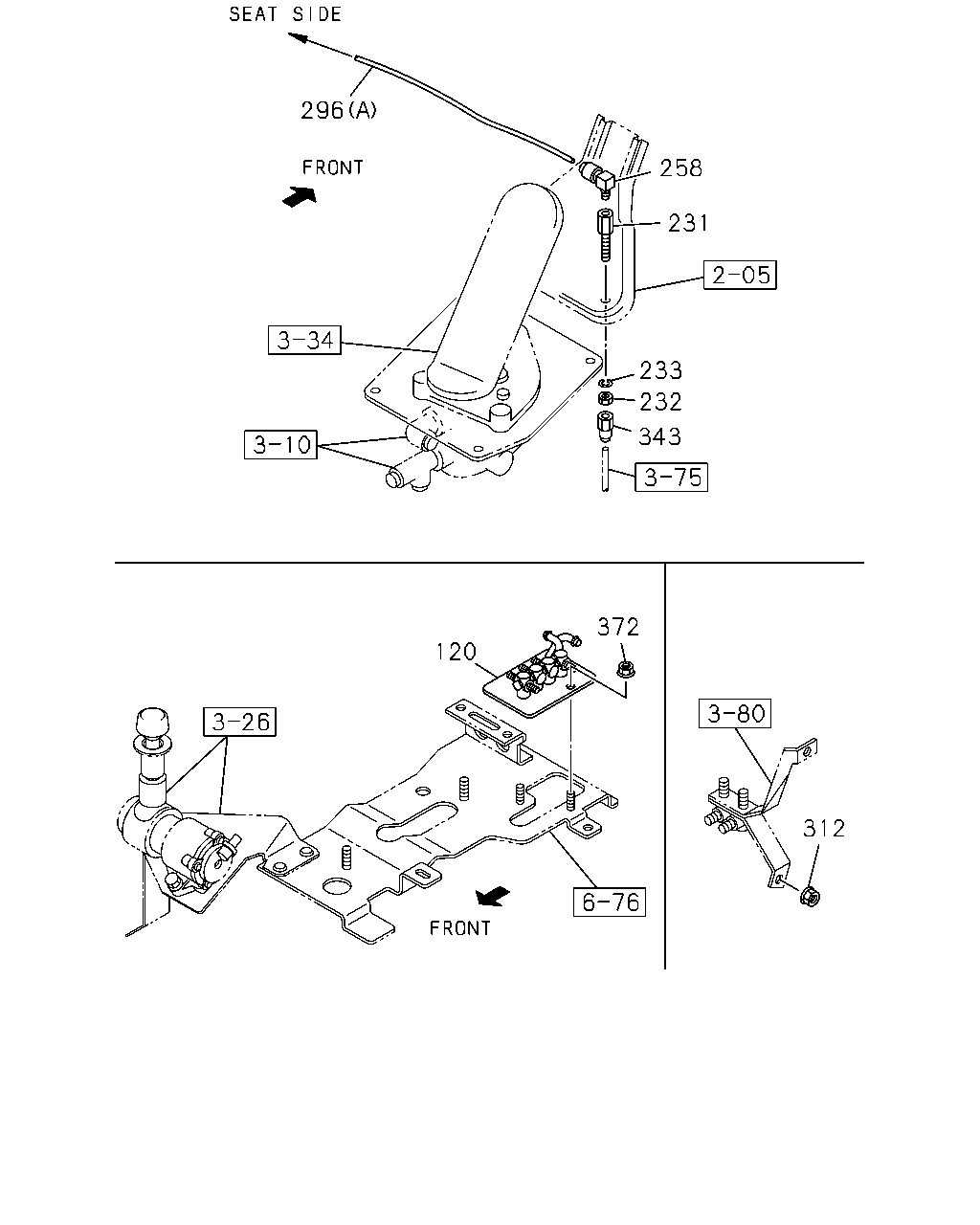

çizim 62242
296 258 231 233 232 343 372 120 312
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0904-
231 UNION; AIR PIPE 1-09656-713-2 01 1 0904-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0904-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 0904-
258 CONNECTOR; NYLON TUBE
TRI LC6X4-R1/8 		1-09660-760-1 01 1 0904-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0904-
312 NUT; UNION
M8 		0-91110-508-0 01 1 0904-
343 UNION; NYLON TUBE 1-09661-382-0 01 1 0904-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0904-

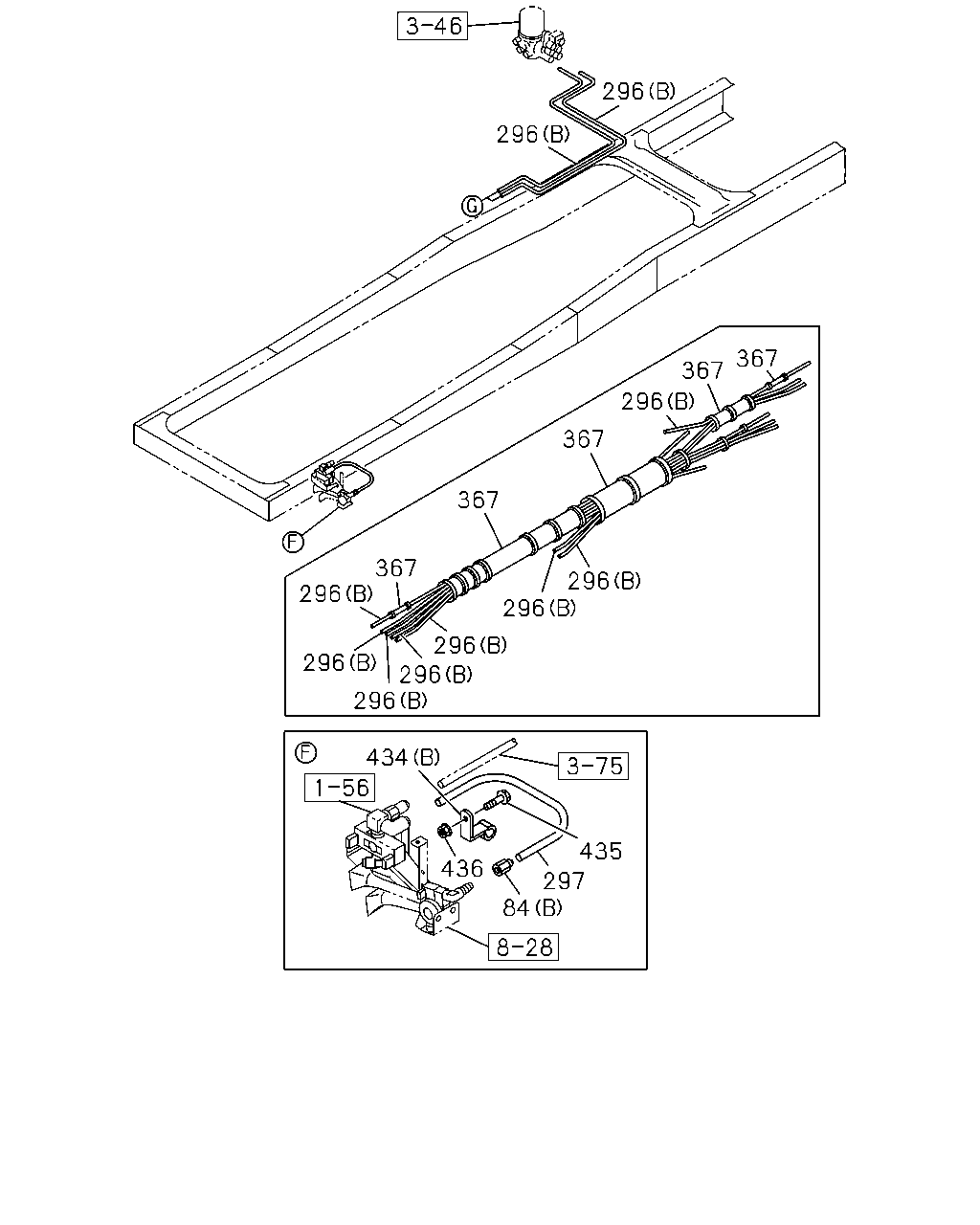

çizim 62245
296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 434 435 436 297 84
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0904-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0904-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0904-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0904-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0904-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0904-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0904-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0904-
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0904-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0904-

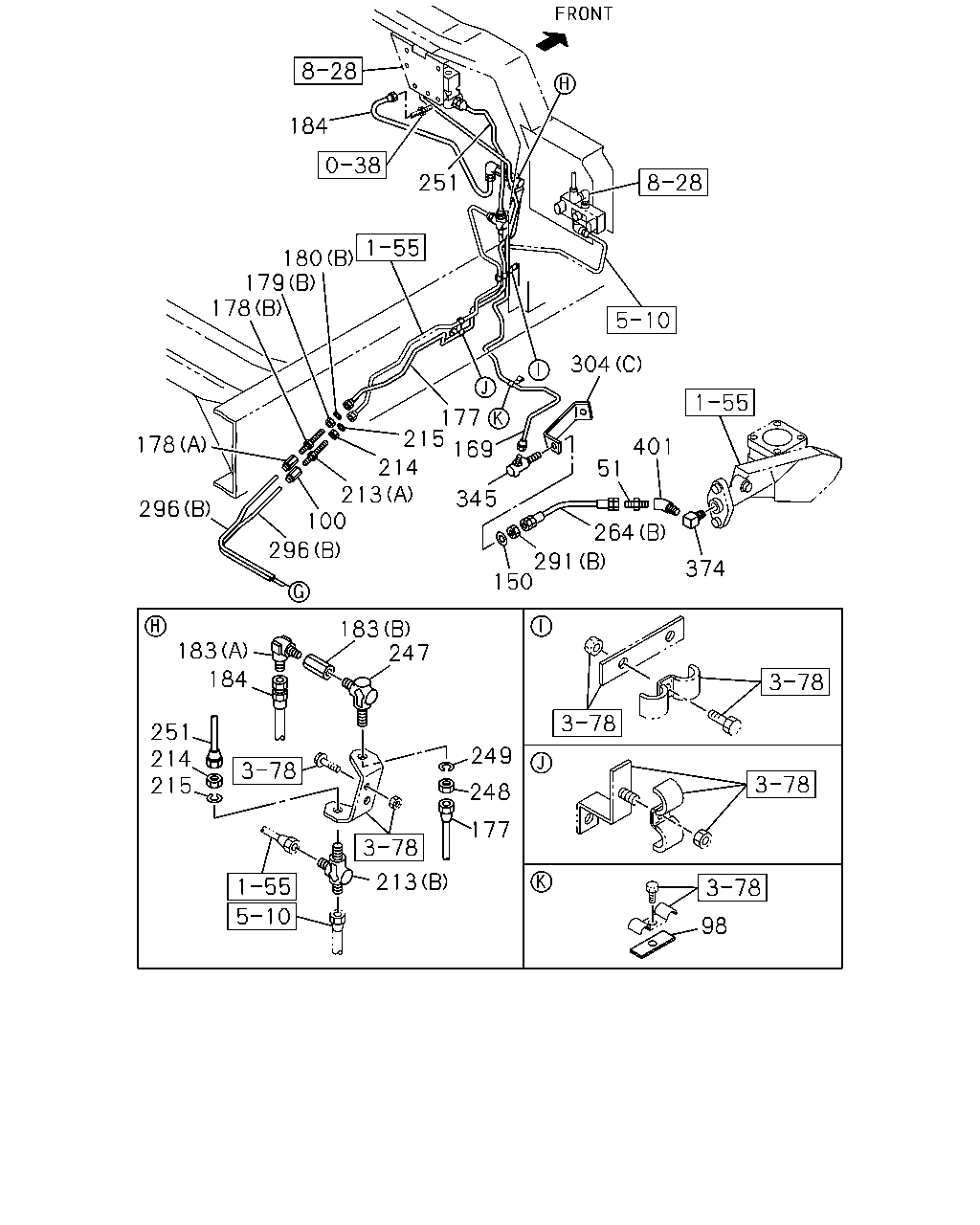

çizim 102146
184 251 180 179 178 304 177 215 178 401 169 214 213 100 51 345 296 264 296 291 150 374 183 247 183 184 251 214 215 249 248 177 213 98
BalonParca AdiParca NoAdetTipApplied Date
51 UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1006-
98 BRACKET; AIR PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=50 		1-47475-299-2 01 1 1006-
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0904-
150 WASHER; LK,UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=12.2 		0-91510-512-0 01 1 1006-
169 PIPE; AIR,UNION TO FLEX HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=1355 SERVICED BY L=1370 		1-47428-818-0 01 1 1006-
177 PIPE; AIR,UNION TO UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) L=1032 SERVICED BY L=1100 		1-47428-815-0 01 1 1006-
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0904-1005
177 PIPE; AIR,UNION TO UNION
6WG1 TC-R(75L) L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 1006-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0904-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0904-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0904-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0904-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0904-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0904-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0904-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0904-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 0904-
213 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0904-
213 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0904-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0904-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 0904-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0904-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0904-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0904-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 0904-
264 HOSE; FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=240 		1-09363-671-0 01 1 1006-
264 HOSE; FLEX
(A) L=1050 		1-09363-789-0 01 1 0904-
291 NUT; UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 		9-09840-280-0 01 1 1006-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0904-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0904-
304 BRACKET; UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		8-97617-465-0 01 1 1006-
304 BRACKET; UNION
(B) 		1-47471-276-0 01 1 0904-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 0904-
345 UNION; AIR PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) M12 ELBOW 		0-92125-206-0 01 1 1006-
374 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) PT1/4 2WAY 		1-09660-693-0 01 1 1006-1112
374 CONNECTOR
PT1/4 2WAY 		1-09660-693-0 01 1 1201-
374 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) PT1/4 2WAY 		1-09660-693-0 01 1 1201-
401 CONNECTOR; FLEX HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) R1/4 & RC1/4 		1-09664-211-0 01 1 1006-

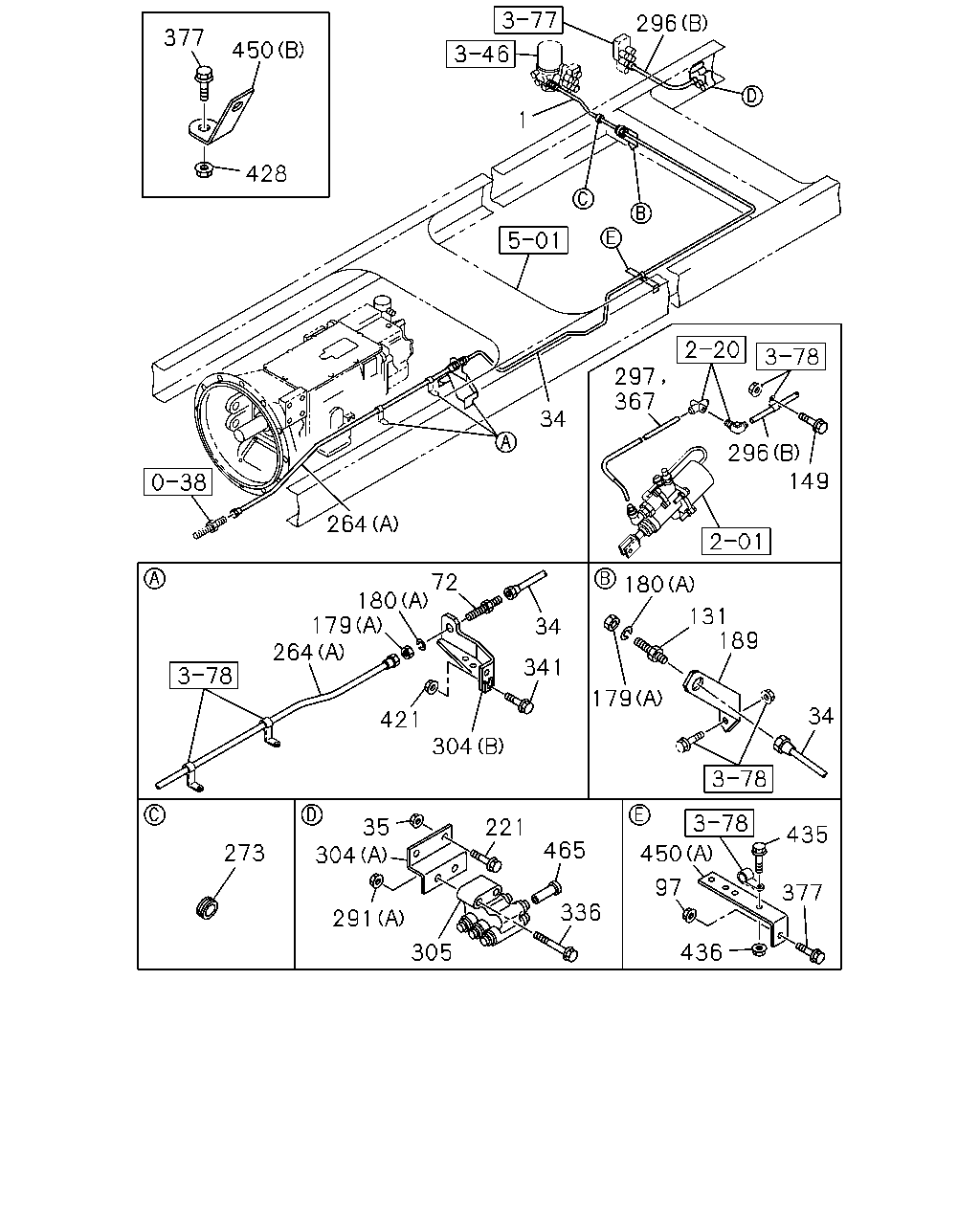

çizim 102155
296 377 450 1 428 297 367 34 296 149 264 72 180 180 179 264 131 189 34 341 179 34 421 304 35 304 221 435 465 273 450 377 97 336 291 305 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 0904-
34 PIPE; AIR
L=1408 		1-49124-905-0 01 1 0904-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0904-
72 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0904-
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0904-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0904-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0904-1311
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1312-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0904-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0904-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0904-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0904-
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 0904-
221 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
264 HOSE; FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=240 		1-09363-671-0 01 1 1006-
264 HOSE; FLEX
(A) L=1050 		1-09363-789-0 01 1 0904-
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0904-
291 NUT; UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 		9-09840-280-0 01 1 1006-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0904-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0904-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0904-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
304 BRACKET; UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		8-97617-465-0 01 1 1006-
304 BRACKET; UNION
(B) 		1-47471-276-0 01 1 0904-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 0904-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0904-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0904-1009
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1010-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0904-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0904-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0904-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 0904-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0904-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0904-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0904-
450 BRACKET; CLIP
(B) 		1-47477-571-3 01 1 0904-
450 BRACKET; CLIP
(A) 		1-82698-358-0 01 1 0904-
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> OD=8 		1-09661-616-0 01 1 1010-
465 PLUG
OD=6 L=27 		1-09661-615-0 01 1 0904-
465 PLUG
OD=6 L=27 		1-09661-615-0 01 1 0904-
