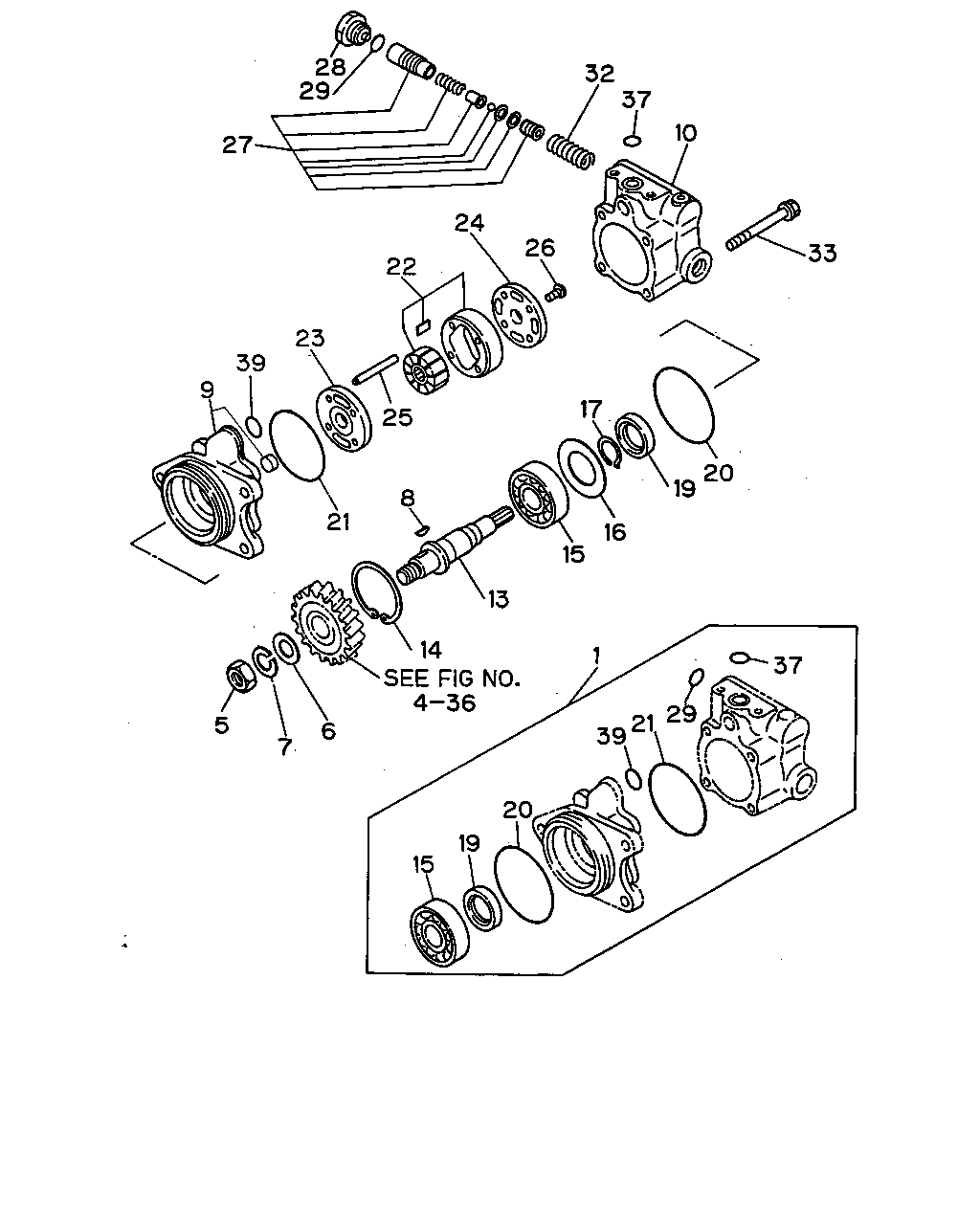

4-42 — POWER STEERING OIL PUMP (#1630) — 27 parça

28 29 27 32 37 10 33 26 24 22 23 39 9 21 25 17 8 20 19 16 15 13 14 6 7 5 15 19 20 1 37 29 21 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-371-3	1-85574-008-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: A = 1-19500-371-3	9-19519-112-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-293-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 1-19500-371-3	9-09150-016-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-371-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-371-3	1-19511-057-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-371-3	1-19511-058-1	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-371-3	1-19521-018-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-135-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-371-3	1-19515-004-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-371-3	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-371-3	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-252-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=77 ASM PART: A = 1-19500-371-3	1-09623-143-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-371-3	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-113-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-234-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-371-3	1-19519-233-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-371-3	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-371-3	1-19519-076-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-178-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-371-3	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-371-3	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-371-3	1-19519-244-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-371-3	9-48429-028-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-371-3	1-19519-100-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
