◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#162923) — 50 parça
çizim 479818
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1506- ● ● ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1506- ● ● ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1506- ● ● ●

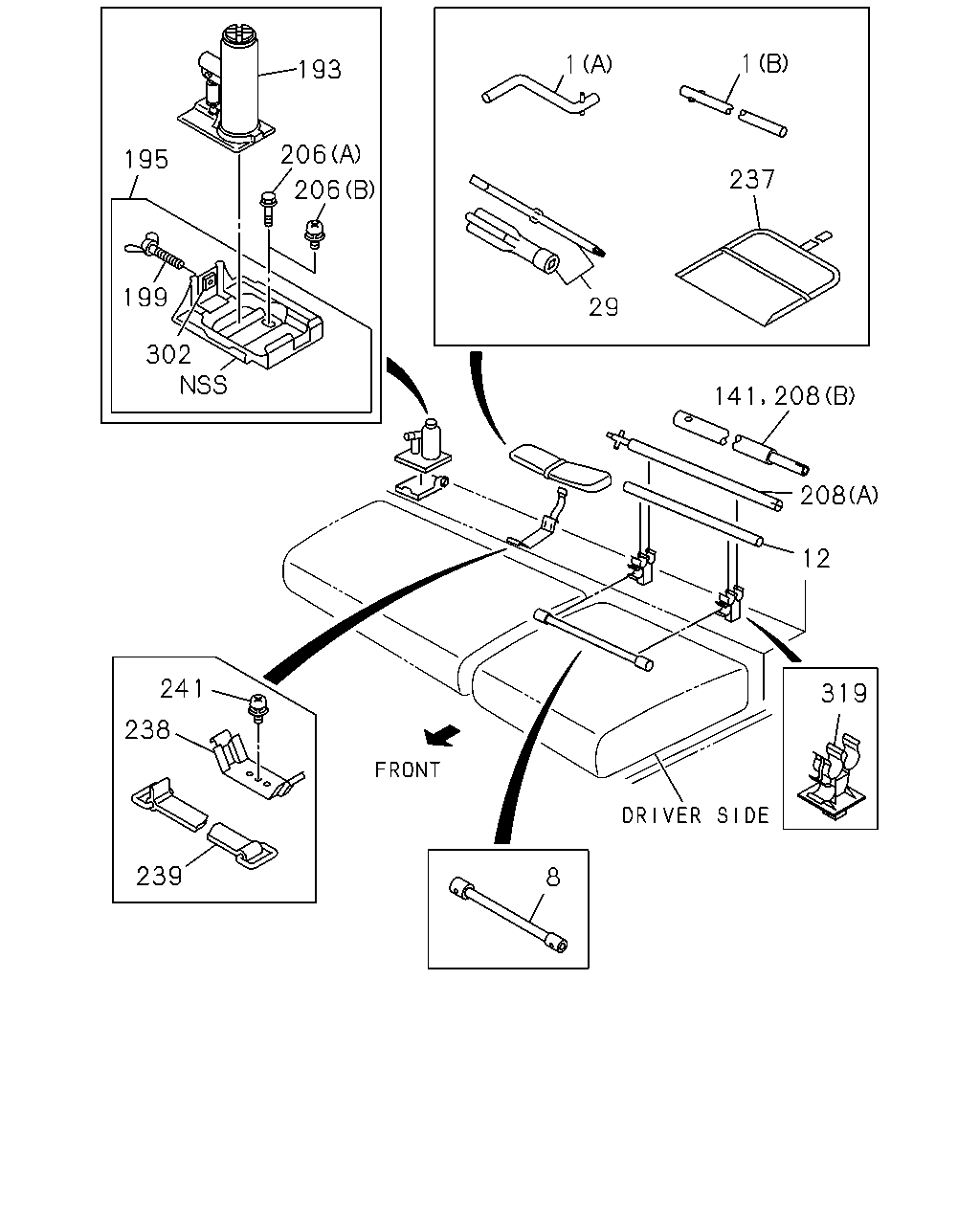

çizim 480960
193 195 206 206 199 302 29 237 1 1 208 141 208 12 319 8 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1506- ● ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1506- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1506- ●
8 08.821 WRENCH; WHEEL
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) B=41X19 L=330 		8-94386-490-1 01 1 1506- ● ●
8 08.821 WRENCH; WHEEL
F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) B=41X19 L=330 		8-94386-490-1 01 1 1506- ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) B=41X21 L=440 		1-85113-015-1 01 1 1506- ●
8 08.821 WRENCH; WHEEL
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) B=41X21 L=440 		1-85113-015-1 01 1 1506- ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) B=41X21 L=440 		1-85113-015-1 01 1 1506- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) OD=25 L=480 		8-98257-407-0 01 1 1506- ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1506- ● ● ● ● ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1506- ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 1506- ● ● ● ●
193 08.820 JACK ASM
5TON 		8-94438-021-2 01 1 1506- ● ●
195 08.820 BRACKET; JACK 8-98034-917-0 01 1 1506- ● ● ●
195 08.820 BRACKET; JACK 8-94273-769-5 01 1 1506- ● ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1506- ● ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1506- ● ● ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ● ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 (B) M6X16 		0-38050-616-0 01 1 1506- ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) L=642 		8-98181-477-0 01 1 1506- ● ● ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1506- ● ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1506- ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1506- ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1506- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1506- ● ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1506- ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1506- ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1506- ● ● ● ● ● ●

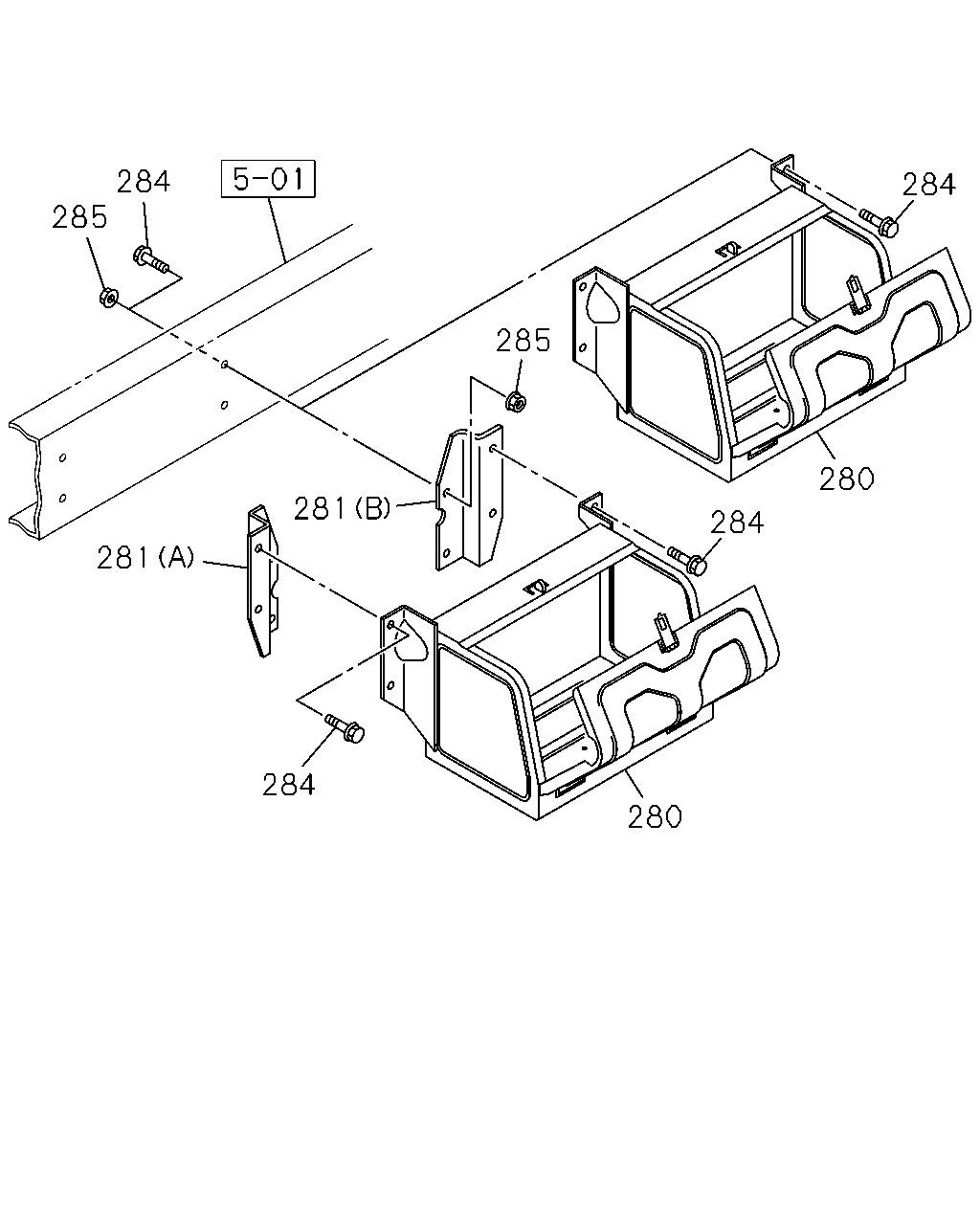

çizim 480961
284 285 285 281 281 284 280 284 280 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1506-1507 ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1508- ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1506- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98045-642-1 01 1 1506- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1506- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1506- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98130-709-0 01 1 1506- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1506- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1507 ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1507 ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506-1507 ● ● ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ● ●
