8-90 — RADIO AND TV (#162922) — 20 parça

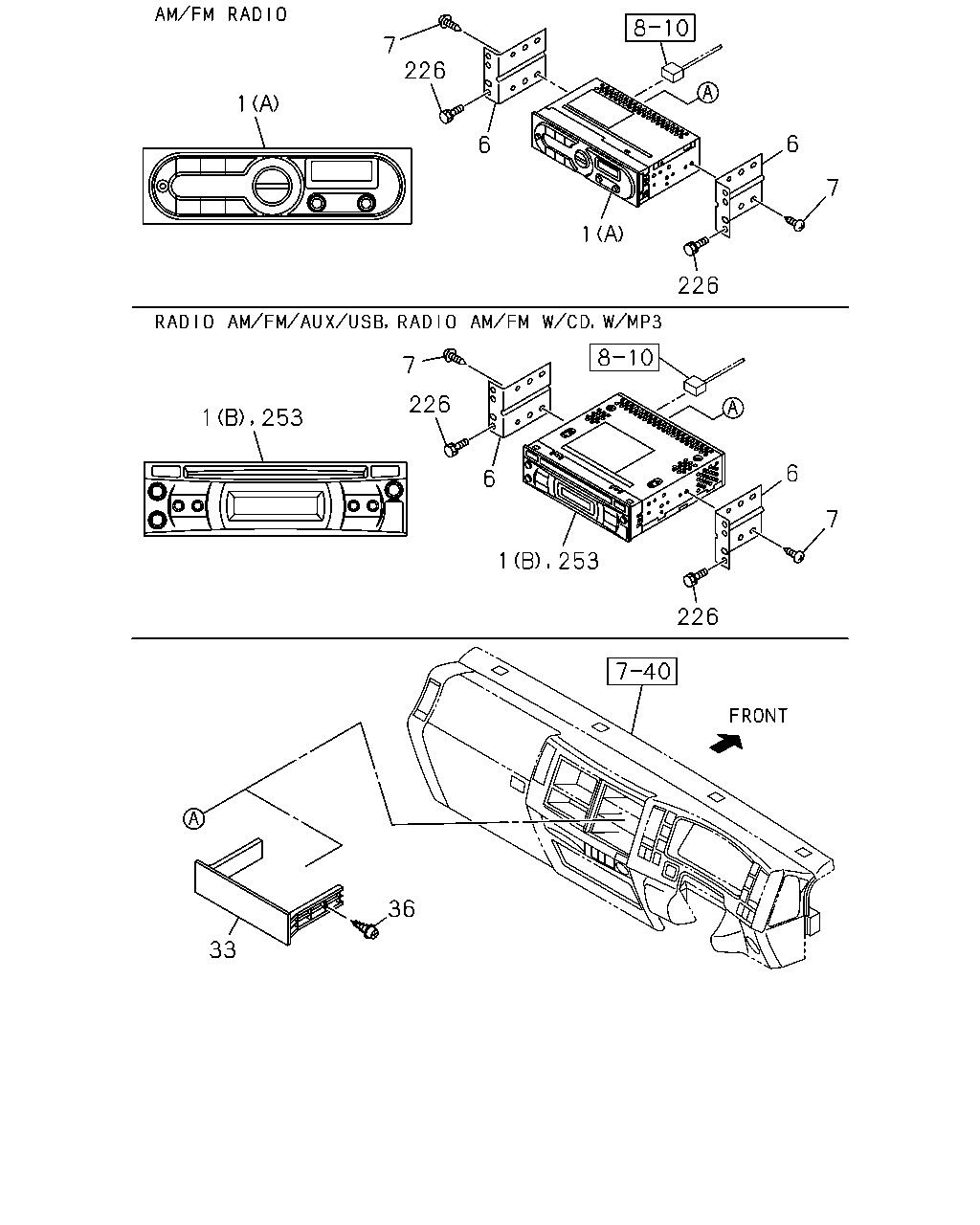

çizim 480877
1 7 6 226 6 7 226 1 6 7 226 253 1 226 1 253 7 6 36 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.650 RADIO
AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A) 		8-98270-738-1 01 1 1506- ● ● ● ● ● ●
1 09.650 RADIO
TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B) 		8-98273-253-0 01 1 1506- ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1506- ● ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1506- ● ● ● ● ● ●
33 09.650 COVER; RADIO
EXC. RADIO AM/FM W/CD,W/MP3(ULA), AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) BLACK 		8-97407-896-2 01 1 1506- ● ● ● ● ● ●
36 09.779 SCREW; COVER
EXC. RADIO AM/FM W/CD,W/MP3(ULA), AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1506- ● ● ● ● ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1506- ● ● ● ● ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> 		8-98270-736-0 01 1 1506- ● ● ● ● ● ●

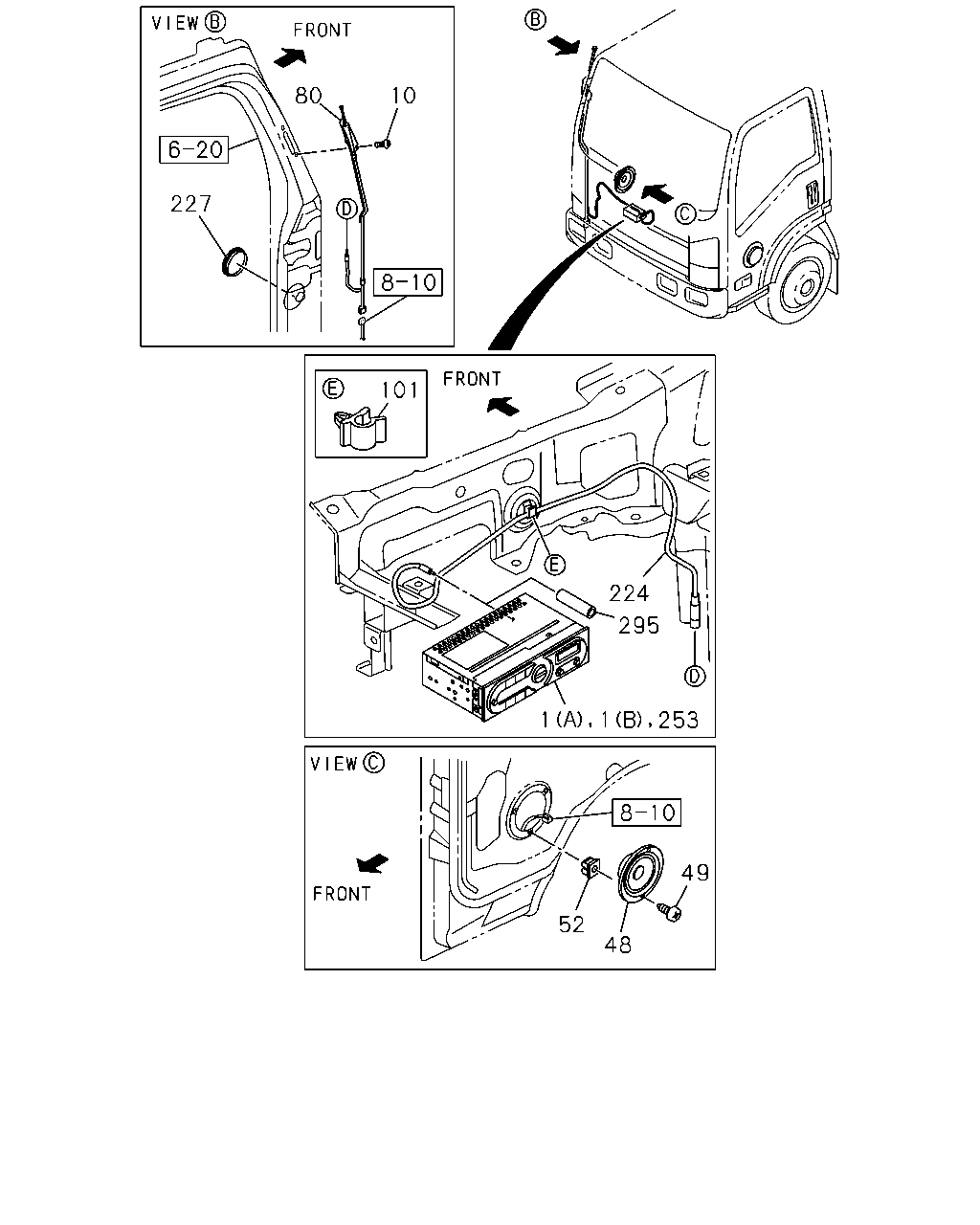

çizim 480892
80 10 227 101 224 295 253 1 1 49 52 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.650 RADIO
AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A) 		8-98270-738-1 01 1 1506- ● ● ● ● ● ●
1 09.650 RADIO
TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B) 		8-98273-253-0 01 1 1506- ● ● ● ● ● ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1506- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-1 02 1 1506- ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1506- ● ● ● ● ● ●
52 09.655 GROMMET; SCREW,SPEAKER
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1506- ● ● ● ● ● ●
80 09.645 ANTENNA 8-97387-265-3 01 1 1506- ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8 		8-94128-483-0 01 1 1506- ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 1506- ● ● ● ● ● ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 1506- ● ● ● ● ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> 		8-98270-736-0 01 1 1506- ● ● ● ● ● ●
295 09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM W/CD,W/MP3(ULA), AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) 		8-98095-617-1 01 1 1506- ● ● ● ● ● ●
