Isuzu WW
▶
TRUCKS
▶
NNR
▶
51606 - NNR/NPR/NQR AUST/NZ EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#162921) — 34 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5SS
D - NPR5WE
E - NPR5WN
F - NPR5WS
◀
[880A] FIXING (24 parça)
[880A] COMPONENT (10 parça)
▶
228
199
39
199
39
3
2
230
51
198
114
9
10
5
7
2
3
205
46
27
36
40
95
196
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
2

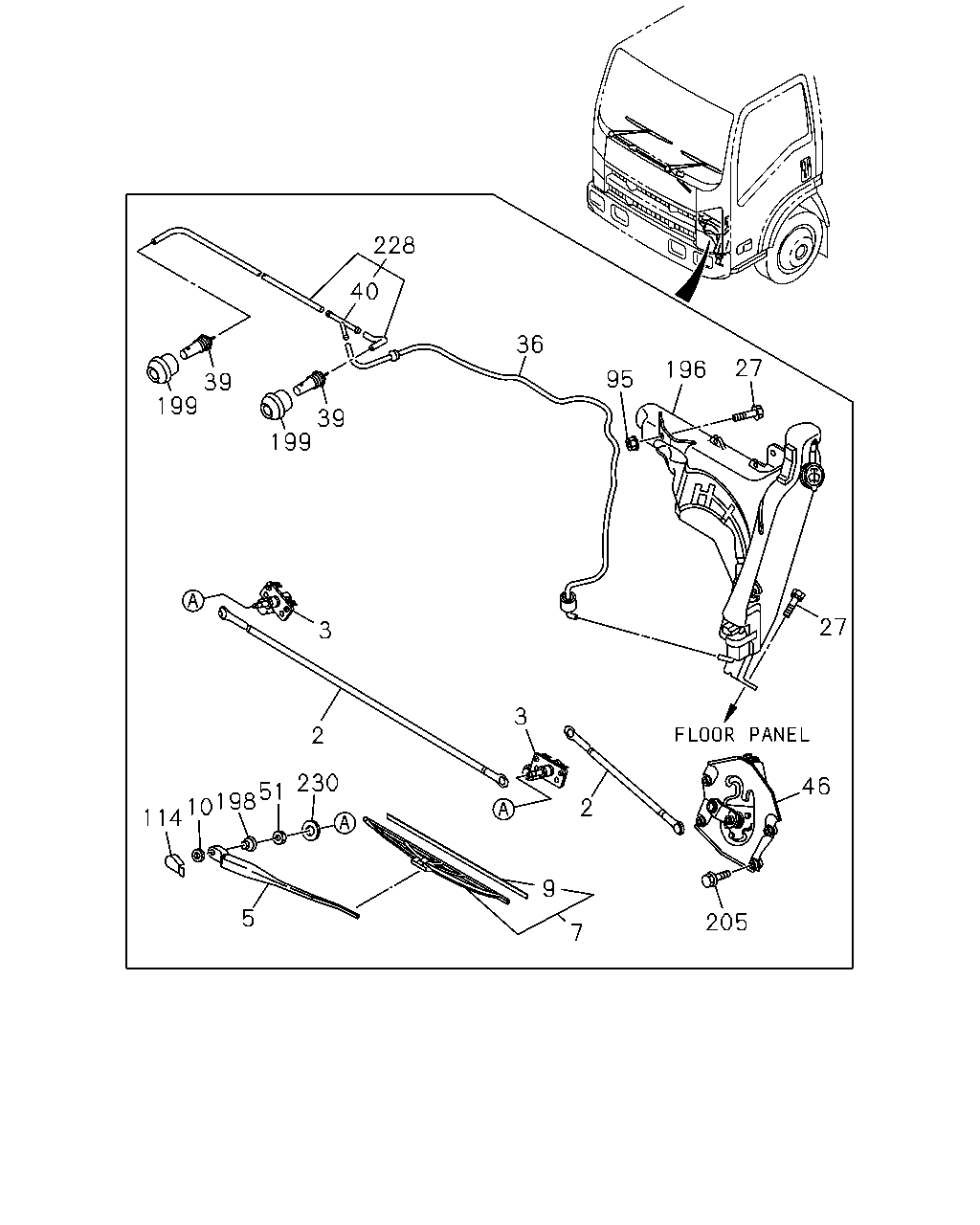

16.063 LINK; FRT WIPER
L=350 W/CAP STAMP P
8-98053-765-0
01
1
1506-
●
●
●
●
●
●
2
16.063 LINK; FRT WIPER
L=840 W/CAP
8-98053-769-0
01
1
1506-
●
●
●
●
●
●
3
16.063 PIVOT ASM; FRT WIPER
8-98053-762-0
01
1
1506-
●
●
●
●
●
●
3
16.063 PIVOT ASM; FRT WIPER
8-98053-764-0
01
1
1506-
●
●
●
●
●
●
5
16.063 ARM; WIPER
8-98053-778-0
01
1
1506-
●
●
●
●
●
●
5
16.063 ARM; WIPER
8-98053-779-0
01
1
1506-
●
●
●
●
●
●
7
16.062 BLADE; WIPER
8-98053-788-0
02
1
1506-
●
●
●
●
●
●
7
16.062 BLADE; WIPER
BEST VALUE PARTS
5-87610-034-0
02
1
1506-
●
●
●
●
●
●
9
16.062 RUBBER; FRT WIPER BLADE
L=500
8-98053-792-0
02
1
1506-
●
●
●
●
●
●
10
16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8
0-91110-508-0
02
1
1506-
●
●
●
●
●
●
27
16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
1506-
●
●
●
●
●
●
36
16.065 HOSE; WASHER
8-98029-172-3
01
1
1506-
●
●
●
●
●
●
39
16.065 NOZZLE; WINDSHIELD WASHER
8-98029-139-1
02
1
1506-
●
●
●
●
●
●
40
16.065 JOINT; WASHER HOSE
3WAY
5-83363-033-0
01
1
1506-
●
●
●
●
●
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98029-123-3
01
1
1506-
●
●
●
●
●
●
51
16.063 NUT; WIPER MOTOR LINK
M24
8-98029-167-0
02
1
1506-
●
●
●
●
●
●
95
16.065 NUT; WASHER TANK
01.062 M8 FLANGE
0-91180-108-0
01
1
1506-
●
●
●
●
●
●
114
16.063 COVER; FRT WIPER ARM
BLACK
8-94282-851-0
02
1
1506-
●
●
●
●
●
●
196
16.065 TANK; WASHER
8-98029-135-3
01
1
1506-
●
●
●
●
●
●
198
16.063 COVER; PIVOT,WIPER
8-98029-164-0
02
1
1506-
●
●
●
●
●
●
199
16.063 COVER; NOZZLE,WIPER
8-98079-030-0
02
1
1506-
●
●
●
●
●
●
205
16.064 BOLT; WIPER MOTOR
16.090 M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1506-
●
●
●
●
●
●
228
16.065 HOSE ASM; WASHER
8-98029-168-1
01
1
1506-
●
●
●
●
●
●
230
16.064 COLLAR; WIPER LINK
8-98029-097-0
02
1
1506-
●
●
●
●
●
●
196
30
43
34
46
137
48
135
33
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F

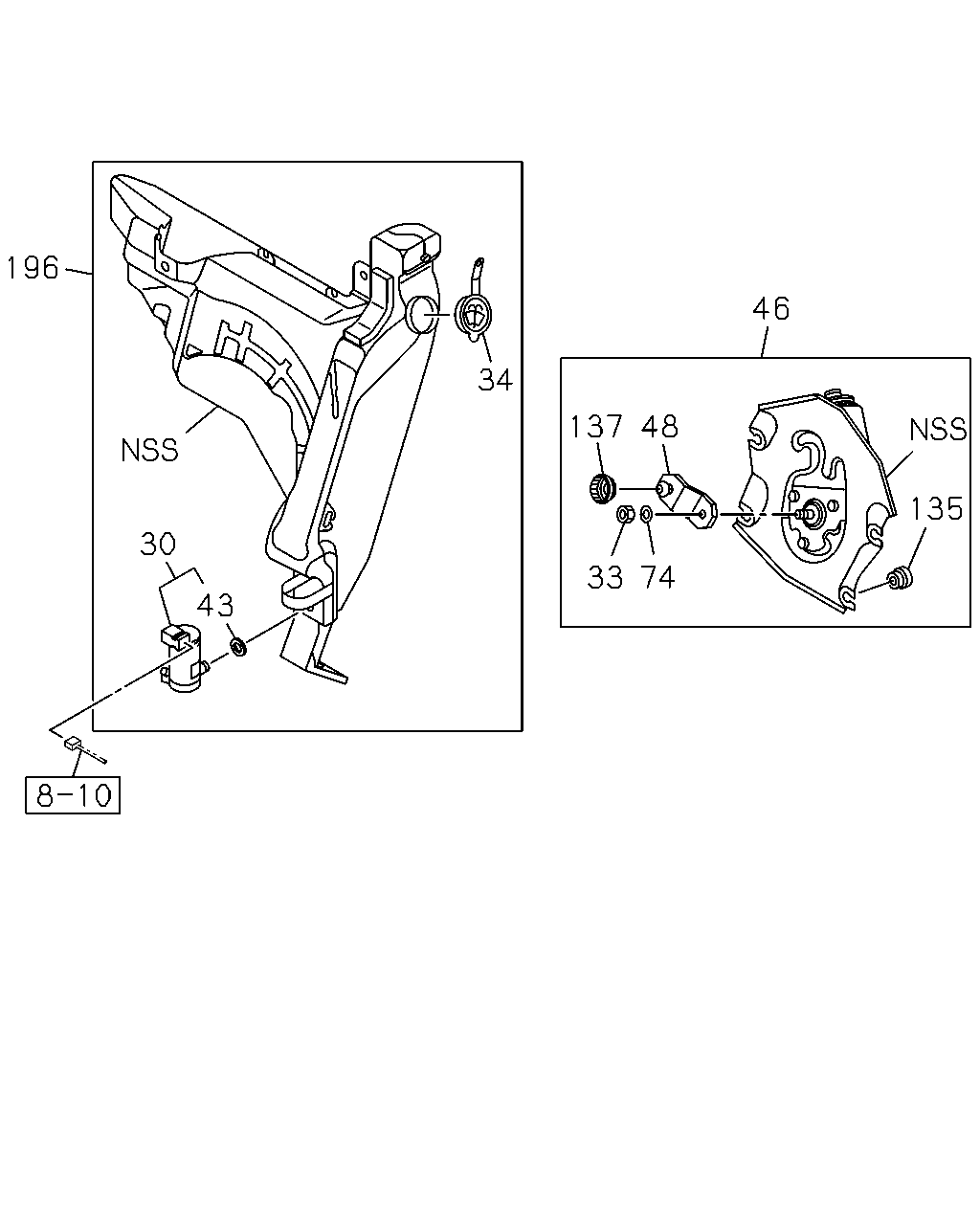

30
16.065 MOTOR ASM; FRT WASHER TANK
8-97855-139-0
01
1
1506-
●
●
●
●
●
●
33
16.064 NUT; MOTOR TO ARM
M8
8-97855-157-0
01
1
1506-
●
●
●
●
●
●
34
16.065 CAP; WASHER TANK
8-97855-140-0
01
1
1506-
●
●
●
●
●
●
43
16.065 RUBBER; GASKET,TANK
10.154
8-94352-050-0
01
1
1506-
●
●
●
●
●
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98029-123-3
01
1
1506-
●
●
●
●
●
●
48
16.063 ARM; WIPER MOTOR
8-98052-215-0
01
1
1506-
●
●
●
●
●
●
74
16.063 WASHER; ARM TO MOTOR
ID=8
8-97855-158-0
01
1
1506-
●
●
●
●
●
●
135
16.250 RUBBER; CUSHION,WIPER MOTOR
8-98052-214-0
04
1
1506-
●
●
●
●
●
●
137
16.063 SEAL; JOINT,WIPER MOTOR
8-98052-218-0
01
1
1506-
●
●
●
●
●
●
196
16.065 TANK; WASHER
8-98029-135-3
01
1
1506-
●
●
●
●
●
●
