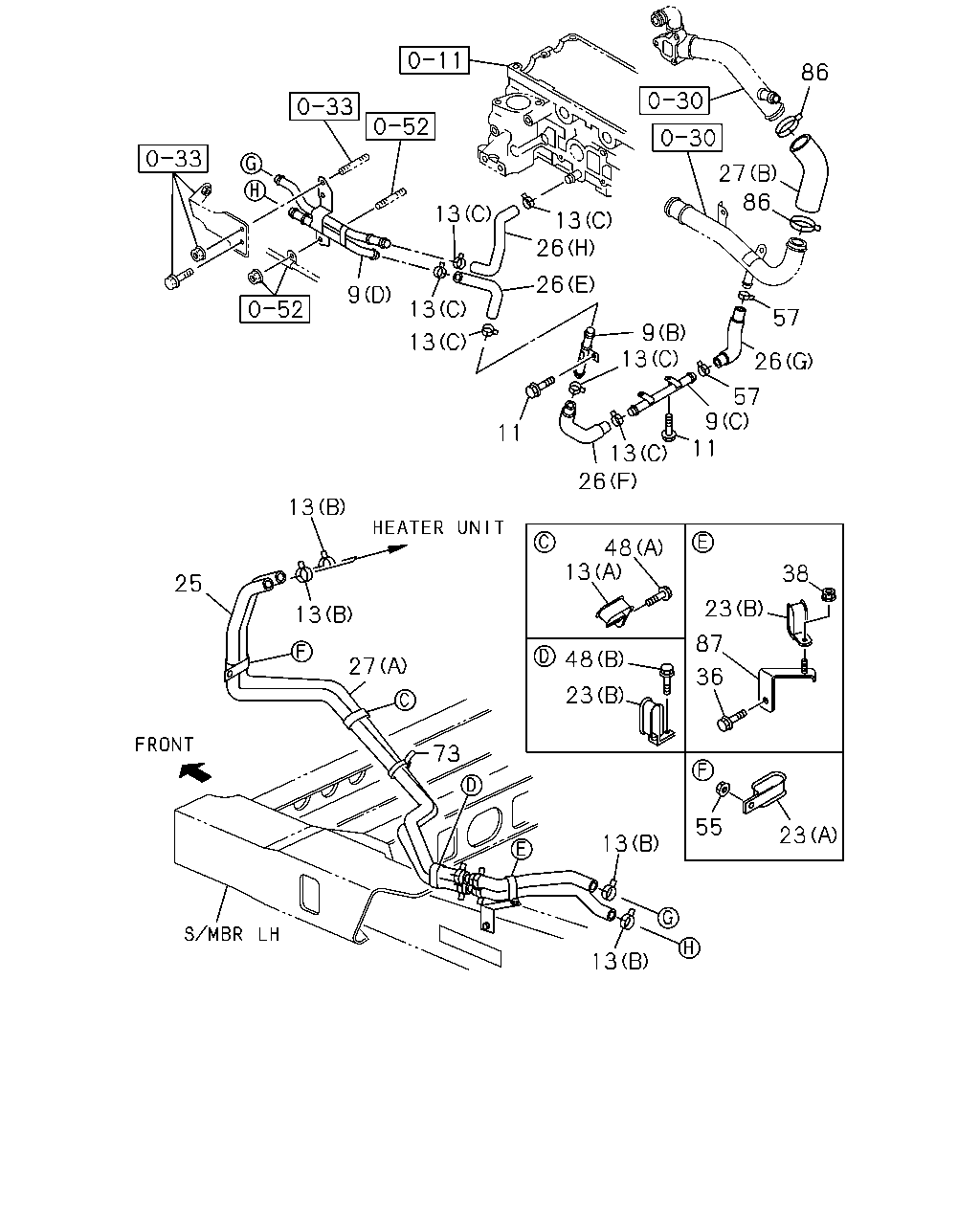

8-45 — HEATER PIPING (#162913) — 65 parça

9 13 13 13 13 26 26 86 27 86 57 26 57 9 11 13 26 9 13 11 13 25 13 27 73 13 13 48 13 48 23 38 23 87 36 55 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-97381-481-3	01	1	1506-	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-97383-035-1	01	1	1506-	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (D)	8-98028-829-1	01	1	1506-	●	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98064-107-1	01	1	1506-			●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98064-107-1	01	1	1506-					●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1506-	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1506-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1506-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1506-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) B=14	8-98029-678-0	01	1	1506-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A) B=18	8-98166-023-0	01	1	1506-	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) B=14	8-98029-678-0	02	1	1506-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98091-453-1	01	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (H)	8-97383-048-1	01	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (F)	8-98000-099-1	01	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (G)	8-98000-101-2	01	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98143-868-0	01	1	1506-	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98050-293-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98050-293-0	01	1	1506-					●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98050-294-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98050-294-0	01	1	1506-					●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98050-295-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98050-295-0	01	1	1506-					●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98050-296-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98050-296-0	01	1	1506-					●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98091-425-1	01	1	1506-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) (B)	8-98106-016-0	01	1	1506-	●	●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●	●
48	09.262 BOLT; CLIP FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1506-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCS ENG(LFB) 01.166 ID=20.8	8-94125-862-1	02	1	1506-	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.559 L=250	5-09707-030-1	01	1	1506-	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB)	8-98110-004-0	02	1	1506-	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98025-918-4	01	1	1506-	●	●

23 55 48 13 13 13 36 13 18 9 13 18 9 26 13 13 26 26 13 13 26

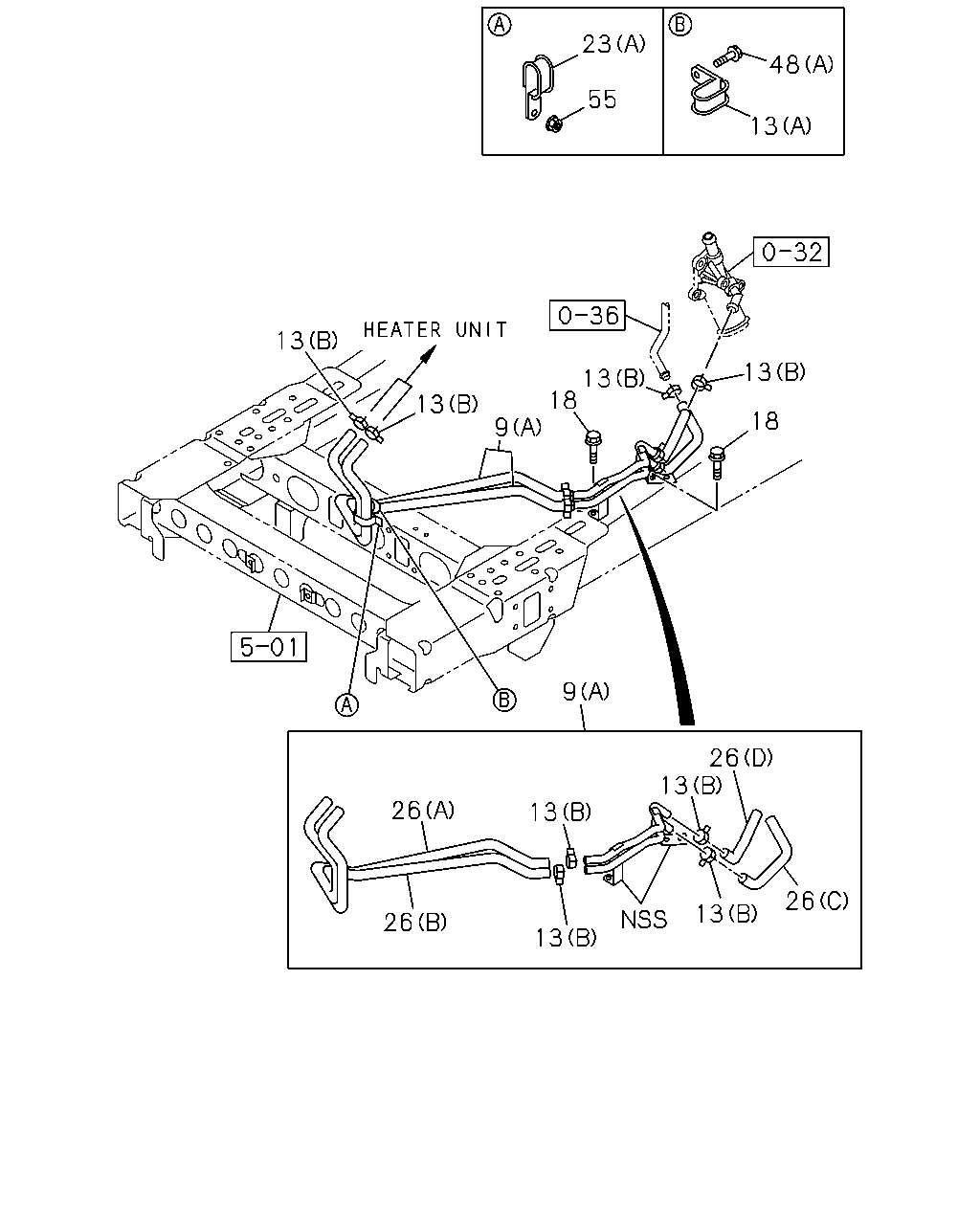

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-97381-481-3	01	1	1506-	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-97383-035-1	01	1	1506-	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (D)	8-98028-829-1	01	1	1506-	●	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98064-107-1	01	1	1506-			●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98064-107-1	01	1	1506-					●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1506-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1506-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1506-	●	●
18	08.866 BOLT; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●	●
18	08.866 BOLT; WATER HOSE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-					●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) B=14	8-98029-678-0	01	1	1506-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A) B=18	8-98166-023-0	01	1	1506-	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) B=14	8-98029-678-0	02	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (H)	8-97383-048-1	01	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (F)	8-98000-099-1	01	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (G)	8-98000-101-2	01	1	1506-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98143-868-0	01	1	1506-	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98050-293-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98050-293-0	01	1	1506-					●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98050-294-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98050-294-0	01	1	1506-					●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98050-295-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98050-295-0	01	1	1506-					●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98050-296-0	01	1	1506-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98050-296-0	01	1	1506-					●	●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
48	09.262 BOLT; CLIP FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1506-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●	●	●	●
