Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#162912) — 60 parça

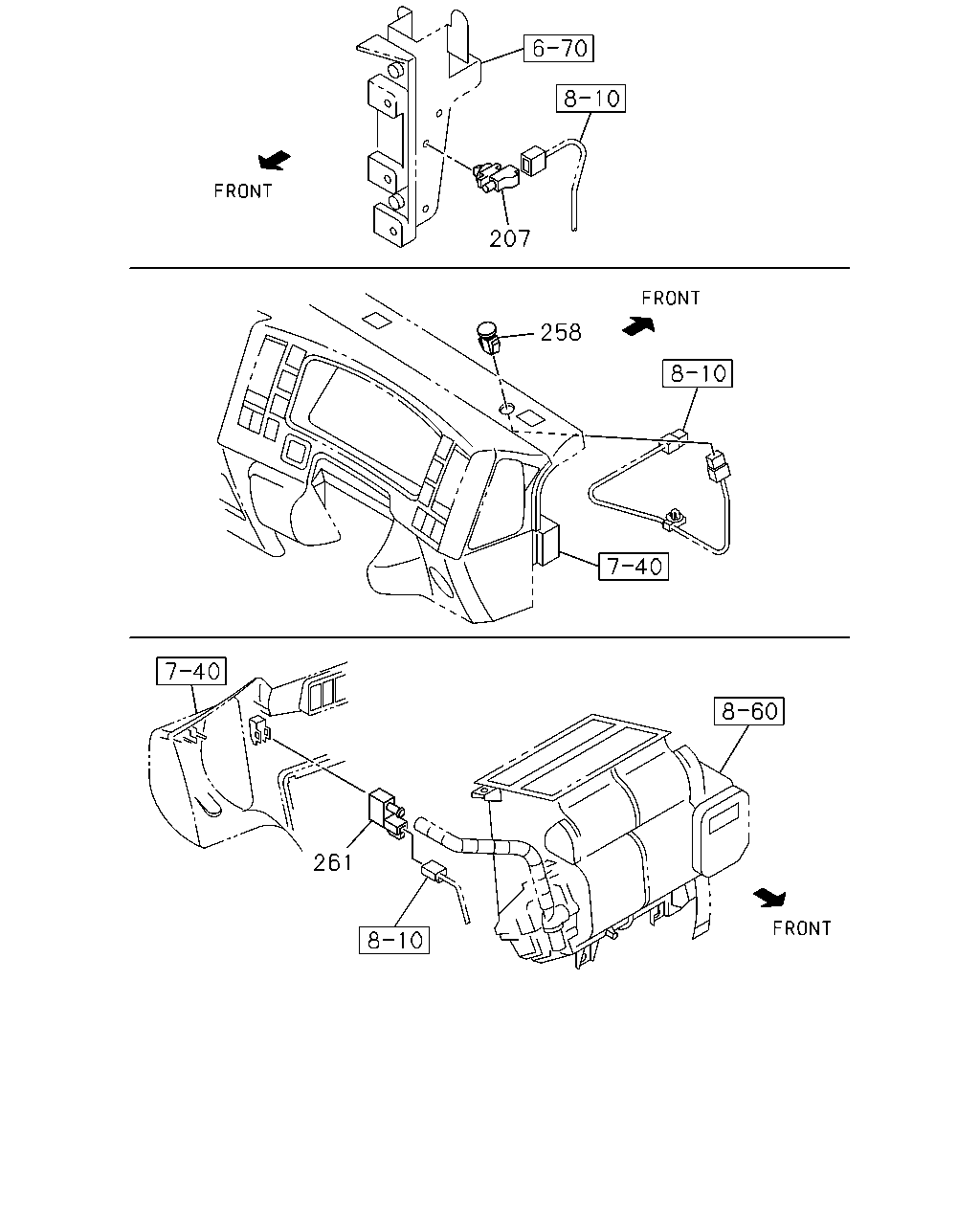

207 258 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
207	08.845 SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68) 01.150	8-98008-687-0	01	1	1506-	●	●	●	●	●	●
258	08.845 SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	1506-	●	●	●	●	●	●
261	08.845 SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	1506-	●	●	●	●	●	●

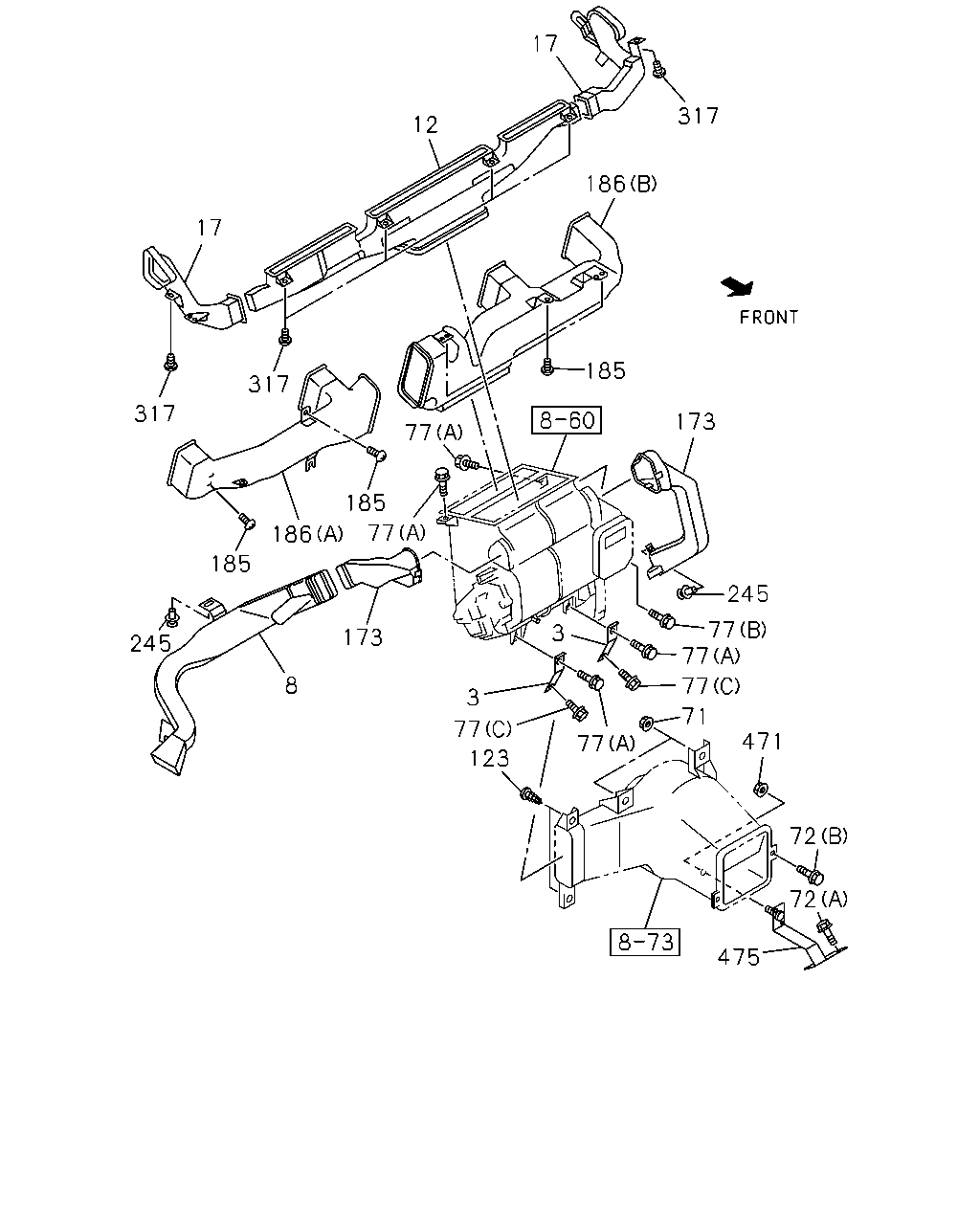

17 317 317 185 185 186 173 8 245 3 77 123 77 471 77 77 71 77 245 173 185 186 17 12 317 72 72 475 77 77 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.854 BRACKET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98082-473-1	02	1	1506-	●	●	●	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98084-146-0	01	1	1506-1507	●	●	●	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT	8-98084-146-0	01	1	1508-	●	●	●	●	●	●
12	09.779 NOZZLE; DEFROSTER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97585-480-4	01	1	1506-	●	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97585-469-1	01	1	1506-1507	●	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97585-469-1	01	1	1508-	●	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97585-475-5	01	1	1506-1507	●	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97585-475-5	01	1	1508-	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1506-	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1506-	●	●	●	●	●	●
77	08.845 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1506-	●	●	●	●	●	●
77	08.845 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1506-	●	●	●	●	●	●
77	08.845 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1506-	●	●	●	●	●	●
123	09.786 SCREW; DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1506-	●	●	●	●	●	●
173	09.786 DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97585-504-3	01	1	1506-1507	●	●	●	●	●	●
173	09.786 DUCT; FOOT,HTR	8-97585-504-3	01	1	1508-	●	●	●	●	●	●
173	09.786 DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98246-555-0	01	1	1506-	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1506-1507	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1508-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98285-582-0	01	1	1506-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98285-585-0	01	1	1506-1507	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR (B)	8-98285-585-0	01	1	1508-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-362-0	01	1	1506-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-369-0	01	1	1506-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-378-2	01	1	1506-	●	●	●	●	●	●
245	09.786 CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	02	1	1506-1507	●	●	●	●	●	●
245	09.786 CLIP; FOOT DUCT 09.264	1-09987-144-0	02	1	1508-	●	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1506-1507	●	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-	●	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1506-1507	●	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1508-	●	●	●	●	●	●
471	08.866 NUT; BLOWER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●	●	●	●
475	09.277 BRACKET; BLOWER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97387-092-2	01	1	1506-	●	●	●	●	●	●

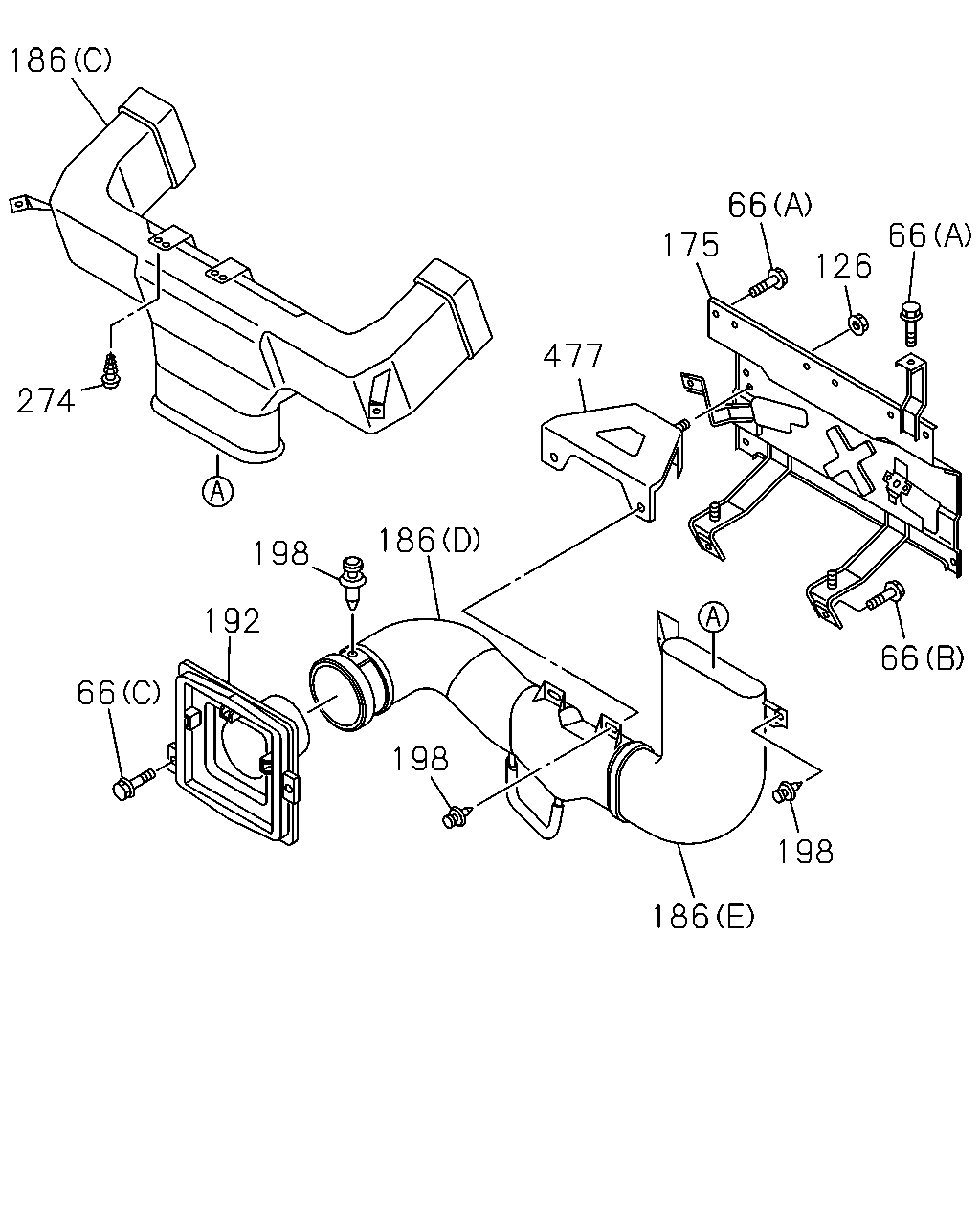

186 274 66 175 477 186 198 192 66 66 126 198 66 198 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	08.845 BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1506-	●	●	●	●	●	●
66	08.845 BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1506-	●	●	●	●	●	●
66	08.845 BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1506-	●	●	●	●	●	●
126	09.262 NUT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68)	8-98091-543-5	01	1	1506-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98285-582-0	01	1	1506-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98285-585-0	01	1	1506-1507	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR (B)	8-98285-585-0	01	1	1508-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-362-0	01	1	1506-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-369-0	01	1	1506-	●	●	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-378-2	01	1	1506-	●	●	●	●	●	●
192	09.262 DUCT; RAM AIR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68)	8-98054-385-4	01	1	1506-	●	●	●	●	●	●
198	09.787 CLIP; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	05	1	1506-	●	●	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1506-	●	●	●	●	●	●
477	09.786 BRACKET; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68)	8-98091-304-0	01	1	1506-	●	●	●	●	●	●

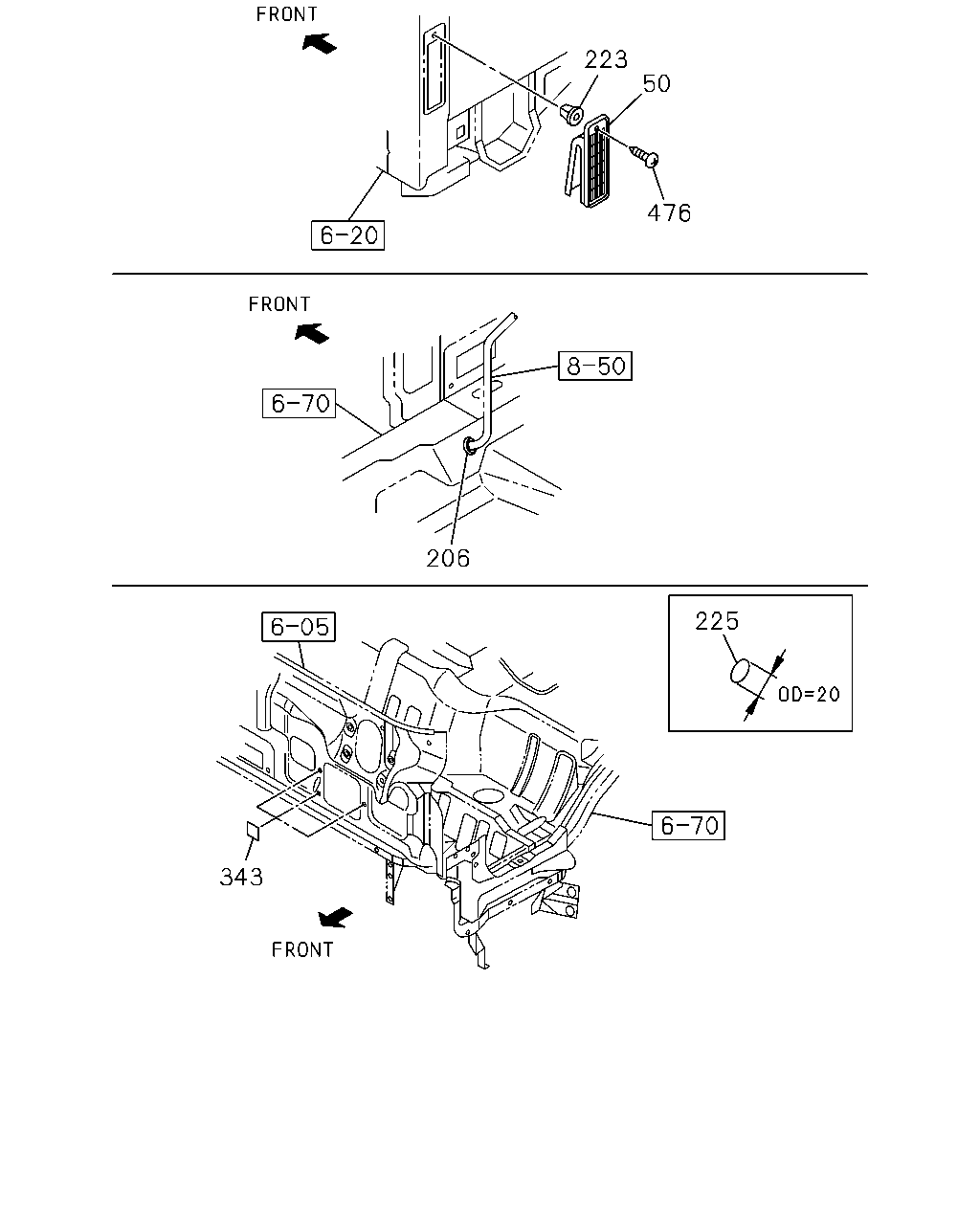

223 50 476 206 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	1506-	●	●	●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	1506-				●	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1506-	●	●	●	●	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1506-	●	●	●	●	●	●
225	08.845 SEAL; WATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	01	1	1506-	●	●	●	●	●	●
225	08.845 SEAL; WATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	1506-	●	●	●	●	●	●
343	08.845 SEAL; AIR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	1506-	●	●	●	●	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1506-	●	●	●	●	●	●
