8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#162909) — 161 parça

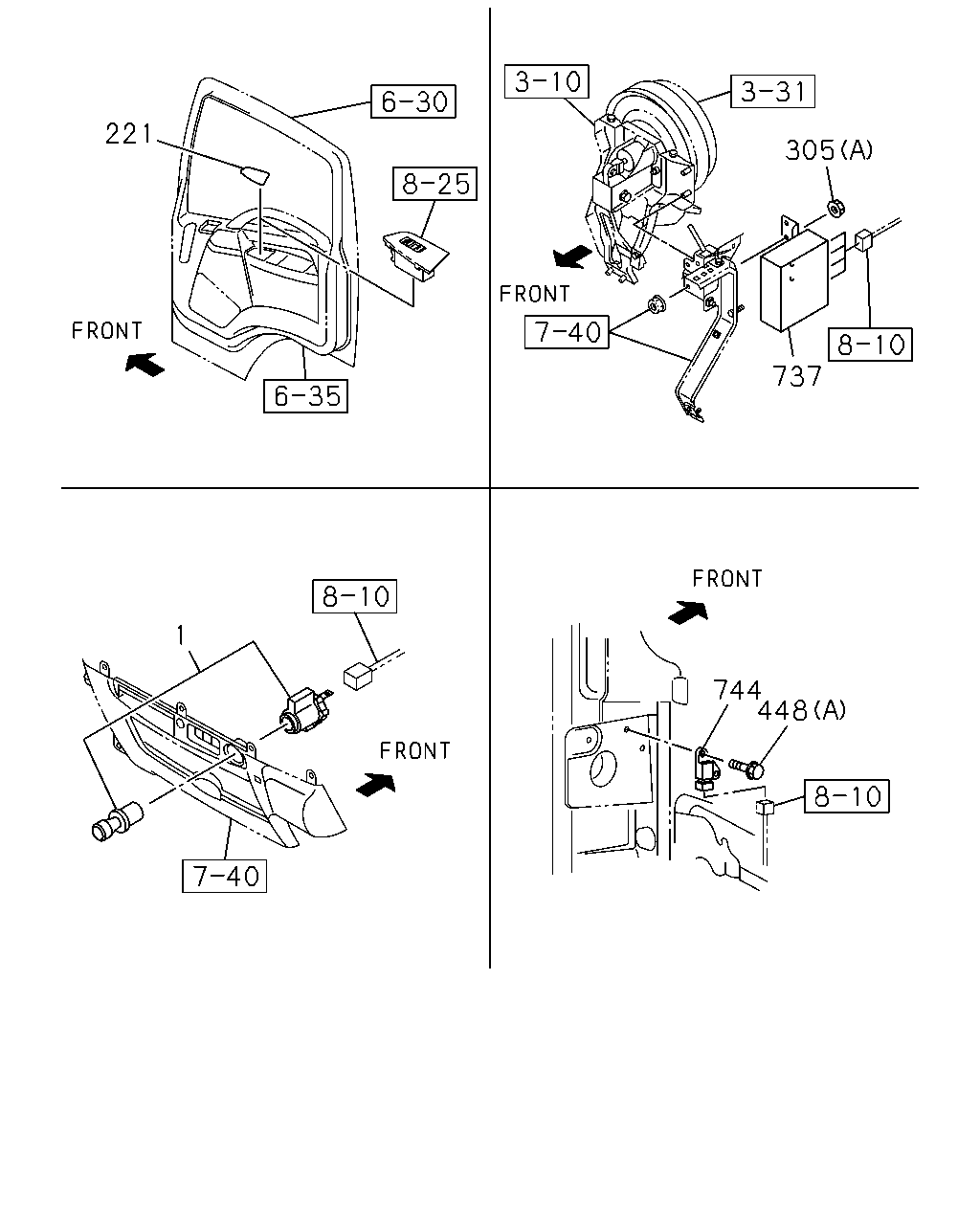

çizim 479805
221 737 305 744 448 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1506- ● ● ● ● ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1506- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1506- ●
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1506- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1506- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1506- ● ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6E(Y5X) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98319-247-0 01 1 1506-1507 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98319-247-0 01 1 1506-1507 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6E(Y5X) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98329-544-0 01 1 1508- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98329-544-0 01 1 1508- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6E(Y5X) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98319-248-0 01 1 1506-1507 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6E(Y5X) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98329-545-0 01 1 1508- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98319-249-0 01 1 1506-1507 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98319-249-0 01 1 1506-1507 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98329-120-0 01 1 1508- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98329-120-0 01 1 1508- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98319-250-0 01 1 1506-1507 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98329-121-0 01 1 1508- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-390-0 01 1 1506-1506 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98308-390-0 01 1 1506-1506 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-390-0 01 1 1506- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98308-390-0 01 1 1506- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-458-0 01 1 1506-1506 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-458-0 01 1 1506- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-392-0 01 1 1506-1506 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98308-392-0 01 1 1506-1506 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-392-0 01 1 1506- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98308-392-0 01 1 1506- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-461-0 01 1 1506-1506 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-461-0 01 1 1506- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98286-462-0 01 1 1506- ● ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98286-462-0 01 1 1506- ● ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-463-0 01 1 1506- ● ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-98190-212-0 01 1 1506- ● ● ● ● ● ●

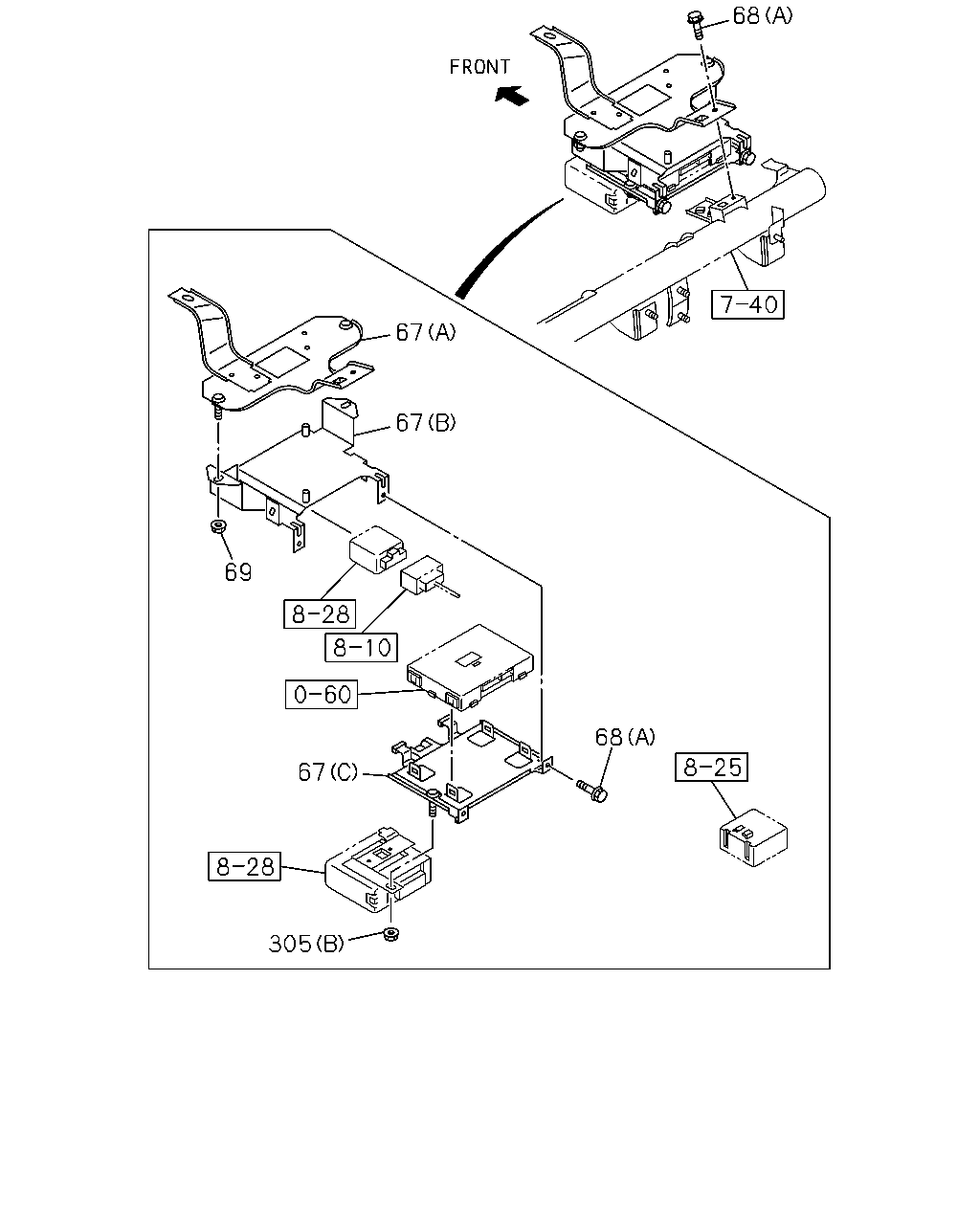

çizim 480547
68 67 67 69 67 68 305
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (B) 		8-98222-391-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (C) 		8-98222-394-2 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) (G) 		8-98312-315-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> (H) 		8-98222-208-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> EXC. MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) 09.650 (C) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1506- ● ● ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1506- ● ● ● ● ● ●

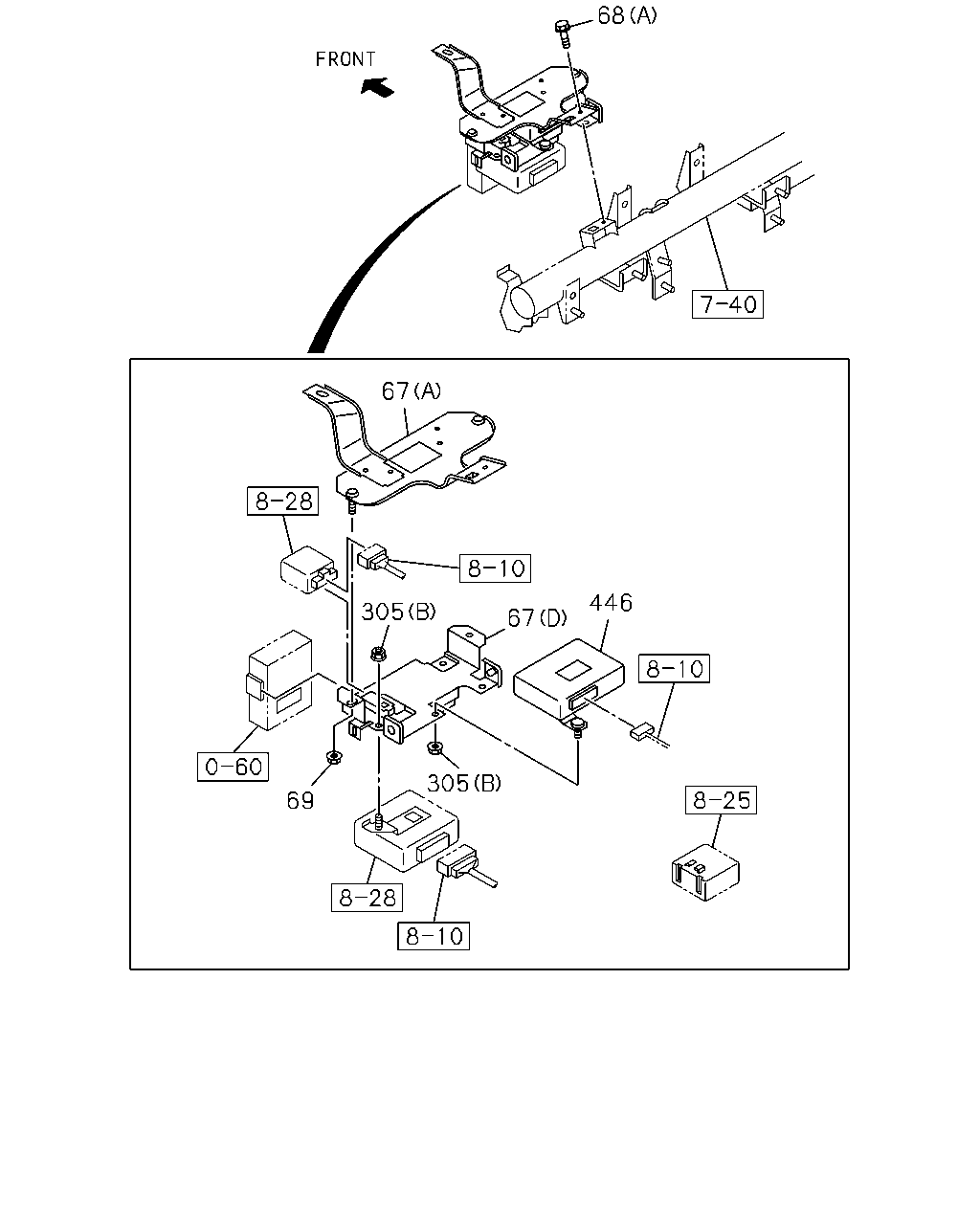

çizim 480593
68 67 305 67 446 305 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (B) 		8-98222-391-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (C) 		8-98222-394-2 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) (G) 		8-98312-315-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> (H) 		8-98222-208-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> EXC. MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) 09.650 (C) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1506- ● ● ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1506- ● ● ● ● ● ●
446 02.510 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98046-563-1 01 1 1506- ● ● ● ● ● ●

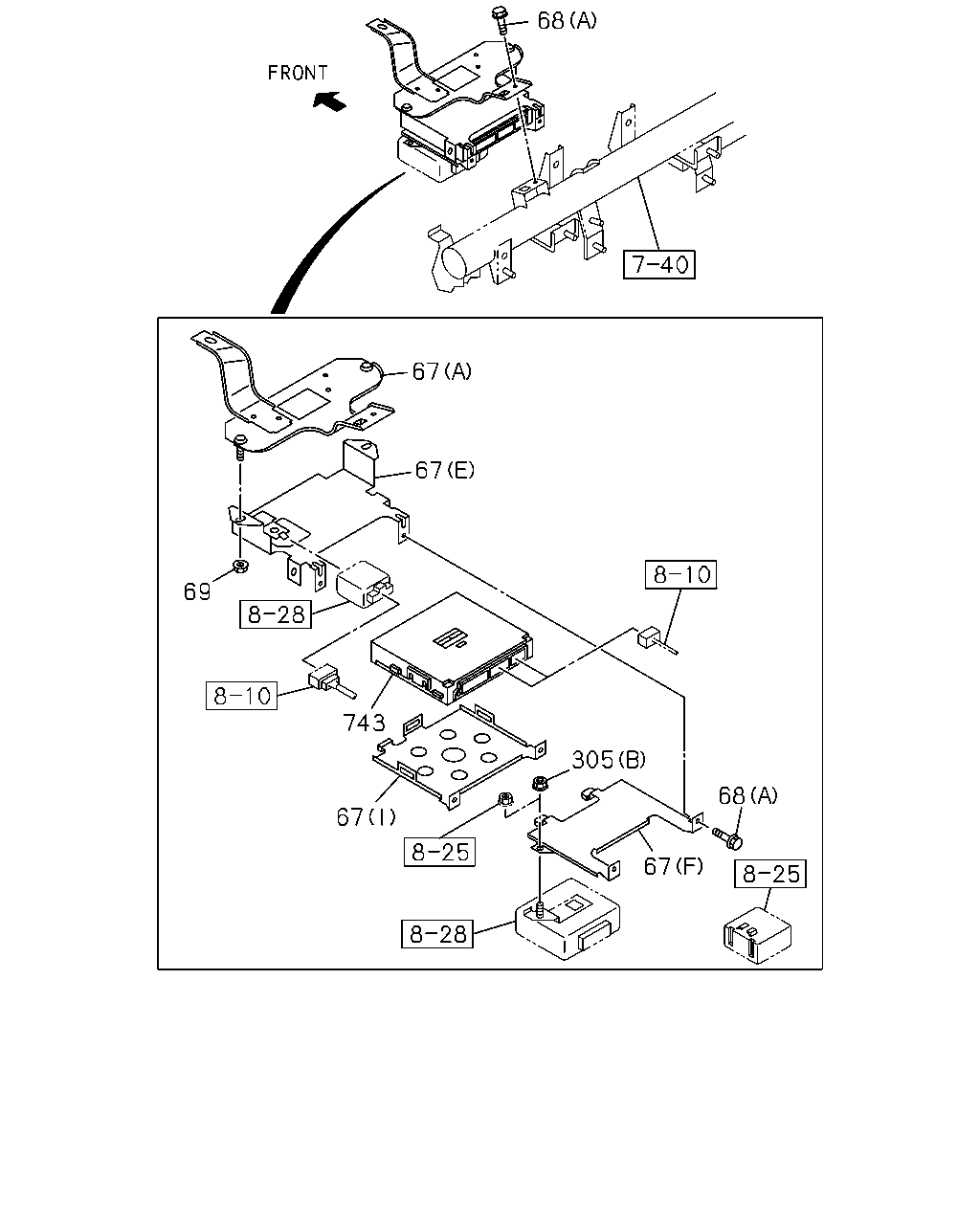

çizim 480595
68 67 67 69 743 67 67 68 305
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (B) 		8-98222-391-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (C) 		8-98222-394-2 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) (G) 		8-98312-315-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> (H) 		8-98222-208-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> EXC. MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) 09.650 (C) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1506- ● ● ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1506- ● ● ● ● ● ●
743 02.510 CONTROL UNIT; BCM
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> 		8-98310-513-0 01 1 1506- ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98310-513-0 01 1 1506- ● ● ● ●

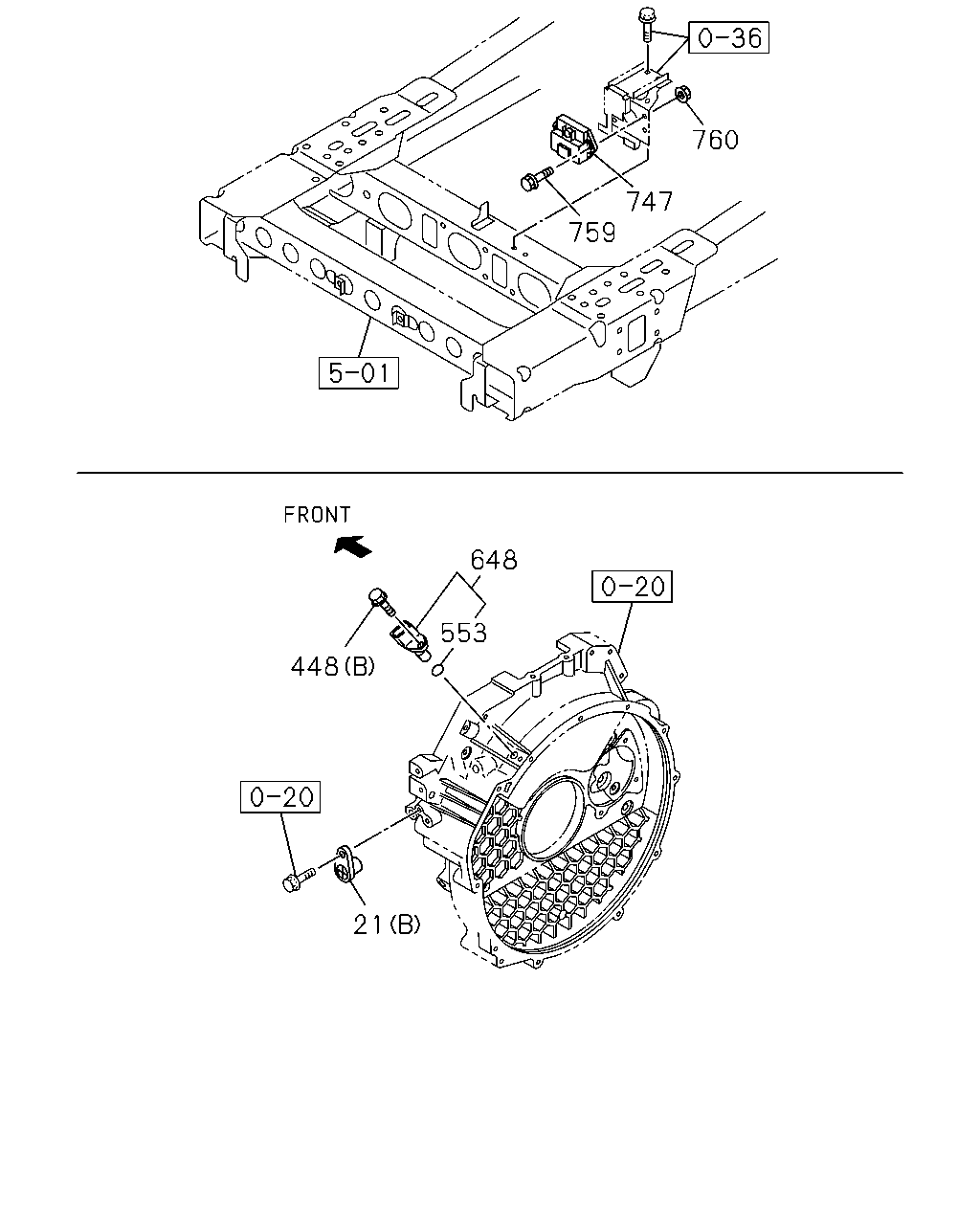

çizim 480761
760 747 759 648 553 448 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 1506- ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1506- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1506- ● ● ● ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1506- ● ● ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1506- ● ● ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1506- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1506- ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1506- ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1506- ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ●
çizim 480791
700 68 67 21 21 700 67 68 452 810 68 296 452
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 1506- ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (I) 		8-98111-836-1 01 1 1511- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (B) 		8-98222-391-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> (C) 		8-98222-394-2 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) (G) 		8-98312-315-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> (H) 		8-98222-208-0 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1506- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (F) 		8-98083-834-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL DISC BRAKE<JF9> (E) 		8-98091-662-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9> (D) 		8-98217-377-0 01 1 1506- ● ●
67 03.887 BRACKET; CONT UNIT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> EXC. MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> (D) 		8-98217-377-0 01 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ●
68 02.500 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 1506- ● ● ● ●
68 02.500 BOLT; BRKT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) 09.650 (C) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) EXC. HILL HOLD ASSIST<SLD> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1506- ● ● ● ● ● ●
296 09.709 COVER; CONT UNIT
HILL HOLD ASSIST<SLD> CAN INTERFACE FMS STD(8PG) 		8-98269-544-1 01 1 1506- ● ● ● ● ● ●
452 08.900 BOLT; BRKT
HILL HOLD ASSIST<SLD> 09.647 SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506- ● ● ● ● ● ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG) 		8-98221-364-1 01 1 1506- ● ● ● ● ● ●
810 16.341 CONTROL UNIT; ISS
HILL HOLD ASSIST<SLD> 		8-98312-061-0 01 1 1506- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
