8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#162908) — 127 parça

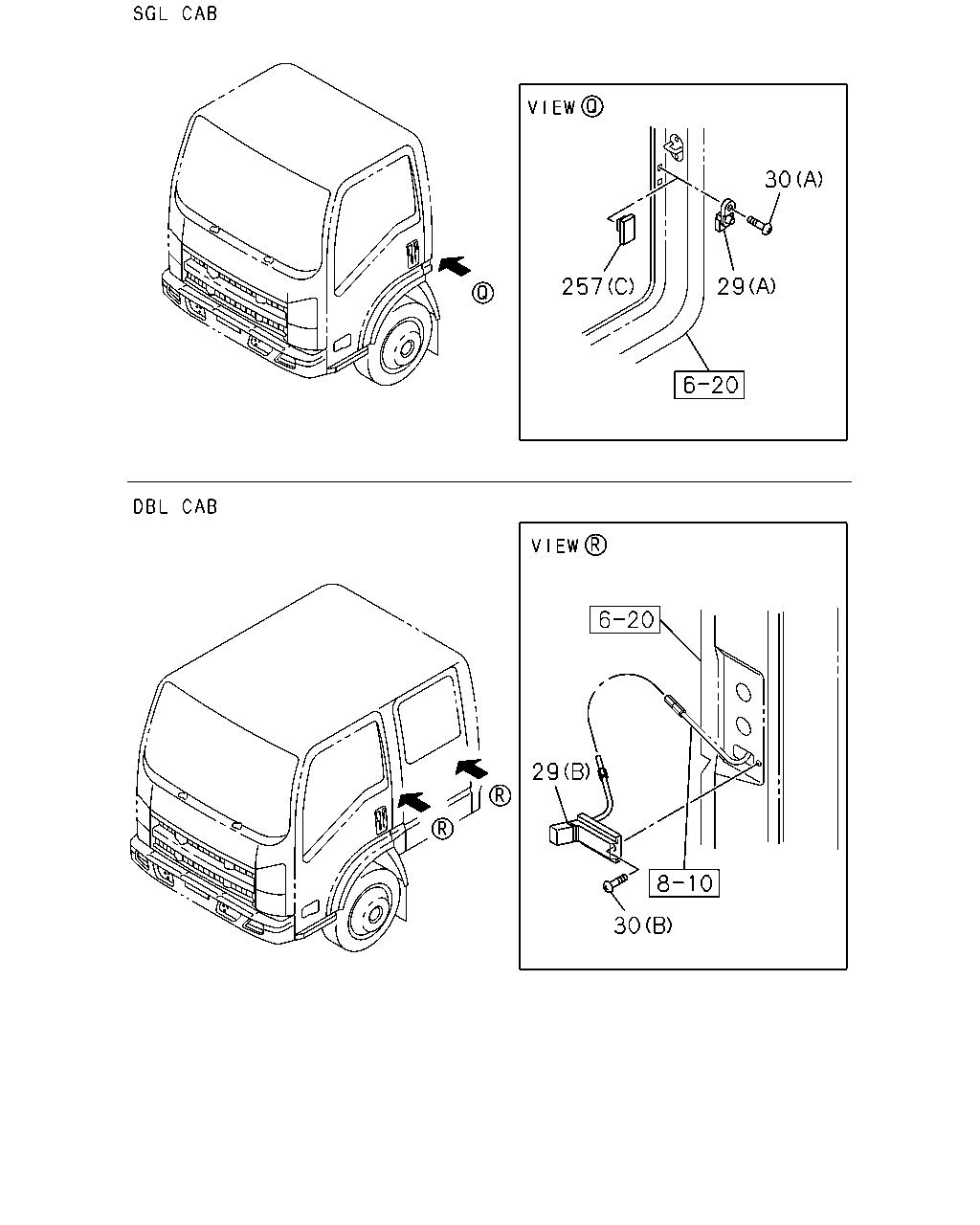

çizim 479817
30 29 29 30 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1506- ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) (A) BLACK 		8-98022-211-0 01 1 1506- ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1506- ● ●
29 16.263 SWITCH; DOOR
(B)FRONT 		8-97855-032-3 01 1 1506- ● ● ●
29 16.263 SWITCH; DOOR
(B)FRONT 		8-97855-032-3 01 1 1506- ● ● ●
29 16.263 SWITCH; DOOR
(B)REAR 		8-98054-195-0 01 1 1506- ● ● ●
29 16.263 SWITCH; DOOR
(B)REAR 		8-98054-195-0 01 1 1506- ● ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18 		8-98047-201-0 02 1 1506- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 1506- ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18 		8-98047-201-0 01 1 1506- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 02 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1506- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
DUMP CONTROL LEVER<RC4> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1506- ●

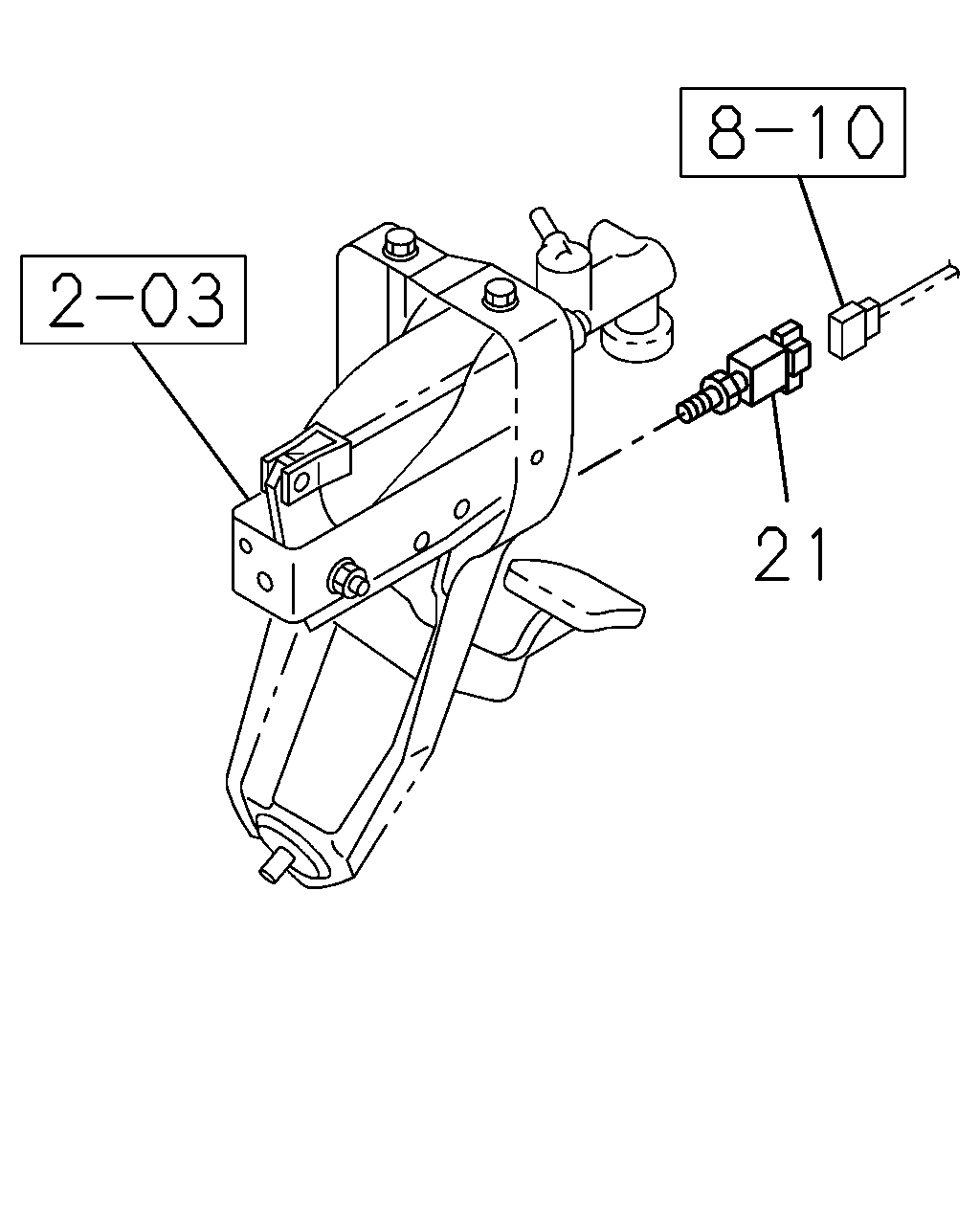

çizim 479833
21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1506- ● ● ●
21 02.575 SWITCH; CLU
DUMP CONTROL LEVER<RC4> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1506- ● ● ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1506- ● ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-97358-248-0 01 1 1506- ●
21 02.575 SWITCH; CLU
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) 02.447 		8-94109-863-0 01 1 1506- ● ● ●
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 02.447 		8-94109-863-0 01 1 1506- ● ●

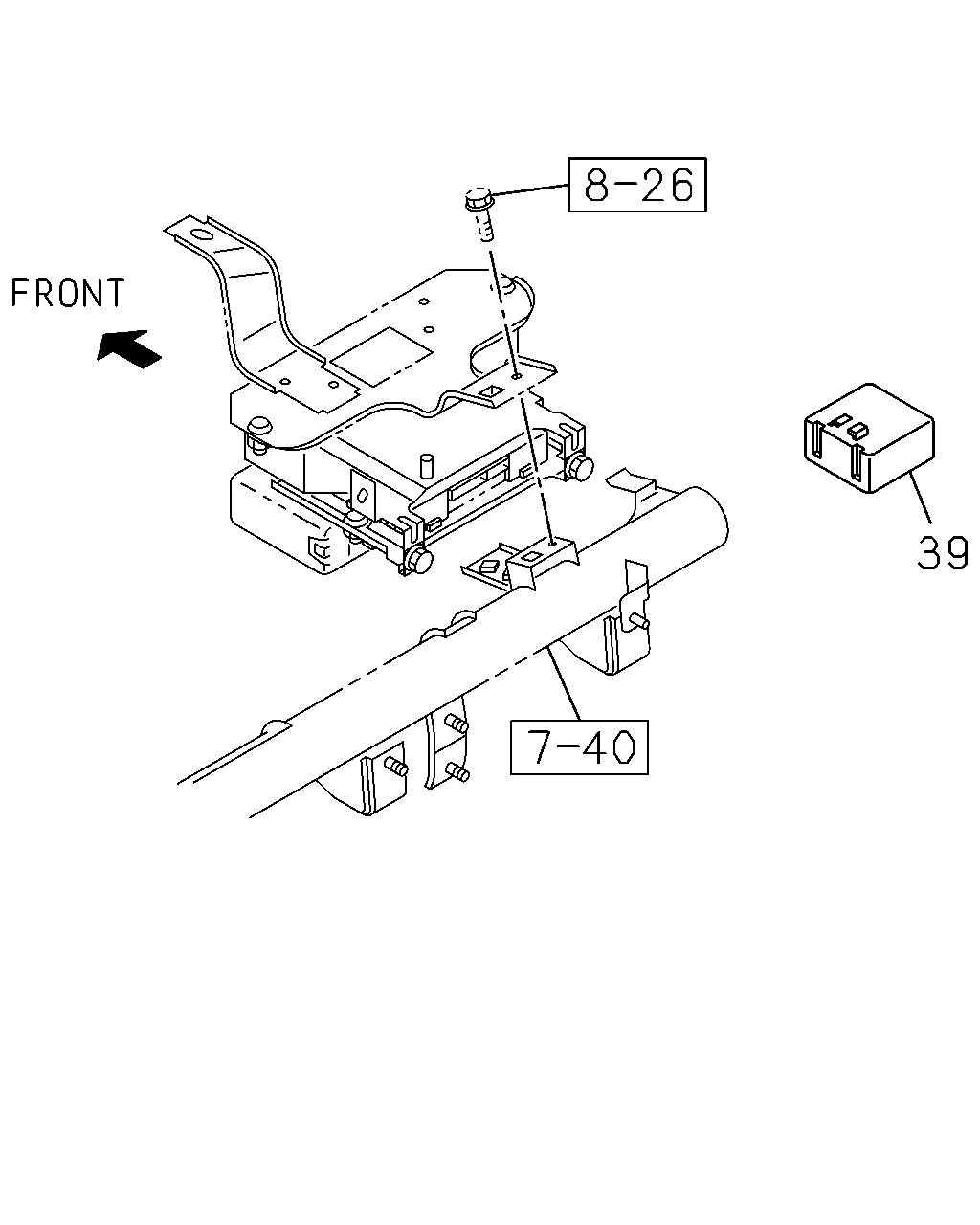

çizim 480094
39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1506- ●

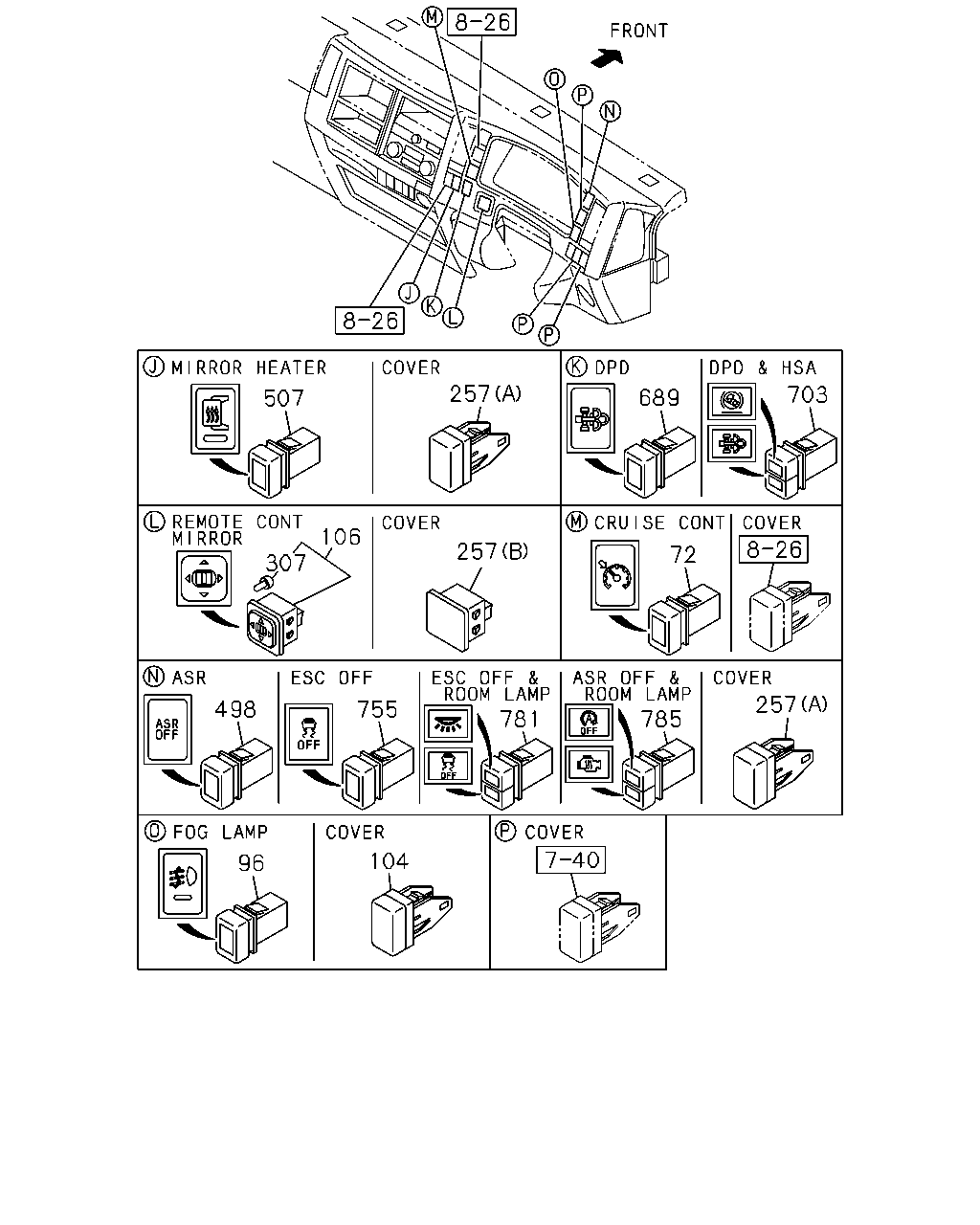

çizim 480456
507 257 689 703 307 106 257 72 257 498 755 781 785 104 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
72 02.485 SWITCH; CRUISE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98011-344-1 01 1 1506- ● ●
72 02.485 SWITCH; CRUISE CONT
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98011-344-1 01 1 1506- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1506- ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> 		8-97173-294-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 02 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1506- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
DUMP CONTROL LEVER<RC4> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1506- ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> 24V 		8-98226-896-0 01 1 1506- ● ● ● ● ● ●
498 03.883 SWITCH; ASR
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> 		8-98251-095-2 01 1 1506- ● ● ●
498 03.883 SWITCH; ASR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98251-095-2 01 1 1506- ● ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-97386-924-3 01 1 1506- ● ● ● ● ● ●
689 02.780 SWITCH; DPD
EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1506- ● ● ● ● ● ●
703 02.780 SWITCH; DPD & HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1506- ● ● ● ● ● ●
755 03.883 SWITCH; ESC OFF
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98190-384-1 01 1 1506- ● ● ●
781 03.883 SWITCH; ESC OFF & ROOM LAMP
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98190-385-1 01 1 1506- ● ● ●
785 03.883 SWITCH; ASR OFF & ROOM LAMP
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> 		8-98286-332-1 01 1 1506- ● ● ●
785 03.883 SWITCH; ASR OFF & ROOM LAMP
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98286-332-1 01 1 1506- ● ● ●
çizim 480511
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506- ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ● ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1506- ● ● ● ● ● ●

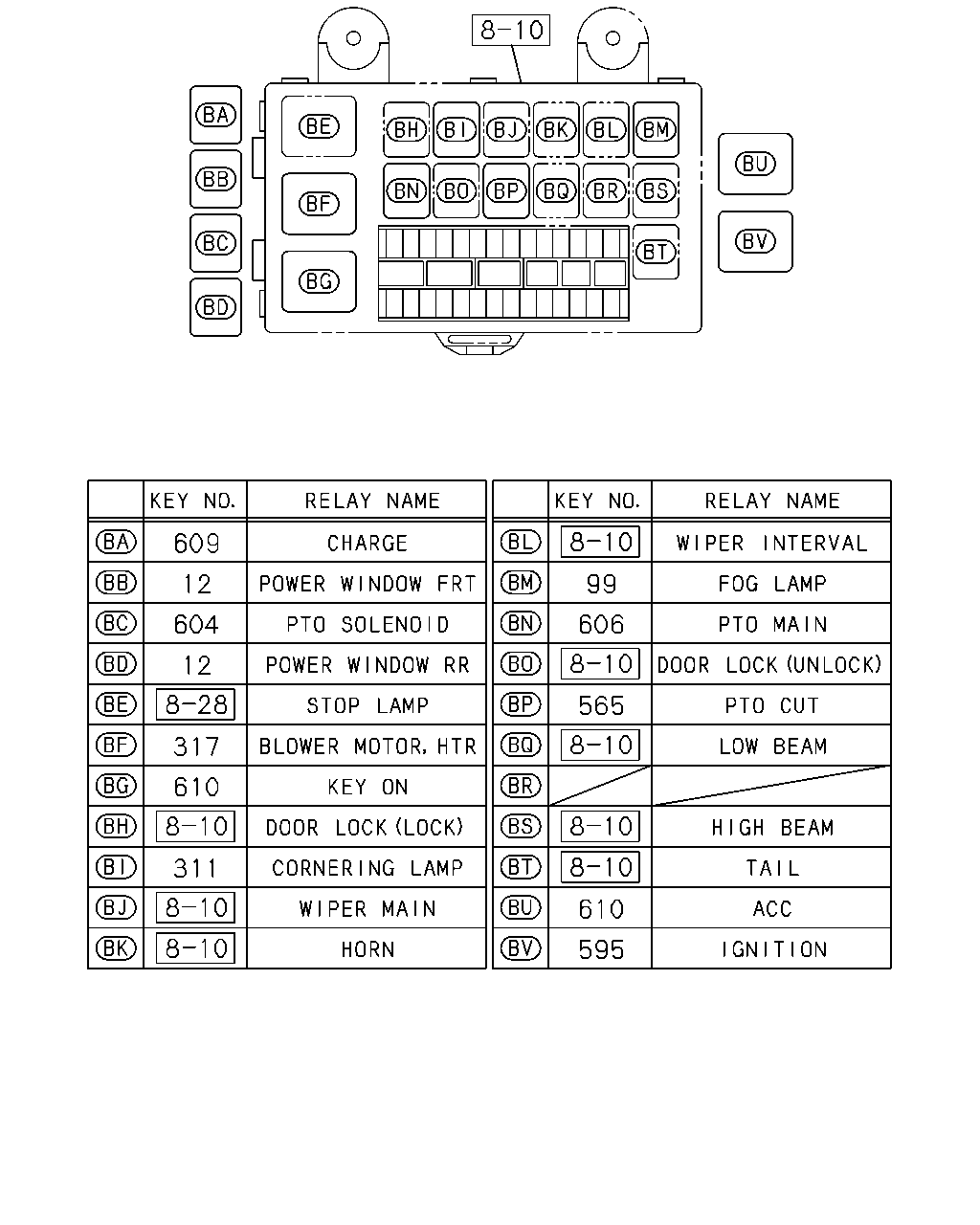

çizim 480544
609 12 604 12 317 610 311 99 606 565 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ● ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506- ● ● ● ● ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506- ● ● ● ● ● ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ●
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1506- ● ● ● ● ● ●

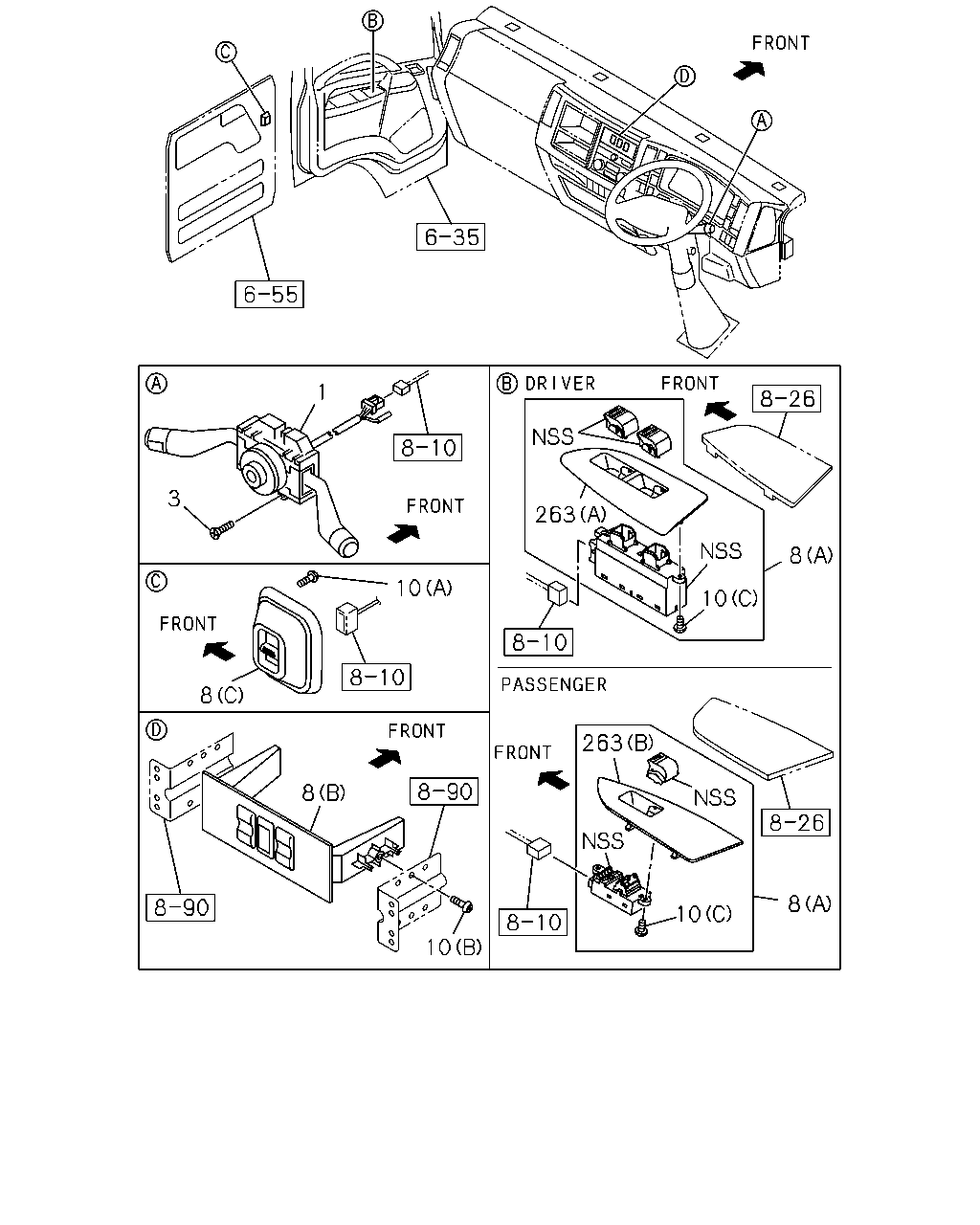

çizim 480788
1 3 8 8 10 263 10 8 10 263 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-725-0 01 1 1506- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-725-0 01 1 1506- ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-726-0 01 1 1506- ● ● ● ●
3 02.897 SCREW; COMB SW
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1506-1507 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1508- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98227-828-0 01 1 1506-1509 ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98227-828-0 01 1 1506-1509 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-754-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98298-754-0 01 1 1510- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98227-829-0 01 1 1506-1509 ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98227-829-0 01 1 1506-1509 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-423-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98316-423-0 01 1 1510- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 1506- ● ● ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR 		8-97387-035-0 02 1 1506- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1506- ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 1506- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1506- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1506- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-836-0 01 1 1506- ●
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 1506- ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-841-0 01 1 1506- ●
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 1506- ● ● ● ● ●

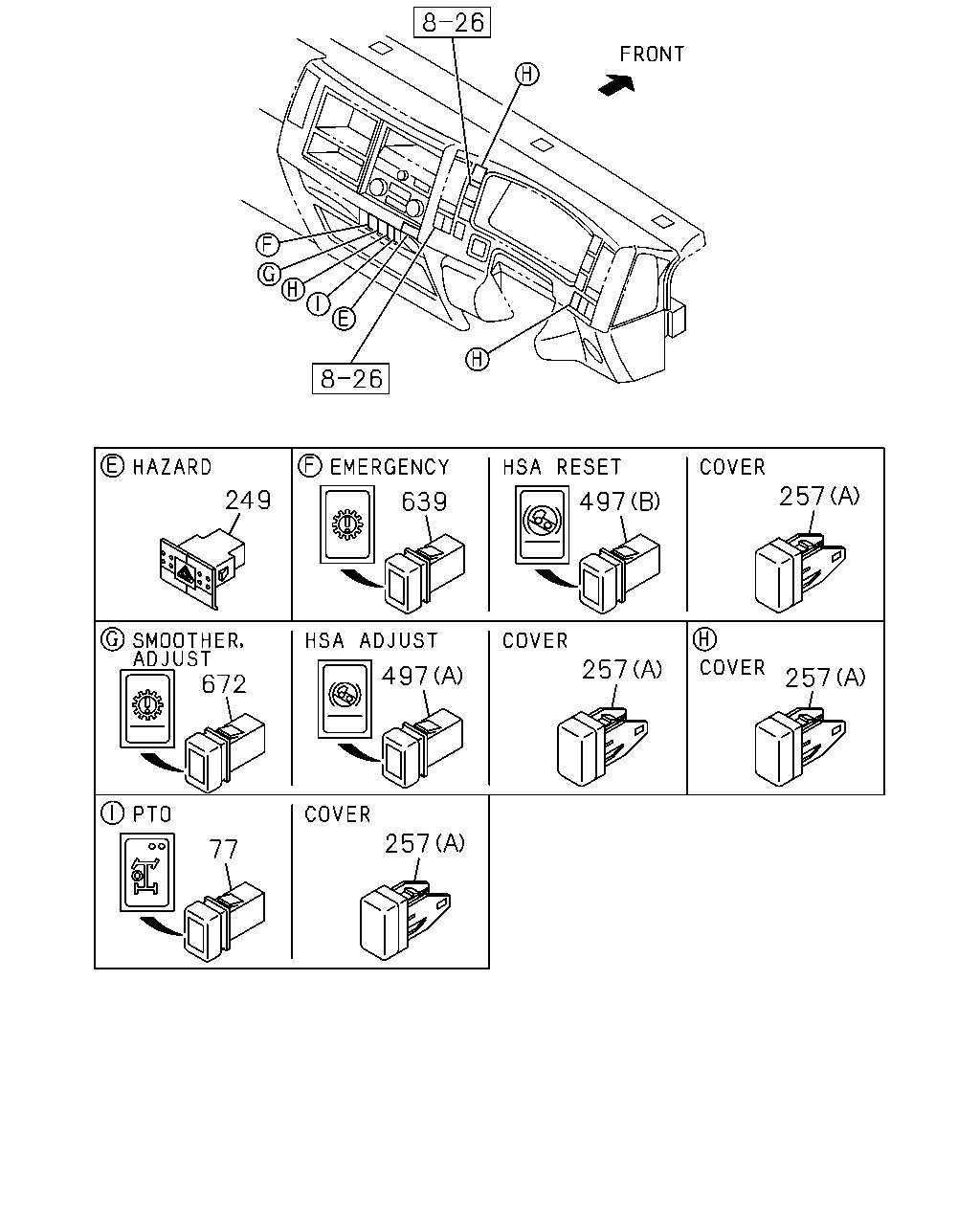

çizim 480813
249 639 497 257 672 497 257 257 77 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1506- ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-97386-964-2 01 1 1506- ● ● ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-964-2 01 1 1506- ● ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) 		8-97386-964-2 01 1 1506- ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) 		8-97386-993-4 01 1 1506-1507 ● ● ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-993-4 01 1 1508- ● ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 		8-97386-993-4 01 1 1508- ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) 		8-97386-993-4 01 1 1508- ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97386-993-4 01 1 1508- ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 02 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1506- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> (A) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
DUMP CONTROL LEVER<RC4> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL (6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1506- ●
497 04.439 SWITCH; HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)RESET 		8-98119-946-0 01 1 1506- ● ● ● ● ● ●
497 04.439 SWITCH; HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)ADJUST 		8-98119-947-1 01 1 1506- ● ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1506- ● ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1506- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
