8-21 — METER ASM (#162907) — 39 parça

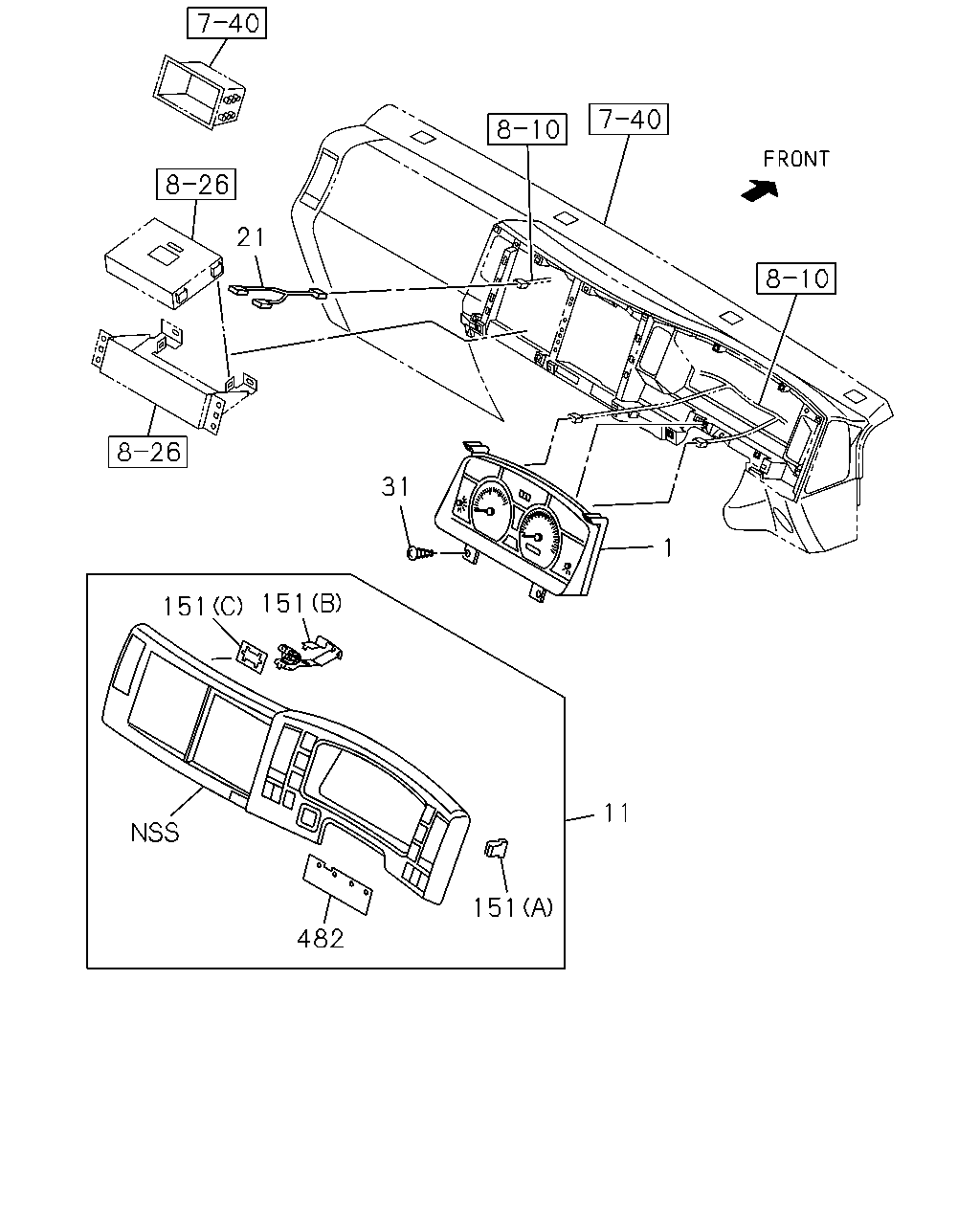

çizim 479841
21 31 1 11 151 482 151 151
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-995-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-988-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98276-009-2 01 1 1506- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98276-009-2 01 1 1506- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 4 WHEEL DISC BRAKE<JF9> 		8-98276-011-2 01 1 1506- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-993-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98275-993-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-985-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98275-985-1 01 1 1506- ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1506- ● ● ● ● ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD(8PG) 		8-98204-881-1 01 1 1506- ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1506- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1506- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1506- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1506- ● ● ● ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1506- ● ● ● ● ● ●

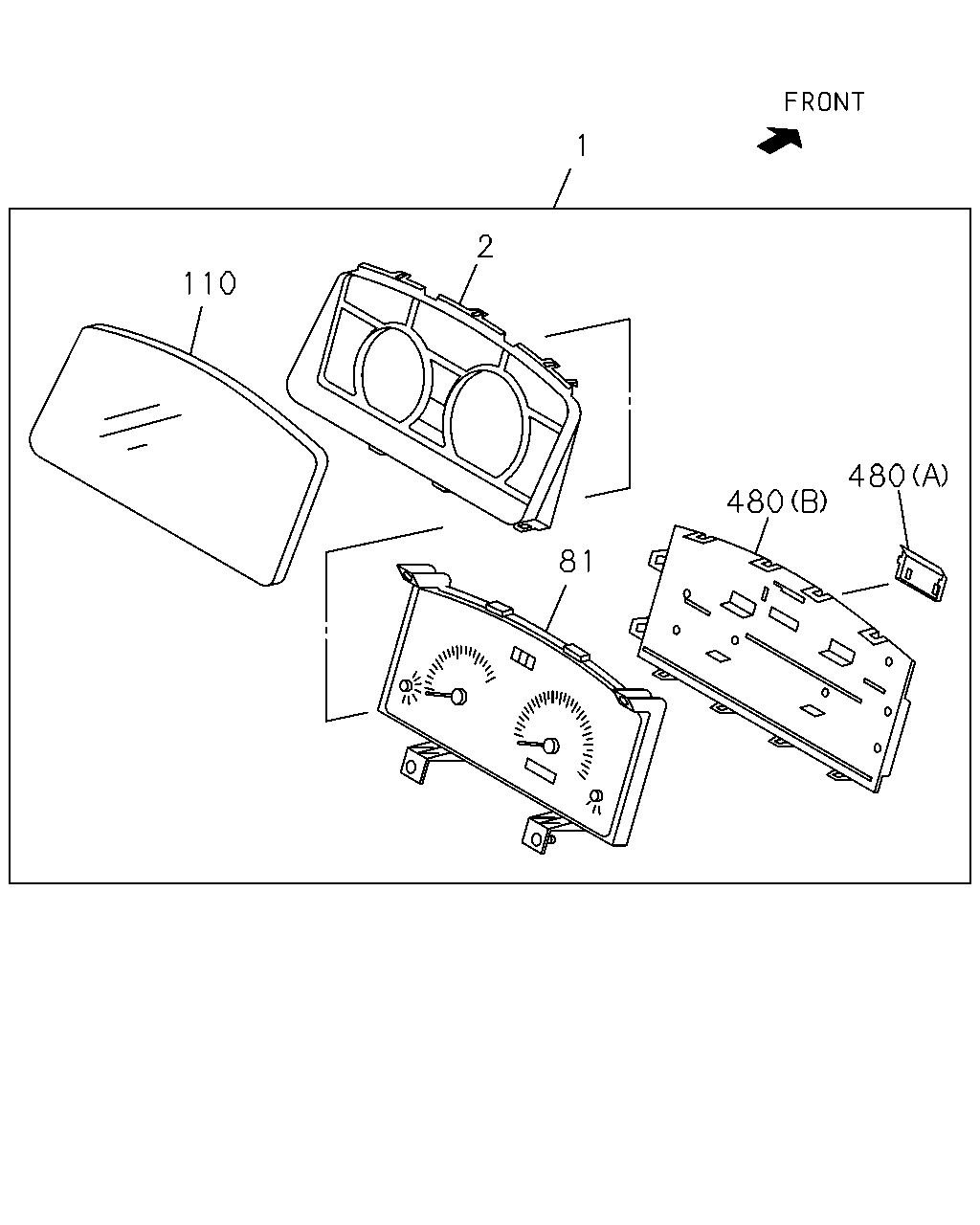

çizim 480108
1 2 81 480 480 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-995-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-988-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98276-009-2 01 1 1506- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98276-009-2 01 1 1506- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 4 WHEEL DISC BRAKE<JF9> 		8-98276-011-2 01 1 1506- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-993-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98275-993-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> 		8-98275-985-1 01 1 1506- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98275-985-1 01 1 1506- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER 8-98054-638-0 01 1 1506- ● ● ● ● ● ●
81 09.735 METER SUB ASM
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 		8-98288-225-0 01 1 1506- ● ● ● ● ● ●
81 09.735 METER SUB ASM
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY<CX6>,MULTI INFORMATION DISPLAY<7NY> 		8-98288-218-0 01 1 1506- ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98288-237-0 01 1 1506- ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-237-0 01 1 1506- ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 4 WHEEL DISC BRAKE<JF9> 		8-98288-238-0 01 1 1506- ● ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> 		8-98288-223-0 01 1 1506- ● ● ● ● ● ●
81 09.735 METER SUB ASM
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98288-223-0 01 1 1506- ● ● ● ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,MULTI INFORMATION DISPLAY<7NY> 		8-98288-215-0 01 1 1506- ● ● ● ● ● ●
81 09.735 METER SUB ASM
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98288-215-0 01 1 1506- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1506- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1506- ● ● ● ●
480 09.748 COVER; METER
(B) 		8-98151-362-0 01 1 1506- ● ● ● ● ● ●
480 09.748 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1506- ● ● ● ●
