Sayfa 8-15 - Isuzu EPC

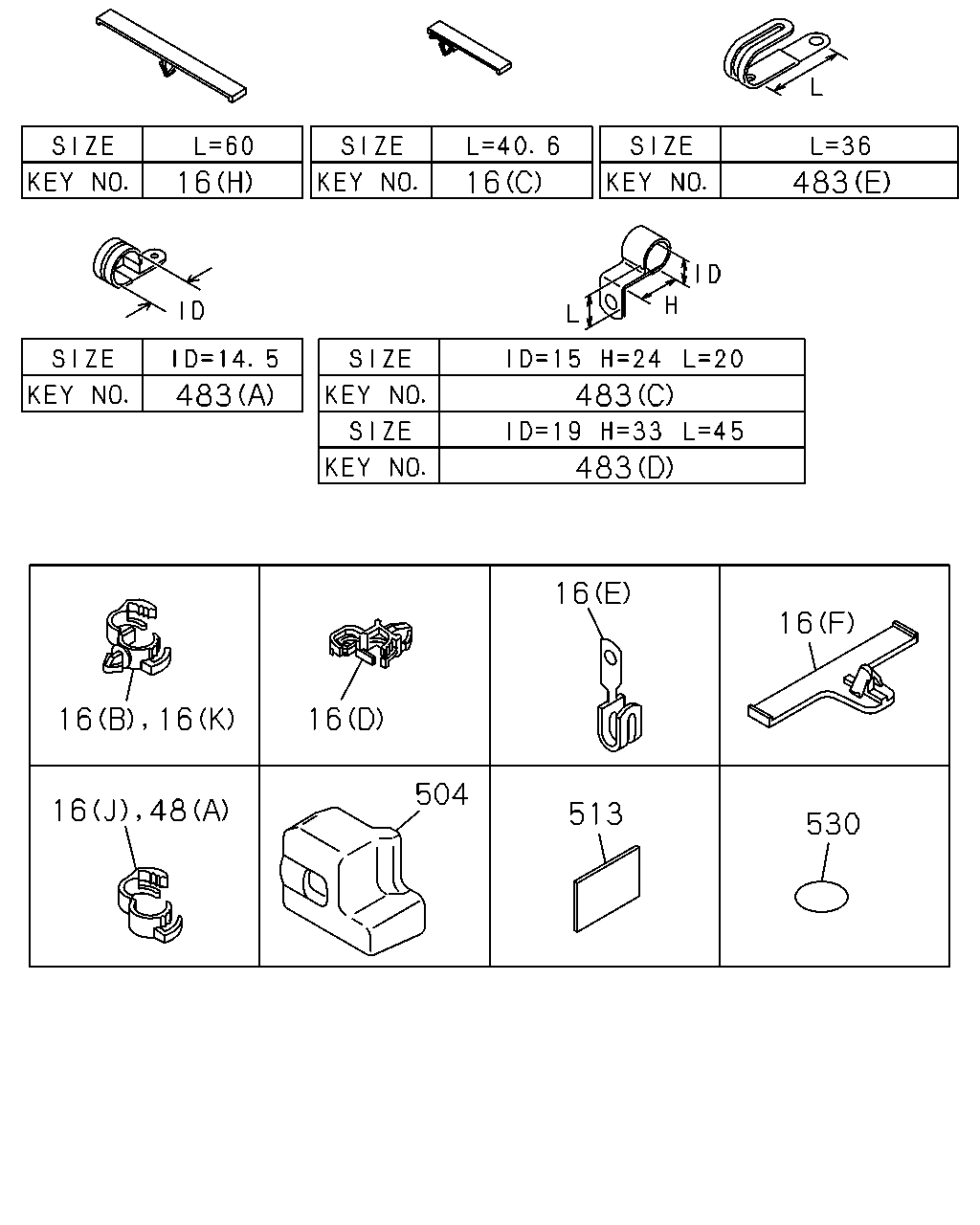

8-15 — FIXING PARTS; WIRING HARNESS (#162906) — 735 parça

14 22 48 22 22 22 102 570 16 22 16 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	03	1	1506-	●	●	●	●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (K) ID=7-10	8-94472-578-0	01	1	1506-	●	●			●
16	02.559 CLIP; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (J) ID=20	8-94241-972-0	01	1	1506-1507					●
16	02.559 CLIP; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1506-1507	●
16	02.559 CLIP; HARNESS WHEEL BASE 3300MM(33W) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1506-1507	●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1506-1507						●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1508-					●	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1508-	●		●
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1506-	●	●	●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=155	8-97173-307-0	07	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) L=155	8-97173-307-0	07	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (A) L=155	8-97173-307-0	07	1	1506-						●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F)	8-98052-679-0	01	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98052-679-0	01	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (F)	8-98052-679-0	01	1	1506-						●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=40.6	8-97229-357-0	01	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) L=40.6	8-97229-357-0	01	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (C) L=40.6	8-97229-357-0	01	1	1506-						●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=170.3	1-09987-182-0	01	1	1506-					●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (H) L=119.5	1-09707-197-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.594 (I) L=100	5-09707-036-1	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250	5-09707-030-1	01	1	1506-	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250	5-09707-030-1	01	1	1506-		●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 (C) L=350	8-94152-256-1	02	1	1506-	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 (C) L=350	8-94152-256-1	02	1	1506-		●		●

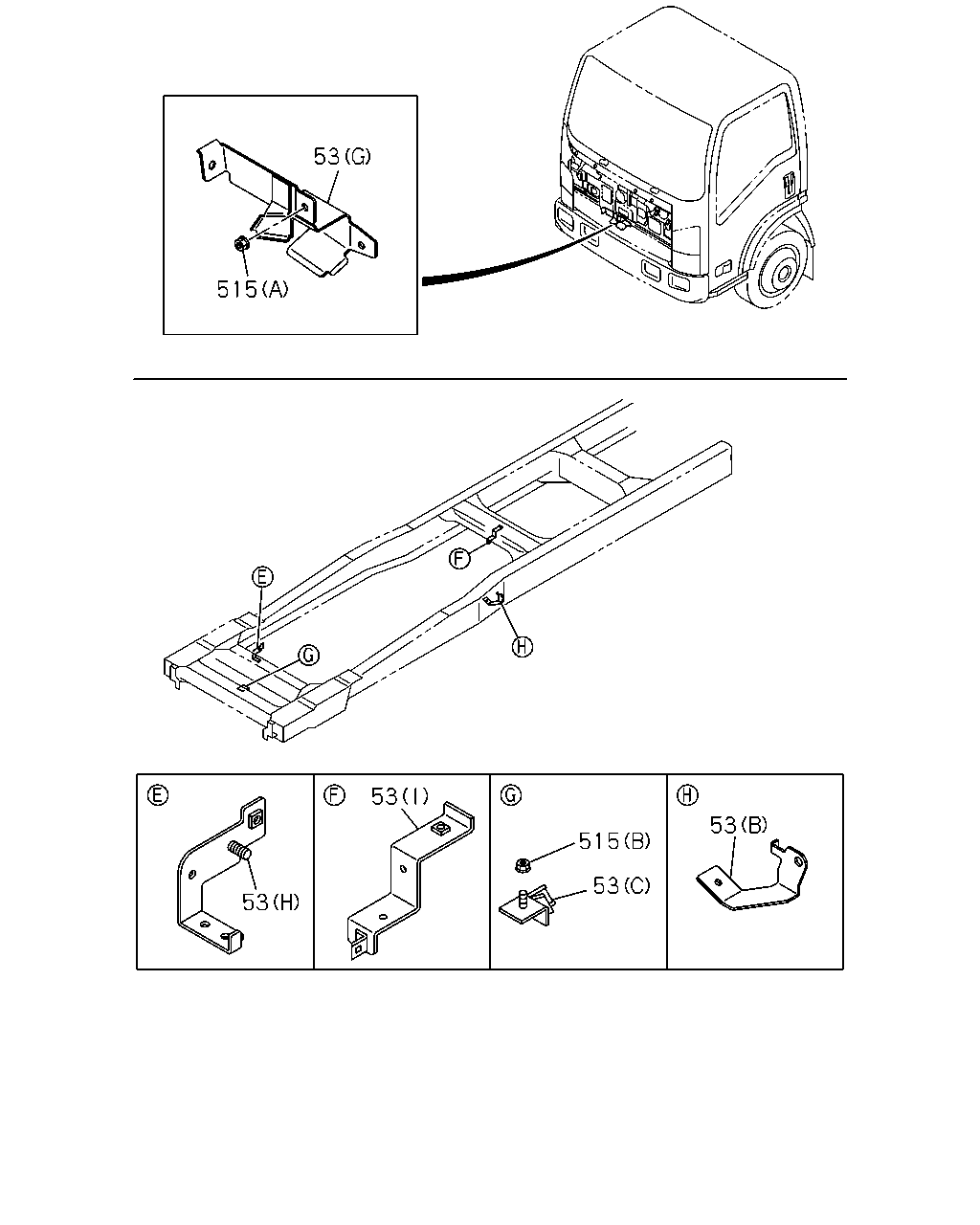

48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1506					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1506	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1506						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507			●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	1506-1507				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	1508-			●	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1506	●				●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1506		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1508-					●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-	●
48	02.559 CLIP; FRAME HARNESS FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1508-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (C) L=450	1-09707-142-1	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (C) L=450	1-09707-142-1	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	02	1	1506-1506	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	02	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	02	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-				●
48	02.559 CLIP; FRAME HARNESS 08.852 (G) L=350	8-94152-256-1	01	1	1506-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (G) L=350	8-94152-256-1	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) T=9 & 10.5	8-97371-949-0	03	1	1506-1506			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=9 & 10.5	8-97371-949-0	03	1	1506-1506			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=9 & 10.5	8-97371-949-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (H) T=9 & 10.5	8-97371-949-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) T=9 & 10.5	8-97371-949-0	02	1	1506-1506				●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=10.5	8-97371-950-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (H) T=10.5	8-97371-950-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) T=10.5	8-97371-950-0	03	1	1506-1506				●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) T=10.5	8-97371-950-0	02	1	1506-				●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1506-1506	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-1506	●		●		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1506-			●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	01	1	1506-					●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	01	1	1506-		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	08	1	1506-	●	●	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	1508-			●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1506-1507	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1506-1507			●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1508-1511	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	02	1	1512-	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1506-1507			●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1511	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1511			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	1512-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1506-	●		●

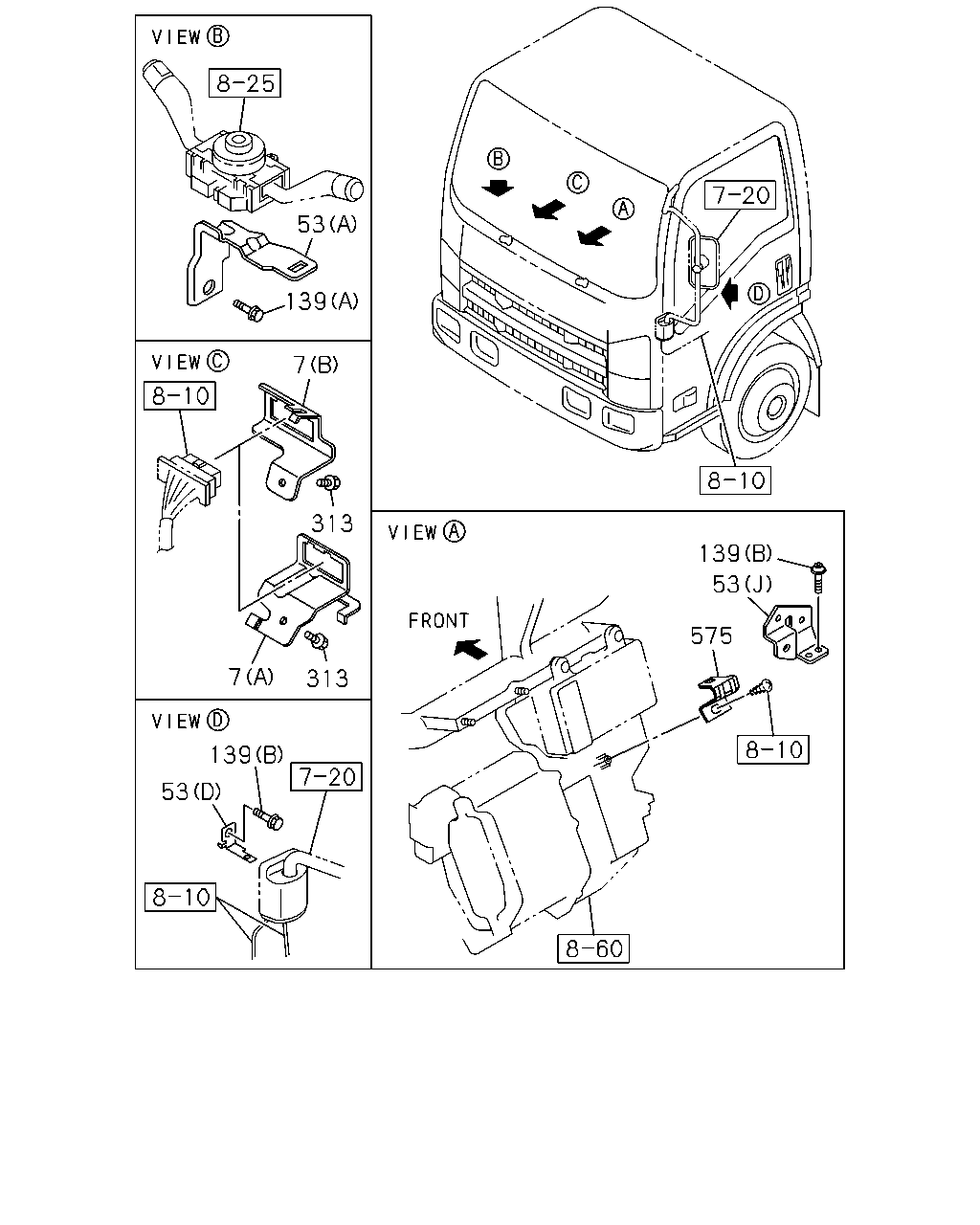

53 139 313 313 139 53 575 139 53 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	1506-	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	1506-	●	●	●	●	●	●

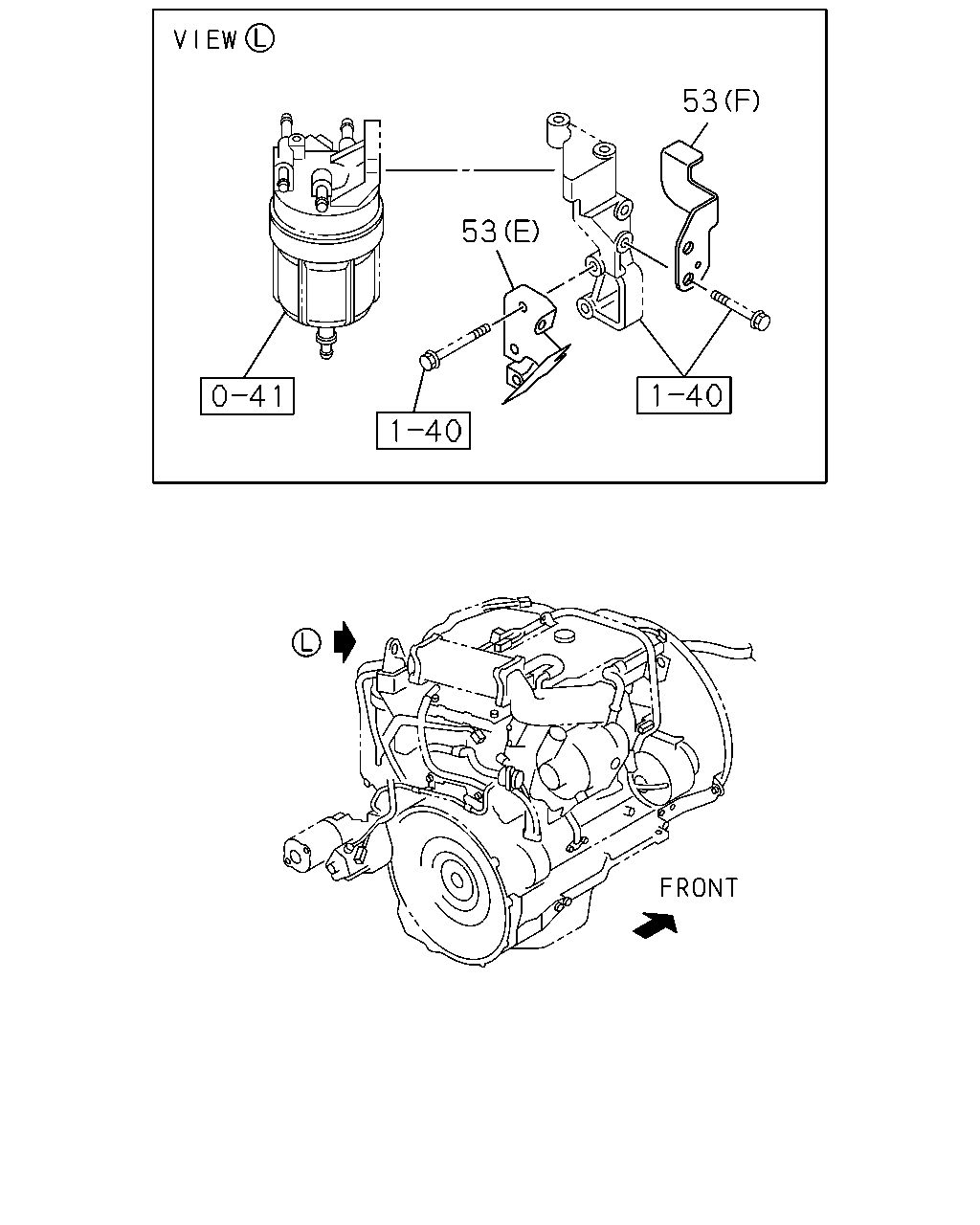

53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (D)	8-98039-277-2	02	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-699-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1506-	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1506-	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1506-1507	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1508-	●		●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1508-		●		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1506-	●		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1506-		●		●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1506-	●	●	●	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-	●	●	●	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1506-	●	●	●	●	●	●

48 22 22 48 48 570 483 570 48 48 16 48 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (K) ID=7-10	8-94472-578-0	01	1	1506-	●	●			●
16	02.559 CLIP; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (J) ID=20	8-94241-972-0	01	1	1506-1507					●
16	02.559 CLIP; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1506-1507	●
16	02.559 CLIP; HARNESS WHEEL BASE 3300MM(33W) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1506-1507	●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1506-1507						●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1508-					●	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1508-	●		●
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1506-	●	●	●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=155	8-97173-307-0	07	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) L=155	8-97173-307-0	07	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (A) L=155	8-97173-307-0	07	1	1506-						●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F)	8-98052-679-0	01	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98052-679-0	01	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (F)	8-98052-679-0	01	1	1506-						●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=40.6	8-97229-357-0	01	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) L=40.6	8-97229-357-0	01	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (C) L=40.6	8-97229-357-0	01	1	1506-						●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=170.3	1-09987-182-0	01	1	1506-					●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (H) L=119.5	1-09707-197-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.594 (I) L=100	5-09707-036-1	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1506-					●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250	5-09707-030-1	01	1	1506-	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250	5-09707-030-1	01	1	1506-		●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 (C) L=350	8-94152-256-1	02	1	1506-	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 (C) L=350	8-94152-256-1	02	1	1506-		●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1506					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1506	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1506						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507			●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	1506-1507				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	1508-			●	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1506	●				●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1506		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1508-					●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-	●
48	02.559 CLIP; FRAME HARNESS FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1508-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (C) L=450	1-09707-142-1	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (C) L=450	1-09707-142-1	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	02	1	1506-1506	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	02	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	02	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-				●
48	02.559 CLIP; FRAME HARNESS 08.852 (G) L=350	8-94152-256-1	01	1	1506-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (G) L=350	8-94152-256-1	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) T=9 & 10.5	8-97371-949-0	03	1	1506-1506			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=9 & 10.5	8-97371-949-0	03	1	1506-1506			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=9 & 10.5	8-97371-949-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (H) T=9 & 10.5	8-97371-949-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) T=9 & 10.5	8-97371-949-0	02	1	1506-1506				●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=10.5	8-97371-950-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (H) T=10.5	8-97371-950-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) T=10.5	8-97371-950-0	03	1	1506-1506				●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) T=10.5	8-97371-950-0	02	1	1506-				●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1506-1506	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-1506	●		●		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1506-			●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	01	1	1506-					●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	01	1	1506-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1506-	●	●	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	1508-			●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1506-1507	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1506-1507			●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1508-1511	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	02	1	1512-	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1506-1507			●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1511	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1511			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	1512-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1506-	●		●

16 16 483 483 483 483 16 16 16 48 16 504 513 16 16 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (K) ID=7-10	8-94472-578-0	01	1	1506-	●	●			●
16	02.559 CLIP; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (J) ID=20	8-94241-972-0	01	1	1506-1507					●
16	02.559 CLIP; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1506-1507	●
16	02.559 CLIP; HARNESS WHEEL BASE 3300MM(33W) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1506-1507	●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1506-1507						●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1508-					●	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1508-	●		●
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1506-	●	●	●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1506-			●	●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) L=155	8-97173-307-0	07	1	1506-					●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=155	8-97173-307-0	07	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) L=155	8-97173-307-0	07	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (A) L=155	8-97173-307-0	07	1	1506-						●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (F)	8-98052-679-0	01	1	1506-					●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F)	8-98052-679-0	01	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98052-679-0	01	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (F)	8-98052-679-0	01	1	1506-						●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	1506-					●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1506-	●	●	●	●		●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=40.6	8-97229-357-0	01	1	1506-	●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) L=40.6	8-97229-357-0	01	1	1506-		●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (C) L=40.6	8-97229-357-0	01	1	1506-						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1506					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1506	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1506						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1506-1507			●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	1506-1507				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	1508-			●	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1506	●				●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1506		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1508-					●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=4.5 & 9	8-97371-947-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1508-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1506-1507					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1506-1507	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1506-1507						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	02	1	1508-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-	●
48	02.559 CLIP; FRAME HARNESS FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1508-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1508-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (C) L=450	1-09707-142-1	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (C) L=450	1-09707-142-1	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	02	1	1506-1506	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F) T=5.5	8-97371-951-0	02	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) T=5.5	8-97371-951-0	02	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1506-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1506-				●
48	02.559 CLIP; FRAME HARNESS 08.852 (G) L=350	8-94152-256-1	01	1	1506-						●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (G) L=350	8-94152-256-1	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) T=9 & 10.5	8-97371-949-0	03	1	1506-1506			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=9 & 10.5	8-97371-949-0	03	1	1506-1506			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=9 & 10.5	8-97371-949-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (H) T=9 & 10.5	8-97371-949-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) T=9 & 10.5	8-97371-949-0	02	1	1506-1506				●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) T=10.5	8-97371-950-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (H) T=10.5	8-97371-950-0	01	1	1506-			●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) T=10.5	8-97371-950-0	03	1	1506-1506				●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) T=10.5	8-97371-950-0	02	1	1506-				●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1506-1506	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-1506	●		●		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1506-			●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	01	1	1506-					●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=20	8-94241-972-0	01	1	1506-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	1506-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1506-	●	●	●	●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB)	8-98208-886-0	01	1	1506-					●	●
513	02.559 TAPE; SOFT,HARNESS NEW ZEALAND COUNTRY<CX6> AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80	8-97304-373-0	01	1	1509-	●	●	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1506-	●	●	●	●	●	●

53 515 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (D)	8-98039-277-2	02	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-699-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1506-	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1506-	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1506-1507	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1508-	●		●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1508-		●		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1506-	●		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1506-		●		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-		●
515	02.559 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-		●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-				●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1506-	●	●	●	●	●	●

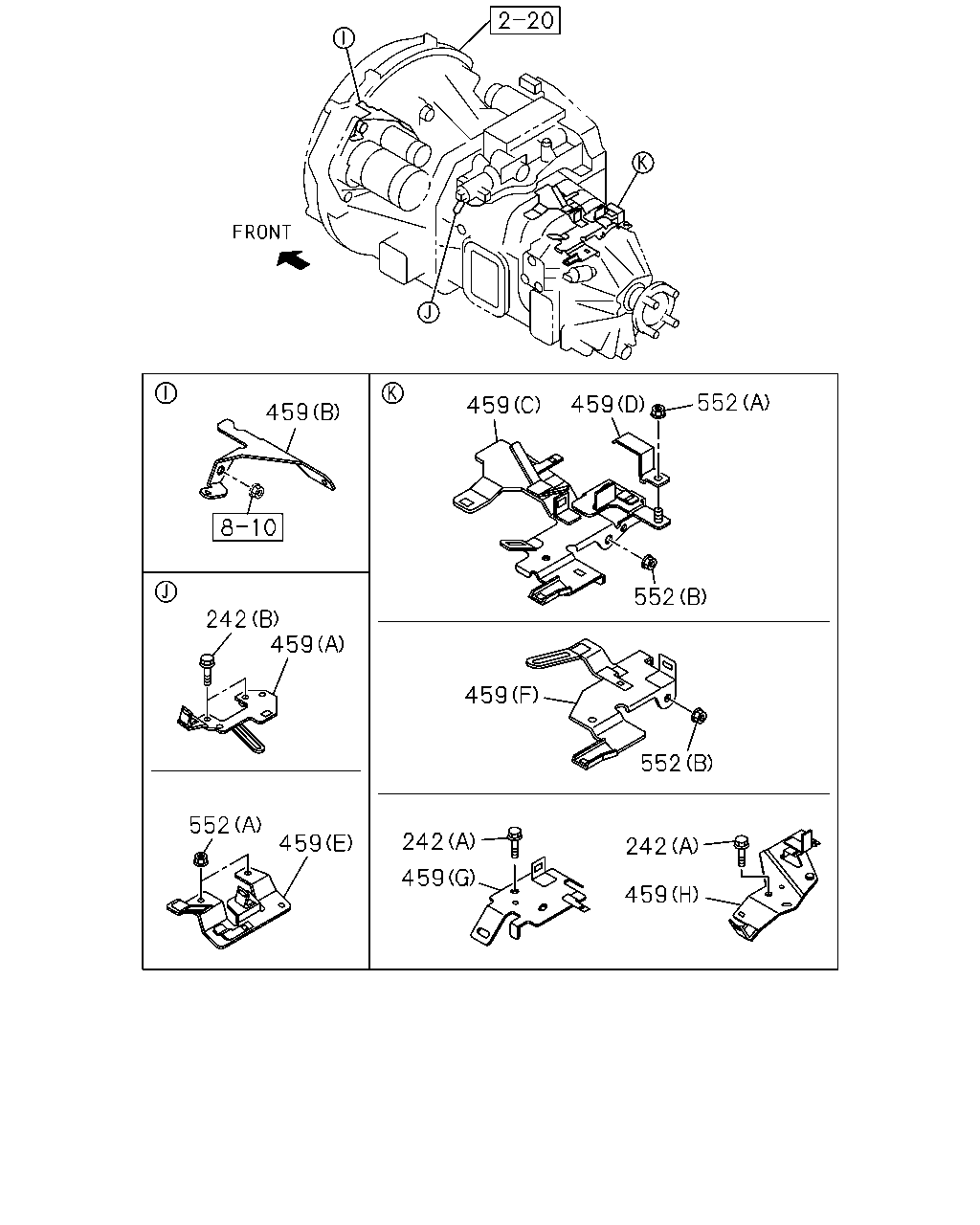

459 459 459 552 552 459 242 242 459 552 459 459 552 242 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
242	02.483 BOLT; BRKT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1506-1507	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508					●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508		●		●		●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508			●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-		●		●	●	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-			●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98219-814-1	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (H)	8-98255-649-3	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1506-1507	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1508-1508					●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98018-899-1	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98018-899-1	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98018-899-1	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1508-1508		●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1508-1508			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1508-		●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98018-899-1	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98018-899-1	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1508-			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1506-1507	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1508-1508					●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98030-988-2	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98030-988-2	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98030-988-2	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1508-1508		●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1508-1508			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1508-		●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98030-988-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98030-988-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1508-			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1506-1507	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1508-1508					●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98030-991-2	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98030-991-2	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98030-991-2	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1508-1508		●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1508-1508			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1508-		●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98030-991-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98030-991-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1508-			●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1506-1507					●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	1506-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	1506-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1506-1507						●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1508-					●	●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1506-1507	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1508-1508					●
459	02.483 BRACKET; SUPPORT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1508-1508	●		●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E)	8-98020-227-3	01	1	1508-1508	●		●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1508-1508		●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1508-		●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1508-	●		●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E)	8-98020-227-3	01	1	1508-	●		●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98196-974-0	01	1	1506-1507	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98196-974-0	01	1	1508-1508					●
459	02.483 BRACKET; SUPPORT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F)	8-98196-974-0	01	1	1508-1508	●		●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F)	8-98196-974-0	01	1	1508-1508	●		●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98196-974-0	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98196-974-0	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98196-974-0	01	1	1508-1508		●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98196-974-0	01	1	1508-		●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (F)	8-98196-974-0	01	1	1508-	●		●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (F)	8-98196-974-0	01	1	1508-	●		●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98196-974-0	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98196-974-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507					●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507						●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-					●	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1507	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508					●
552	02.483 NUT; BRKT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●		●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508		●		●		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-		●		●	●	●
552	02.483 NUT; BRKT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●		●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508					●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508					●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●		●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508		●		●		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508		●		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508						●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●		●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-					●	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (D)	8-98039-277-2	02	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-699-0	01	1	1506-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1506-	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1506-	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1506-1507	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1508-	●		●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1508-		●		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1506-	●		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1506-		●		●

313 481 38 150 139 242 139 516 480 242 304 529 480 377 377 386 386 139 24 515 577 294 515 524 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-	●	●	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1506-1507	●	●	●	●	●	●
24	02.559 NUT; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-1508					●
24	02.559 NUT; HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-1508	●		●
24	02.559 NUT; HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-1508	●
24	02.559 NUT; HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-1508	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-1508		●		●
24	02.559 NUT; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-1508						●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-					●	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●		●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1506-	●	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1506-1507	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508					●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508		●		●		●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-1508			●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-		●		●	●	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1508-			●
294	02.559 NUT 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-					●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●		●
294	02.559 NUT 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●		●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1506-	●	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1506-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1506-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1506-	●	●	●	●	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-	●	●	●	●	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●	●	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●		●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●		●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1506-					●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-		●
515	02.559 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-		●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-				●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1506-	●	●	●	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-					●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-					●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1506-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507					●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507						●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-					●	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1507	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508					●
552	02.483 NUT; BRKT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●		●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508		●		●		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-		●		●	●	●
552	02.483 NUT; BRKT,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●		●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508					●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508					●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●		●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508		●		●		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508		●		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508						●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●		●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-					●	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
