8-01 — LAMP; FRONT AND FRONT SIDE (#162902) — 67 parça

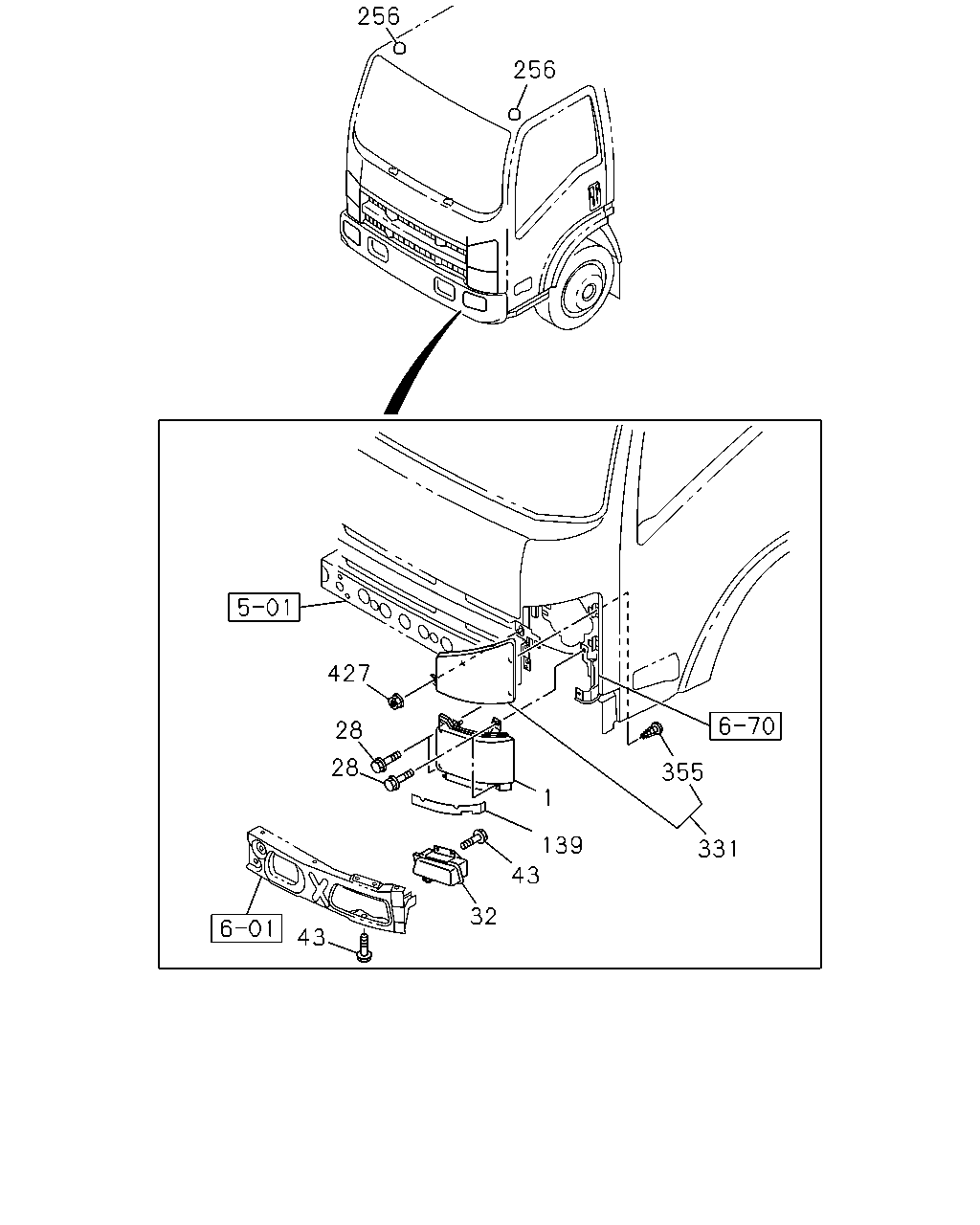

çizim 480562
256 256 427 28 28 43 32 43 139 1 331 355
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1506- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1506- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1506- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1506- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1506- ● ● ● ● ● ●
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1506- ● ● ● ● ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 1506- ● ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 1506- ● ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 1506- ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1506- ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1506- ● ● ● ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1506- ● ● ● ● ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
çizim 480657
331 431 357 399 355 432 1 4 408 420 20 5 5 382 23 457
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1506- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1506- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-182-0 01 1 1506- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-183-0 01 1 1506- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1506- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1506- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 1506- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1506- ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1506- ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1506- ● ● ● ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1506- ● ● ● ● ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1506- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1506- ● ● ● ● ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1506- ● ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1506- ● ● ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1506- ● ● ● ● ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1506- ● ● ● ● ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1506- ● ● ● ● ● ●
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1506- ● ● ● ● ● ●
çizim 480722
256 82 292 83 80 86 32 15 36 448 49 47 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1506- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1506- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1506- ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1506- ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1506- ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1506- ● ● ● ● ● ●
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1506- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 1506- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 1506- ● ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1506- ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP 1-82219-011-0 04 1 1506- ● ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-98057-958-0 02 1 1506- ● ● ● ● ● ●
86 02.587 NUT; MARKER LAMP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1506- ● ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 1506- ● ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 1506- ● ● ● ● ● ●
292 02.587 WASHER; MARKER LAMP 1-82219-012-0 04 1 1506- ● ● ● ● ● ●
448 02.727 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1506- ● ● ● ● ● ●

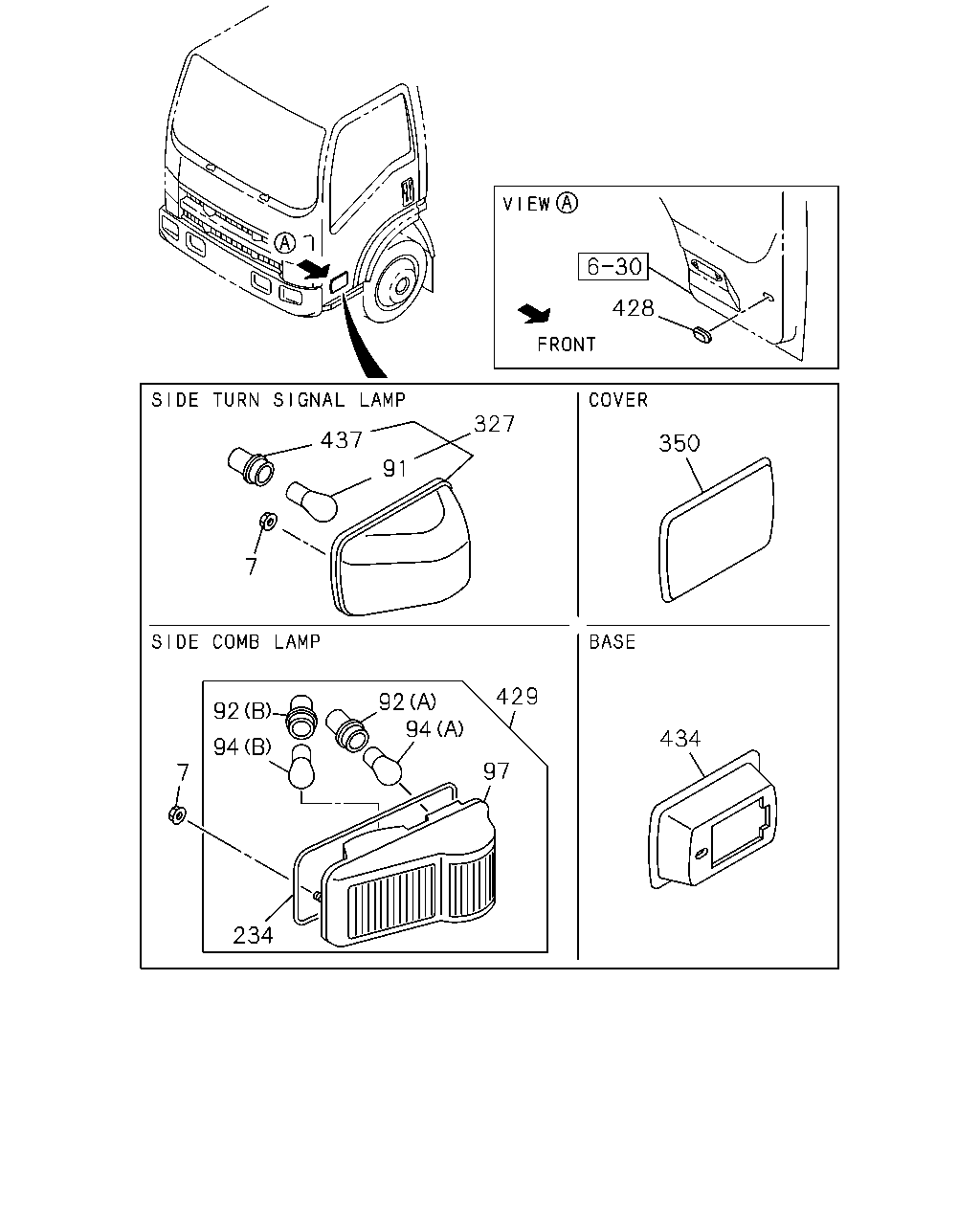

çizim 480783
428 350 434 97 94 92 429 92 94 7 234 327 91 437 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 1506- ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> 02.575 (B) 		8-97172-959-0 02 1 1506- ● ● ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 1506- ● ● ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 1506- ● ● ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 1506- ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 1506- ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 1506- ● ● ● ● ● ●
234 02.590 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 1506- ● ● ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-180-4 01 1 1506- ● ● ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-181-3 01 1 1506- ● ● ● ● ● ●
350 02.596 COVER; SIDE TURN HOLE
EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1506- ● ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 1506- ● ● ● ● ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 1506- ● ● ● ● ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 1506- ● ● ● ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 1506- ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 1506- ● ● ●
437 02.596 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 1506- ● ● ● ● ● ●
