◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#1629) — 60 parça

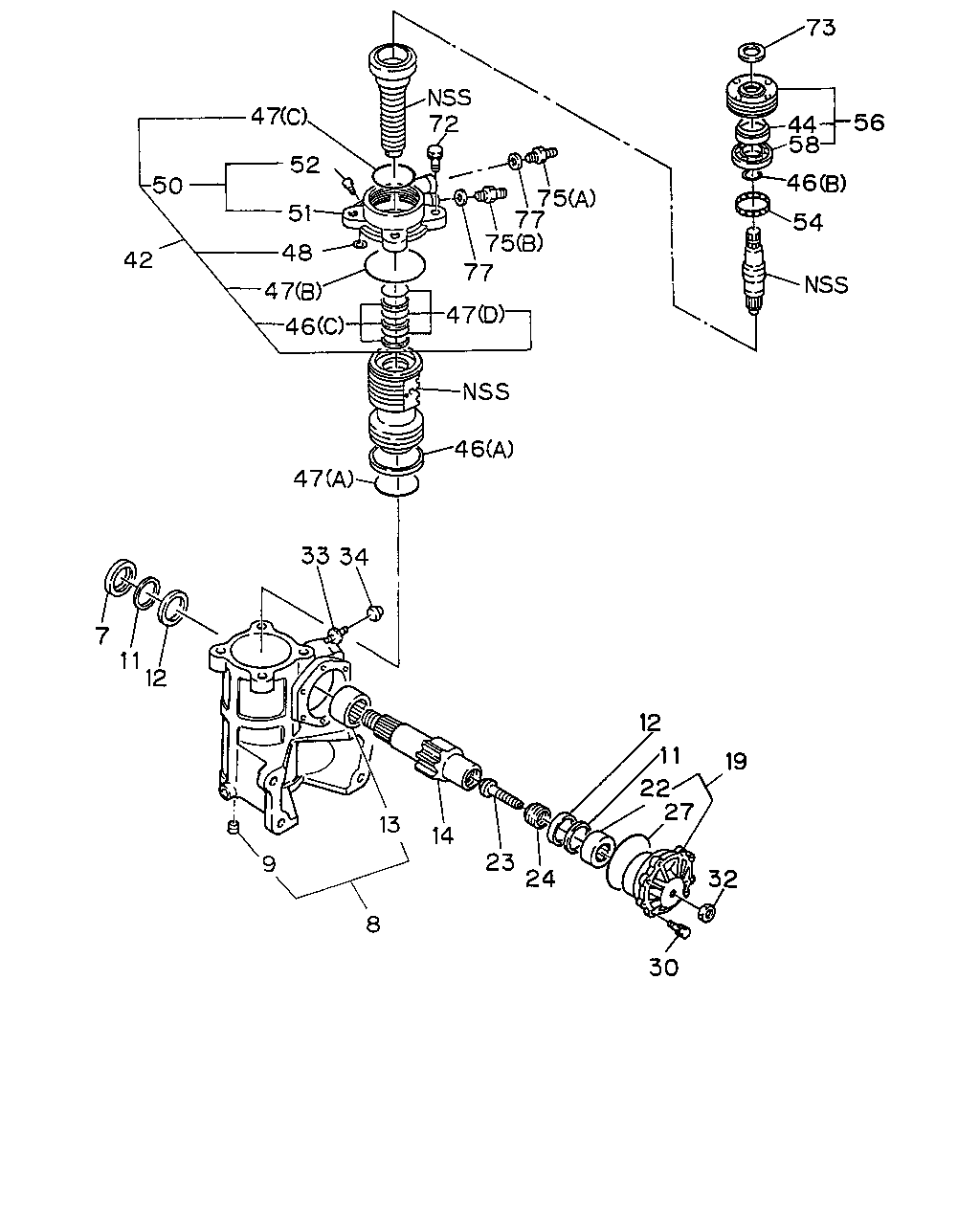

çizim 27926
73 56 44 54 46 58 75 77 75 77 47 46 72 47 50 42 52 51 48 47 46 47 7 11 12 33 34 13 9 8 14 23 24 30 32 27 12 11 22 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44240-045-1 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-226-0 02 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-105-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44321-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44261-029-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-105-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-109-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-107-0 06 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44269-007-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-693-7 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: A = 1-44000-693-7 		9-83335-044-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44560-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-693-7 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-693-7 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-693-7 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-693-7 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-693-7 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-693-7 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-693-7 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44560-053-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44561-015-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44159-039-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-693-7 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-693-7 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-693-7 		9-89970-787-0 02 1 -

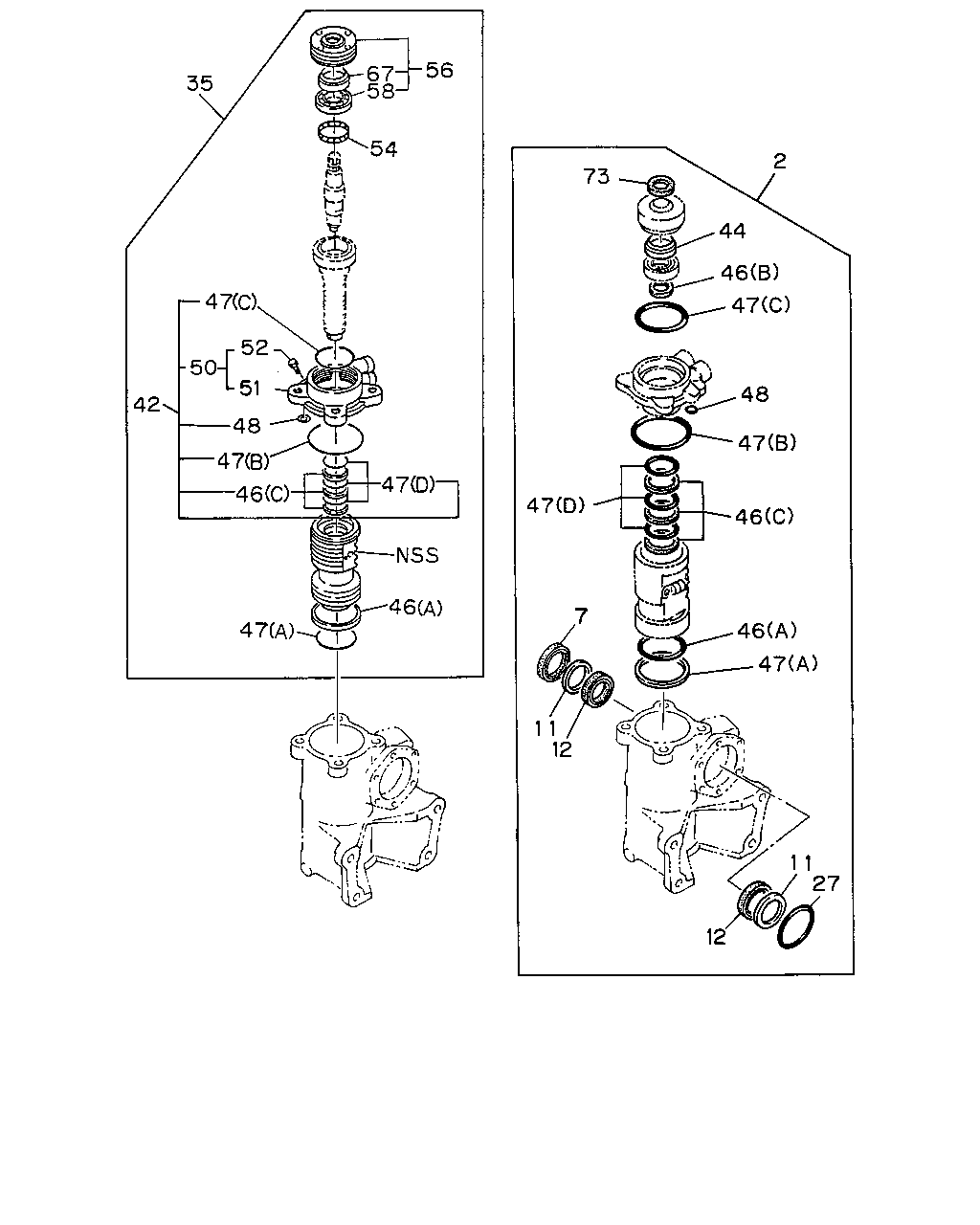

çizim 94048
35 56 67 58 54 47 50 42 52 51 48 47 46 47 47 46 7 11 12 12 11 27 47 46 46 47 48 47 47 46 44 2 73
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-693-7 		1-85574-014-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-102-0 01 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-109-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44150-011-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44560-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-693-7 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-693-7 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-693-7 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-693-7 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-693-7 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-693-7 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-693-7 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44560-053-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44561-015-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44259-029-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-693-7 		1-44159-039-0 01 1 -
