Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#162899) — 155 parça

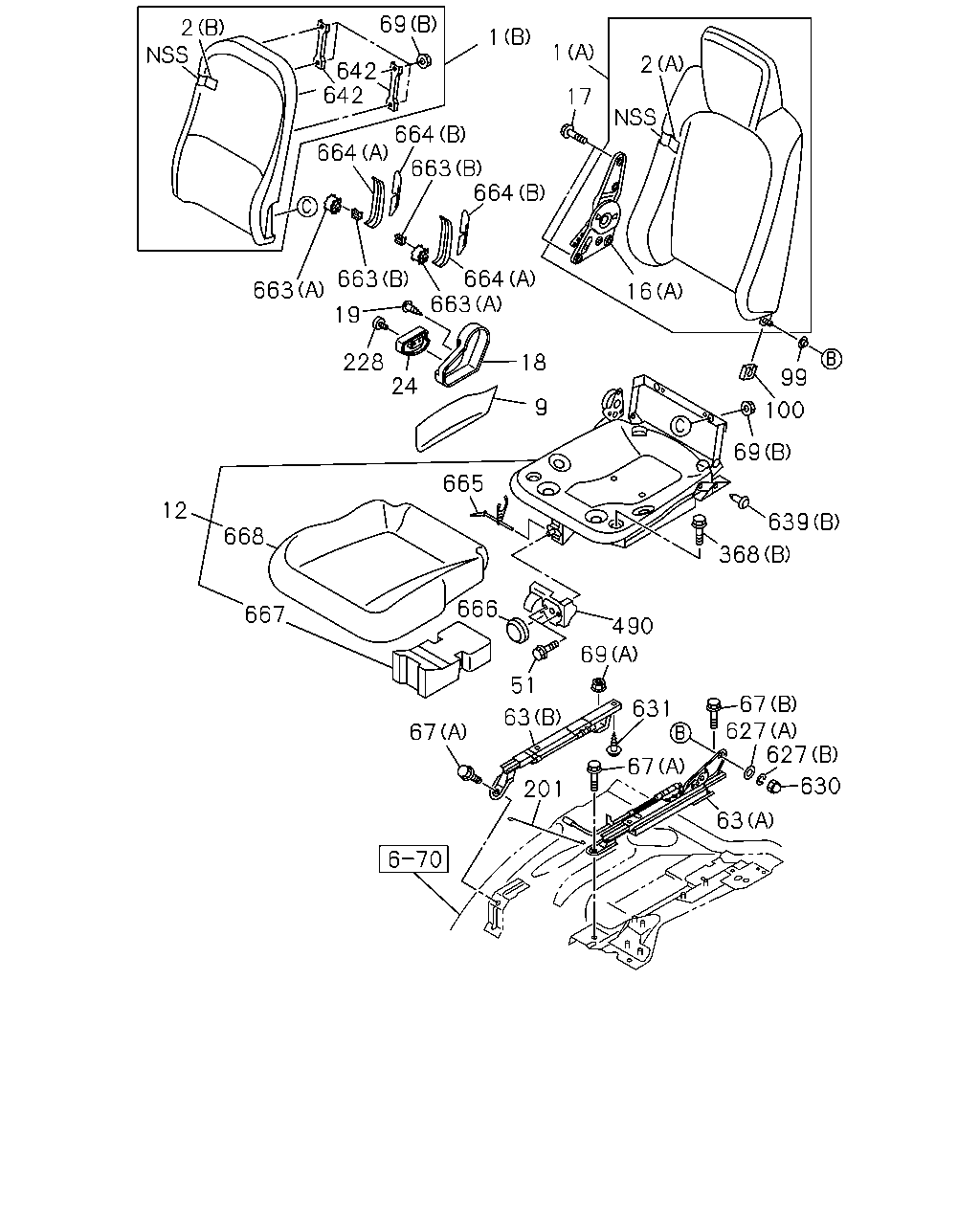

2 17 1 1 16 99 100 69 639 368 490 69 631 67 627 627 630 63 67 201 63 51 67 666 665 667 668 12 9 18 24 228 19 663 663 664 663 664 663 664 664 642 642 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-593-0	01	1	1506-	●	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-595-1	01	1	1506-	●	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (C) DARK GRAY	8-97465-003-0	01	1	1506-	●	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97465-003-0	01	1	1506-				●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-505-0	01	1	1506-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97466-506-0	01	1	1506-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (C) DARK GRAY	8-97465-005-0	01	1	1506-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97465-005-0	01	1	1506-				●	●	●
9	16.682 COVER; SIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-600-0	01	1	1506-	●	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-596-1	01	1	1506-	●	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> DARK GRAY	8-97465-010-1	01	1	1506-	●	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97465-010-1	01	1	1506-				●	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-007-1	01	1	1506-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1506-	●	●	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-	●	●		●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT PASSENGER DELETE<APL> (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-			●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1506-	●	●		●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT PASSENGER DELETE<APL> (C) BLACK W/KNOB	8-97859-274-3	01	1	1506-			●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1506-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-598-0	01	1	1506-	●	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> GRAY	8-97409-332-0	01	1	1506-	●	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	1506-				●	●	●
19	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	01	1	1506-	●	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> M5	8-98062-663-0	01	1	1506-	●	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1506-				●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1506-	●	●	●	●	●	●
51	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	02	1	1506-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98306-527-0	01	1	1506-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	1506-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (A) INNER	8-97382-800-2	01	1	1506-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-97382-800-2	01	1	1506-				●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1506-	●	●	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1506-	●	●	●	●	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-362-0	06	1	1506-	●	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1506-	●	●	●	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1506-	●	●	●	●	●	●
100	16.686 COVER; HINGE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-969-0	01	1	1506-	●	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1506-	●	●	●	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1506-	●	●	●	●	●	●
368	16.682 BOLT; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-986-0	06	1	1506-	●	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1506-	●	●		●	●	●
368	16.682 BOLT; SEAT EXC. SEAT PASSENGER DELETE<APL> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1506-			●
490	16.682 COVER; FRONT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-602-0	01	1	1506-	●	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1506-	●	●	●	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1506-	●	●	●	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1506-	●	●	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	03	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	01	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1506-				●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1506-				●	●	●
639	16.679 CLIP; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-960-0	02	1	1506-	●	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (A)	8-98097-693-0	01	1	1506-	●	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1506-				●	●	●
642	16.716 SLIDER; CUSHION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-971-0	02	1	1506-	●	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98286-369-0	02	1	1506-	●	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-370-0	02	1	1506-	●	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98286-363-0	02	1	1506-	●	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-364-0	02	1	1506-	●	●	●
665	16.716 GAGE; WEIGHT,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98286-371-0	01	1	1506-	●	●	●
666	16.716 DIAL; WEIGHT GAGE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98286-375-0	01	1	1506-	●	●	●
667	16.716 PAD; SEAT SUSPENSION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-951-0	01	1	1506-	●	●	●
668	16.716 TRIM COVER & PAD; SEAT CUSHION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-97466-589-0	01	1	1506-	●	●	●

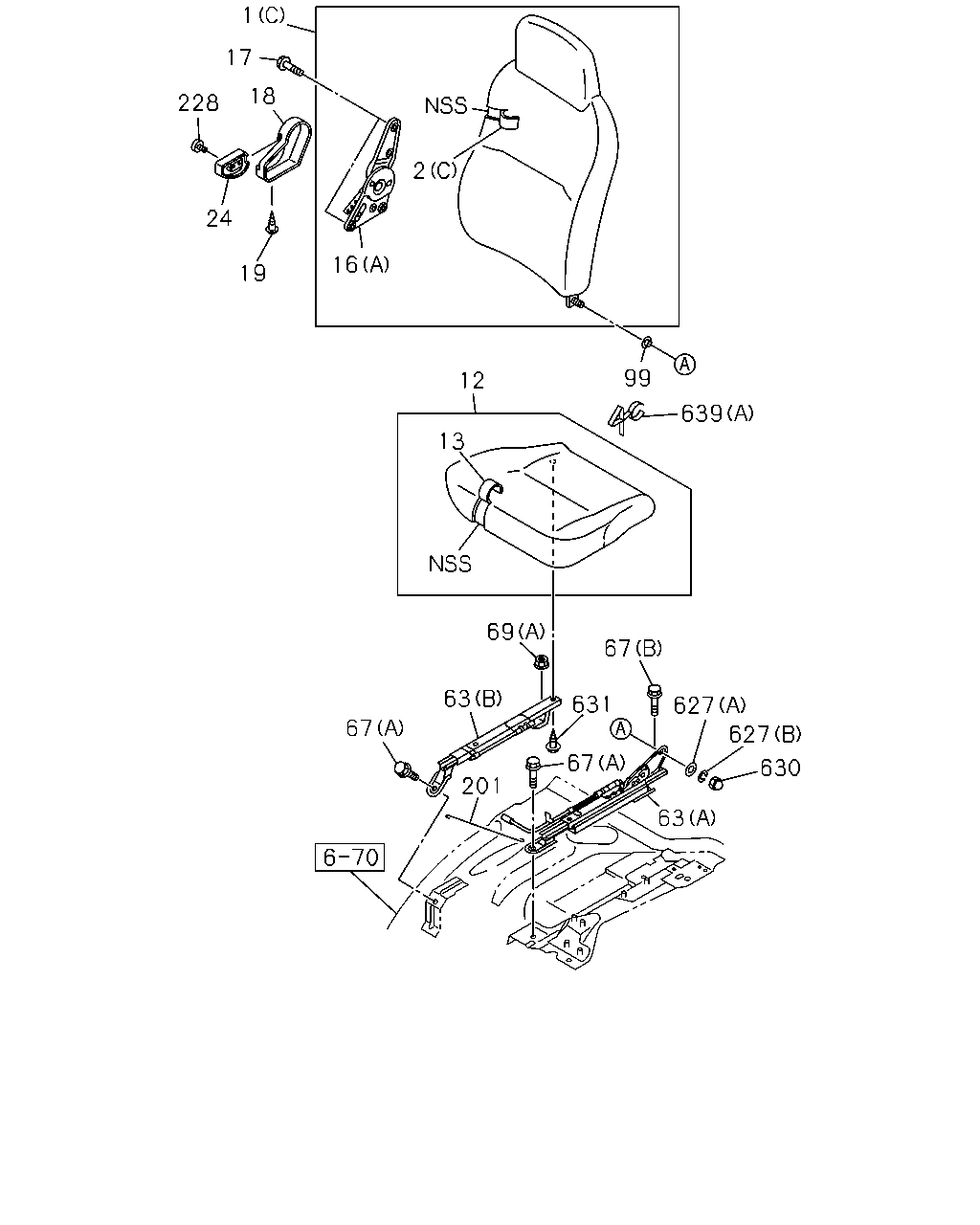

1 17 18 228 24 19 16 2 12 13 99 639 69 63 67 201 631 67 67 627 627 630 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-593-0	01	1	1506-	●	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-595-1	01	1	1506-	●	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (C) DARK GRAY	8-97465-003-0	01	1	1506-	●	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97465-003-0	01	1	1506-				●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-505-0	01	1	1506-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97466-506-0	01	1	1506-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (C) DARK GRAY	8-97465-005-0	01	1	1506-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97465-005-0	01	1	1506-				●	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-596-1	01	1	1506-	●	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> DARK GRAY	8-97465-010-1	01	1	1506-	●	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97465-010-1	01	1	1506-				●	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-007-1	01	1	1506-	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> DARK GRAY	8-97465-016-1	01	1	1506-	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97465-016-1	01	1	1506-				●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-013-1	01	1	1506-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1506-	●	●	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-	●	●		●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT PASSENGER DELETE<APL> (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-			●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1506-	●	●		●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT PASSENGER DELETE<APL> (C) BLACK W/KNOB	8-97859-274-3	01	1	1506-			●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1506-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-598-0	01	1	1506-	●	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> GRAY	8-97409-332-0	01	1	1506-	●	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	1506-				●	●	●
19	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	01	1	1506-	●	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> M5	8-98062-663-0	01	1	1506-	●	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1506-				●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1506-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98306-527-0	01	1	1506-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	1506-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (A) INNER	8-97382-800-2	01	1	1506-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-97382-800-2	01	1	1506-				●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1506-	●	●	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1506-	●	●	●	●	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-362-0	06	1	1506-	●	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1506-	●	●	●	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1506-	●	●	●	●	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1506-	●	●	●	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1506-	●	●	●	●	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1506-	●	●	●	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1506-	●	●	●	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1506-	●	●	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	03	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	01	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1506-				●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1506-	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1506-				●	●	●
639	16.679 CLIP; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-960-0	02	1	1506-	●	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5> (A)	8-98097-693-0	01	1	1506-	●	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1506-				●	●	●

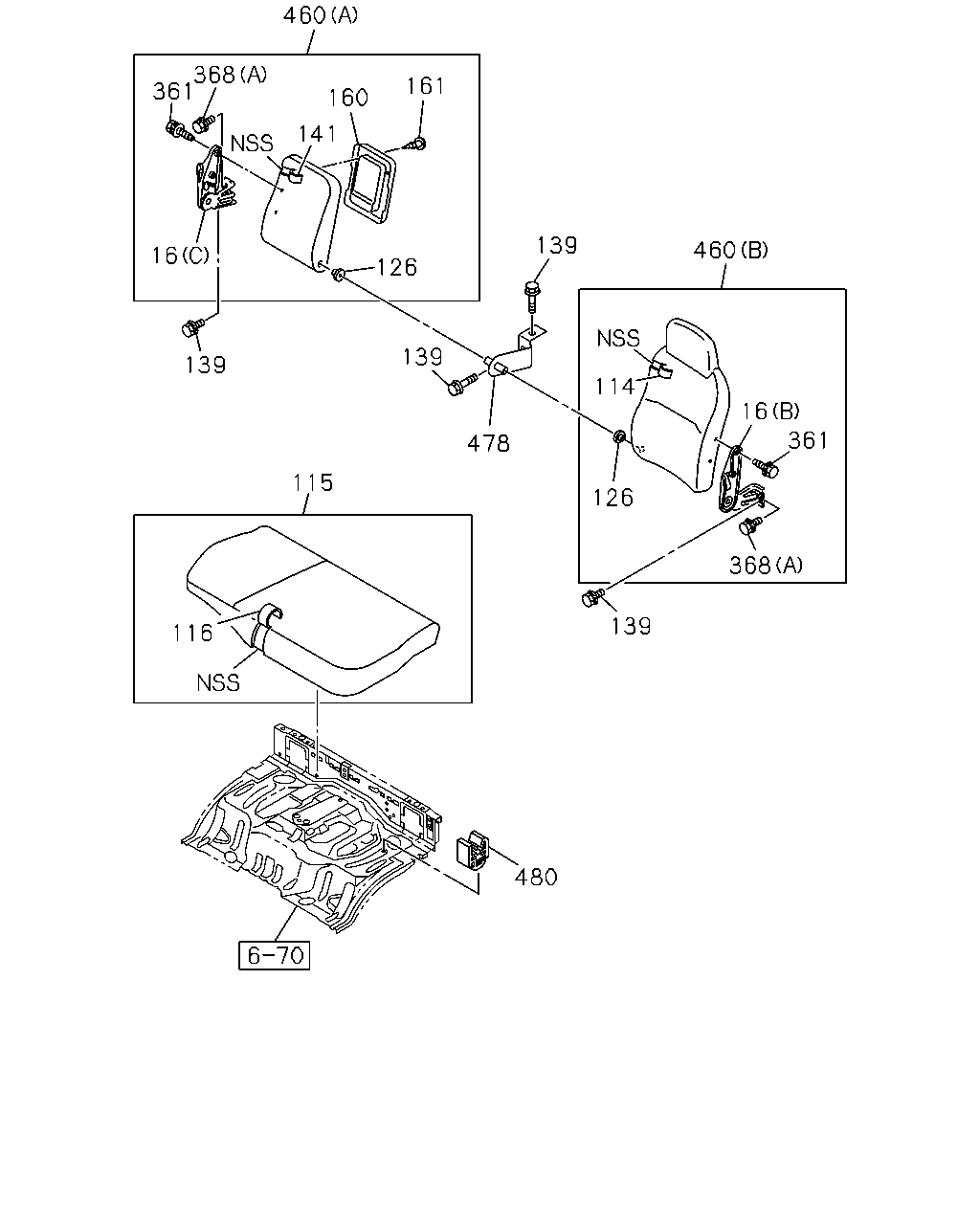

460 161 160 368 361 141 126 16 139 115 116 480 139 478 139 460 114 16 126 361 368 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1506-	●	●	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-	●	●		●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT PASSENGER DELETE<APL> (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-			●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1506-	●	●		●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT PASSENGER DELETE<APL> (C) BLACK W/KNOB	8-97859-274-3	01	1	1506-			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97427-887-0	01	1	1506-	●	●		●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT PASSENGER DELETE<APL> DARK GRAY	8-97427-887-0	01	1	1506-			●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-900-1	01	1	1506-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY	8-97427-900-1	01	1	1506-			●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97427-900-1	01	1	1506-				●	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-899-1	01	1	1506-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-899-1	01	1	1506-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-909-1	01	1	1506-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY	8-97427-909-1	01	1	1506-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97427-909-1	01	1	1506-				●	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-908-1	01	1	1506-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-908-1	01	1	1506-			●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	1506-	●	●		●	●	●
126	16.686 BUSHING; HINGE,RECLINING EXC. SEAT PASSENGER DELETE<APL>	8-98069-558-0	02	1	1506-			●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1506-	●	●		●	●	●
139	16.679 BOLT; PASSENGER SEAT EXC. SEAT PASSENGER DELETE<APL> M8X20 W/PL WASHER	8-98031-841-0	04	1	1506-			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97427-891-0	01	1	1506-	●	●		●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT PASSENGER DELETE<APL> DARK GRAY	8-97427-891-0	01	1	1506-			●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	1506-	●	●		●	●	●
160	16.650 CONSOLE; UPR,BACK CENTER EXC. SEAT PASSENGER DELETE<APL> GRAY	8-97405-361-1	01	1	1506-			●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	1506-	●	●		●	●	●
161	16.650 SCREW; CONSOLE EXC. SEAT PASSENGER DELETE<APL> M4X12	8-94279-351-0	04	1	1506-			●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	1506-	●	●		●	●	●
361	16.682 BOLT; ADJ,RECLINING EXC. SEAT PASSENGER DELETE<APL> M8X18	8-94279-109-1	04	1	1506-			●
368	16.682 BOLT; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-986-0	06	1	1506-	●	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1506-	●	●		●	●	●
368	16.682 BOLT; SEAT EXC. SEAT PASSENGER DELETE<APL> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1506-			●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97427-883-0	01	1	1506-	●	●		●	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT PASSENGER DELETE<APL> (B) DARK GRAY	8-97427-883-0	01	1	1506-			●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97427-889-0	01	1	1506-	●	●		●	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT PASSENGER DELETE<APL> (A) DARK GRAY	8-97427-889-0	01	1	1506-			●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1506-	●	●		●	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA EXC. SEAT PASSENGER DELETE<APL>	8-98002-092-0	01	1	1506-			●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1506-	●	●		●	●	●
480	16.716 CLIP; CUSHION EXC. SEAT PASSENGER DELETE<APL>	8-94279-977-0	05	1	1506-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
