◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#162893) — 89 parça

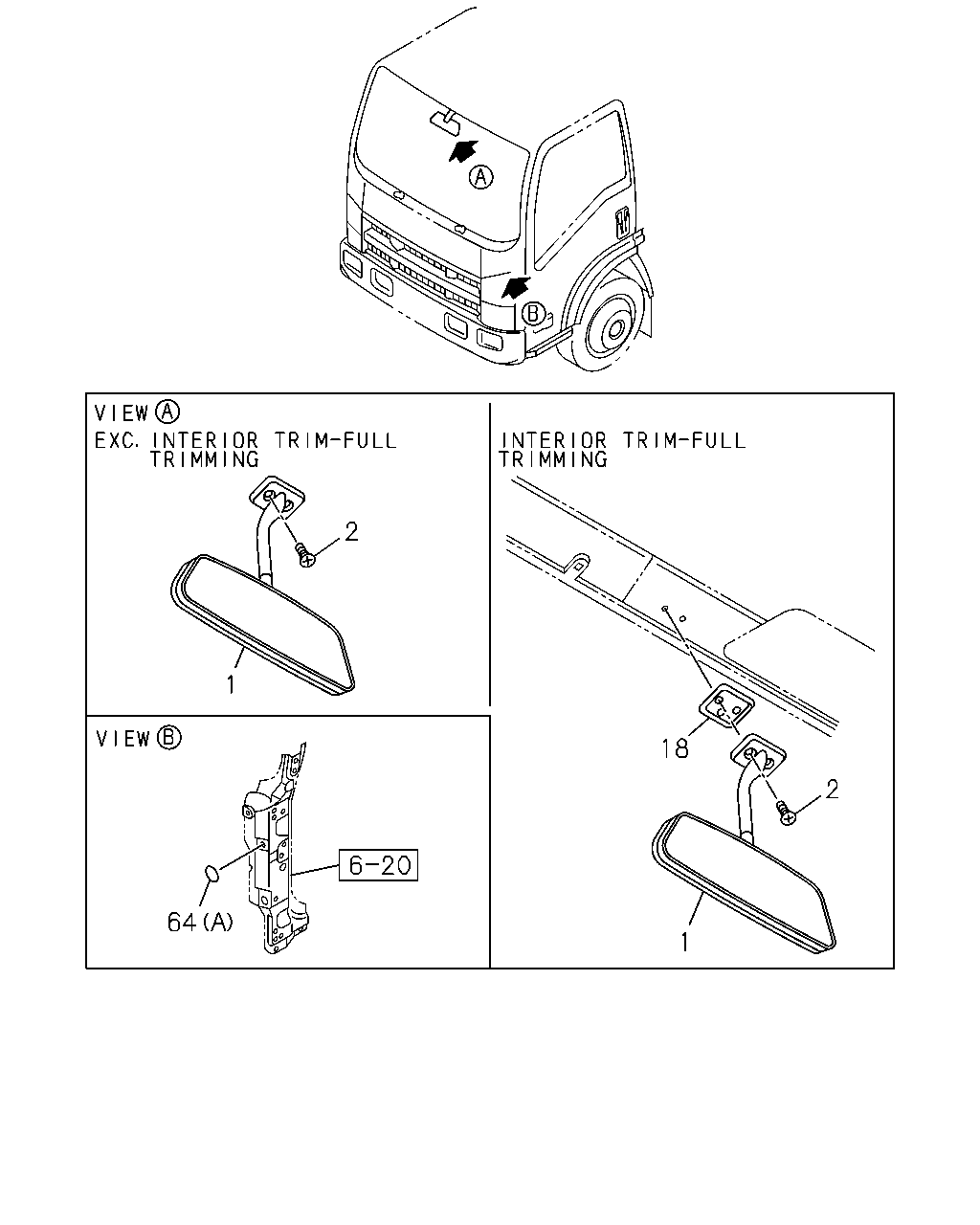

çizim 479906
2 1 64 1 2 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1506- ● ● ● ● ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 1506- ● ● ● ● ● ●
18 16.069 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 1506- ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (B) OD=52 BLACK 		1-76798-041-0 02 1 1506- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
EXC. UNDER MIRROR<RR9>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506- ● ● ● ● ● ●

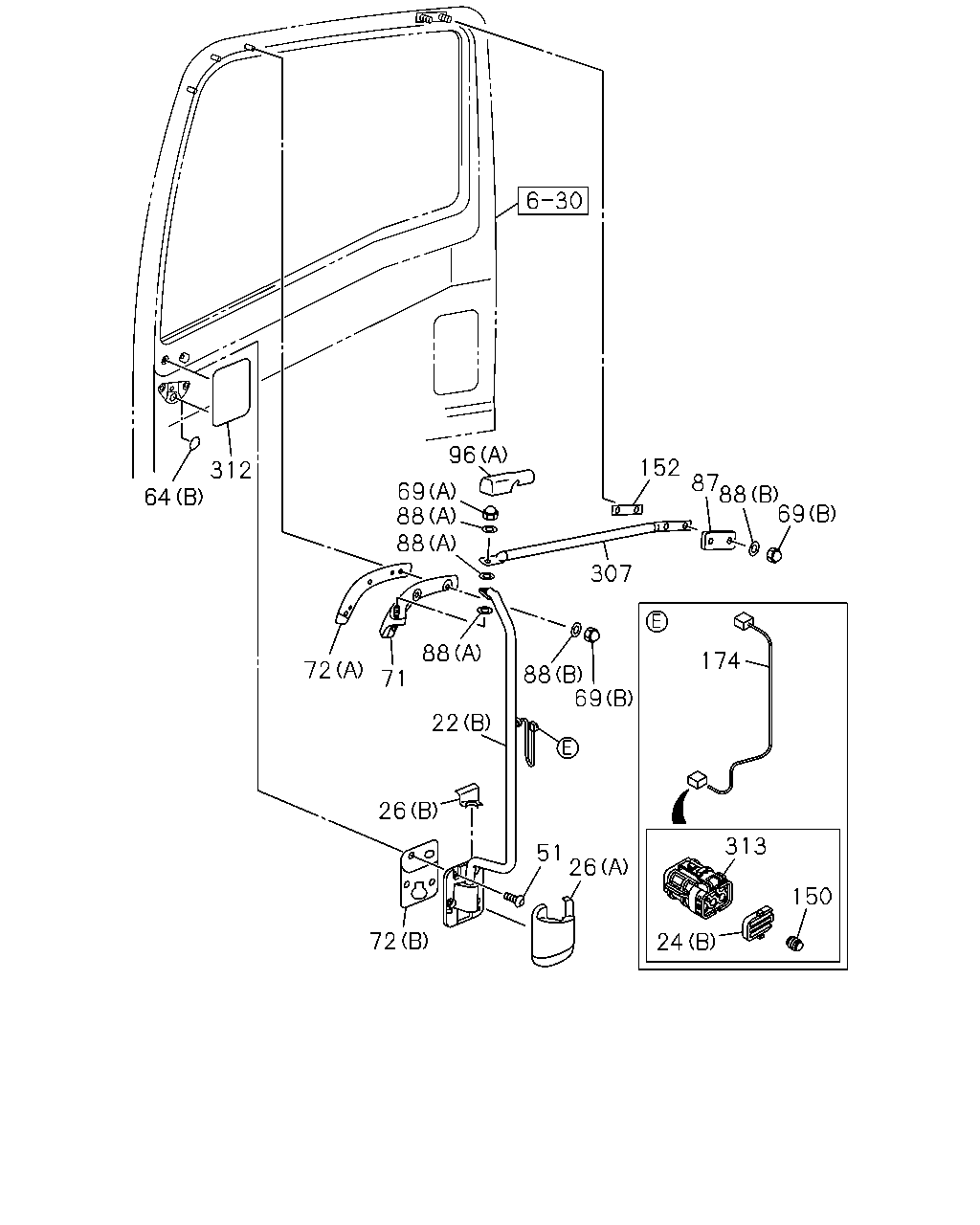

çizim 480469
152 87 88 69 307 96 312 64 72 88 88 69 71 88 88 69 174 22 26 51 26 72 313 24 150
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-184-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-185-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-182-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-183-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-176-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-177-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-178-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-179-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98027-519-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98038-224-1 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-509-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-846-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-847-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-848-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-849-0 01 1 1506- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-94447-536-0 02 1 1506- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 1506- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1506- ● ● ● ● ● ●
51 16.069 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 1506- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (B) OD=52 BLACK 		1-76798-041-0 02 1 1506- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
EXC. UNDER MIRROR<RR9>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506- ● ● ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) M10 CAP NUT 		1-09984-134-0 02 1 1506- ● ● ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 1506- ● ● ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98031-793-2 01 1 1506- ● ● ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98031-794-2 01 1 1506- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 1506- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 1506- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 1506- ● ● ● ● ● ●
87 16.069 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-789-0 02 1 1506- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1506- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1506- ● ● ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 1506- ● ● ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 1506- ● ● ● ● ● ●
150 08.155 PLUG; MIRROR HOLE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		1-82691-026-0 02 1 1506- ● ● ● ● ● ●
152 16.069 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-786-0 02 1 1506- ● ● ● ● ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98137-208-0 02 1 1506- ● ● ● ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-784-2 01 1 1506- ● ● ● ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-785-2 01 1 1506- ● ● ● ● ● ●
312 16.081 TAPE
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98164-812-0 02 1 1506- ● ● ● ● ● ●
313 02.195 CONNECTOR; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-94447-532-0 02 1 1506- ● ● ● ● ● ●

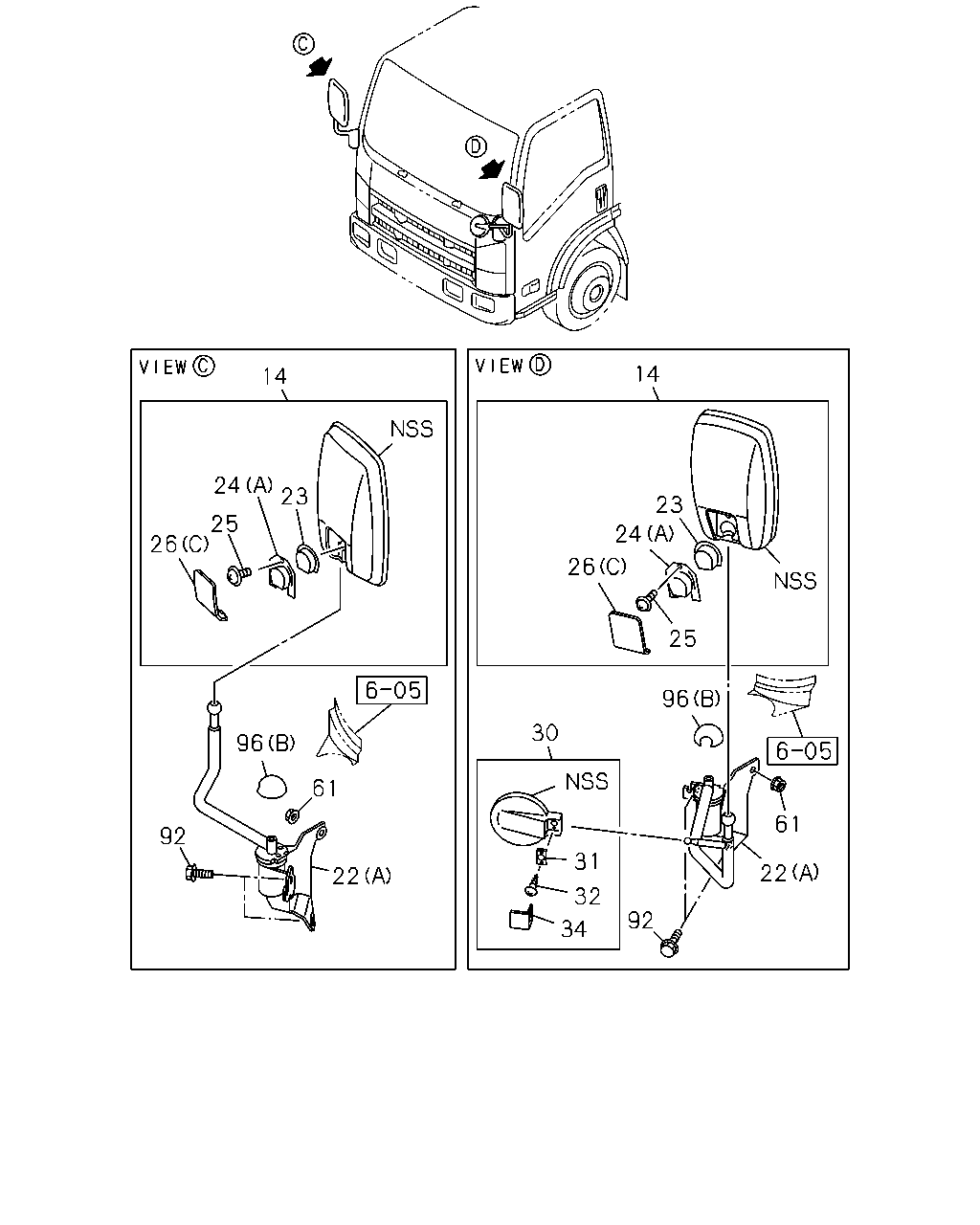

çizim 480835
14 14 24 23 25 26 23 24 26 25 96 61 22 30 31 32 34 92 96 61 22 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 1506- ● ● ● ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-184-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-185-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-182-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-183-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-176-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-177-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-178-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-179-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98027-519-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98038-224-1 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-509-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-846-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-847-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-848-0 01 1 1506- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-849-0 01 1 1506- ● ● ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 1506- ● ● ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 1506- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-94447-536-0 02 1 1506- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 1506- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 1506- ● ● ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 1506- ● ● ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1506- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1506- ● ● ● ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-625-2 01 1 1506- ● ● ● ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-631-0 01 1 1506- ● ● ● ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M5X18 		8-94279-372-0 02 1 1506- ● ● ● ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-629-0 01 1 1506- ● ● ● ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ● ● ● ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506- ● ● ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 1506- ● ● ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 1506- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
