◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#16289) — 110 parça

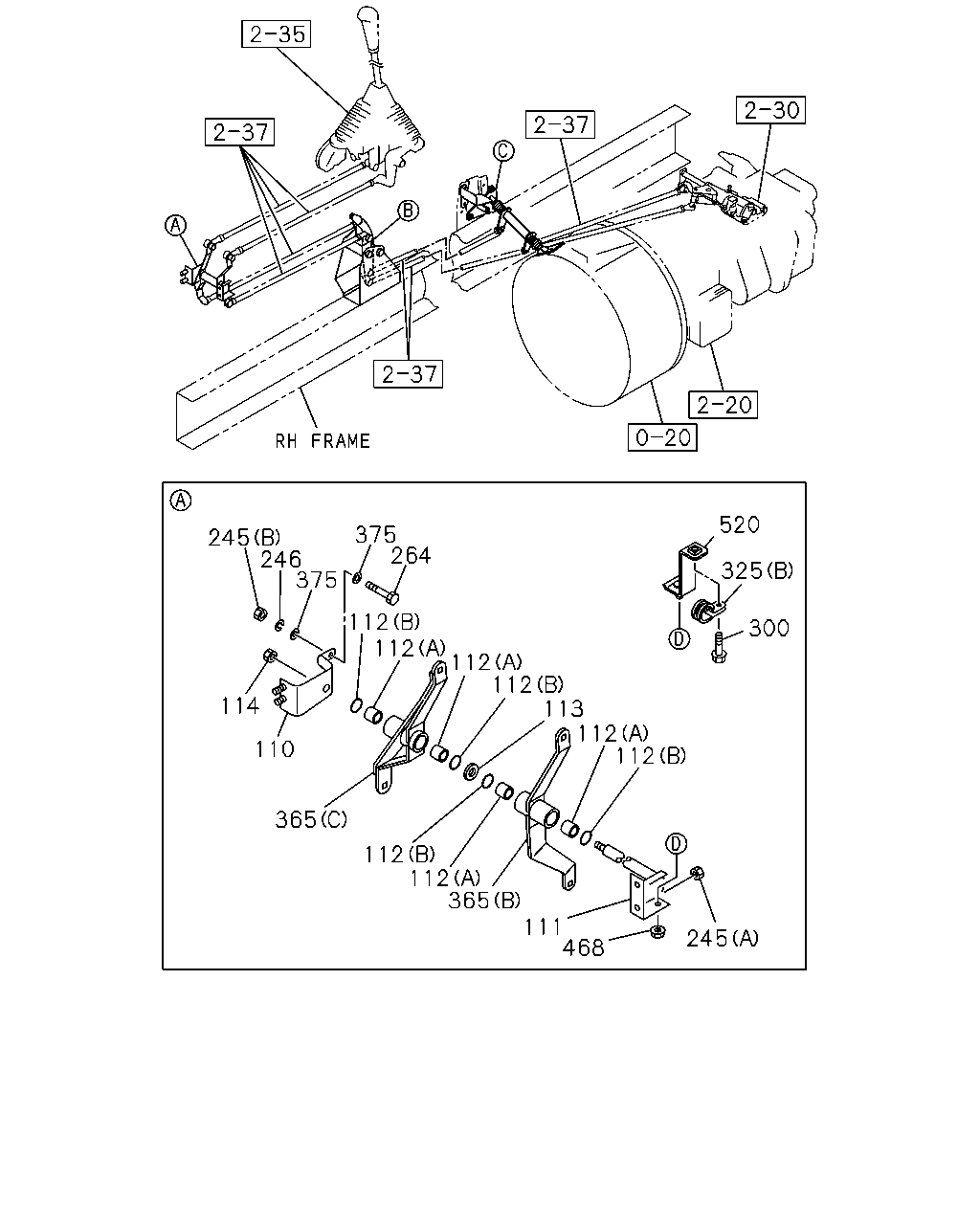

çizim 62121
520 375 264 245 246 375 325 112 112 300 112 112 113 112 112 114 110 365 112 112 365 111 468 245
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-839-1 01 1 0904-
111 SHAFT; RELAY LEVER,1ST 1-33619-777-2 01 1 0904-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0904-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0904-
113 WASHER; RELAY LEVER
ID=17 OD=30 		0-91610-516-0 01 1 0904-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0904-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-210-0 02 1 0904-1304
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-110-0 02 1 1305-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0904-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0904-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0904-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0904-0904
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0904-
325 CLIP; NYLON TUBE
(A) L=170.3 		1-09987-182-0 01 1 0904-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0904-
365 LEVER; RELAY,SELECT
(B) 		1-33651-822-3 01 1 0904-
365 LEVER; RELAY,SELECT
(C) 		1-33651-823-3 01 1 0904-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0904-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0904-
520 BRACKET; NYLON TUBE 1-79996-628-0 01 1 0904-

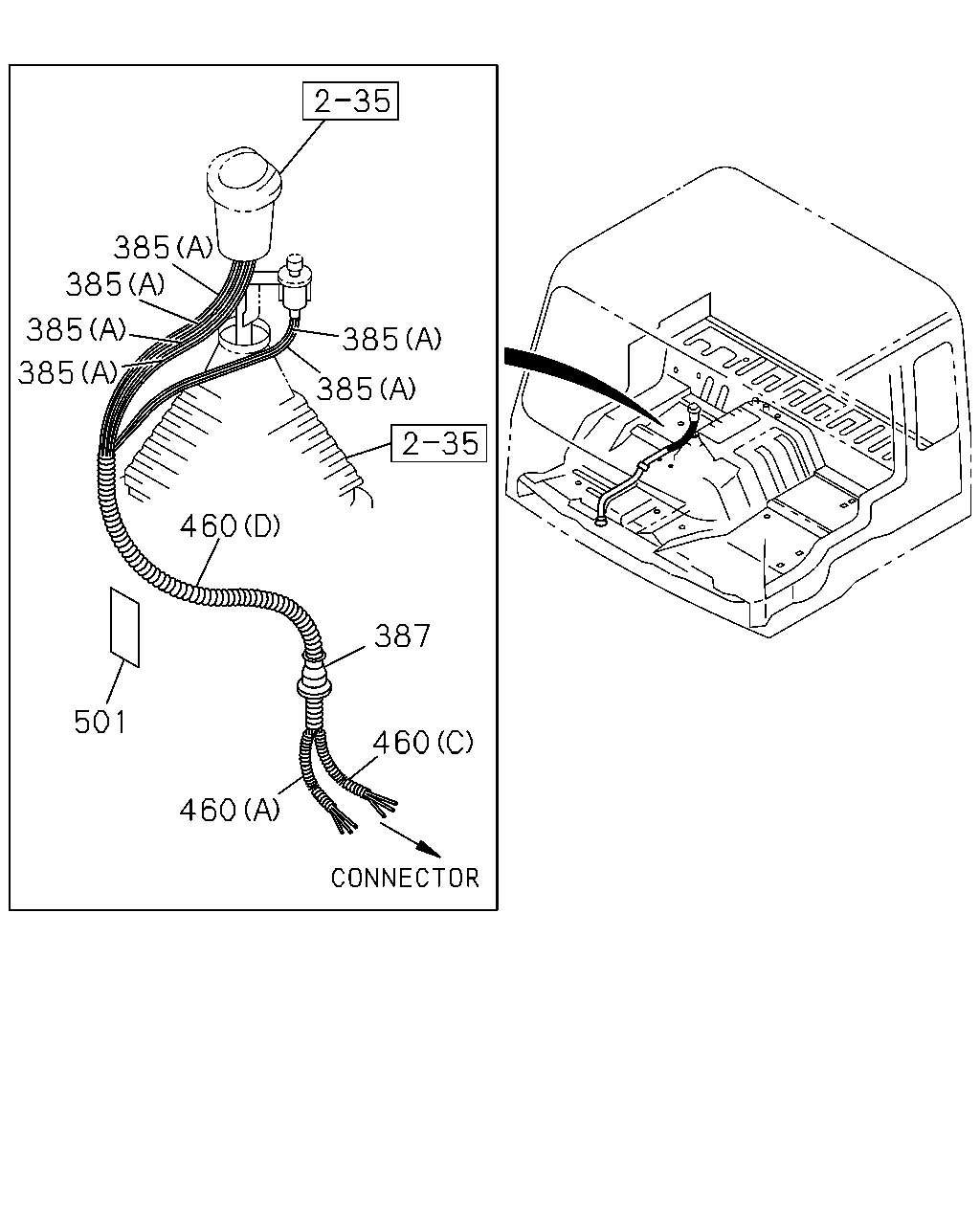

çizim 62540
385 385 385 385 385 385 460 387 501 460 460
BalonParca AdiParca NoAdetTipApplied Date
385 TUBE; NYLON
(A) L=1850 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0904-
385 TUBE; NYLON
(B) L=3170 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0904-
385 TUBE; NYLON
(A) L=1850 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0904-
385 TUBE; NYLON
(B) L=3260 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0904-
385 TUBE; NYLON
(A) L=1820 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0904-
385 TUBE; NYLON
(B) L=3690 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0904-
385 TUBE; NYLON
(A) L=1820 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0904-
385 TUBE; NYLON
(B) L=3275 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0904-
385 TUBE; NYLON
(A) L=1760 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0904-
385 TUBE; NYLON
(B) L=2700 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0904-
385 TUBE; NYLON
(A) L=1760 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0904-
385 TUBE; NYLON
(B) L=3490 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0904-
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0904-
460 TUBE; CORRUGATE
(A) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0904-
460 TUBE; CORRUGATE
(B) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
460 TUBE; CORRUGATE
(B) L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
460 TUBE; CORRUGATE
(B) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
460 TUBE; CORRUGATE
(B) L=110 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 0904-
460 TUBE; CORRUGATE
(C) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0904-
460 TUBE; CORRUGATE
(D) L=1140 SERVICED BY L=2000 		1-83129-338-0 01 1 0904-
460 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0904-
460 TUBE; CORRUGATE
(B) L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0904-
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-1 04 1 0904-

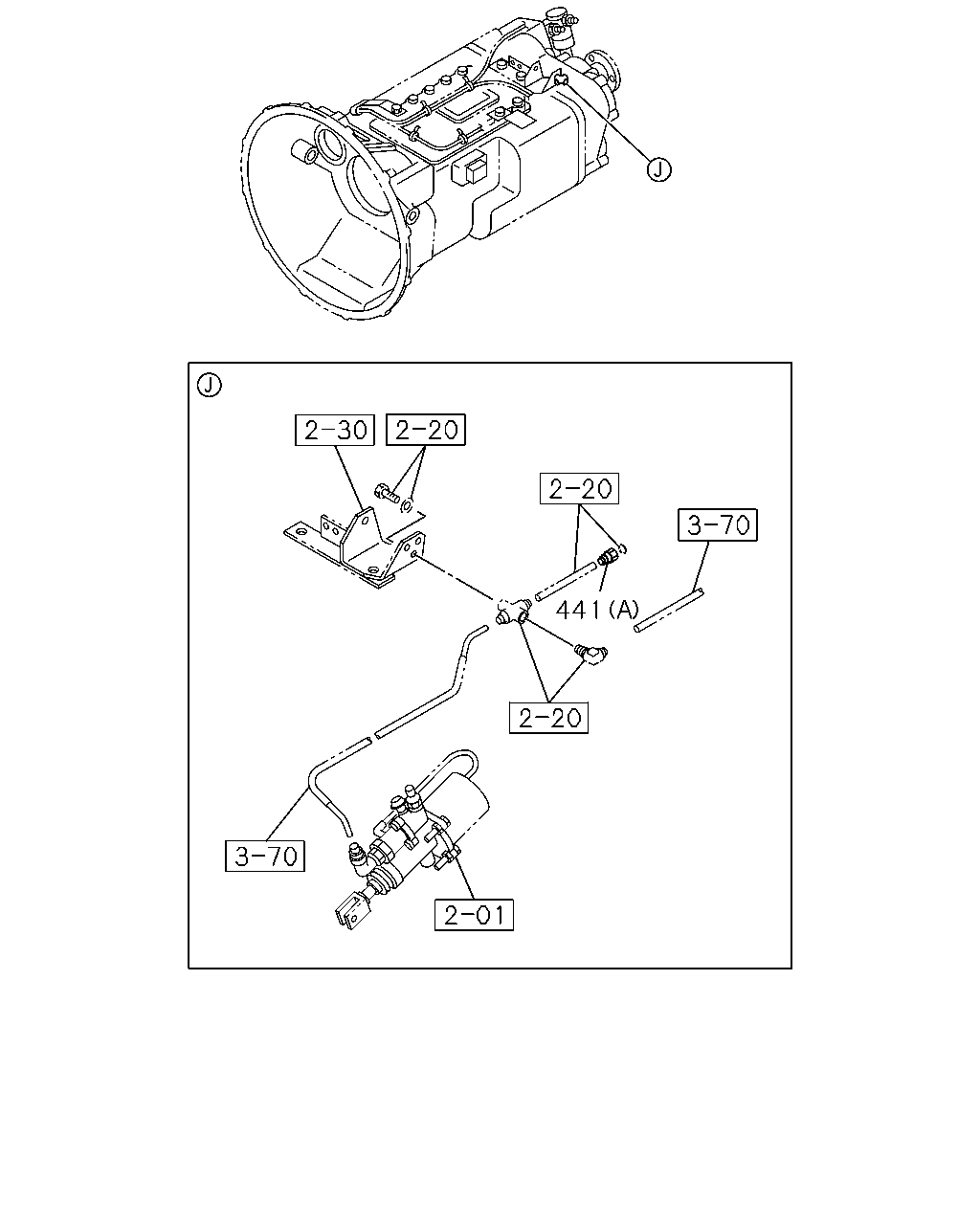

çizim 102068
441
BalonParca AdiParca NoAdetTipApplied Date
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0904-
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 06 1 0904-

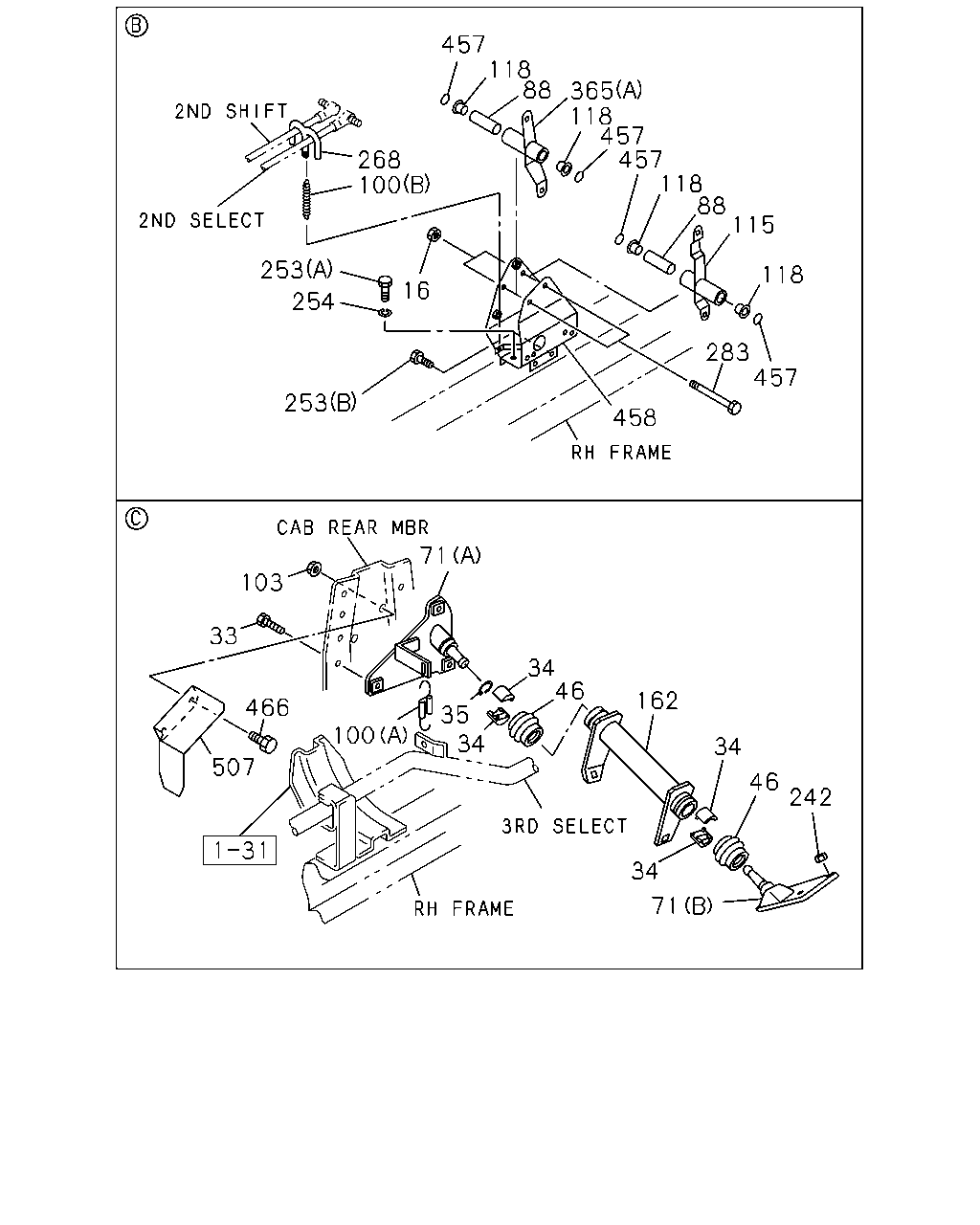

çizim 102070
457 118 88 365 118 457 457 118 88 115 268 100 253 118 16 254 283 457 253 458 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0904-
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0904-0910
33 BOLT; BRKT,3RD RELAY LEVER
M10X35 FLANGE 		0-28651-035-0 03 1 0911-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0904-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0904-
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0904-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0904-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-706-0 01 1 0904-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0904-
100 SPRING
(A) 		1-09583-319-0 01 1 0904-
100 SPRING
(B) 		1-09583-351-0 01 1 0904-
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0904-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0904-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0904-
162 LEVER; RELAY 1-33651-625-1 01 1 0904-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0904-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0904-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0904-
254 WASHER; LK,RELAY LEVER
ID=14.2 		0-91510-614-0 02 1 0904-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0904-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0904-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0904-
365 LEVER; RELAY,SELECT
(B) 		1-33651-822-3 01 1 0904-
365 LEVER; RELAY,SELECT
(C) 		1-33651-823-3 01 1 0904-
457 GASKET 1-09623-594-0 04 1 0904-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0904-
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
507 PROTECTOR; HEAT 1-14181-287-1 01 1 0904-

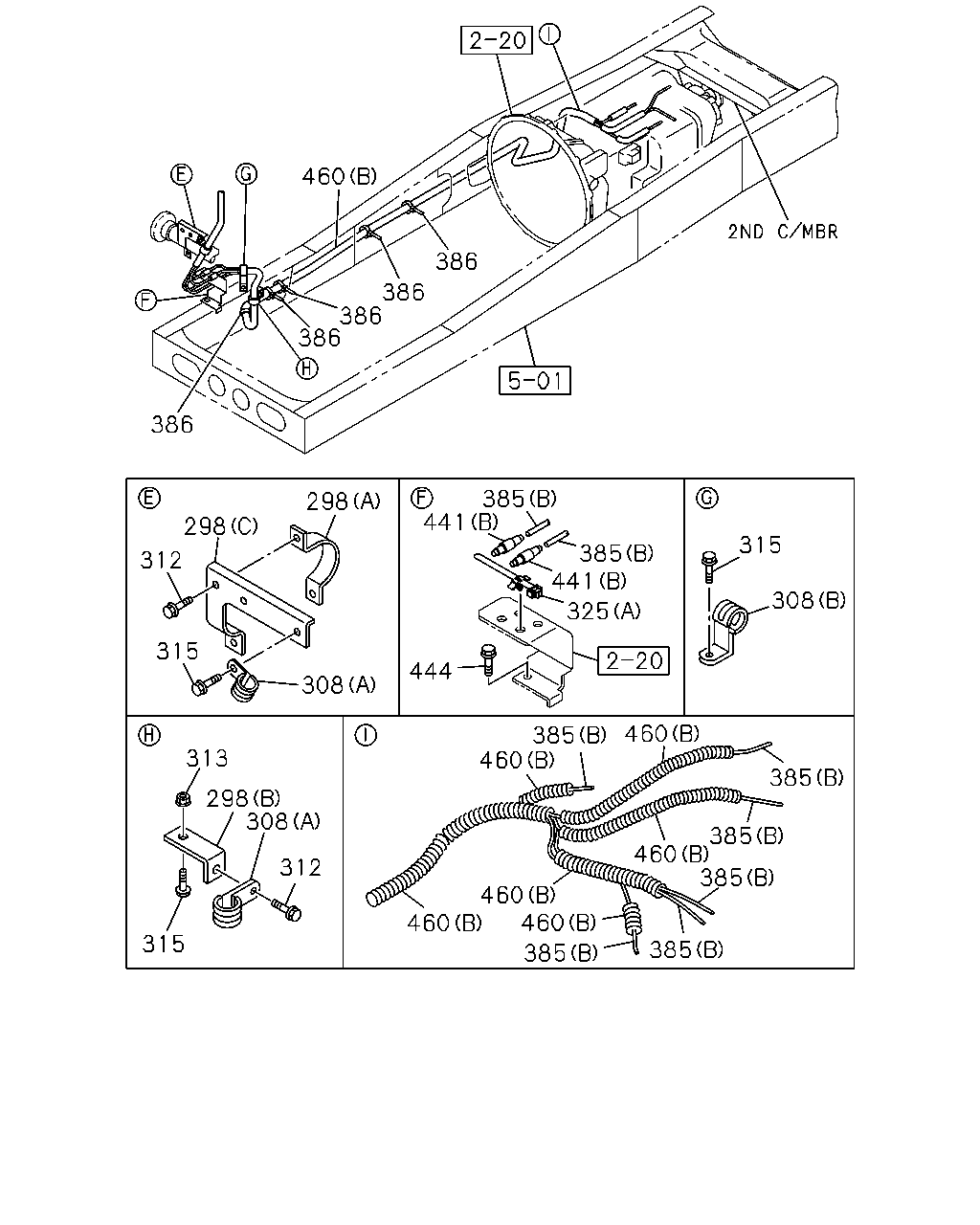

çizim 102071
460 386 386 386 386 386 385 441 298 298 315 385 441 312 308 325 315 444 308 460 385 460 313 385 298 308 385 460 385 312 460 460 460 315 385 385
BalonParca AdiParca NoAdetTipApplied Date
298 BRACKET
(A) 		1-47471-479-0 01 1 0904-
298 BRACKET
(B) 		1-47479-477-0 01 1 0904-
298 BRACKET
(C) 		8-98084-094-0 01 1 0904-
308 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 0904-
308 CLIP; PIPE
(A) ID=19 L=28 		0-95235-856-0 01 1 0904-
308 CLIP; PIPE
(B) ID=19 H=70 L=25 		1-09700-773-0 01 1 0904-
312 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0904-
313 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0904-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0904-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0904-
325 CLIP; NYLON TUBE
(A) L=170.3 		1-09987-182-0 01 1 0904-
385 TUBE; NYLON
(A) L=1850 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0904-
385 TUBE; NYLON
(B) L=3170 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0904-
385 TUBE; NYLON
(A) L=1850 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0904-
385 TUBE; NYLON
(B) L=3260 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0904-
385 TUBE; NYLON
(A) L=1820 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0904-
385 TUBE; NYLON
(B) L=3690 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0904-
385 TUBE; NYLON
(A) L=1820 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0904-
385 TUBE; NYLON
(B) L=3275 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0904-
385 TUBE; NYLON
(A) L=1760 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0904-
385 TUBE; NYLON
(B) L=2700 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0904-
385 TUBE; NYLON
(A) L=1760 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0904-
385 TUBE; NYLON
(B) L=3490 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0904-
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0904-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0904-
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 06 1 0904-
444 BOLT; BRKT,NIPPLE
M8X30 FLANGE 		0-28650-830-0 01 1 0904-
460 TUBE; CORRUGATE
(A) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0904-
460 TUBE; CORRUGATE
(B) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
460 TUBE; CORRUGATE
(B) L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
460 TUBE; CORRUGATE
(B) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
460 TUBE; CORRUGATE
(B) L=110 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 0904-
460 TUBE; CORRUGATE
(C) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0904-
460 TUBE; CORRUGATE
(D) L=1140 SERVICED BY L=2000 		1-83129-338-0 01 1 0904-
460 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0904-
460 TUBE; CORRUGATE
(B) L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0904-
