6-80 — BACK PANEL (#162887) — 50 parça

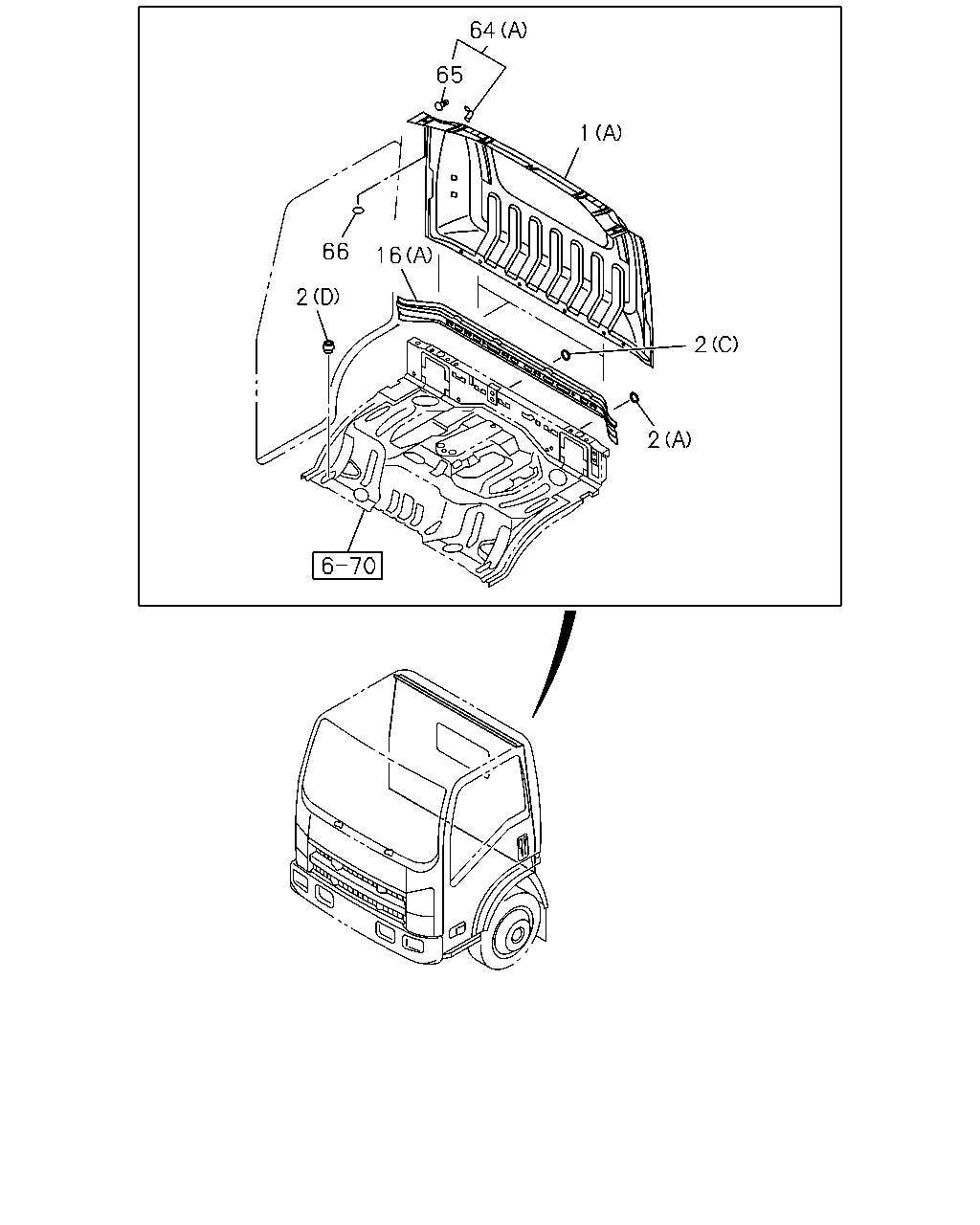

çizim 479691
64 1 65 16 66 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 1506- ● ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1506- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1506- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 1506- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1506- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1506- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1506- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1506- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1506- ● ● ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 01 1 1506- ● ● ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 02 1 1506- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1506- ● ● ● ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1506- ● ● ● ● ● ●

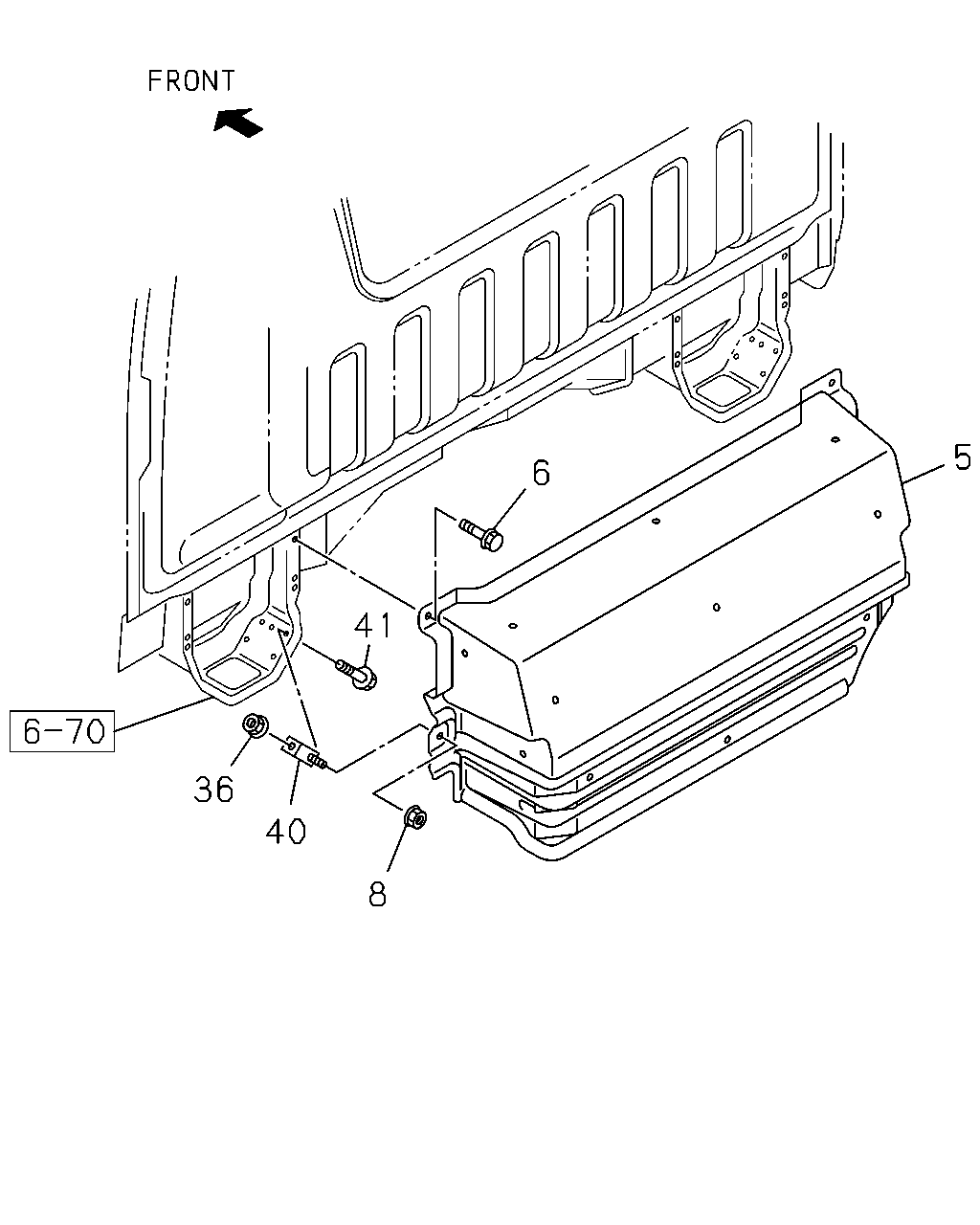

çizim 480468
5 6 41 8 40 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 16.587 PANEL; CAB BACK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98011-595-0 01 1 1506- ● ●
6 16.587 BOLT; BACK PANEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1506- ● ●
8 16.587 NUT; BACK PANEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1506- ● ●
36 16.587 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
40 16.587 BRACKET; BACK PANEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97322-264-0 02 1 1506- ● ●
41 16.587 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1506- ● ●

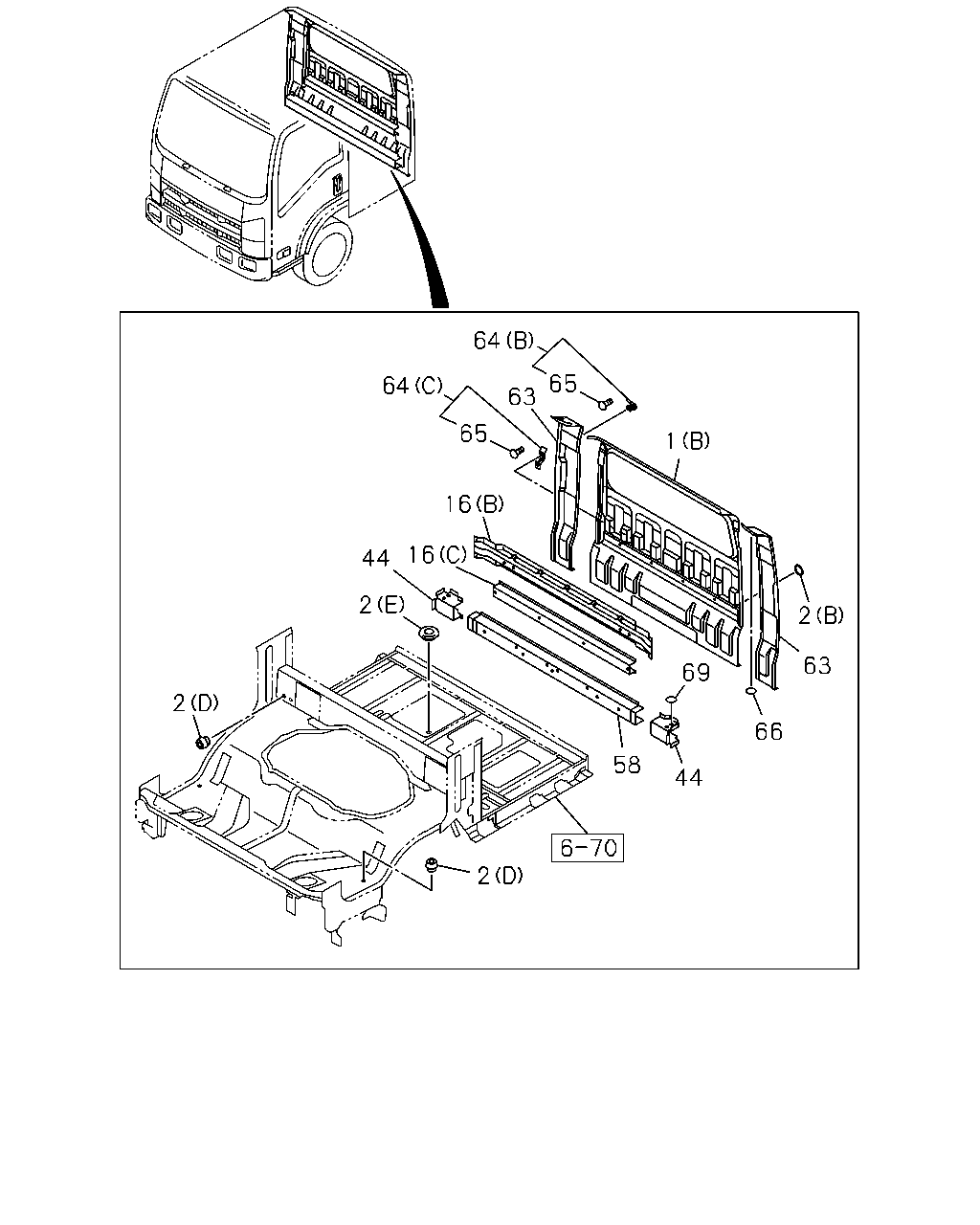

çizim 480495
64 63 65 1 2 63 66 69 44 58 2 16 16 44 2 2 65 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 1506- ● ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1506- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1506- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1506- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 1506- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1506- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1506- ● ● ●
44 16.587 BRACKET; RR SEAT ANCHOR
16.714 		8-98055-947-0 01 1 1506- ● ● ●
44 16.587 BRACKET; RR SEAT ANCHOR
16.714 		8-98055-949-0 01 1 1506- ● ● ●
58 16.575 REINFORCEMENT; SEAT BELT ANCHOR 8-98006-720-0 01 1 1506- ● ● ●
63 16.575 PANEL; BACK,SIDE 8-97583-750-6 01 1 1506- ● ● ●
63 16.575 PANEL; BACK,SIDE 8-97583-751-5 01 1 1506- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1506- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1506- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1506- ● ● ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 01 1 1506- ● ● ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 02 1 1506- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1506- ● ● ● ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1506- ● ● ● ● ● ●
69 16.587 SEAL; LOCATION HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1506- ● ● ●
