Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

6-75 — MAT AND CARPET (#162884) — 42 parça

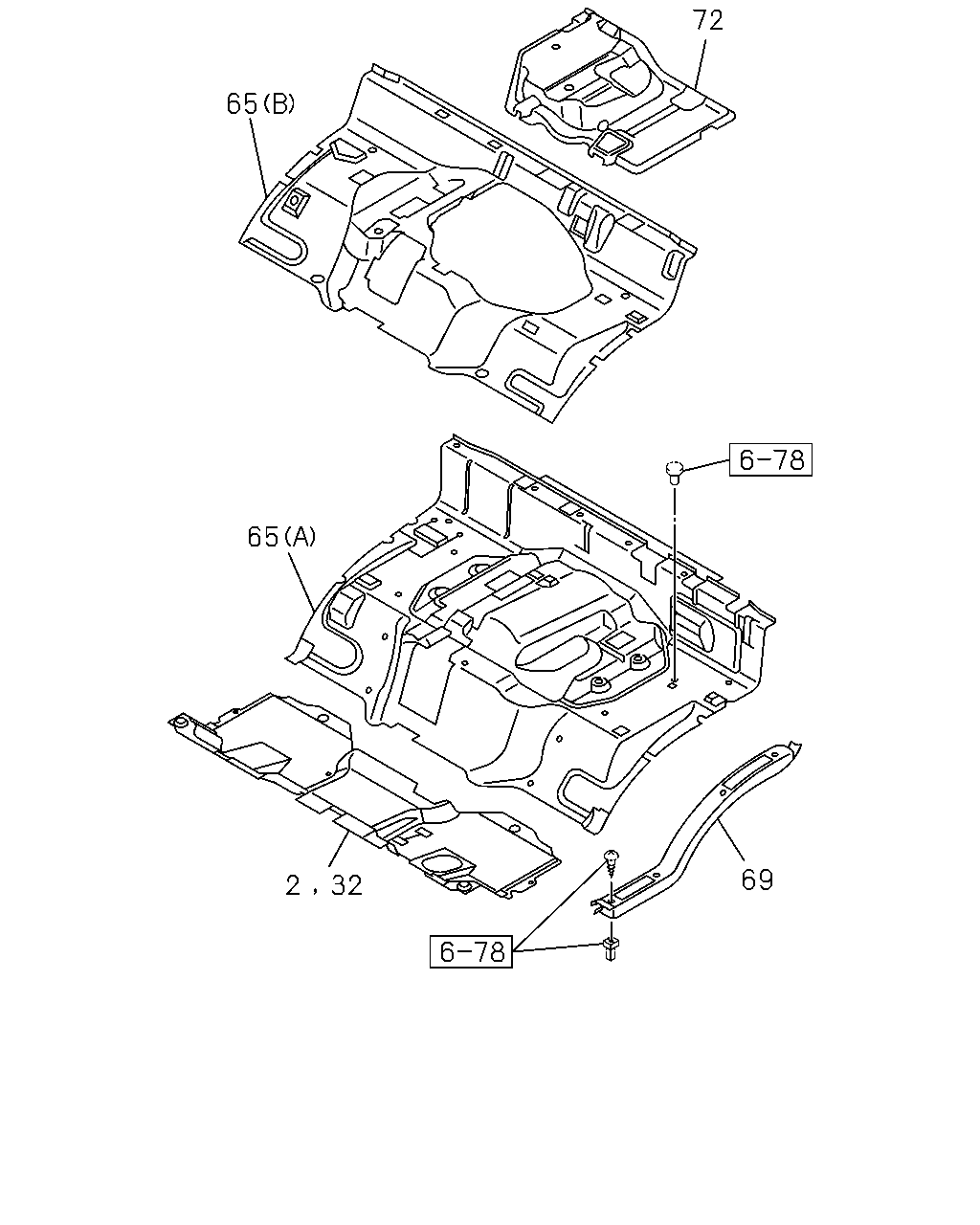

69 32 2 65 65 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) STANDARD CAB<SAY> GRAY	8-97405-148-6	01	1	1506-	●	●	●	●	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) STANDARD CAB<SAY> GRAY	8-97405-147-6	01	1	1506-	●	●	●	●	●	●
32	16.800 CARPET; FLOOR CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER(8GF) DARK BLUE	8-97423-061-0	01	1	1506-			●
32	16.800 CARPET; FLOOR CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DARK BLUE	8-97423-060-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL DISC BRAKE<JF9> (B) GRAY	8-97425-110-1	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. 4 WHEEL DISC BRAKE<JF9>, INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97465-884-0	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> STANDARD CAB<SAY> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-124-1	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL DISC BRAKE<JF9> (B) DARK BLUE	8-97428-864-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. 4 WHEEL DISC BRAKE<JF9>, INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97423-066-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> CUSTOM PACKAGE<YM8> INSPECTION ENGINE COVER<8GA> (B) DARK BLUE	8-97466-295-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97466-293-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. 4 WHEEL DISC BRAKE<JF9> (C) GRAY	8-97425-111-1	01	1	1506-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> (C) GRAY	8-97425-113-1	01	1	1506-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1506-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1506-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> GRAY	8-97406-252-3	01	1	1506-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER CUSTOM PACKAGE<YM8> INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK BLUE	8-97429-576-0	01	1	1506-			●

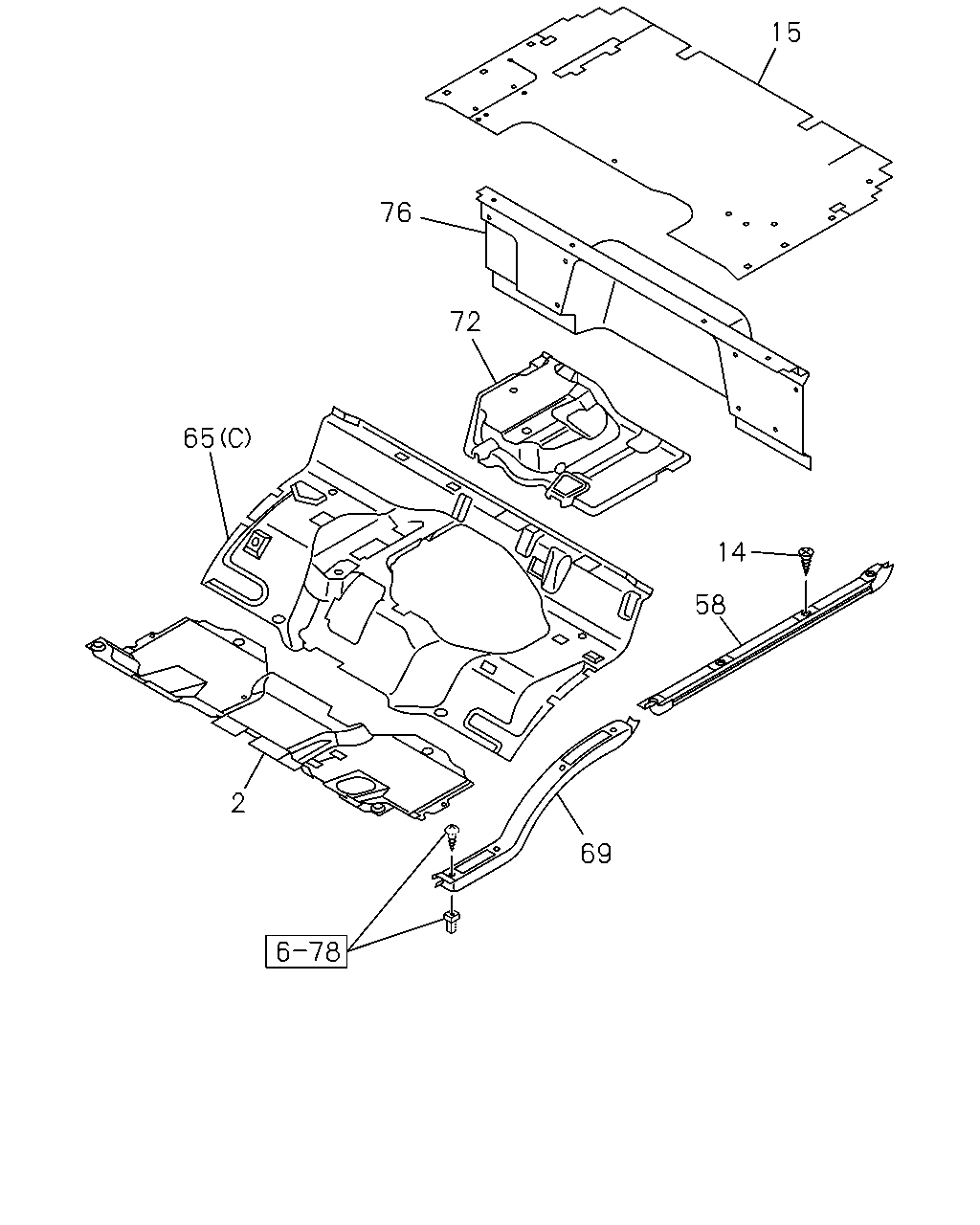

76 15 72 14 58 69 2 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) STANDARD CAB<SAY> GRAY	8-97405-148-6	01	1	1506-	●	●	●	●	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) STANDARD CAB<SAY> GRAY	8-97405-147-6	01	1	1506-	●	●	●	●	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1506-				●	●	●
15	16.800 MAT; FLOOR REAR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97412-603-2	01	1	1506-				●
15	16.800 MAT; FLOOR REAR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97412-601-2	01	1	1506-				●
15	16.800 MAT; FLOOR REAR GRAY	8-97412-602-1	01	1	1506-					●	●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1506-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL DISC BRAKE<JF9> (B) GRAY	8-97425-110-1	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. 4 WHEEL DISC BRAKE<JF9>, INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97465-884-0	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> STANDARD CAB<SAY> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-124-1	01	1	1506-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL DISC BRAKE<JF9> (B) DARK BLUE	8-97428-864-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. 4 WHEEL DISC BRAKE<JF9>, INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97423-066-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> CUSTOM PACKAGE<YM8> INSPECTION ENGINE COVER<8GA> (B) DARK BLUE	8-97466-295-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97466-293-0	01	1	1506-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. 4 WHEEL DISC BRAKE<JF9> (C) GRAY	8-97425-111-1	01	1	1506-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4 WHEEL DISC BRAKE<JF9> (C) GRAY	8-97425-113-1	01	1	1506-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1506-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1506-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> GRAY	8-97406-252-3	01	1	1506-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER CUSTOM PACKAGE<YM8> INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK BLUE	8-97429-576-0	01	1	1506-			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97405-204-4	01	1	1506-				●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97412-600-1	01	1	1506-1511					●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97467-183-0	01	1	1512-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
