6-70 — FLOOR PANEL (#162883) — 132 parça

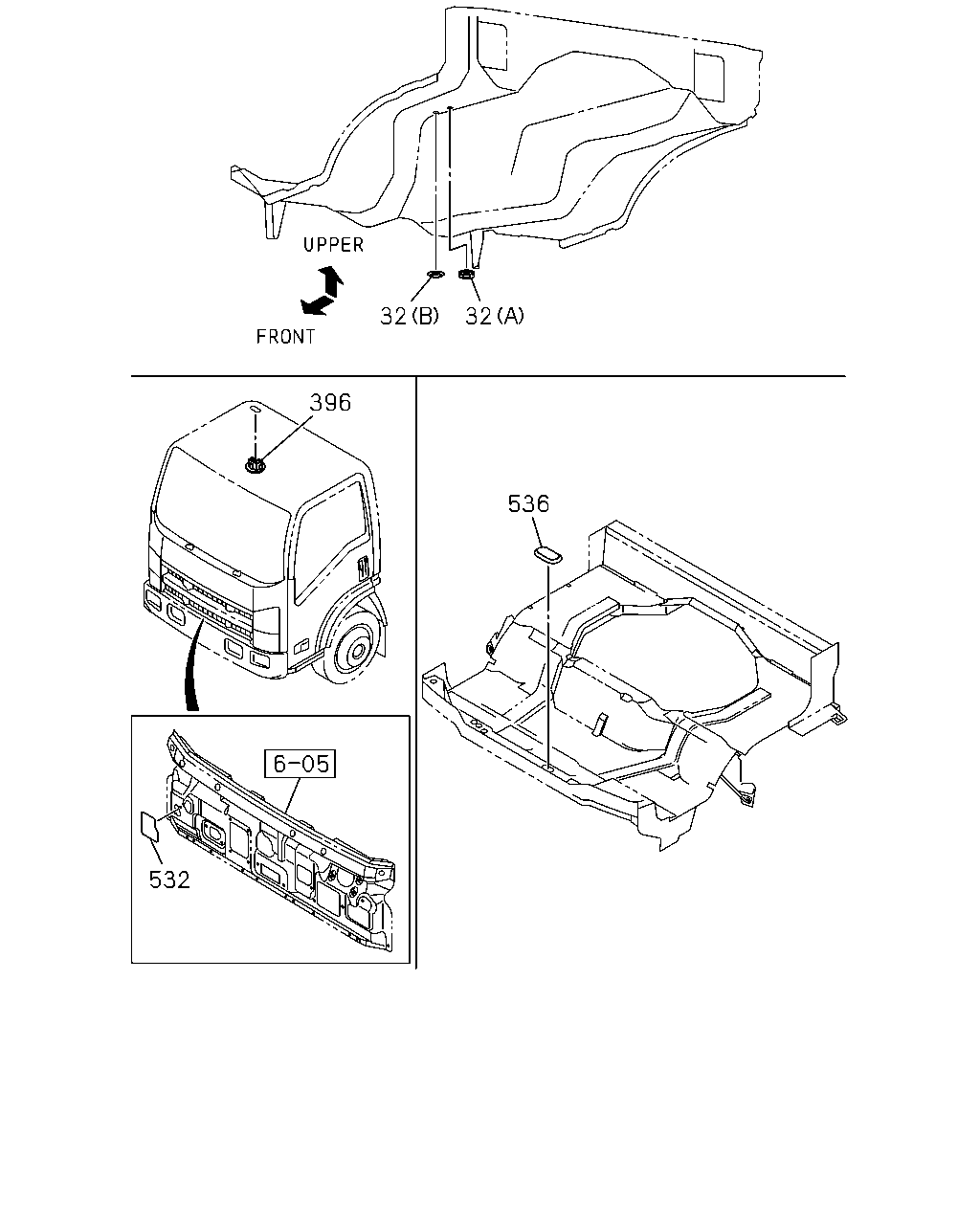

536 396 32 32 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (A) OD=15.0	8-94279-040-0	02	1	1506-	●	●	●	●	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	1506-	●	●	●	●	●	●
396	16.547 GROMMET; LOCATION HOLE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98054-990-0	02	1	1506-	●	●	●
532	16.520 SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	1506-1507	●		●	●		●
532	16.520 SEAL; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ)	8-98042-432-1	01	1	1506-1507		●			●
532	16.520 SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	1508-	●	●	●	●	●	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	1506-	●	●	●	●	●	●

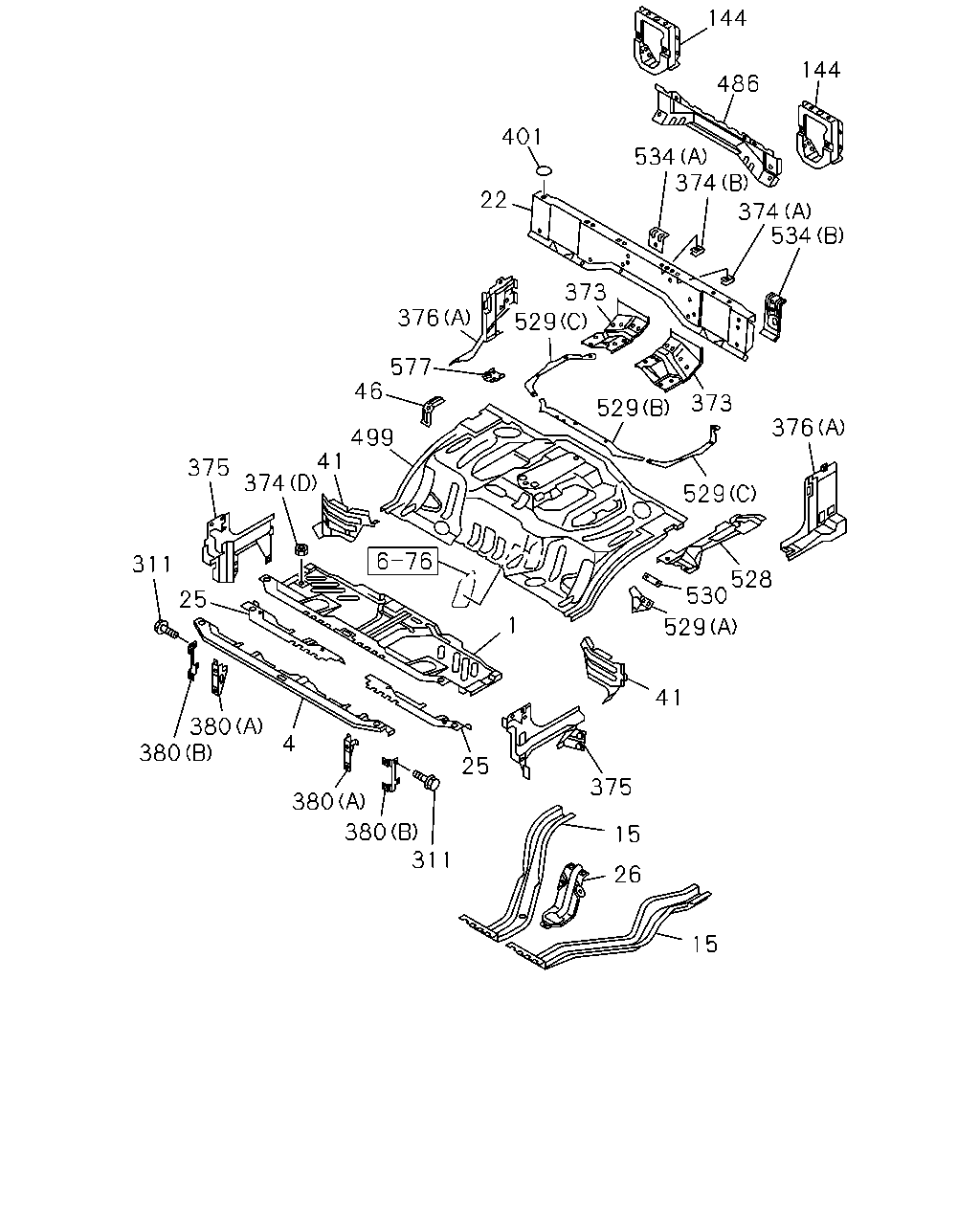

15 26 15 375 41 529 530 528 529 529 373 376 534 374 374 534 486 144 144 401 22 376 577 46 499 41 374 375 311 25 380 380 4 380 380 311 25 1 529 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	1506-	●	●	●	●	●	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	1506-	●	●	●	●	●	●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	1506-	●	●	●	●	●	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	1506-	●	●	●	●	●	●
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1506-	●	●	●
22	16.545 FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97587-394-4	01	1	1506-	●	●	●
22	16.545 FRAME; FLOOR REAR	8-97587-394-4	01	1	1506-				●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1506-	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1506-	●	●	●	●	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1506-	●	●	●	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	1506-	●	●	●	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	1506-	●	●	●	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1506-	●	●	●	●	●	●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ>	8-97589-544-3	02	1	1506-	●	●	●
144	16.545 BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA>	8-98112-244-2	02	1	1506-	●	●	●	●	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1506-	●	●	●	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1506-	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1506-	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	1506-				●	●	●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1506-	●	●	●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1506-				●	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1506-	●	●	●	●	●	●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	1506-	●	●	●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1506-				●	●	●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	1501-	●	●	●	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	1506-	●	●	●	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	1506-	●	●	●	●	●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	1506-				●	●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	1506-				●	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	1506-	●	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	1506-	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1506-	●	●	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1506-	●	●	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1506-	●	●	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1506-	●	●	●	●	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1506-	●	●	●	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1506-	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-614-2	01	1	1506-	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	1506-				●	●	●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1506-	●	●	●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-98205-116-0	01	1	1506-	●	●	●
499	16.545 PANEL; FLOOR,RR	8-98205-116-0	01	1	1506-				●	●	●
528	16.545 REINFORCEMENT; PARKING BRAKE MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-249-0	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (B)	8-97589-249-0	01	1	1506-				●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-467-1	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-467-1	01	1	1506-				●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-468-1	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-468-1	01	1	1506-				●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	1506-				●	●	●
530	16.565 BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	1506-	●	●	●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	1506-				●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1506-	●	●	●	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1506-	●	●	●	●	●	●
577	16.545 BRACKET; SENSOR,YAW 4 WHEEL DISC BRAKE<JF9>	8-98204-802-0	01	1	1506-	●	●	●	●	●	●

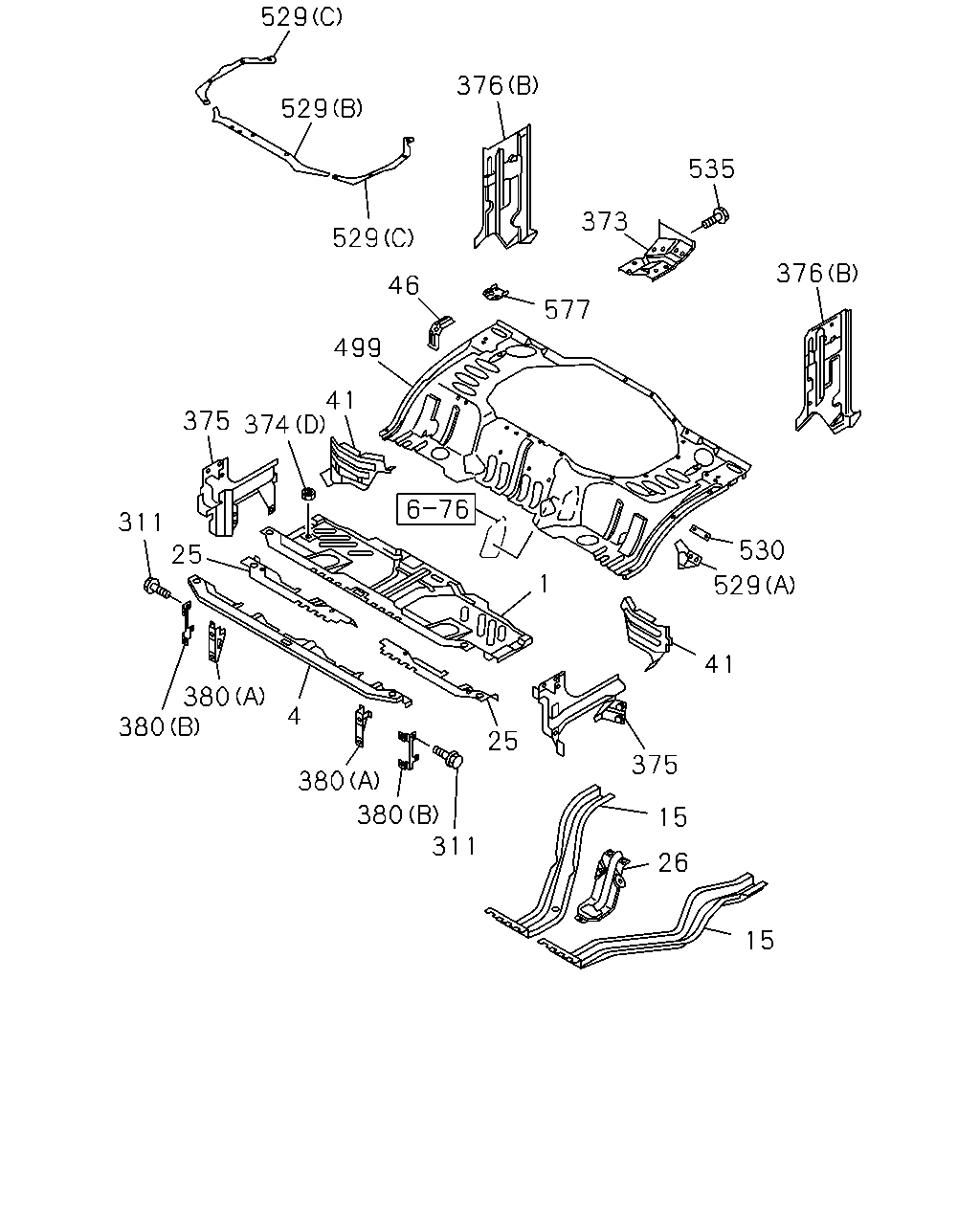

530 529 41 375 15 26 15 311 380 380 380 380 4 311 25 375 374 41 499 46 529 529 529 376 373 577 535 376 1 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	1506-	●	●	●	●	●	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	1506-	●	●	●	●	●	●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	1506-	●	●	●	●	●	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	1506-	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1506-	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1506-	●	●	●	●	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1506-	●	●	●	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	1506-	●	●	●	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	1506-	●	●	●	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1506-	●	●	●	●	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1506-	●	●	●	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1506-	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1506-	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	1506-				●	●	●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1506-	●	●	●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1506-				●	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1506-	●	●	●	●	●	●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	1506-	●	●	●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1506-				●	●	●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	1501-	●	●	●	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	1506-	●	●	●	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	1506-	●	●	●	●	●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	1506-				●	●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	1506-				●	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	1506-	●	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	1506-	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1506-	●	●	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1506-	●	●	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1506-	●	●	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1506-	●	●	●	●	●	●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1506-	●	●	●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-98205-116-0	01	1	1506-	●	●	●
499	16.545 PANEL; FLOOR,RR	8-98205-116-0	01	1	1506-				●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-249-0	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (B)	8-97589-249-0	01	1	1506-				●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-467-1	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-467-1	01	1	1506-				●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-468-1	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-468-1	01	1	1506-				●	●	●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	1506-	●	●	●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	1506-				●	●	●
530	16.565 BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	1506-	●	●	●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	1506-				●	●	●
535	16.549 BOLT; REINFORCEMENT 01.531 M8X20 FLANGE	0-28650-820-0	05	1	1506-				●	●	●
577	16.545 BRACKET; SENSOR,YAW 4 WHEEL DISC BRAKE<JF9>	8-98204-802-0	01	1	1506-	●	●	●	●	●	●

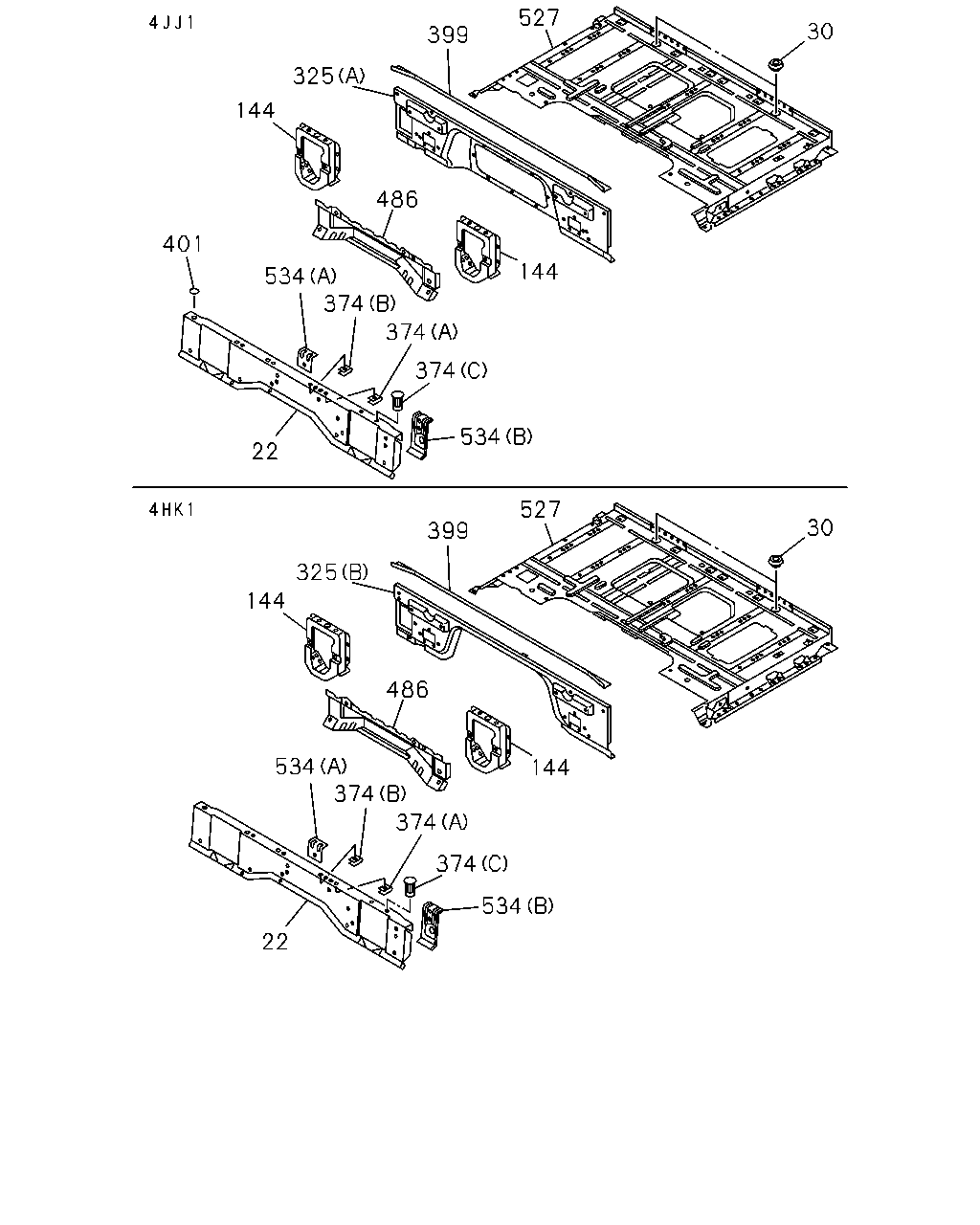

534 374 374 374 534 486 144 325 399 527 30 144 22 22 374 374 374 534 534 401 144 325 399 486 144 527 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1506-	●	●	●
22	16.545 FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97587-394-4	01	1	1506-	●	●	●
22	16.545 FRAME; FLOOR REAR	8-97587-394-4	01	1	1506-				●	●	●
30	16.547 GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	1506-				●	●	●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ>	8-97589-544-3	02	1	1506-	●	●	●
144	16.545 BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA>	8-98112-244-2	02	1	1506-	●	●	●	●	●	●
325	16.545 REINFORCEMENT ASM; RR MTG (A)	8-98014-024-2	01	1	1506-				●
325	16.545 REINFORCEMENT ASM; RR MTG (B)	8-98006-699-3	01	1	1506-					●	●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1506-	●	●	●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1506-				●	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1506-	●	●	●	●	●	●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	1506-	●	●	●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1506-				●	●	●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	1501-	●	●	●	●	●	●
399	16.545 PANEL; EXTENSION,RR MTG RAIL	8-97587-702-1	01	1	1506-				●	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1506-	●	●	●	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1506-	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-614-2	01	1	1506-	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	1506-				●	●	●
527	16.545 FLOOR; RR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-050-4	01	1	1506-				●
527	16.545 FLOOR; RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98030-049-4	01	1	1506-				●
527	16.545 FLOOR; RR	8-98081-184-3	01	1	1506-					●	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1506-	●	●	●	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1506-	●	●	●	●	●	●
