6-66 — HEAD LINING AND TRIM (#162882) — 78 parça

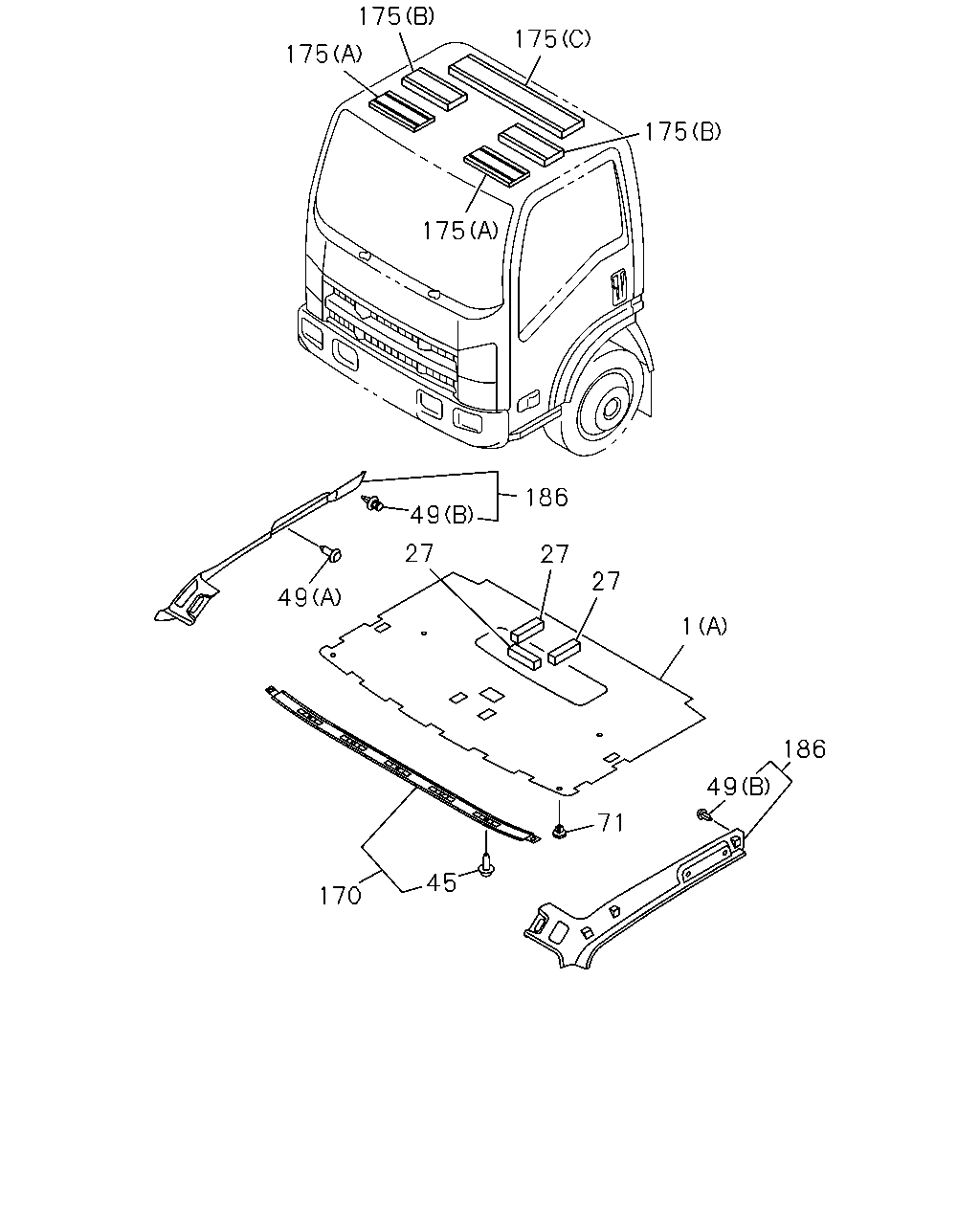

çizim 480463
175 175 175 175 175 49 186 27 27 1 186 49 27 49 170 45 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97425-054-0 01 1 1506- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97405-271-8 01 1 1506- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 1506- ● ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 1506- ● ● ●
27 16.165 INSULATION; ROOF 8-98046-638-2 03 1 1506- ● ● ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1506- ● ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1506- ● ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1506- ● ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1506- ● ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>, INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 04 1 1506- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1506- ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1506- ● ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1506-1507 ● ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-282-0 04 1 1508- ● ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 1506- ● ● ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-281-5 01 1 1506- ● ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-298-3 01 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1506- ● ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-98037-298-3 03 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98054-171-3 02 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1506- ● ● ●

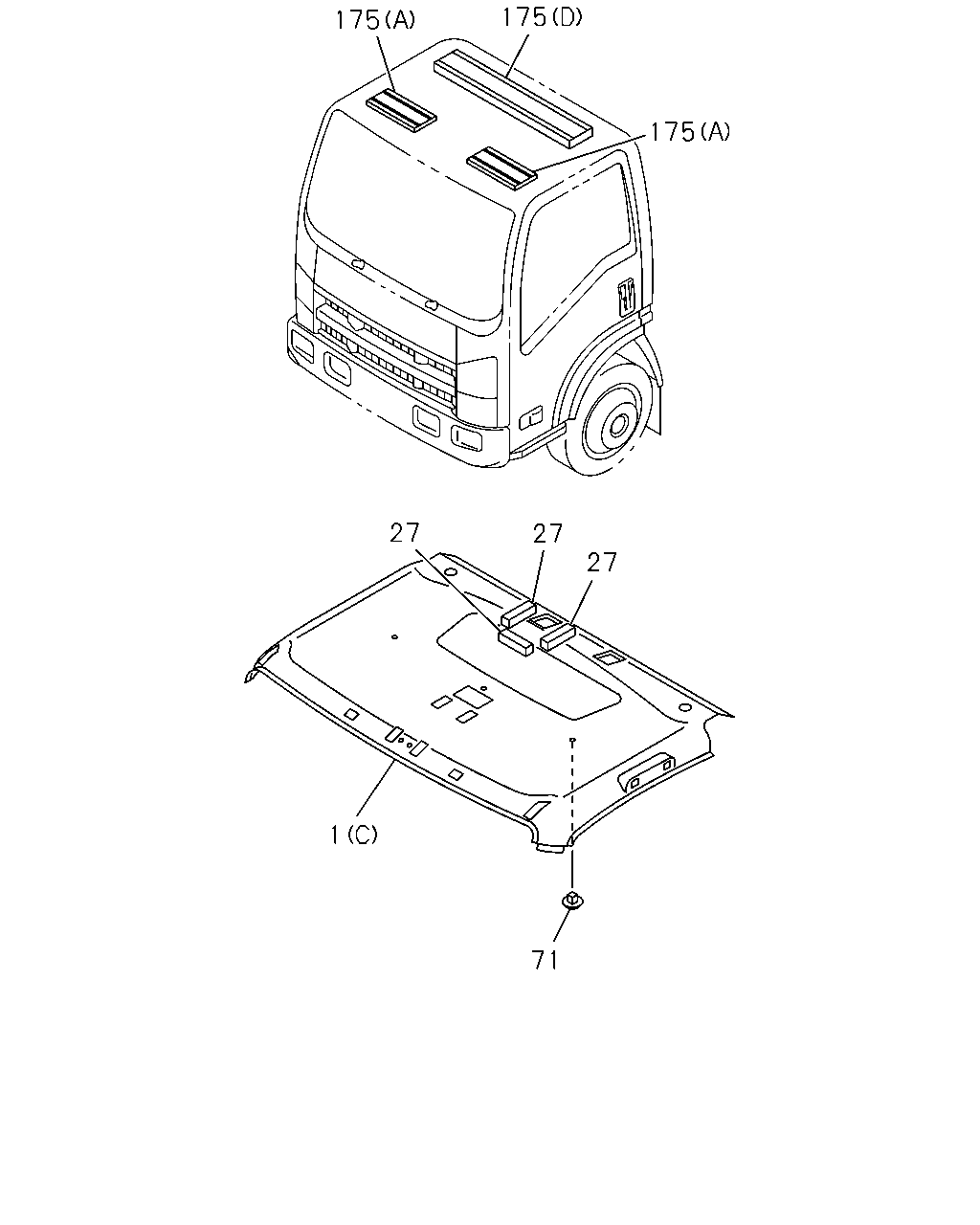

çizim 480530
27 27 27 1 71 175 175 175
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97425-054-0 01 1 1506- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97405-271-8 01 1 1506- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 1506- ● ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 1506- ● ● ●
27 16.165 INSULATION; ROOF 8-98046-638-2 03 1 1506- ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1506- ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1506- ● ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1506-1507 ● ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-282-0 04 1 1508- ● ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-298-3 01 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1506- ● ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-98037-298-3 03 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98054-171-3 02 1 1506- ● ● ●

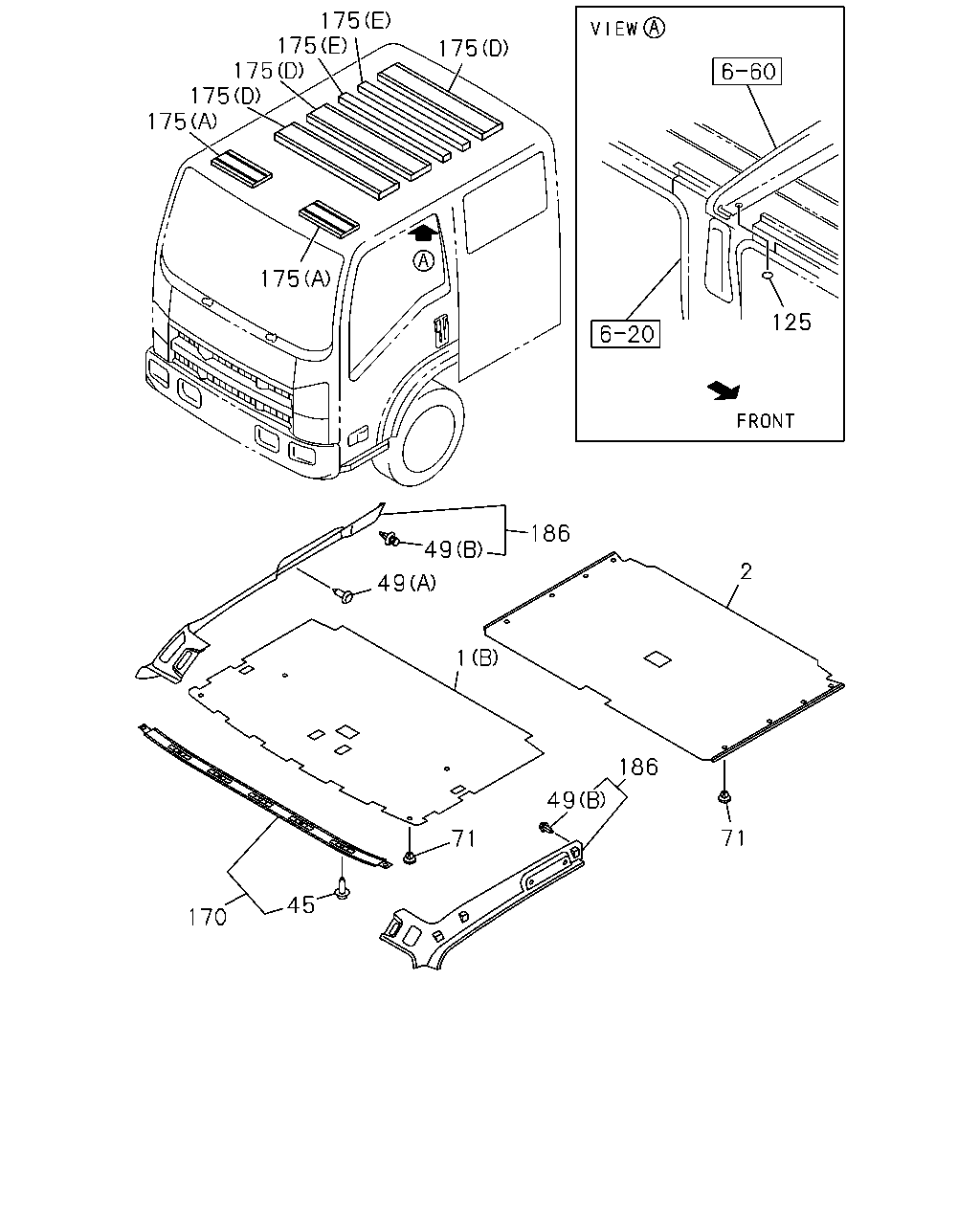

çizim 480557
175 175 175 175 175 175 125 2 186 49 49 1 186 71 49 71 45 170 175
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97425-054-0 01 1 1506- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97405-271-8 01 1 1506- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 1506- ● ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 1506- ● ● ●
2 16.742 LINING; HD,ROOF RR
DARK GRAY 		8-97405-280-3 01 1 1506- ● ● ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1506- ● ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1506- ● ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1506- ● ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1506- ● ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>, INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 04 1 1506- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1506- ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1506- ● ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1506-1507 ● ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-282-0 04 1 1508- ● ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 1506- ● ● ●
125 16.570 SEAL; HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR TRANS BLUE(999) 02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1506- ● ● ●
125 16.570 SEAL; HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.592 OD=36 WHITE 		1-76778-007-0 02 1 1506- ● ● ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-281-5 01 1 1506- ● ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-298-3 01 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1506- ● ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-98037-298-3 03 1 1506- ● ● ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98054-171-3 02 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1506- ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1506- ● ● ●
