◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#16288) — 31 parça

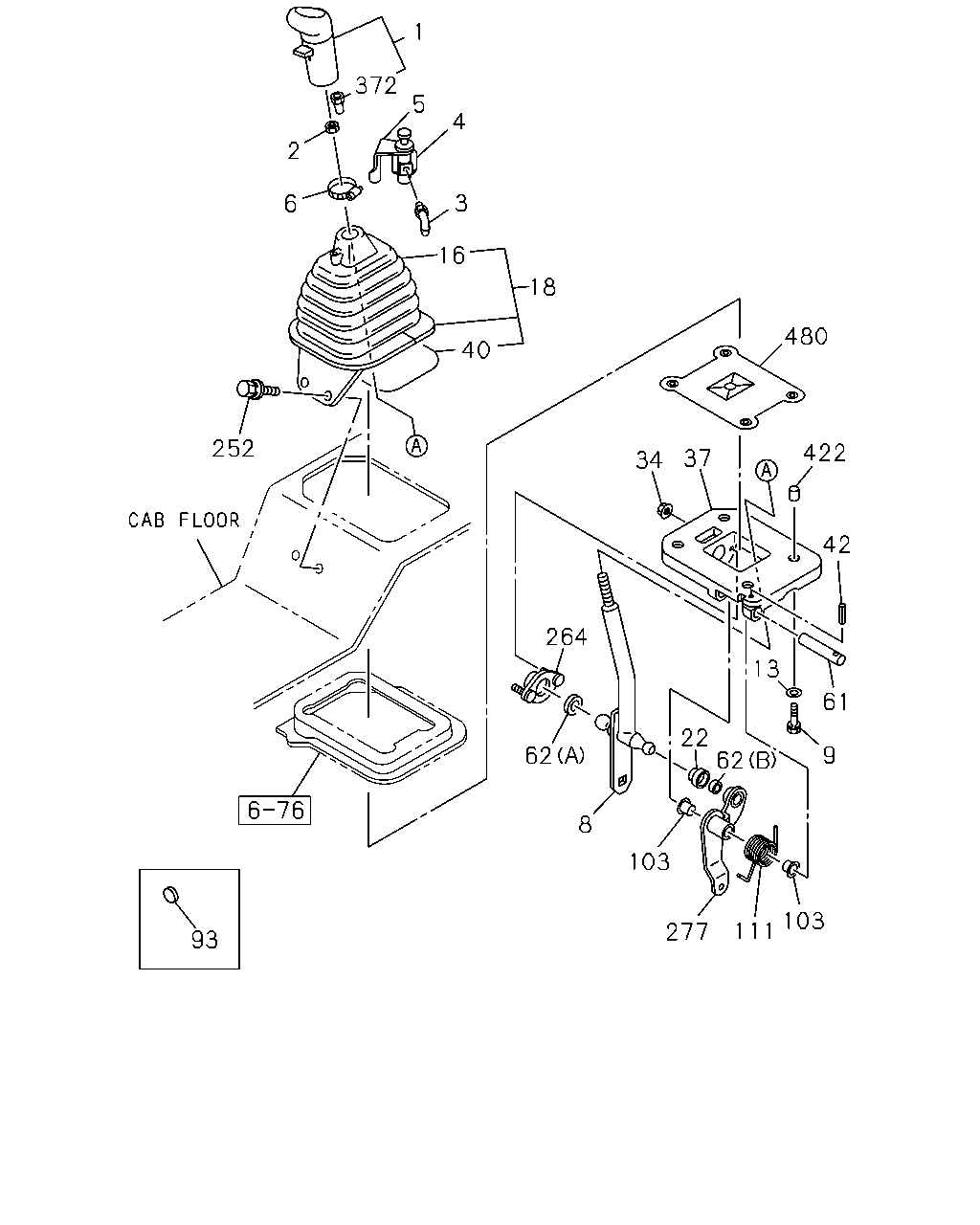

çizim 62145
1 372 5 4 2 3 6 16 18 480 40 252 422 37 34 42 264 13 61 22 62 9 62 8 103 103 111 277 93
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 8-98120-384-0 01 1 0904-1401
1 KNOB; CHANGE LEVER 8-98224-285-0 01 1 1402-
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0904-
3 CONNECTOR; CONT TUBE 8-98114-398-0 02 1 0904-
4 VALVE; ACTUATOR 1-33712-003-0 01 1 0904-
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 0904-
6 CLAMP; BRKT 1-33719-079-0 01 1 0904-
8 LEVER; CHANGE 1-33613-349-0 01 1 0904-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 0904-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 0904-
16 BOOT; CHANGE LEVER 1-79996-367-1 01 1 0904-
18 BOOT; CHANGE LEVER 1-79996-435-2 01 1 0904-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0904-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 0904-
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 0904-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0904-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0904-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0904-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0904-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0904-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 03 1 0904-1009
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 04 1 1010-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0904-
111 SPRING 1-09585-133-1 01 1 0904-
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0904-0904
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
264 PLATE; COVER 1-33619-469-0 01 1 0904-
277 LEVER; RELAY 1-33651-636-1 01 1 0904-
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 0904-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0904-
480 RUBBER; COVER 8-98119-365-0 01 1 0904-
