6-47 — MUD GUARD AND INSULATOR (#162876) — 110 parça

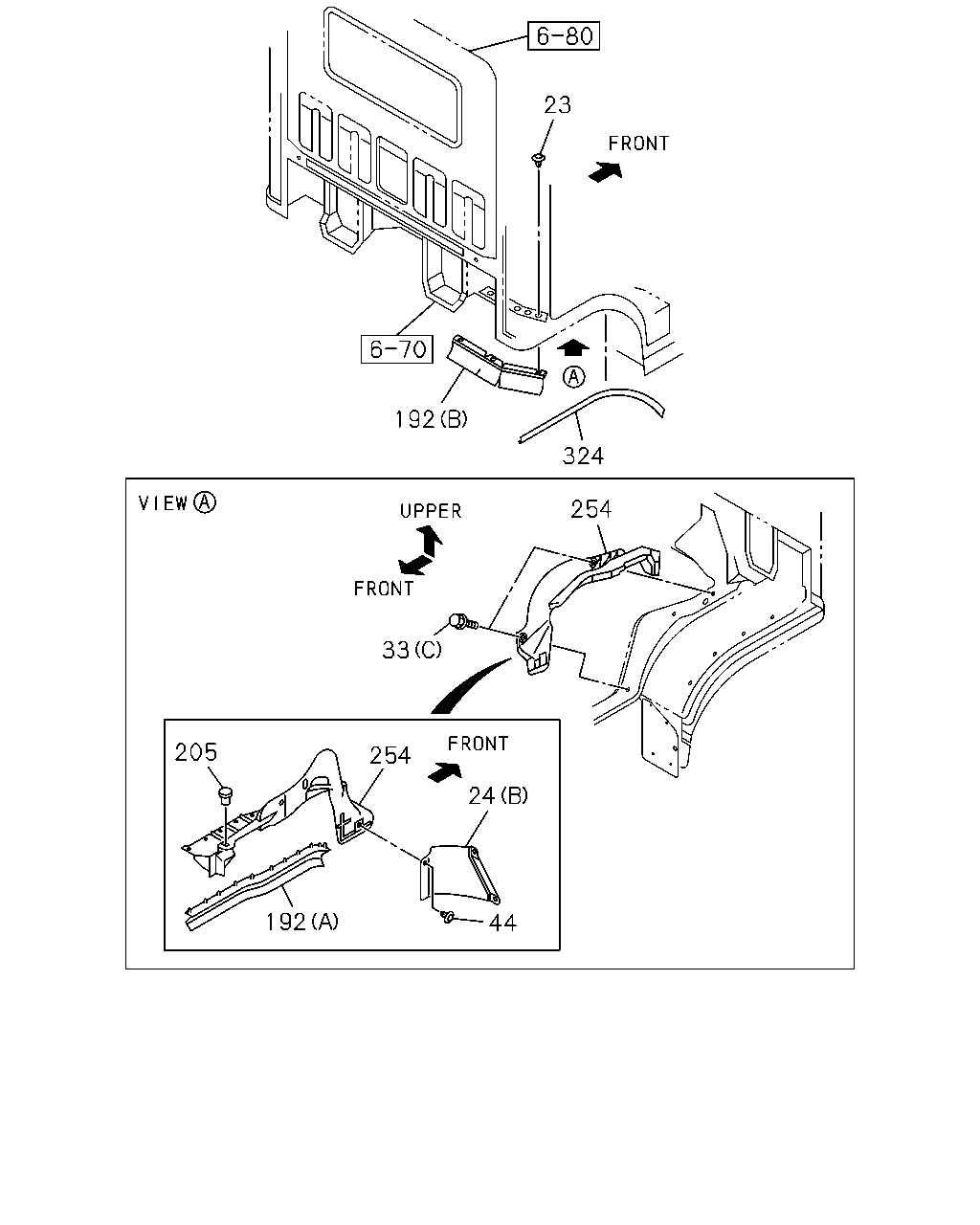

23 192 324 254 33 254 24 44 192 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1506-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1506-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1506-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1506-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1506-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1506-	●	●	●	●	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1506-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1506-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1506-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1506-	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1506-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1506-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1506-	●	●	●	●	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1506-	●	●	●	●	●	●

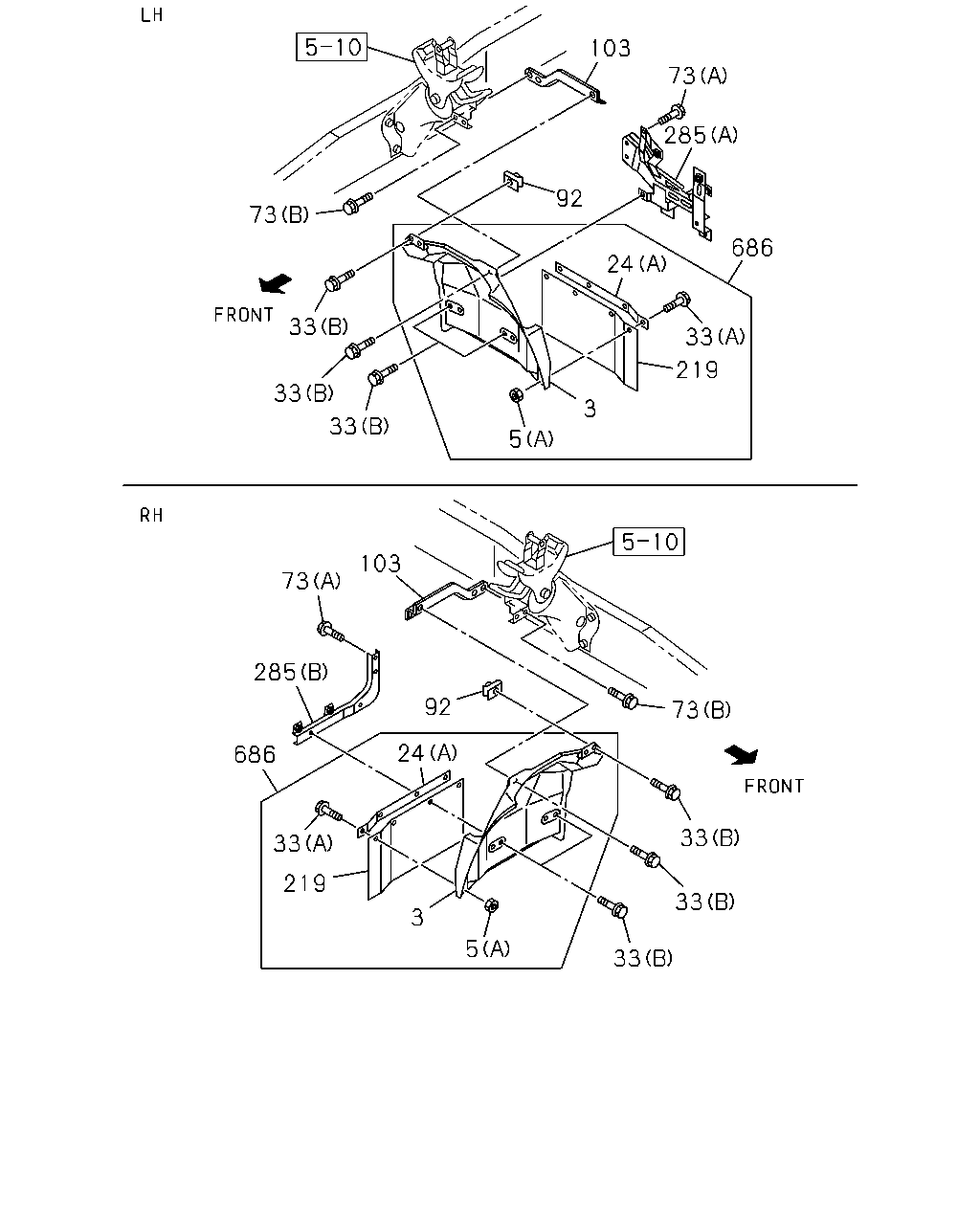

103 73 285 686 33 219 24 3 5 92 33 33 33 73 103 73 285 92 24 686 33 219 3 5 33 33 33 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	1506-	●	●	●	●	●	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1506-	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1506-	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1506-1507				●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1506-1507					●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1508-				●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1506-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1506-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1506-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1506-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1506-	●	●	●	●	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1506-	●	●	●	●	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1506-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1506-	●	●	●	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1506-	●	●	●	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1506-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-98004-032-1	02	1	1506-	●			●
219	08.155 FLAP; MUD GUARD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-98004-032-1	02	1	1506-		●
219	08.155 FLAP; MUD GUARD G.V.W. 6.5-7.0TON(RPW)	8-98004-032-1	02	1	1506-					●
219	08.155 FLAP; MUD GUARD G.V.W. 7.5-8.0TON(RPY)	8-98004-033-1	02	1	1506-		●			●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	1506-			●			●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1506-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1506-	●	●	●	●	●	●
686	08.155 FLAP ASM; MUD	8-97387-746-7	01	1	1506-	●			●
686	08.155 FLAP ASM; MUD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97387-746-7	01	1	1506-		●
686	08.155 FLAP ASM; MUD G.V.W. 6.5-7.0TON(RPW)	8-97387-746-7	01	1	1506-					●
686	08.155 FLAP ASM; MUD	8-97387-747-6	01	1	1506-	●			●
686	08.155 FLAP ASM; MUD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97387-747-6	01	1	1506-		●
686	08.155 FLAP ASM; MUD G.V.W. 6.5-7.0TON(RPW)	8-97387-747-6	01	1	1506-					●
686	08.155 FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-750-7	01	1	1506-		●			●
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	1506-			●			●
686	08.155 FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-751-6	01	1	1506-		●			●
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	1506-			●			●

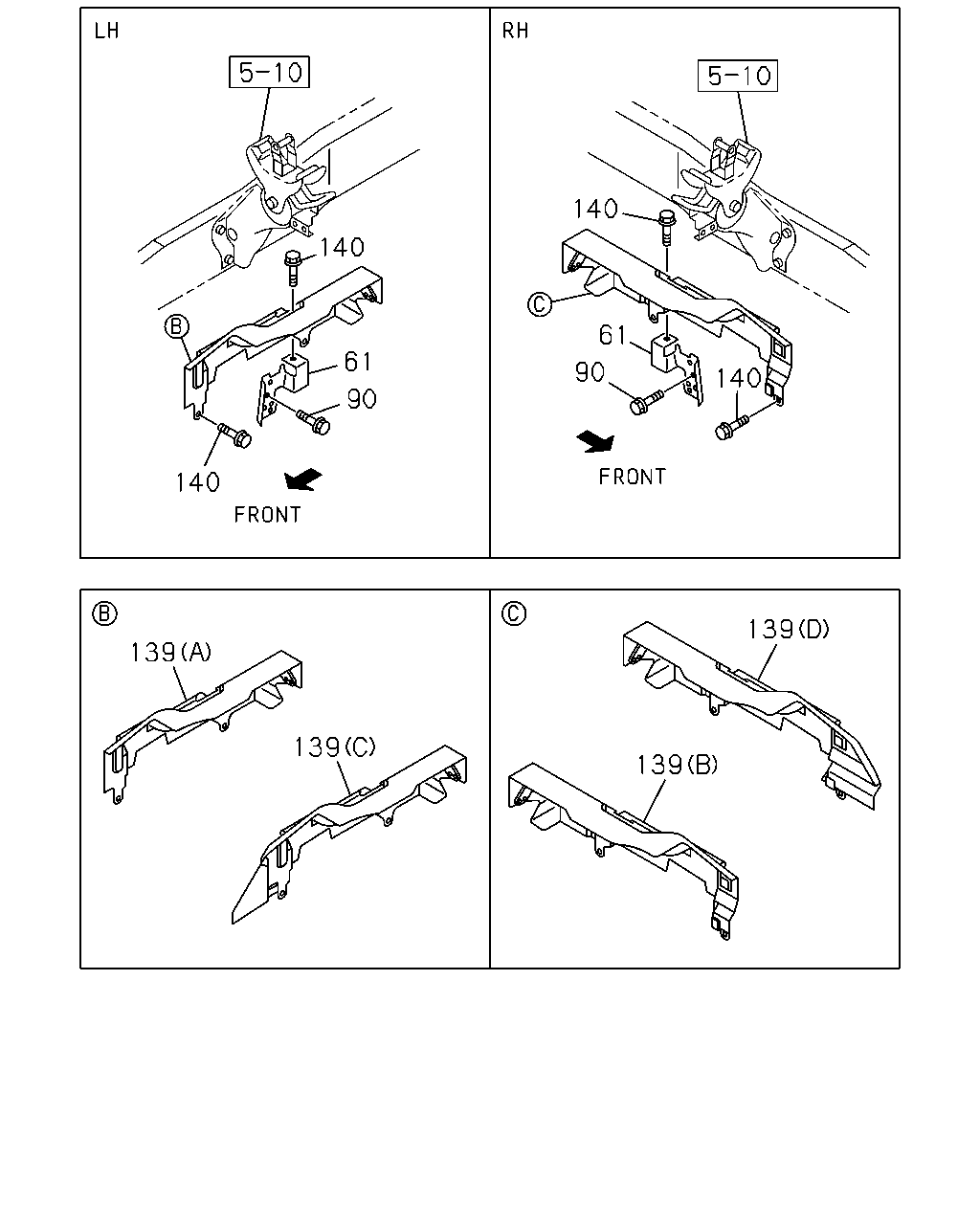

139 139 139 139 140 61 140 90 61 140 140 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
61	08.155 BRACKET; COVER	8-98040-465-1	01	1	1506-1507	●			●
61	08.155 BRACKET; COVER FRAME STRAIGHT TYPE<7KJ>	8-98040-465-1	01	1	1506-1507		●	●		●	●
61	08.155 BRACKET; COVER	8-98040-465-1	01	1	1508-	●	●	●	●	●	●
61	08.155 BRACKET; COVER	8-98040-466-1	01	1	1506-1507	●			●
61	08.155 BRACKET; COVER FRAME STRAIGHT TYPE<7KJ>	8-98040-466-1	01	1	1506-1507		●	●		●	●
61	08.155 BRACKET; COVER	8-98040-466-1	01	1	1508-	●	●	●	●	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1506-	●	●	●	●	●	●
139	08.153 PANEL; SIDE (D)	8-97387-727-4	01	1	1506-	●			●
139	08.153 PANEL; SIDE (C)	8-97387-728-8	01	1	1506-	●			●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	1506-		●	●		●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-1	01	1	1506-		●	●		●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1506-1507	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1508-	●	●	●	●	●	●

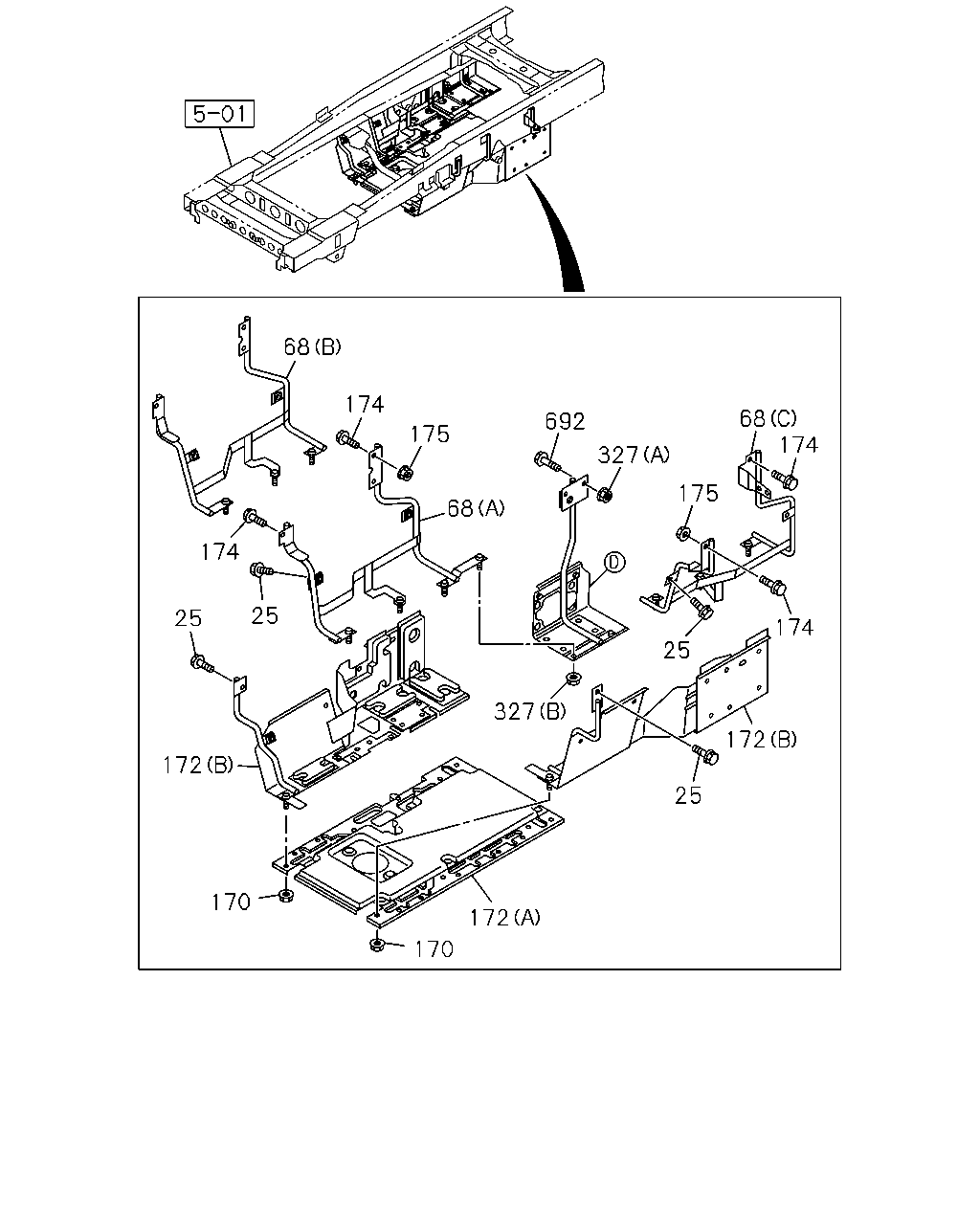

68 174 25 25 172 170 170 172 327 25 172 25 174 174 68 175 327 692 68 175 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	E	F
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1506-	●	●	●	●
25	08.155 BOLT; PLATE TO MUD COVER M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1506-		●		●
68	08.155 STAY; COVER 4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98261-612-1	01	1	1506-	●		●
68	08.155 STAY; COVER 4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98291-102-0	01	1	1506-	●		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98150-453-0	01	1	1506-	●	●	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98188-816-0	01	1	1506-1506	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98188-816-0	01	1	1507-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98201-755-0	01	1	1506-	●	●	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98080-386-2	01	1	1506-1506			●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98080-386-2	01	1	1507-		●	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	1506-	●	●	●	●
170	08.155 NUT; COVER M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	1506-		●		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98024-942-1	01	1	1506-	●	●	●	●
172	08.155 COVER; UNDER,ENG SIDE M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98024-942-1	01	1	1506-		●		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98079-017-4	01	1	1506-	●	●	●	●
172	08.155 COVER; UNDER,ENG SIDE M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98079-017-4	01	1	1506-		●		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98225-680-0	01	1	1506-	●	●	●	●
172	08.155 COVER; UNDER,ENG SIDE M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98225-680-0	01	1	1506-		●		●
174	08.155 BOLT; STAY FIX 4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	05	1	1506-	●		●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1506-	●	●	●	●
175	08.155 NUT; STAY FIX 4HK1-TCN ENG(RDQ) M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1506-	●		●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-	●	●	●	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-1506	●	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1507-	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	01	1	1506-1506	●	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	01	1	1507-	●
692	03.602 BOLT; PROTECTOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-1506	●	●
692	03.602 BOLT; PROTECTOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1507-	●

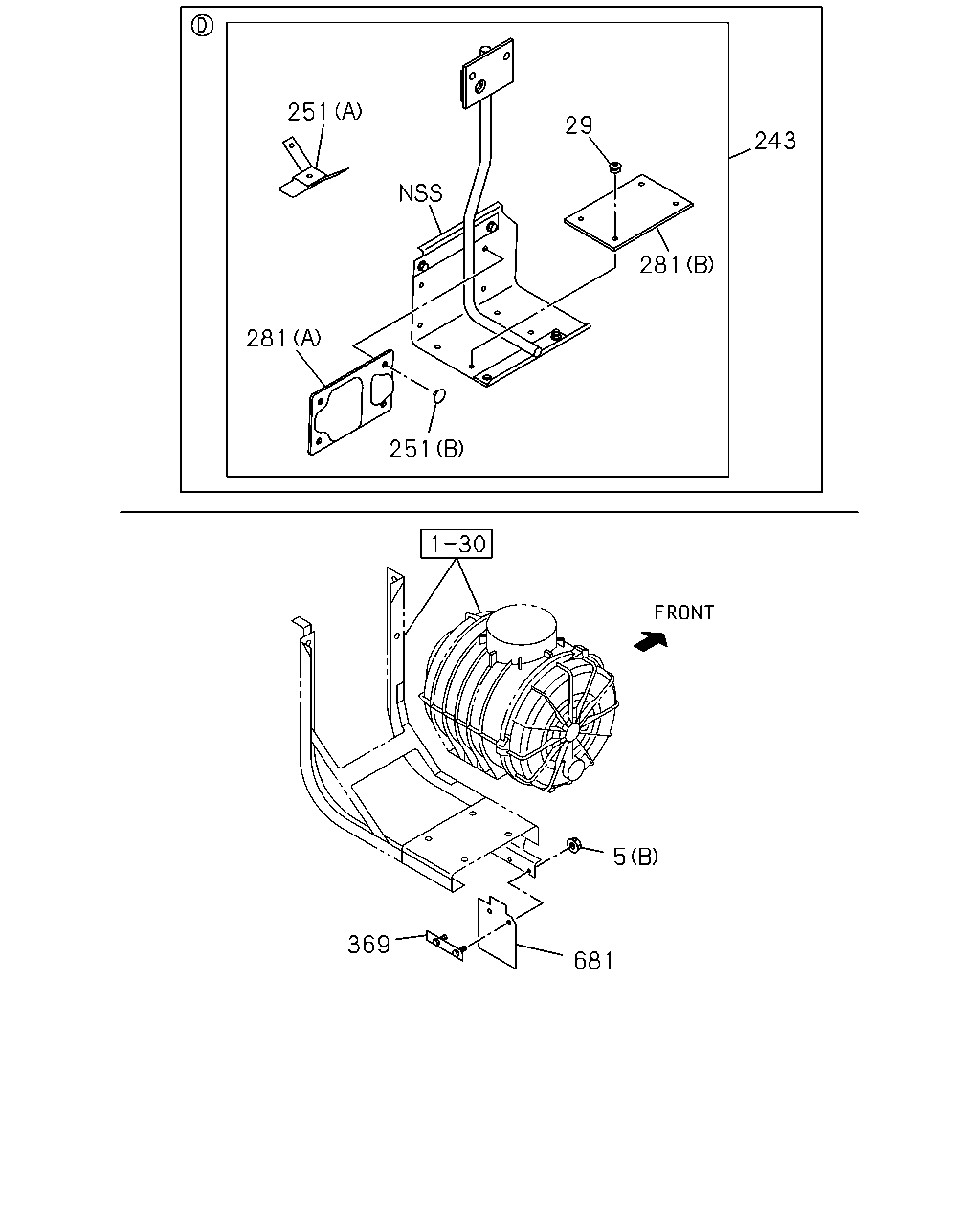

29 243 281 251 281 251 5 681 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1506-	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1506-1507				●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1506-1507					●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1508-				●	●	●
29	08.155 RIVET 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-642-0	04	1	1506-1506		●	●
29	08.155 RIVET 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-642-0	04	1	1507-		●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98315-792-0	01	1	1506-1506		●	●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98315-792-0	01	1	1507-		●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	5-09700-354-0	01	1	1506-1506		●	●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	5-09700-354-0	01	1	1507-		●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98134-641-0	04	1	1506-1506		●	●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98134-641-0	04	1	1507-		●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98188-864-0	01	1	1506-1506		●	●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98188-864-0	01	1	1507-		●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-740-0	01	1	1506-1506		●	●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-740-0	01	1	1507-		●
369	08.155 PLATE	8-98061-674-0	01	1	1506-1507				●
369	08.155 PLATE FRAME STRAIGHT TYPE<7KJ>	8-98061-674-0	01	1	1506-1507					●	●
369	08.155 PLATE	8-98061-674-0	01	1	1508-				●	●	●
681	03.402 FLAP; AIR CLEANER	8-98061-671-0	01	1	1506-1507				●
681	03.402 FLAP; AIR CLEANER FRAME STRAIGHT TYPE<7KJ>	8-98061-671-0	01	1	1506-1507					●	●
681	03.402 FLAP; AIR CLEANER	8-98061-671-0	01	1	1508-				●	●	●
