◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#162864) — 76 parça

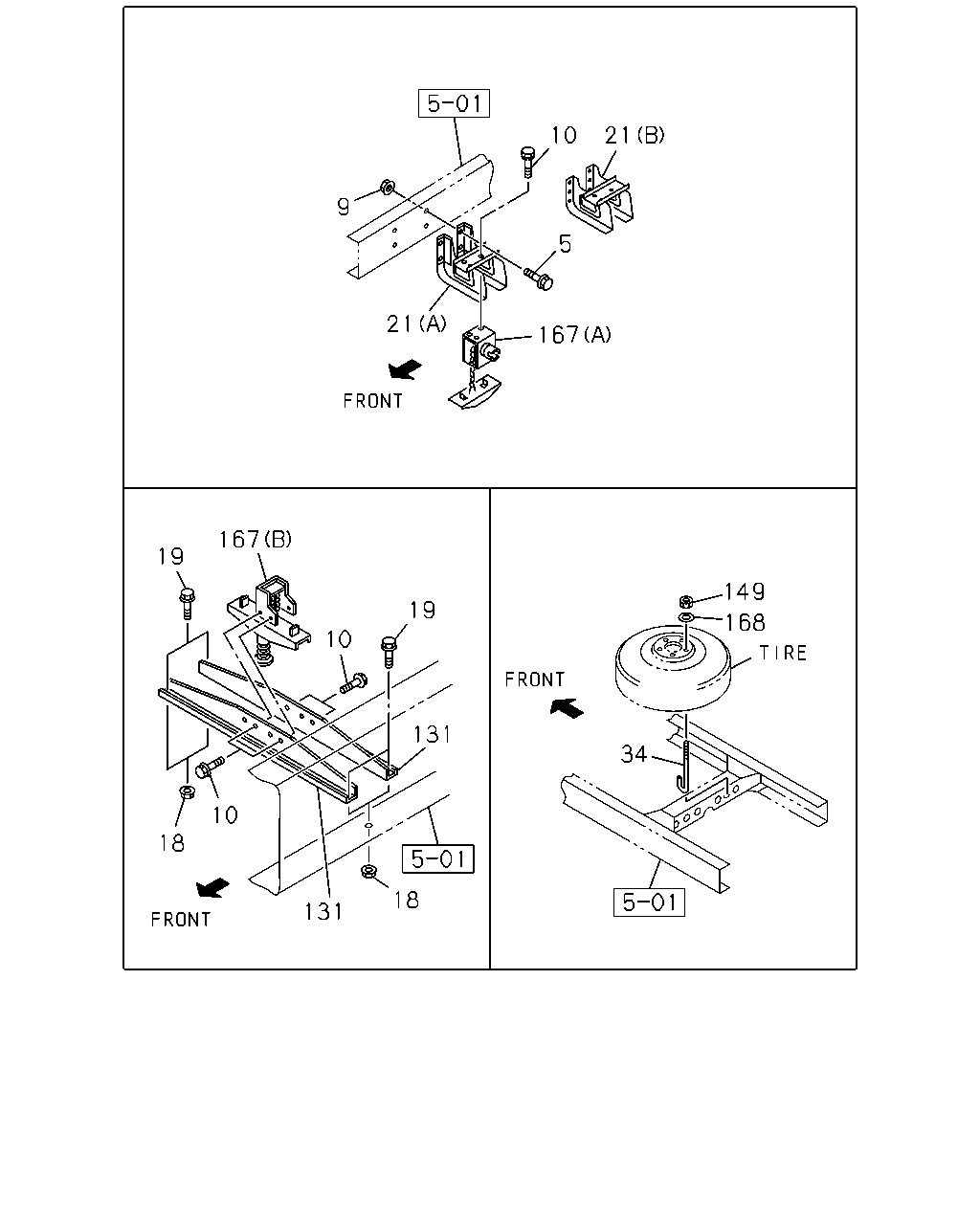

çizim 480765
10 21 5 167 21 9 167 19 10 131 19 131 10 18 18 34 168 149
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1506- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1506- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1506- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1506- ●
5 07.632 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1506- ●
5 07.632 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1506- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506- ●
9 07.633 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506- ●
9 07.633 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 1506- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W) F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1508- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1508- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1508- ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1508- ●
10 07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1508- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506-1507 ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506-1507 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ●
10 07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506-1507 ● ● ●
18 07.633 NUT; MEMBER
03.162 M10 FLANGE 		0-91180-110-0 04 1 1506-1507 ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
18 07.633 NUT; MEMBER
03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
18 07.633 NUT; MEMBER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1507 ● ● ●
19 07.632 BOLT; C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1507 ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ●
19 07.632 BOLT; C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ●
19 07.632 BOLT; C/MBR
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W) (A) 		8-98072-378-2 01 1 1506- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98072-378-2 01 1 1506- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98072-378-2 01 1 1506- ●
21 07.629 BRACKET; SPARE TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98072-378-2 01 1 1506- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98036-085-2 01 1 1506- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W) (B) 		8-98036-085-2 01 1 1506- ●
21 07.629 BRACKET; SPARE TIRE HANGER
(B) 		8-98036-085-2 01 1 1506- ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330 		8-98226-501-0 02 1 1506- ● ●
34 07.629 BOLT; SPARE TIRE
M12X330 		8-98226-501-0 02 1 1506- ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98024-842-2 02 1 1506- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98024-842-2 02 1 1506- ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-98024-842-2 02 1 1506- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98035-827-1 02 1 1506- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-827-1 02 1 1506- ●
149 07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> 05.002 M12 		0-91110-512-0 02 1 1506- ● ●
149 07.629 NUT; CARRIER
05.002 M12 		0-91110-512-0 02 1 1506- ● ●
167 07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W) (A) 		8-94382-875-1 01 1 1506- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W) F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) (A) 		8-94382-875-1 01 1 1506- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) (B) 		8-98036-384-0 01 1 1506- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) (B) 		8-98036-384-0 01 1 1506- ●
167 07.629 HANGER; TIRE
(B) 		8-98036-384-0 01 1 1506- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97010-955-1 01 1 1506- ●
167 07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W) (A) 		8-97010-955-1 01 1 1506- ●
167 07.629 HANGER; TIRE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97010-955-1 01 1 1506- ●
167 07.629 HANGER; TIRE
(A) 		8-97010-955-1 01 1 1506- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98036-383-0 01 1 1506-1507 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) (B) 		8-98036-383-0 01 1 1506-1507 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) (B) 		8-98036-383-0 01 1 1508- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) (B) 		8-98036-383-0 01 1 1508- ●
168 07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1506- ● ●
168 07.633 WASHER; SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1506- ● ●
