Sayfa 5-20 - Isuzu EPC

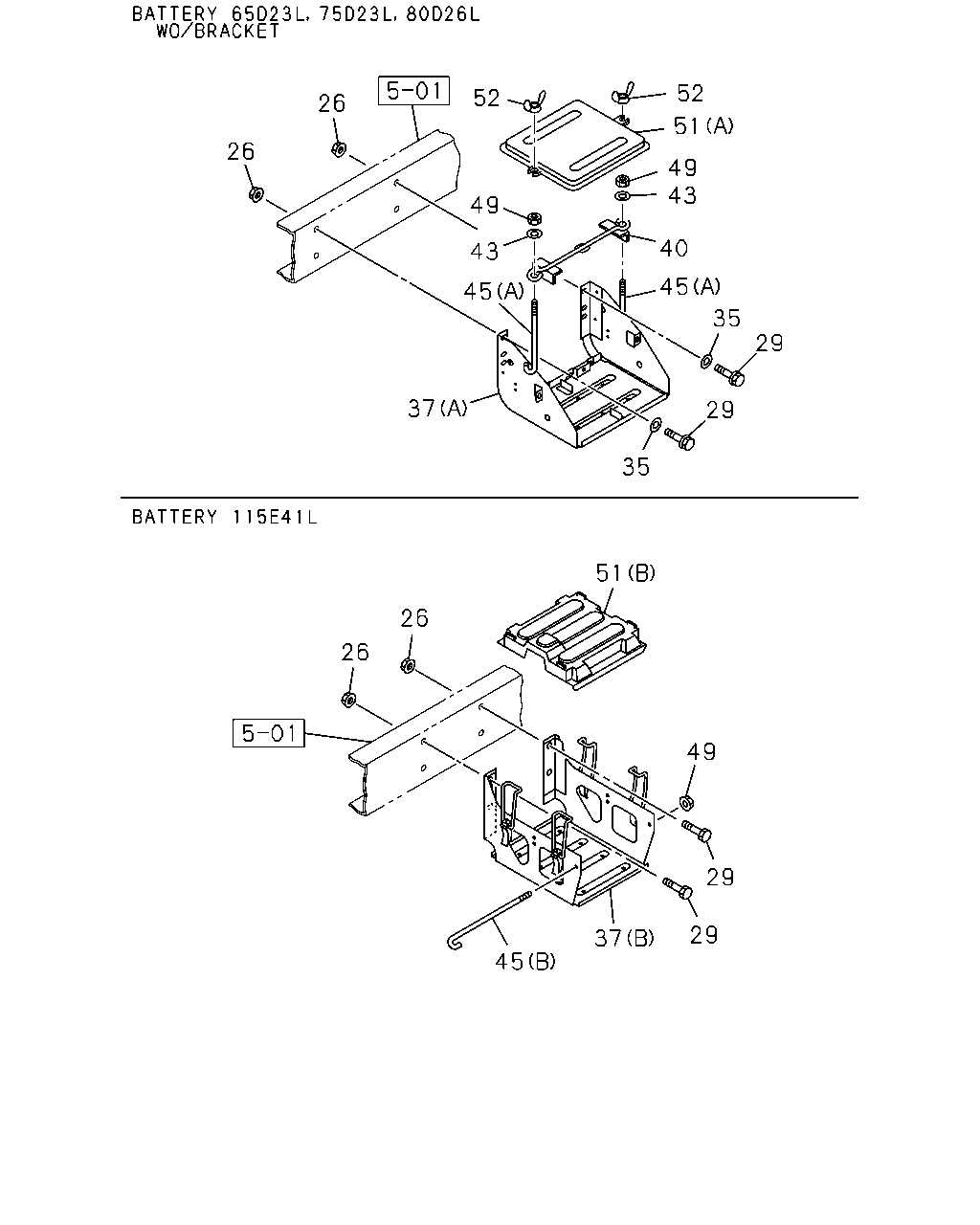

5-20 — BATTERY CARRIER (#162863) — 184 parça

52 52 49 51 40 43 45 29 35 29 35 37 45 43 49 26 26 51 49 29 29 37 45 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	1506-	●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	03	1	1506-	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1506-1507	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1506-1507		●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1506-1507			●	●	●
26	02.334 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1506-1507						●
26	02.334 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-	●
26	02.334 NUT; BRKT 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-		●
26	02.334 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 80D26L<TM1> 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-		●
26	02.334 NUT; BRKT 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1> 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-			●
26	02.334 NUT; BRKT EXC. BATTERY 80D26L<TM1> 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-				●	●	●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.023 M10X35 FLANGE	0-28661-035-0	03	1	1506-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507	●
29	02.334 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507			●		●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507						●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1508-	●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1508-		●				●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1508-			●		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1506-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1506-				●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507	●			●
35	02.334 WASHER; PL,BATTERY CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507		●
35	02.334 WASHER; PL,BATTERY CARRIER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507		●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507			●		●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507						●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-	●			●
35	02.334 WASHER; PL,BATTERY CARRIER FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-		●				●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-		●				●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41L<8MA> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-			●		●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1506-	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1506-	●			●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1506-		●	●		●	●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	1506-1507	●			●
40	02.335 CLAMP; BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1506-1507		●
40	02.335 CLAMP; BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1506-1507		●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1506-1507			●		●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1506-1507						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	1508-	●			●
40	02.335 CLAMP; BATTERY EXC. FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1508-		●				●
40	02.335 CLAMP; BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1508-		●				●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1508-			●		●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507	●			●
43	02.334 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507		●
43	02.334 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507		●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507			●		●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507						●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-	●			●
43	02.334 WASHER; PL,CLAMP EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-		●				●
43	02.334 WASHER; PL,CLAMP FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-		●				●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41L<8MA> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-			●		●
45	02.334 ROD; TENSION,BATTERY (A) L=120	9-53616-615-0	02	1	1506-1507	●			●
45	02.334 ROD; TENSION,BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1506-1507		●
45	02.334 ROD; TENSION,BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1506-1507		●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1506-1507			●		●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1506-1507						●
45	02.334 ROD; TENSION,BATTERY (A) L=120	9-53616-615-0	02	1	1508-	●			●
45	02.334 ROD; TENSION,BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> (A) L=120	9-53616-615-0	02	1	1508-		●				●
45	02.334 ROD; TENSION,BATTERY EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1508-		●				●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (A) L=120	9-53616-615-0	02	1	1508-			●		●
45	02.334 ROD; TENSION,BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1506-1507		●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1506-1507			●		●
45	02.334 ROD; TENSION,BATTERY FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1506-1507						●
45	02.334 ROD; TENSION,BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 80D26L<TM1> (B) L=430	8-97134-740-0	02	1	1508-		●				●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 80D26L<TM1> (B) L=430	8-97134-740-0	02	1	1508-			●		●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507	●		●	●	●
49	02.334 NUT; ROD,BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507		●
49	02.334 NUT; ROD,BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507		●
49	02.334 NUT; ROD,BATTERY FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507						●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●	●	●	●	●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	1506-1507	●			●
51	02.335 COVER; BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1506-1507		●
51	02.335 COVER; BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1506-1507		●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1506-1507			●		●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1506-1507						●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	1508-	●			●
51	02.335 COVER; BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> (A)	8-97120-747-0	01	1	1508-		●				●
51	02.335 COVER; BATTERY EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1508-		●				●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41L<8MA> (A)	8-97120-747-0	01	1	1508-			●		●
51	02.335 COVER; BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1506-1507		●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1506-1507			●		●
51	02.335 COVER; BATTERY FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1506-1507						●
51	02.335 COVER; BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 80D26L<TM1> (B)	1-53612-029-1	01	1	1508-		●				●
51	02.335 COVER; BATTERY EXC. BATTERY 80D26L<TM1> (B)	1-53612-029-1	01	1	1508-			●		●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	1506-1507	●			●
52	02.335 NUT; WING,COVER FIX WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1506-1507		●
52	02.335 NUT; WING,COVER FIX 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1506-1507		●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1506-1507			●		●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1506-1507						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	1508-	●			●
52	02.335 NUT; WING,COVER FIX EXC. FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1508-		●				●
52	02.335 NUT; WING,COVER FIX FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1508-		●				●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1508-			●		●

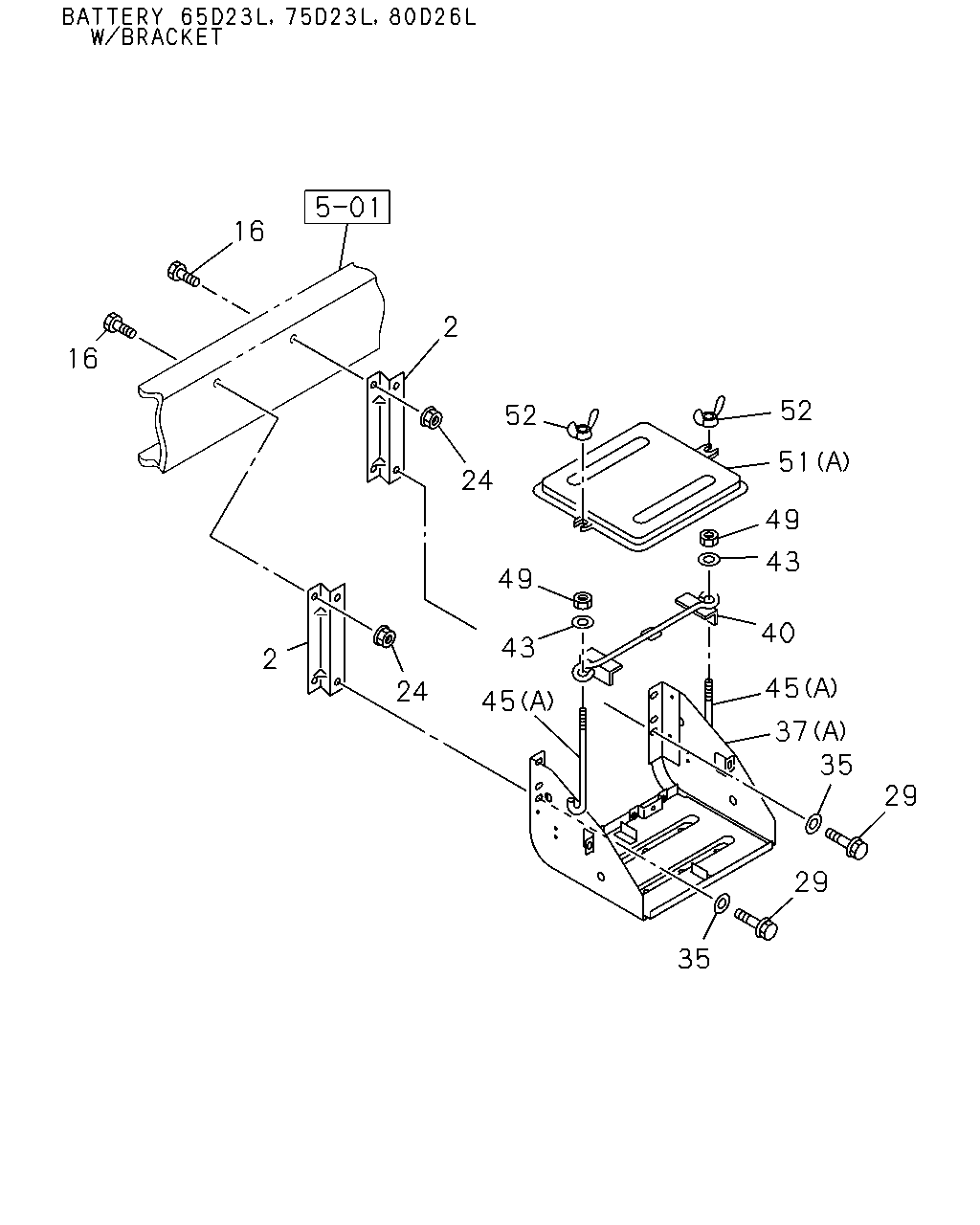

16 16 2 52 24 49 43 45 24 2 35 29 29 35 37 40 43 49 51 52 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	02.333 BRACKET; BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98180-835-0	02	1	1506-		●
16	02.334 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1506-1507		●
16	02.334 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1508-		●
24	02.334 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1506-		●
24	02.334 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.023 M10X35 FLANGE	0-28661-035-0	03	1	1506-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507	●
29	02.334 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507			●		●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1506-1507						●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1508-	●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1508-		●				●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1508-			●		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1506-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1506-				●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507	●			●
35	02.334 WASHER; PL,BATTERY CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507		●
35	02.334 WASHER; PL,BATTERY CARRIER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507		●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507			●		●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1506-1507						●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-	●			●
35	02.334 WASHER; PL,BATTERY CARRIER FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-		●				●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-		●				●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41L<8MA> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-			●		●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1506-	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1506-	●			●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1506-		●	●		●	●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	1506-1507	●			●
40	02.335 CLAMP; BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1506-1507		●
40	02.335 CLAMP; BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1506-1507		●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1506-1507			●		●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1506-1507						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	1508-	●			●
40	02.335 CLAMP; BATTERY EXC. FRAME STRAIGHT TYPE<7KJ>	5-53615-004-1	01	1	1508-		●				●
40	02.335 CLAMP; BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1508-		●				●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1508-			●		●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507	●			●
43	02.334 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507		●
43	02.334 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507		●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507			●		●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1506-1507						●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-	●			●
43	02.334 WASHER; PL,CLAMP EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-		●				●
43	02.334 WASHER; PL,CLAMP FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-		●				●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41L<8MA> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-			●		●
45	02.334 ROD; TENSION,BATTERY (A) L=120	9-53616-615-0	02	1	1506-1507	●			●
45	02.334 ROD; TENSION,BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1506-1507		●
45	02.334 ROD; TENSION,BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1506-1507		●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1506-1507			●		●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1506-1507						●
45	02.334 ROD; TENSION,BATTERY (A) L=120	9-53616-615-0	02	1	1508-	●			●
45	02.334 ROD; TENSION,BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> (A) L=120	9-53616-615-0	02	1	1508-		●				●
45	02.334 ROD; TENSION,BATTERY EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=120	9-53616-615-0	02	1	1508-		●				●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (A) L=120	9-53616-615-0	02	1	1508-			●		●
45	02.334 ROD; TENSION,BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1506-1507		●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1506-1507			●		●
45	02.334 ROD; TENSION,BATTERY FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1506-1507						●
45	02.334 ROD; TENSION,BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 80D26L<TM1> (B) L=430	8-97134-740-0	02	1	1508-		●				●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 80D26L<TM1> (B) L=430	8-97134-740-0	02	1	1508-			●		●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507	●		●	●	●
49	02.334 NUT; ROD,BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507		●
49	02.334 NUT; ROD,BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507		●
49	02.334 NUT; ROD,BATTERY FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507						●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●	●	●	●	●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	1506-1507	●			●
51	02.335 COVER; BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1506-1507		●
51	02.335 COVER; BATTERY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1506-1507		●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1506-1507			●		●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1506-1507						●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	1508-	●			●
51	02.335 COVER; BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> (A)	8-97120-747-0	01	1	1508-		●				●
51	02.335 COVER; BATTERY EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-747-0	01	1	1508-		●				●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41L<8MA> (A)	8-97120-747-0	01	1	1508-			●		●
51	02.335 COVER; BATTERY WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1506-1507		●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1506-1507			●		●
51	02.335 COVER; BATTERY FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1506-1507						●
51	02.335 COVER; BATTERY FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 80D26L<TM1> (B)	1-53612-029-1	01	1	1508-		●				●
51	02.335 COVER; BATTERY EXC. BATTERY 80D26L<TM1> (B)	1-53612-029-1	01	1	1508-			●		●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	1506-1507	●			●
52	02.335 NUT; WING,COVER FIX WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1506-1507		●
52	02.335 NUT; WING,COVER FIX 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1506-1507		●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1506-1507			●		●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1506-1507						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	1508-	●			●
52	02.335 NUT; WING,COVER FIX EXC. FRAME STRAIGHT TYPE<7KJ> M8 WING NUT	0-91118-408-0	02	1	1508-		●				●
52	02.335 NUT; WING,COVER FIX FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1508-		●				●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1508-			●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
