4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#162844) — 163 parça

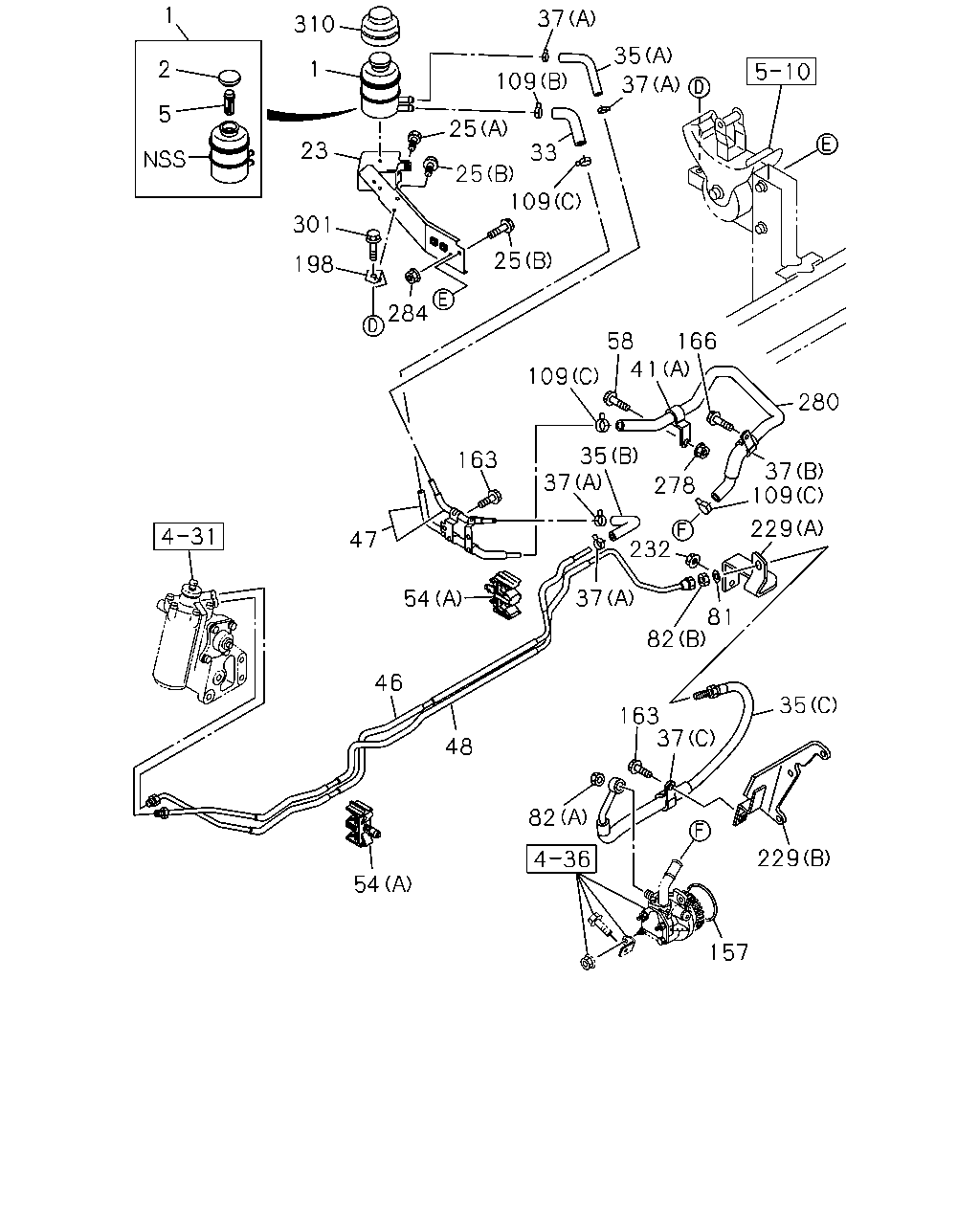

1 2 5 310 23 301 198 284 1 25 25 25 109 109 37 37 35 33 109 58 166 41 280 37 229 82 37 54 47 163 35 37 232 81 278 109 35 163 37 82 54 46 48 229 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1506-		●	●
35	06.671 HOSE; RETURN,P/S TANK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-679-0	01	1	1506-					●	●
35	06.671 HOSE; RETURN,P/S TANK EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-490-3	01	1	1506-					●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1506-	●			●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1506-		●	●		●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1506-		●	●		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1506-	●			●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1506-	●			●
41	06.672 CLIP; HOSE,P/S (A)	8-98074-004-0	01	1	1506-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	1506-		●	●		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1506-	●			●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	1506-		●	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	1506-					●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1506-	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1506-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1506-					●	●
54	06.672 CLIP; OIL PIPE (B)	8-98057-283-0	02	1	1506-	●			●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	02	1	1506-		●	●		●	●
58	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1506-		●	●		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1506-	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1506-		●	●		●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-	●			●
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	03	1	1506-		●	●		●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1506-		●	●		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1506-	●			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1506-	●	●	●	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1506-		●	●		●	●
229	06.606 BRACKET; HOSE,POWER STRG (A)	8-98079-341-0	01	1	1506-		●	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672 (C)	8-98043-418-2	01	1	1506-					●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●	●		●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1506-	●			●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98052-247-1	01	1	1506-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1506-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98043-488-1	01	1	1506-					●	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98043-489-0	01	1	1506-					●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●	●		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1506-	●	●	●

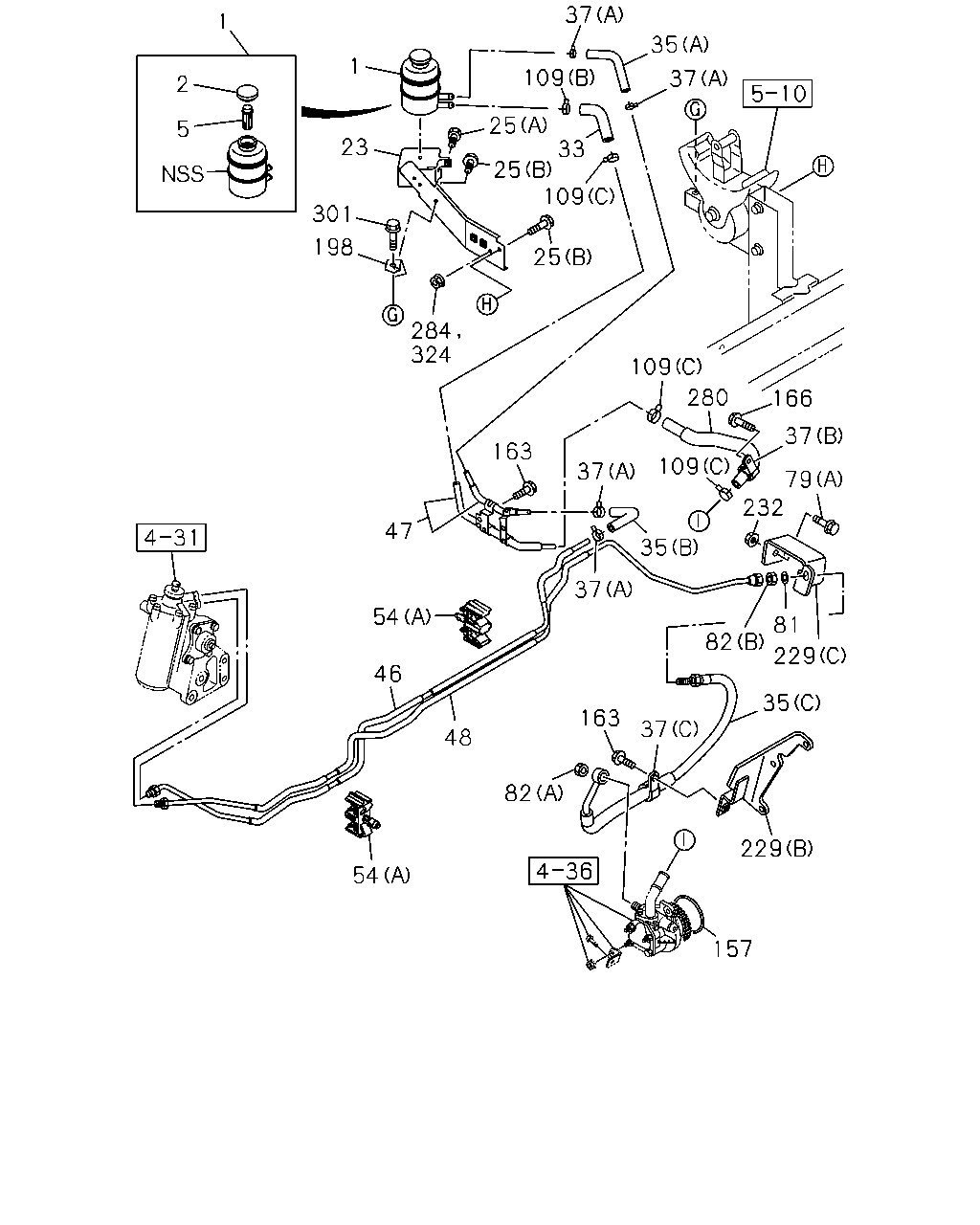

1 2 5 1 23 301 198 284 163 47 54 46 48 54 82 157 229 37 163 82 35 229 37 81 35 37 109 109 166 79 232 109 280 37 35 37 109 25 25 33 25 324 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1506-		●	●
35	06.671 HOSE; RETURN,P/S TANK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-679-0	01	1	1506-					●	●
35	06.671 HOSE; RETURN,P/S TANK EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-490-3	01	1	1506-					●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1506-	●			●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1506-		●	●		●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1506-		●	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	1506-		●	●		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1506-	●			●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	1506-		●	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	1506-					●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1506-	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1506-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1506-					●	●
54	06.672 CLIP; OIL PIPE (B)	8-98057-283-0	02	1	1506-	●			●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	02	1	1506-		●	●		●	●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	1506-	●			●
79	06.672 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1506-					●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1506-		●	●		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1506-	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1506-		●	●		●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-	●			●
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	03	1	1506-		●	●		●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1506-		●	●		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1506-	●			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1506-	●	●	●	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1506-		●	●		●	●
229	06.606 BRACKET; HOSE,POWER STRG (A)	8-98079-341-0	01	1	1506-		●	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672 (C)	8-98043-418-2	01	1	1506-					●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●	●		●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1506-	●			●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98052-247-1	01	1	1506-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1506-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98043-488-1	01	1	1506-					●	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98043-489-0	01	1	1506-					●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●	●		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●	●	●	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-					●	●

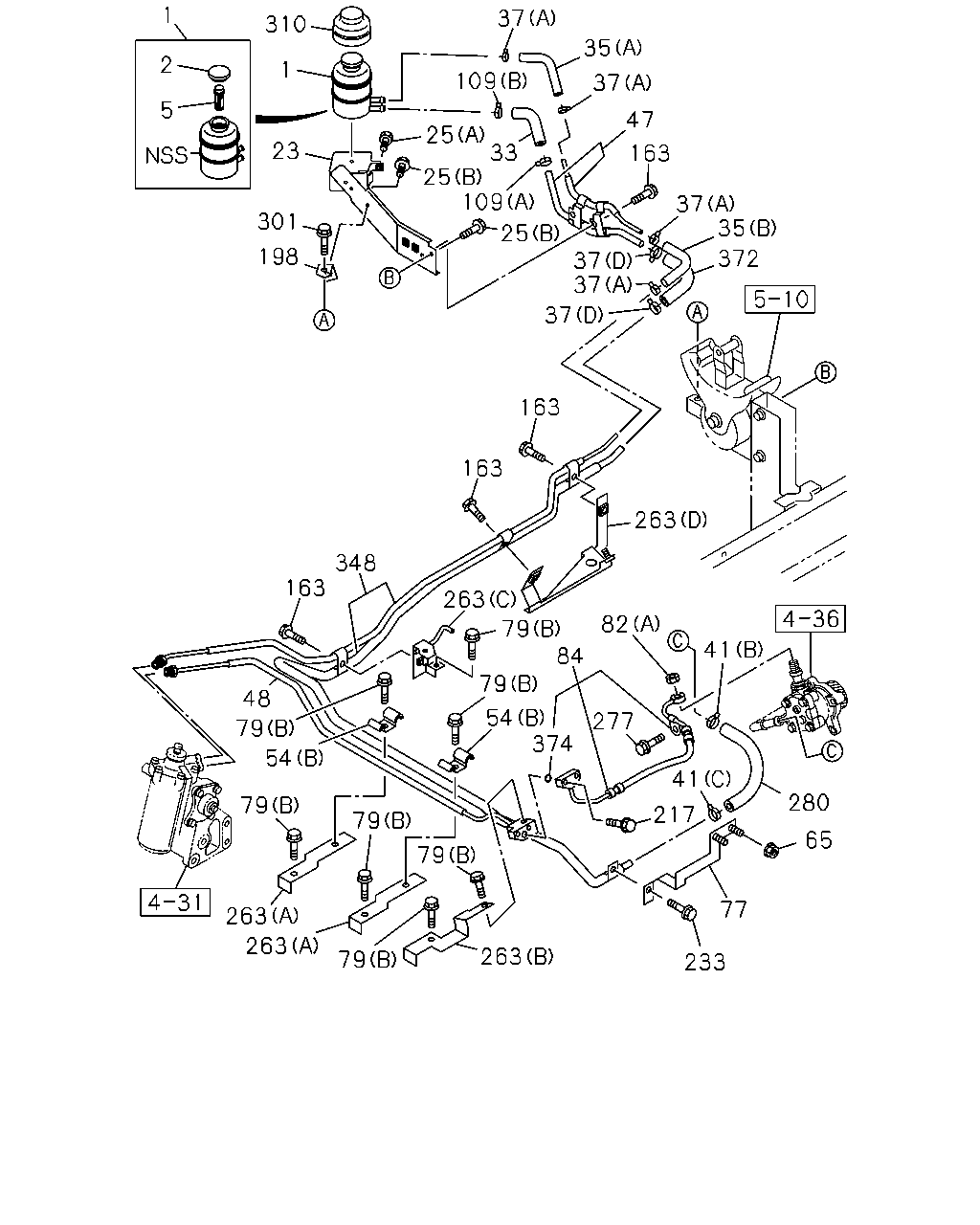

1 2 5 310 1 23 301 25 109 37 37 37 25 198 25 33 109 37 37 35 47 37 163 35 163 372 163 263 82 41 79 263 348 163 48 79 54 79 84 79 54 277 217 280 65 77 233 263 79 79 79 263 263 41 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1506-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1506-		●	●
35	06.671 HOSE; RETURN,P/S TANK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-679-0	01	1	1506-					●	●
35	06.671 HOSE; RETURN,P/S TANK EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-490-3	01	1	1506-					●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1506-	●			●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1506-		●	●		●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1506-		●	●		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1506-	●			●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1506-	●			●
41	06.672 CLIP; HOSE,P/S (A)	8-98074-004-0	01	1	1506-		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1506-	●			●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	1506-		●	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	1506-					●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1506-	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1506-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1506-					●	●
54	06.672 CLIP; OIL PIPE (B)	8-98057-283-0	02	1	1506-	●			●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	02	1	1506-		●	●		●	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●			●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1506-	●			●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	1506-	●			●
79	06.672 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1506-					●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1506-	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1506-		●	●		●	●
84	06.670 HOSE; FLEX,P/S	8-98175-560-0	01	1	1506-	●			●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-	●			●
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	03	1	1506-		●	●		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1506-	●			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●	●		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1506-	●	●	●	●	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-	●			●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●			●
263	06.672 BRACKET; P/S PIPE (D)	8-98006-233-1	01	1	1506-	●			●
263	06.672 BRACKET; P/S PIPE (A)	8-98047-047-1	02	1	1506-	●			●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1506-	●			●
263	06.672 BRACKET; P/S PIPE (C)	8-98047-050-1	01	1	1506-	●			●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●			●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1506-	●			●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98052-247-1	01	1	1506-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1506-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98043-488-1	01	1	1506-					●	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98043-489-0	01	1	1506-					●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1506-	●	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-610-1	01	1	1506-	●			●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1506-	●			●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1506-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
